RAP-B-138-UN7U RAM® X-Grip® High-Strength Composite Phone Mount with Drill-Down Base
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
* Includes drill-down 2.5" round base and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of stainless steel components and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

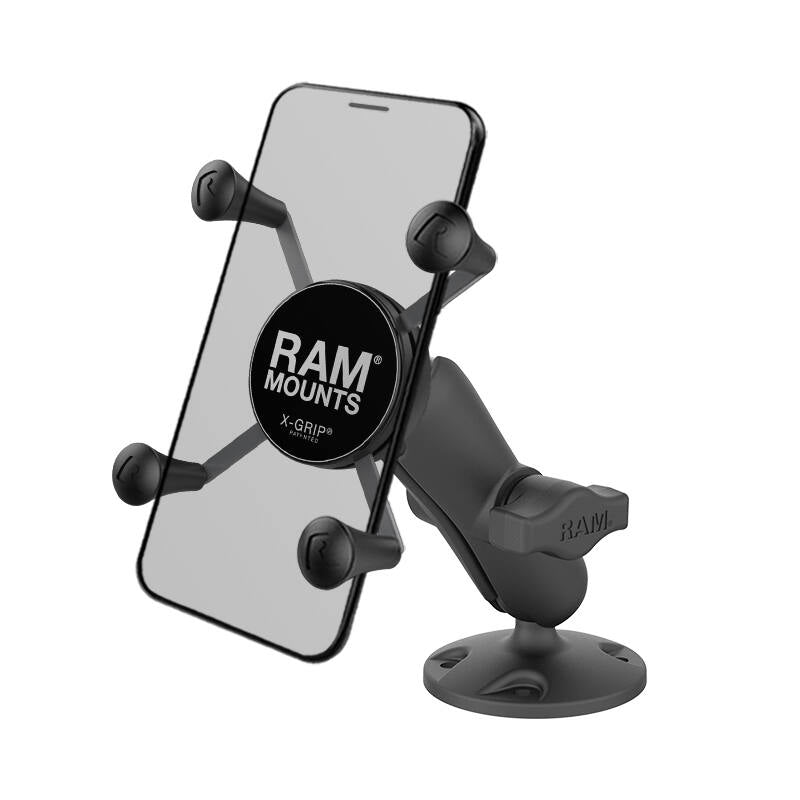

This mount consists of a composite 63mm diameter round base with the universal AMPS hole pattern, composite 94mm double socket arm and universal spring loaded X-Grip® cradle for cell phones. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you to move the mount to your optimum viewing position.
The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved.

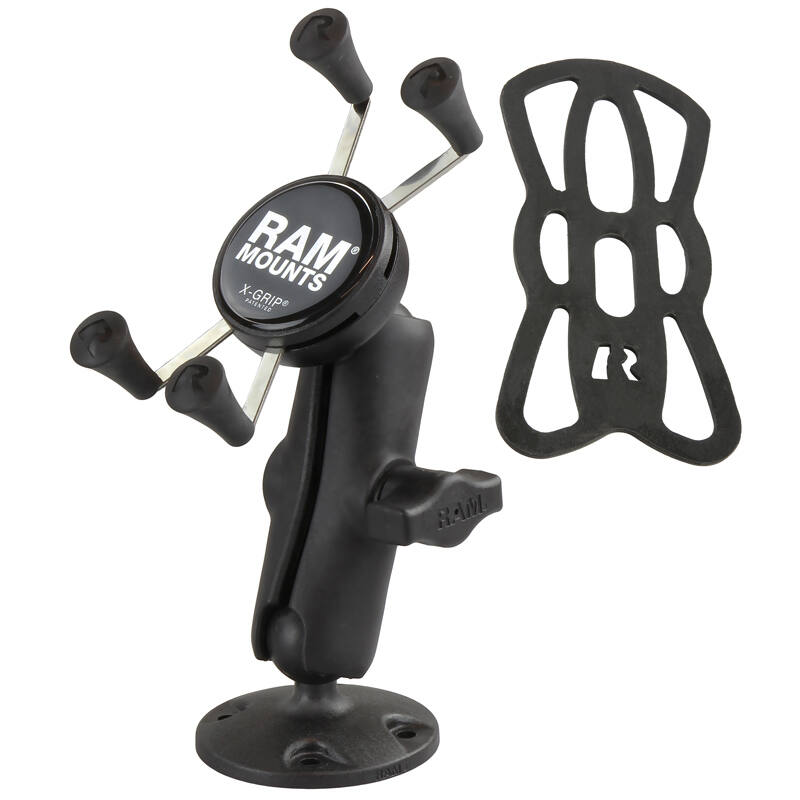

The X-Grip includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Minimum Width = 47.6mm / 1.875” – (if it is minimum width then the minimum height = 108mm / 4.25")
Maximum Width = 82.6mm / 3.25" – (if it is maximum width then the minimum height = 57.2mm / 2.25")
Maximum Thickness = 22.2mm / 0.875"
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU
Ball Size:
1" Rubber Ball "B" Size
Arm Dimensions:
Overall Length: 94mm (3.69")
Socket-To-Socket Length: 76mm (3")
Material:
Marine Grade Stainless Steel Components
High Strength Composite
Weight:
336 grams / 0.74 lbs.
Components:

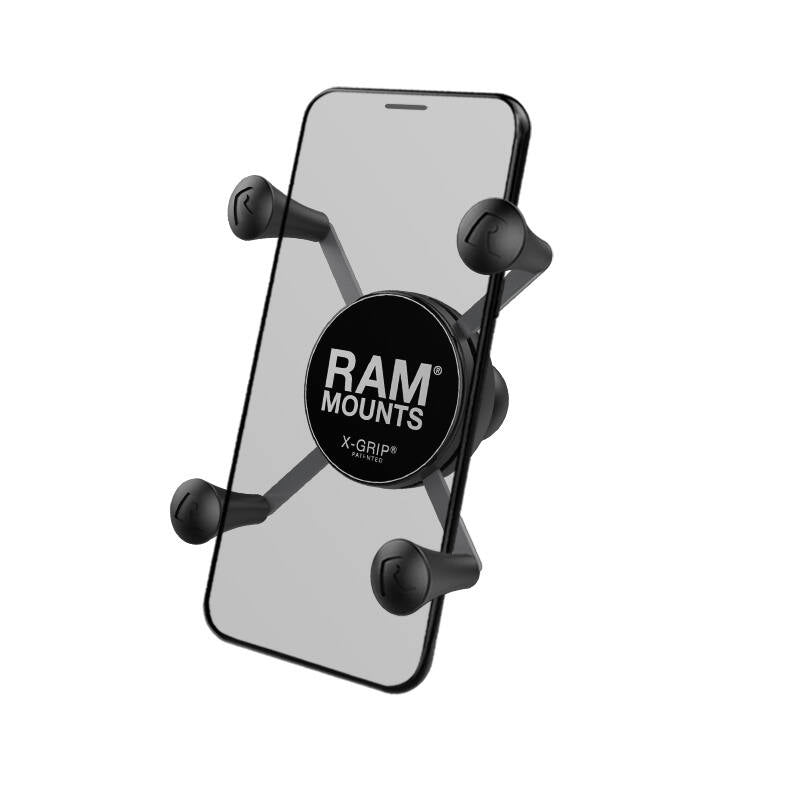

RAM-HOL-UN7BU - X Grip Holder
RAP-B-201U - composite standard double socket arm

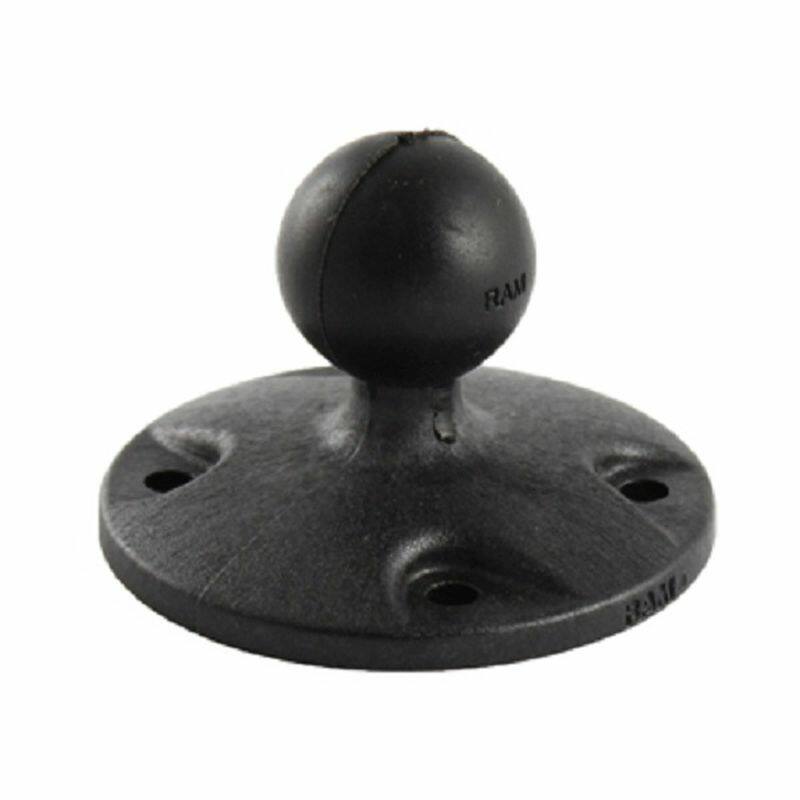

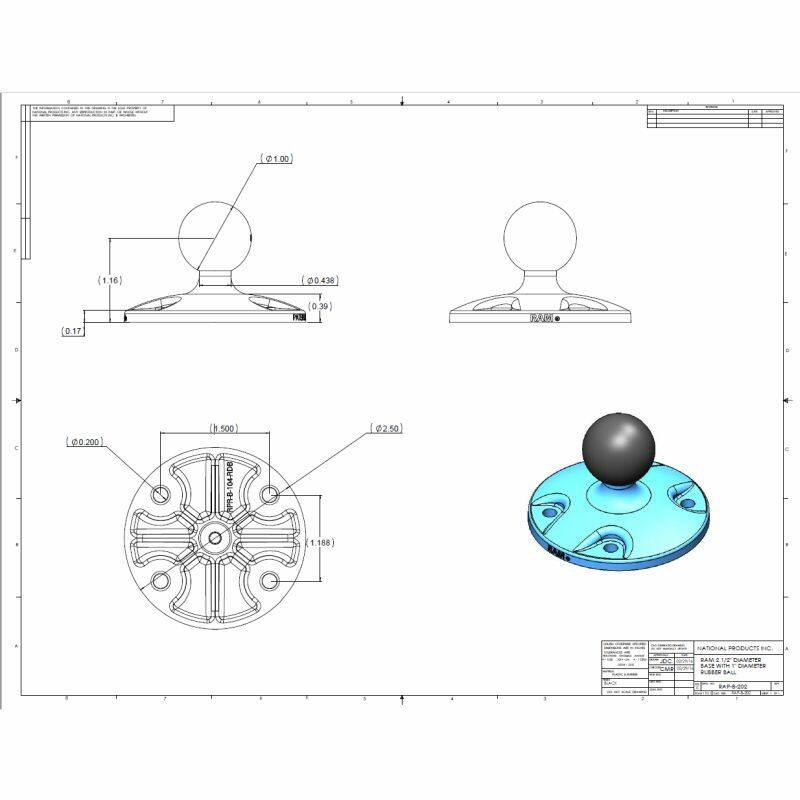

RAP-B-202U - Composite Round base
