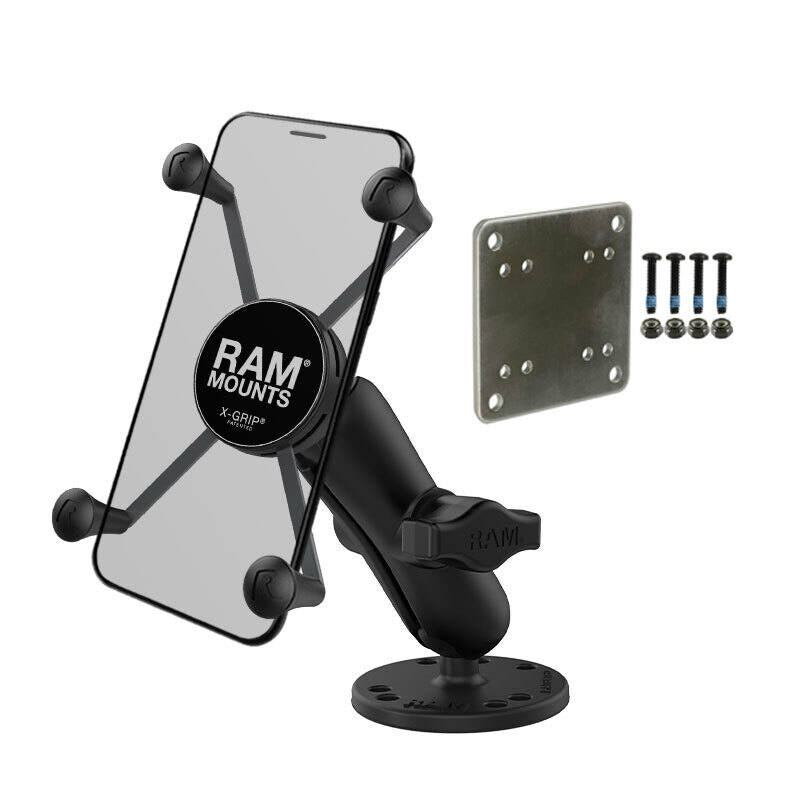

RAM-B-138-UN7-225BU RAM® X-Grip® Phone Mount with Drill-Down Base & Backer Plate

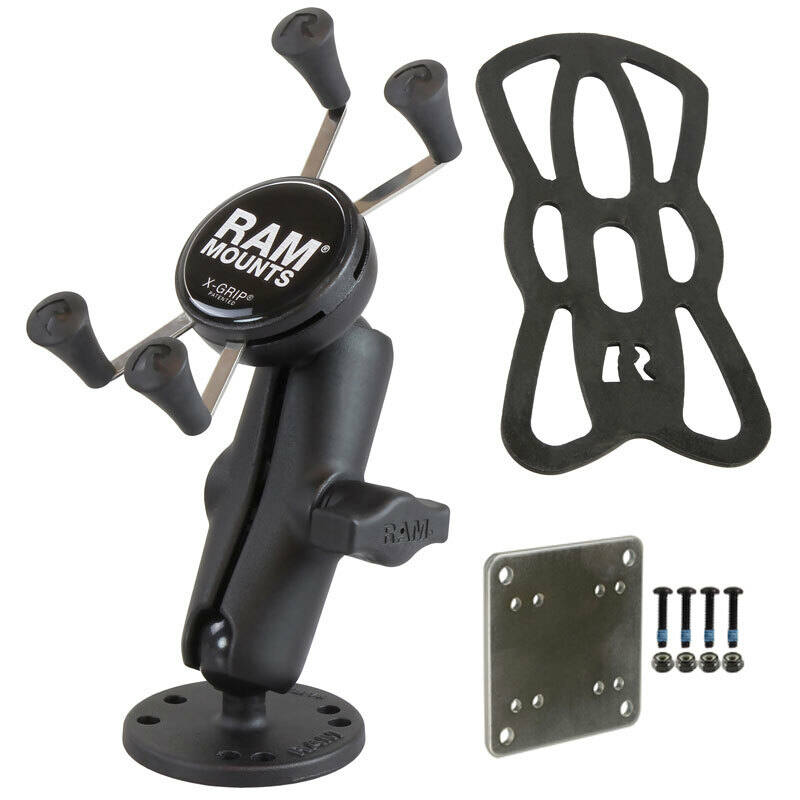

This mount consists of a round base, steel backer plate, double socket arm and universal spring loaded X-Grip® cradle for cell phones. The rubber ball and socket system with adjustment points allows you to move the mount to your optimum viewing position.

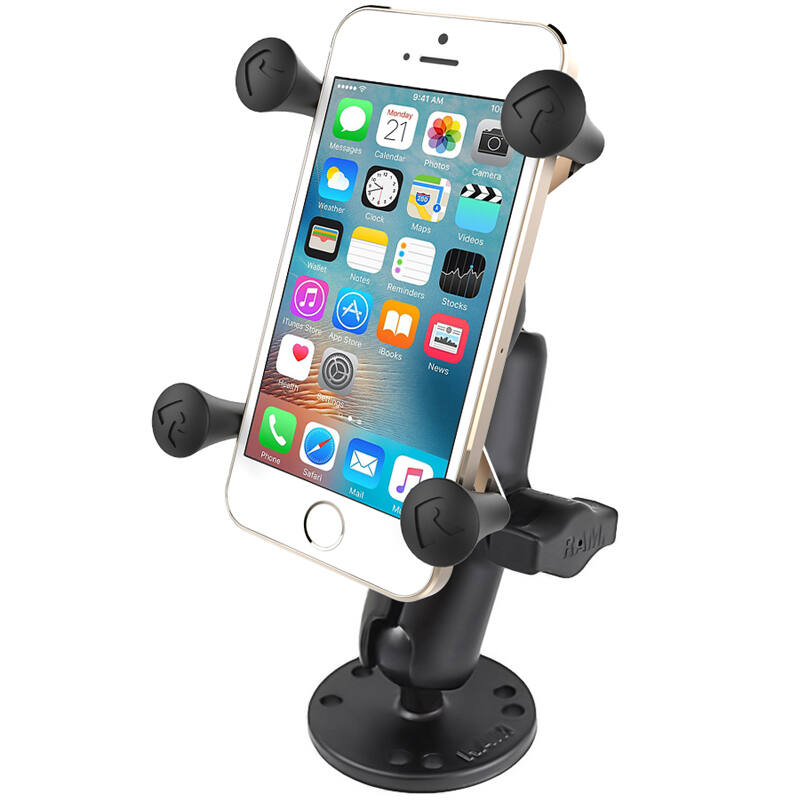

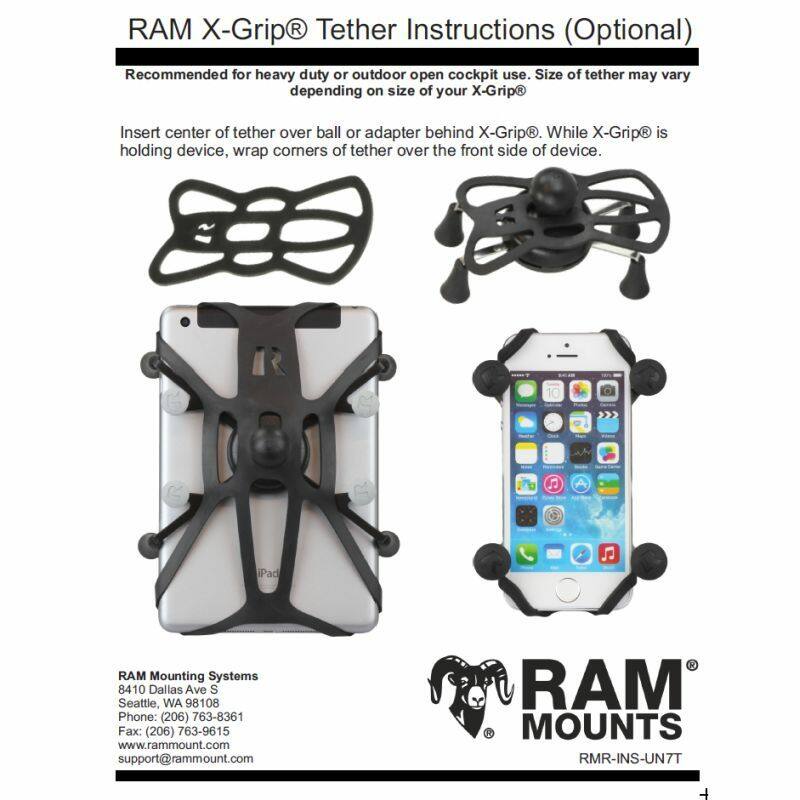

The sping-loaded X-Grip cradle has a clean and clever four leg design that expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the following dimensions. Check the dimensions of your hand-held device with a case / sleeve / skin when determining the overall size
Cradle Dimensions
Min Width = 47.6mm / 1.875” – (if min width then min height = 108mm / 4.25")
Max Width = 82.6mm / 3.25" – (if max width then min height = 57.2mm / 2.25")
Max Thickness = 22.2mm / 0.875"
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU
Features:
* Rustproof Powder Coated Marine Grade Aluminium, Marine Grade Stainless Steel Components & High Strength Composite
* Rubber coated tips will hold device firm and stable
* Lifetime warranty
* Made in U.S.A.
* Assembly Hardware Included

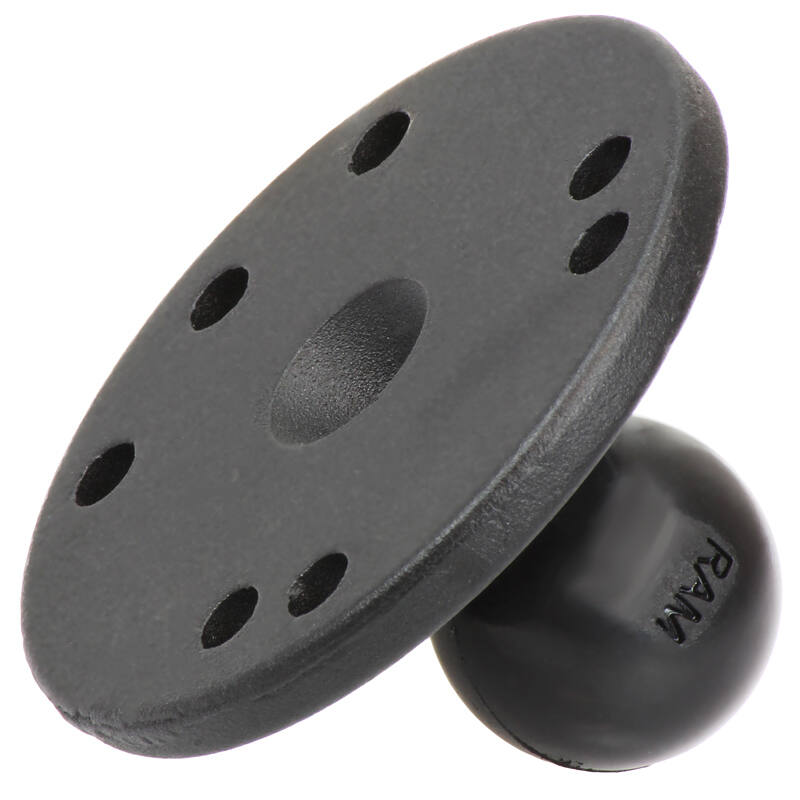

Round Base Plate
63.5mm / 2.5" diameter
Round Plate Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

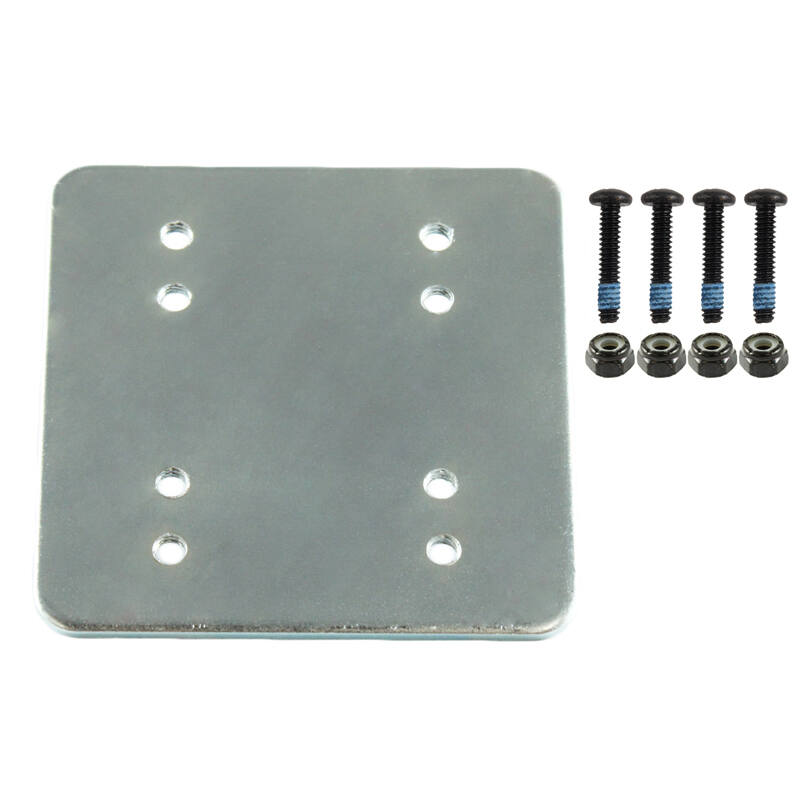

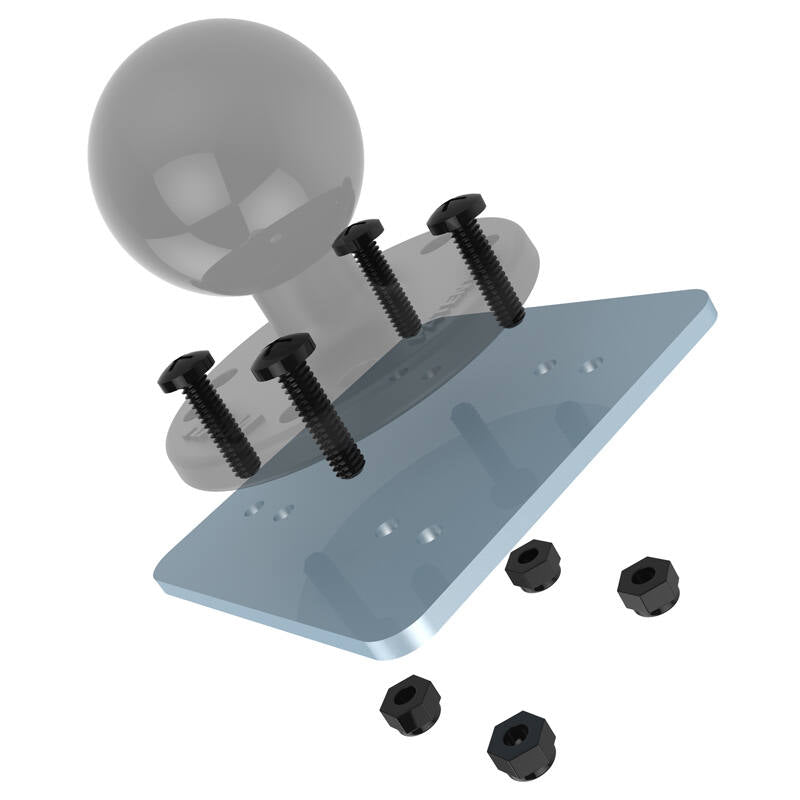

Backing Plate Dimensions:
76.2mm x 76.2mm
Arm Dimensions:
Overall: 94mm (3.69")
Socket-To-Socket: 76mm (3")
Ball Size:
1" "B" Size
Weight:
336 grams / 0.74 lbs.
Weight Capacity
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)
Components:

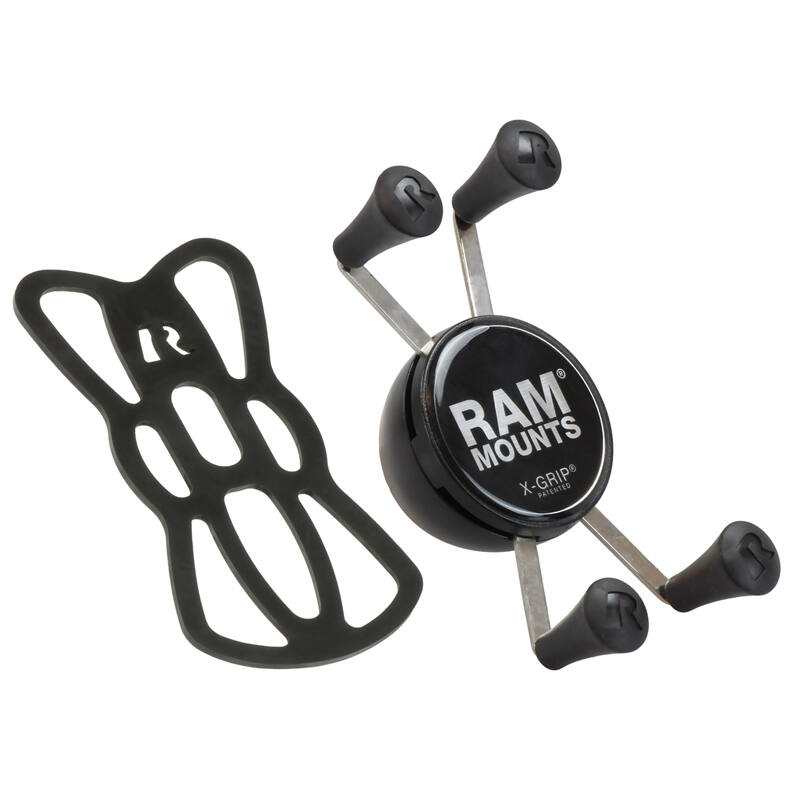

RAM-HOL-UN7BU X-Grip Holder
RAM-B-201U double socket arm
RAM-B-202U Round base
RAM-202-225BU Backing Plate Adapter
