RAM Mounts

RAM X-Grip Universal SmartPhone Cradle - Fuel Tank Motorcycle Mount (Large)

RAM X-Grip Universal SmartPhone Cradle - Fuel Tank Motorcycle Mount (Large)

SKU:RAM-B-411-A-UN7BU-V

Regular price $185.61 NZD
Regular price Sale price $185.61 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

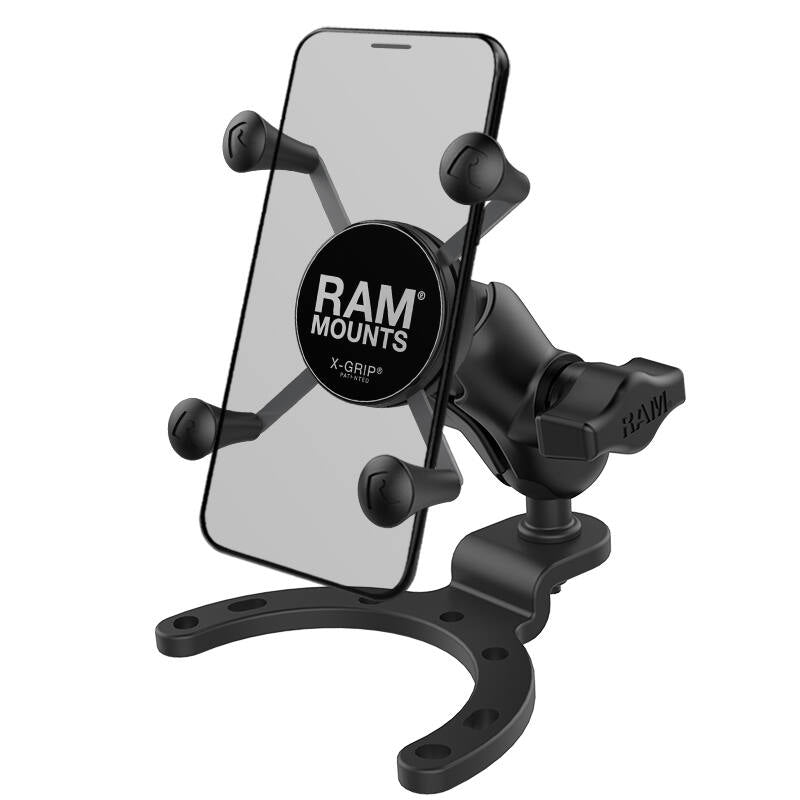

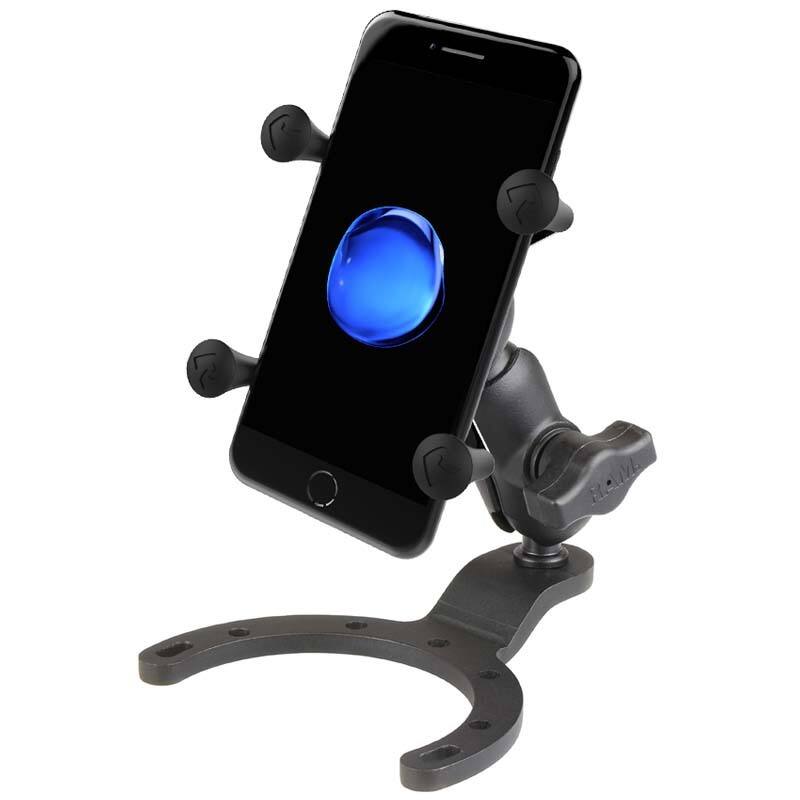

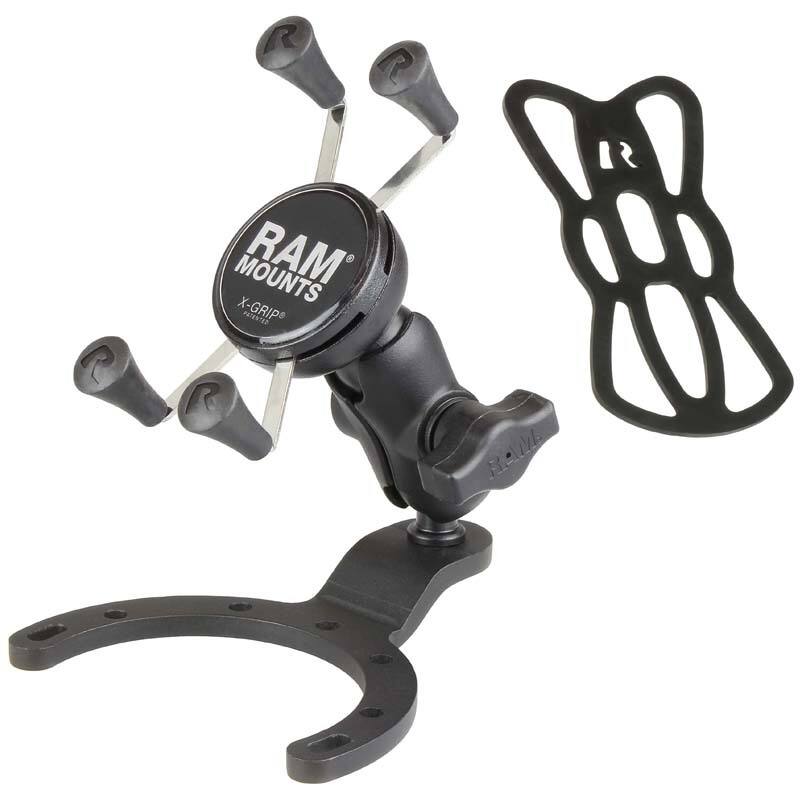

RAM-B-411-A-UN7BU RAM® X-Grip® Phone Mount with Large Gas Tank Base

Features

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
* Low Profile Gas tank mount keeps the phone central and easily accessible
* RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty


This is a low-profile way to attach your phone where it can be quickly accessible. The powder coated aluminium base mounts directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you need to mount to the fill port as well.

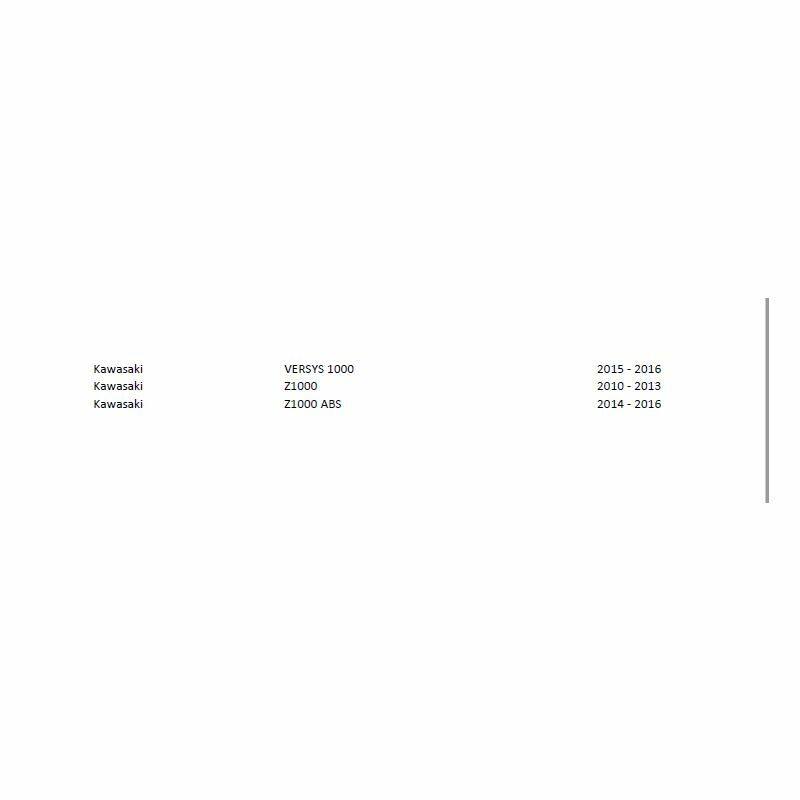

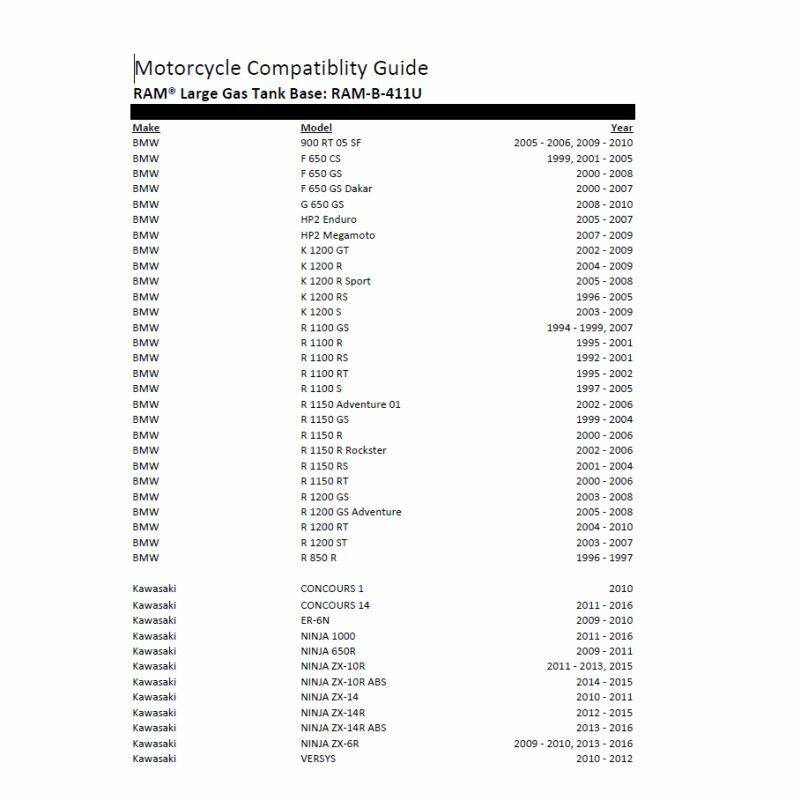

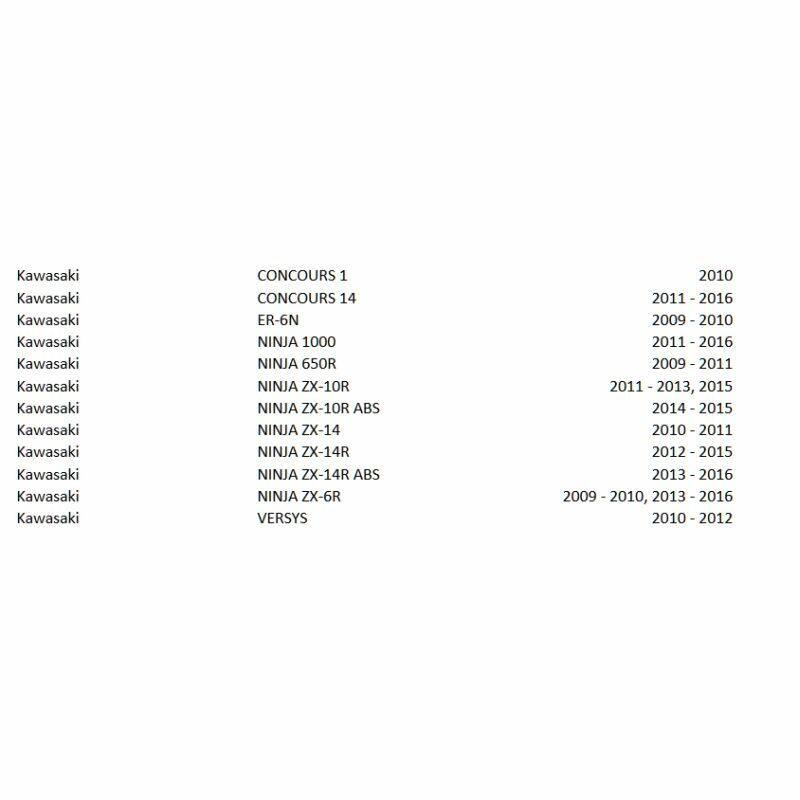

Suits BMW and Kawasaki models (see attached diagram and model list - list may not be exhaustive)

The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone. The RAM X-Grip is the cell phone holder evolved and includes a device tether recommended for outdoor applications.


The cradle is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your hand-held device with its case/sleeve/skin


Cradle Dimensions
Minimum Width = 47.6mm / 1.875” – (if it is minimum width then the minimum height = 108mm / 4.25")
Maximum Width = 82.6mm / 3.25" – (if it is maximum width then the minimum height = 57.2mm / 2.25")
Maximum Thickness = 22.2mm / 0.875"


Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU

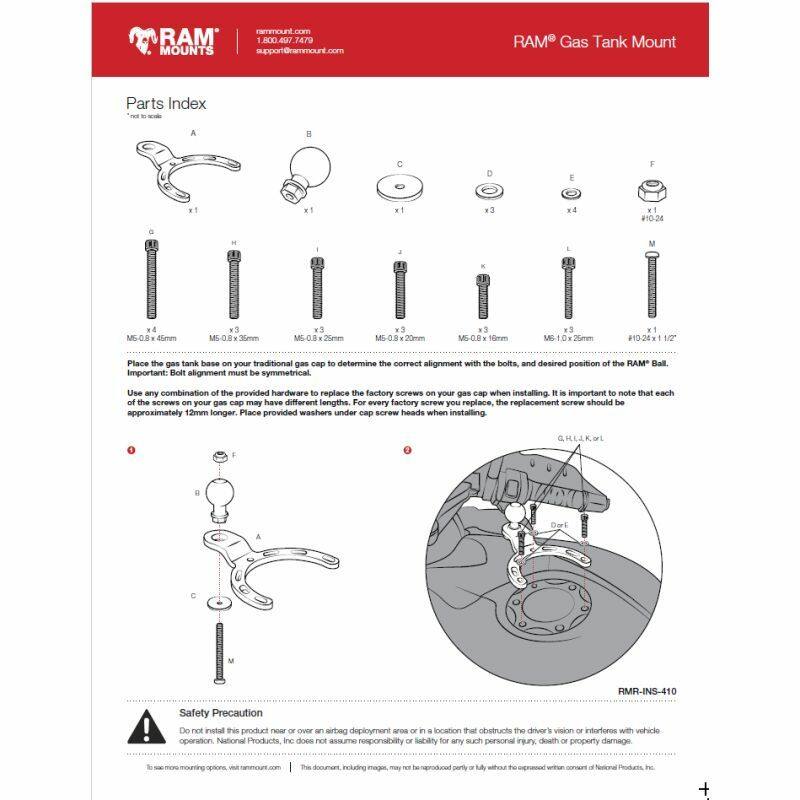

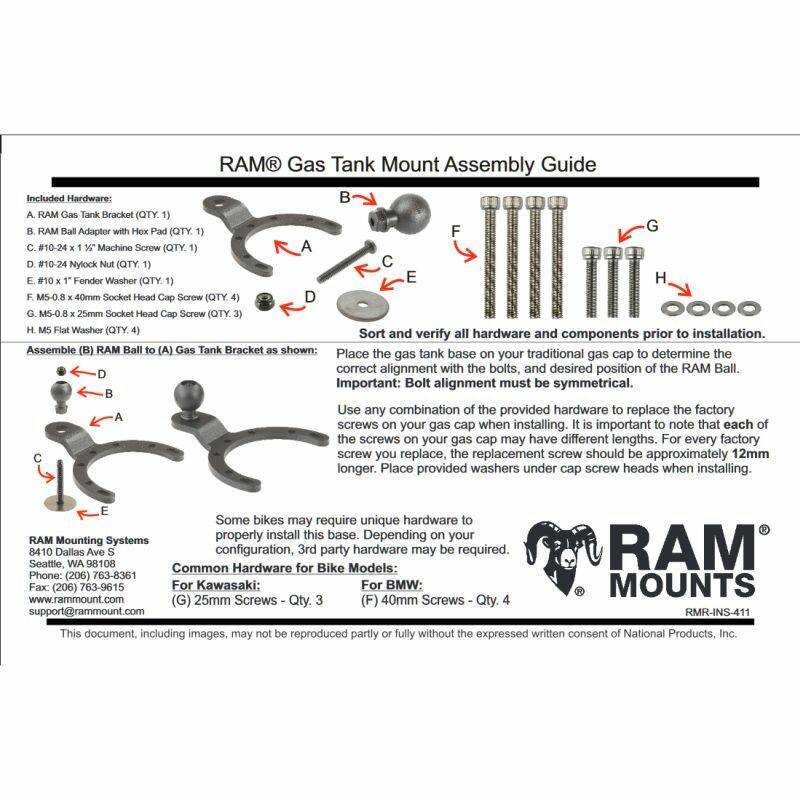

Included Hardware:
Qty. 4 M5-0.8 x 40MM Socket Head Cap Screw
Qty. 3 M5-0.8 x 25MM Socket Head Cap Screw
Qty. 4 M5 Stainless Steel Flat Washer


Arm Dimensions:
Overall Length: 60.5mm (2.38")
Socket-To-Socket Length: 51mm (2")


Material:
Powder Coated Marine Grade Aluminium
High Strength Composite


Ball Size:
"B" Size 1"


Components:

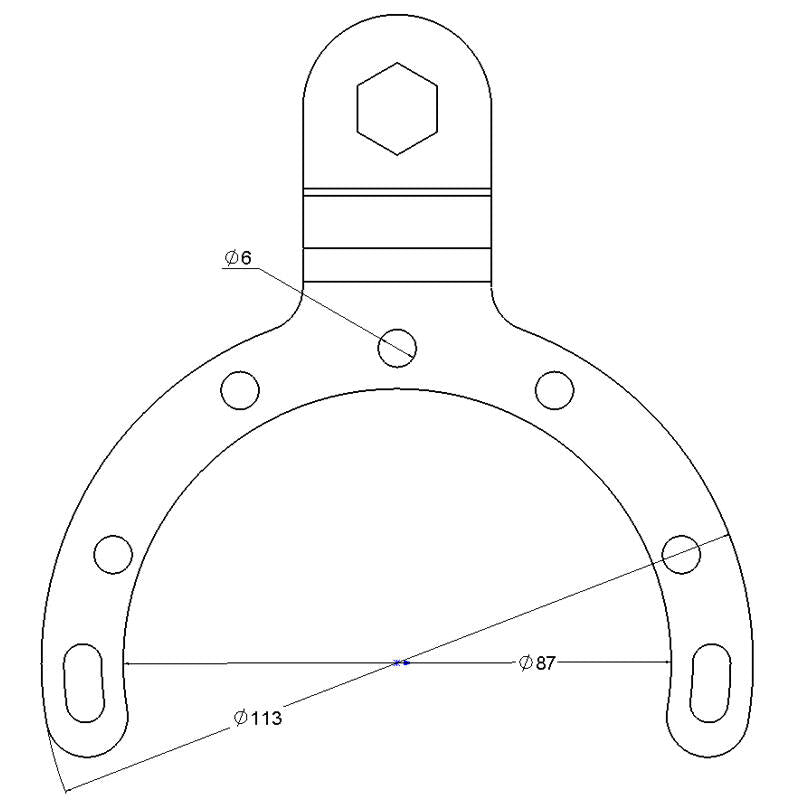

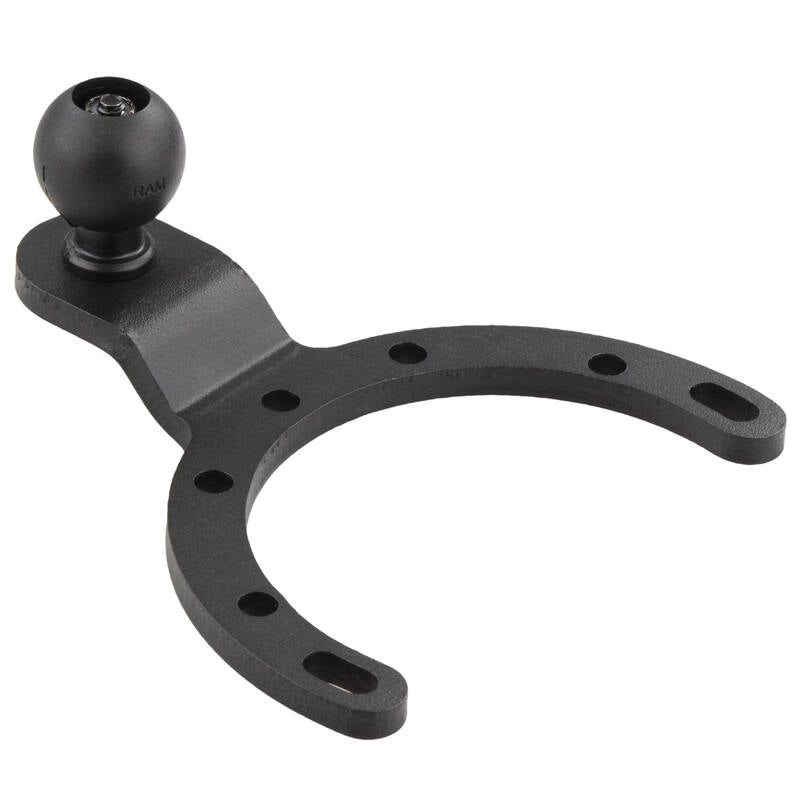

RAM-B-411U GAS TANK BRACKET
RAM-B-201U-A SHORT DOUBLE SOCKET ARM
RAM-HOL-UN7BU X-GRIP CRADLE


YouTube:
https://www.youtube.com/watch?v=W4yAN0vM0rg
