RAM-B-410-A-UN7BU Small Fuel / Gas Tank base
Features:
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
* Low Profile Gas tank mount keeps the phone central and easily accessible
* RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

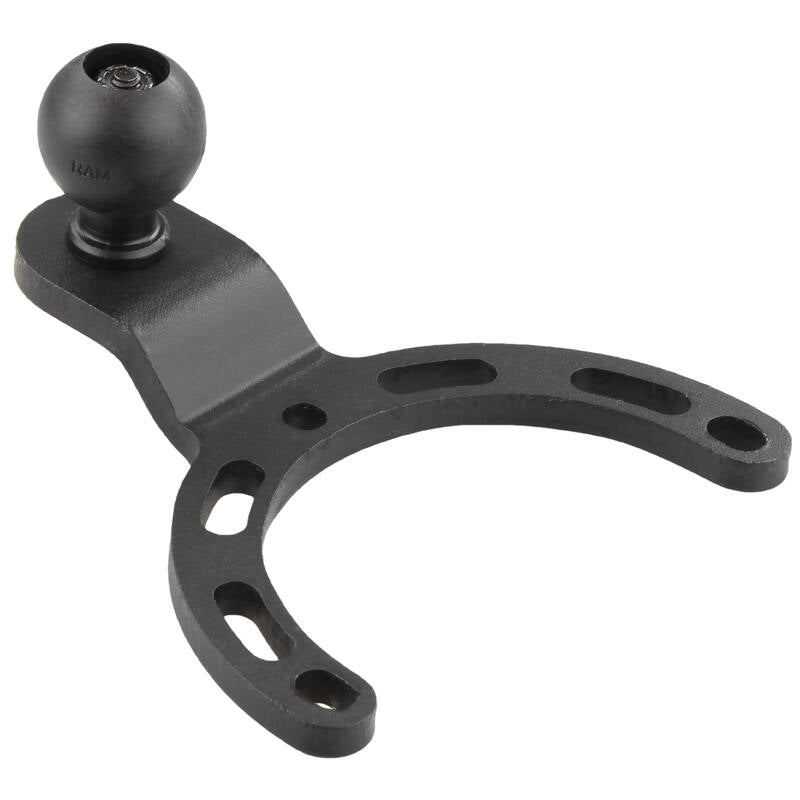

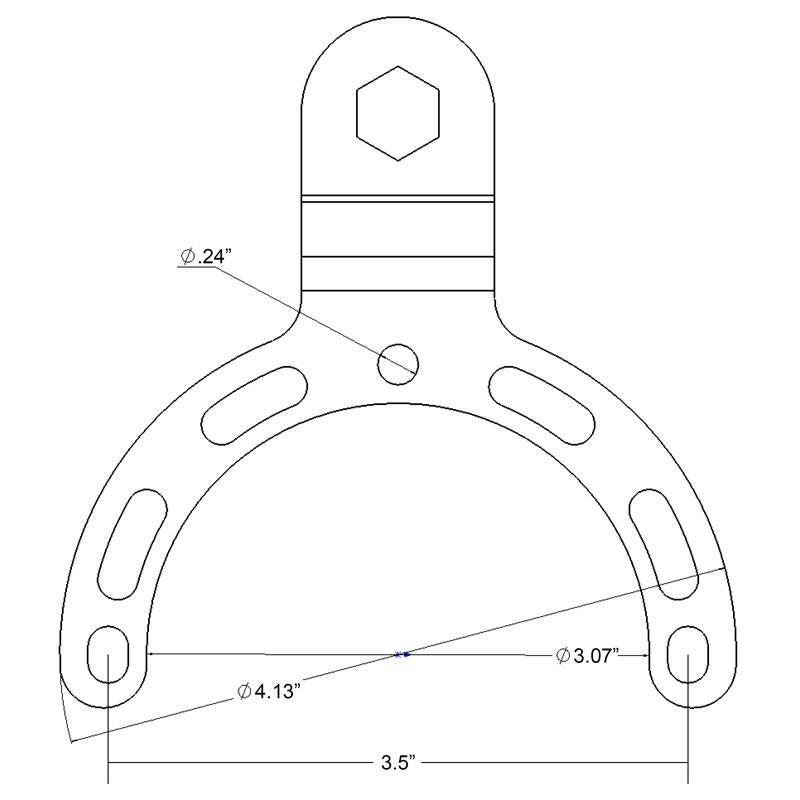

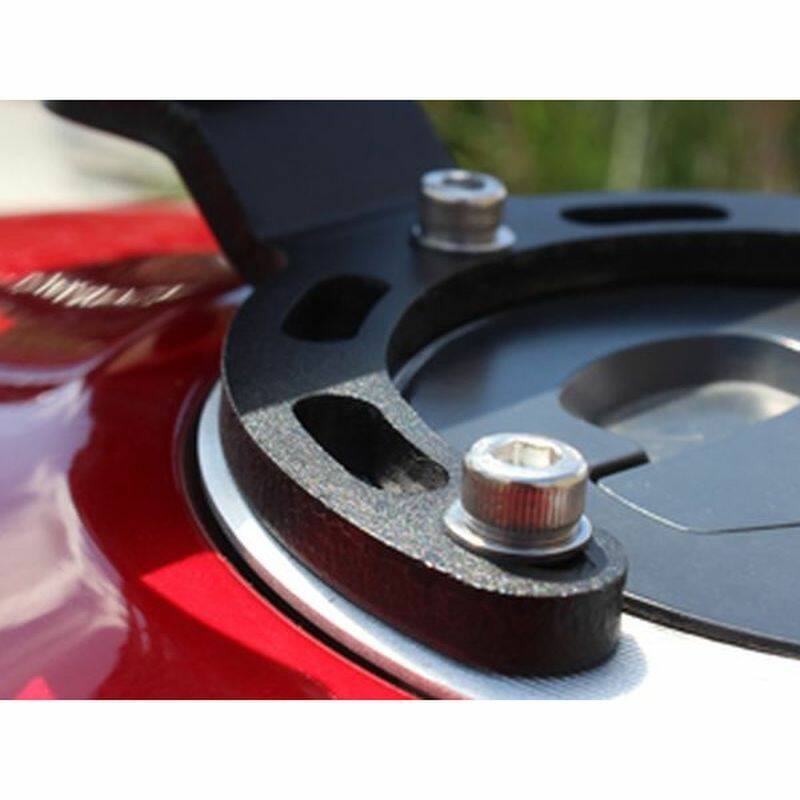

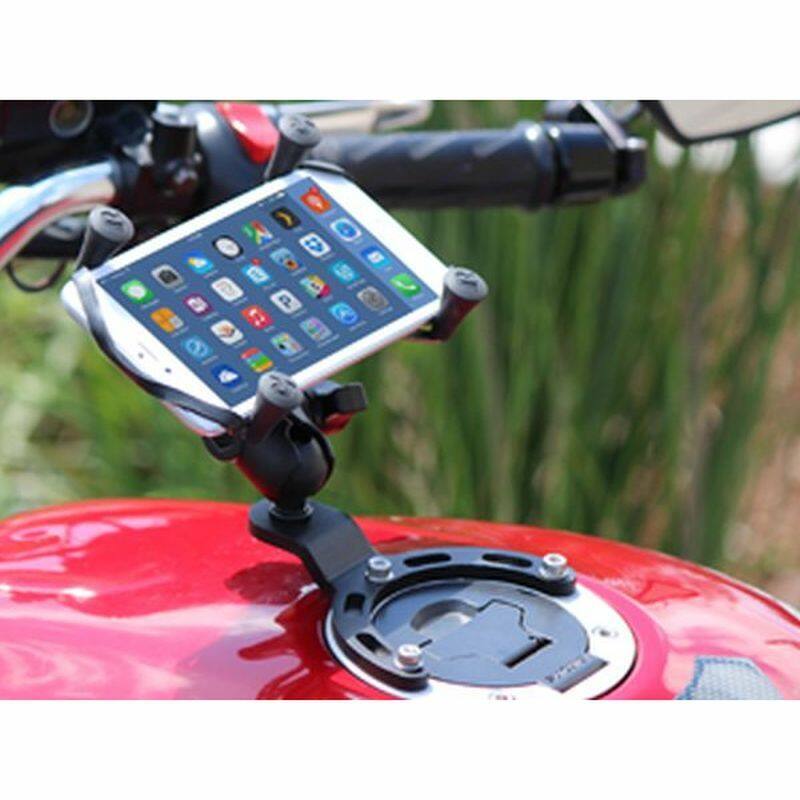

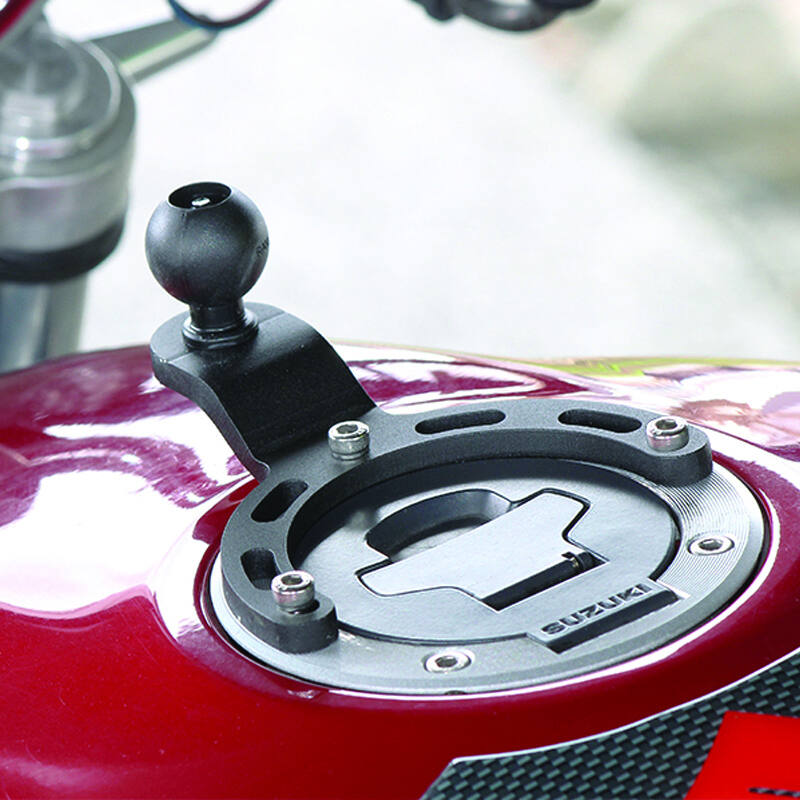

This is a low-profile way to attach your SmartPhone or other device where it can be quickly accessible. This powder coated aluminium base mounts directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you need to mount to the fill port as well.

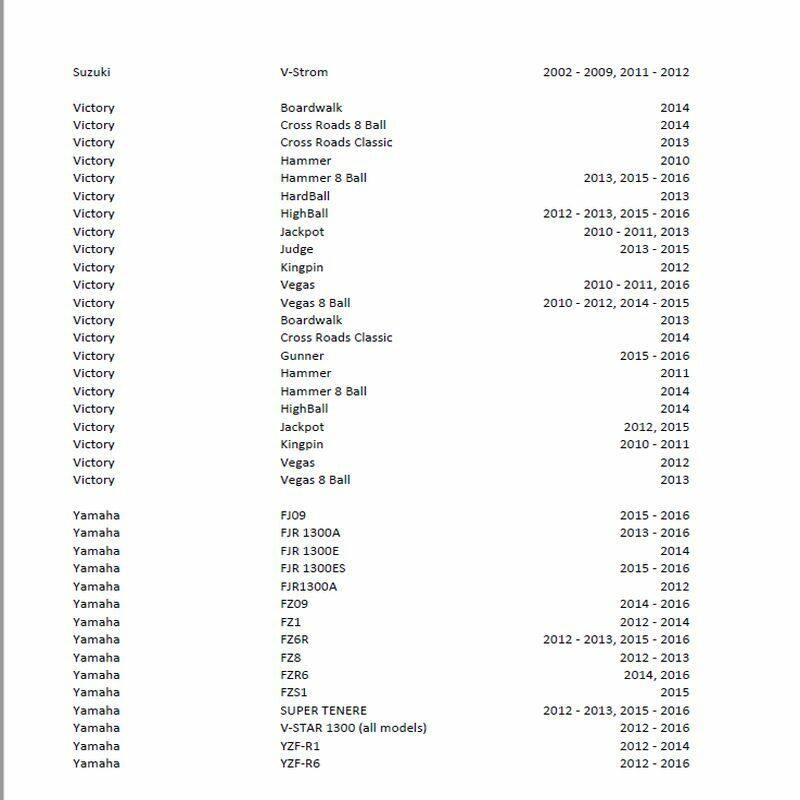

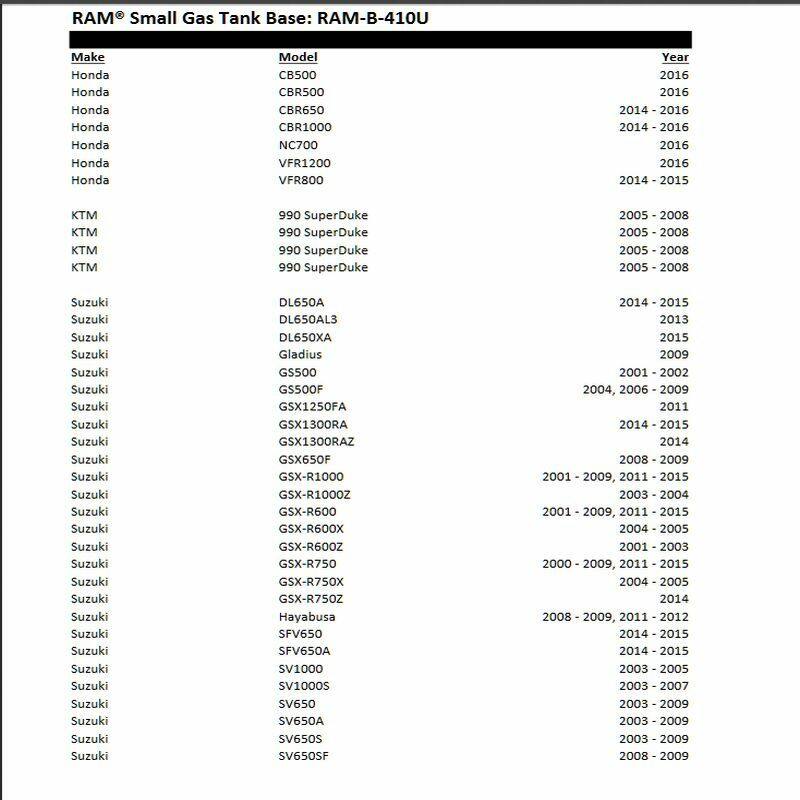

RAM-B-410U gas / fuel tank base - For compatibility go to http://www.rammount.com/part/RAM-B-410U but includes models from Honda, KTM, Suzuki, Victory and Yamaha

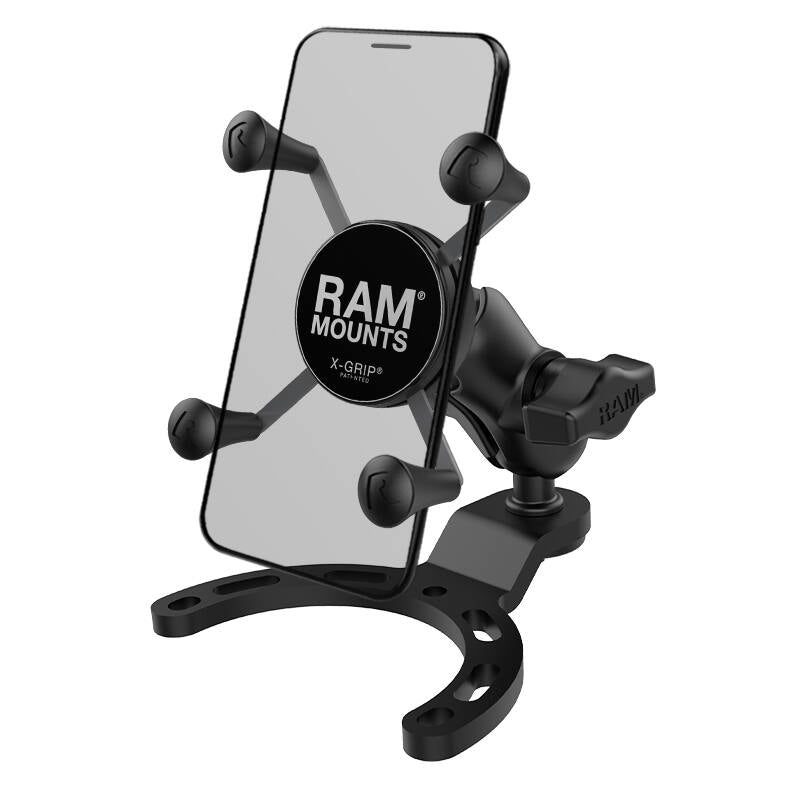

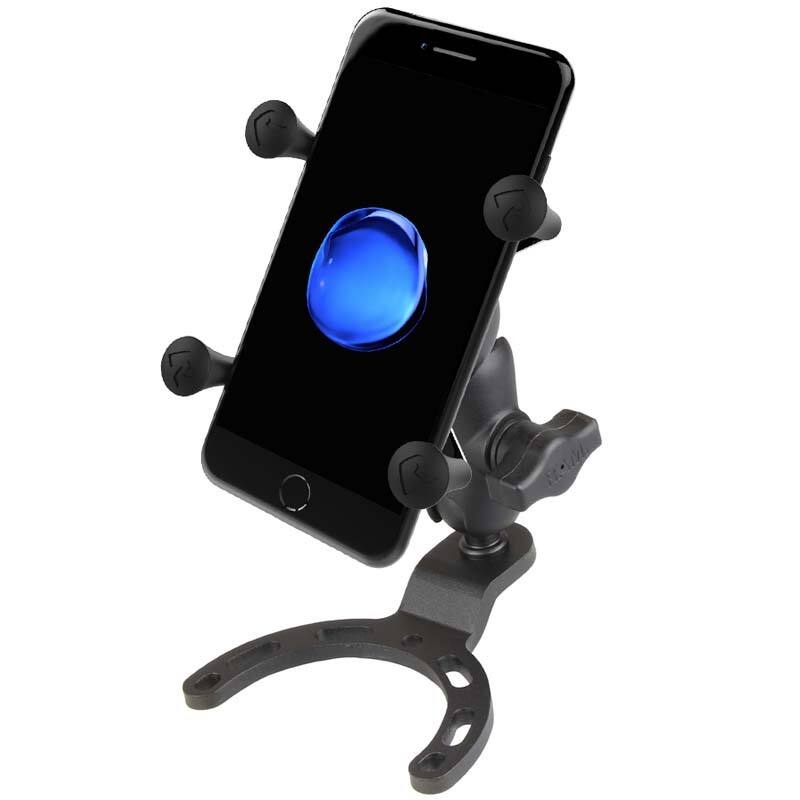

The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved.

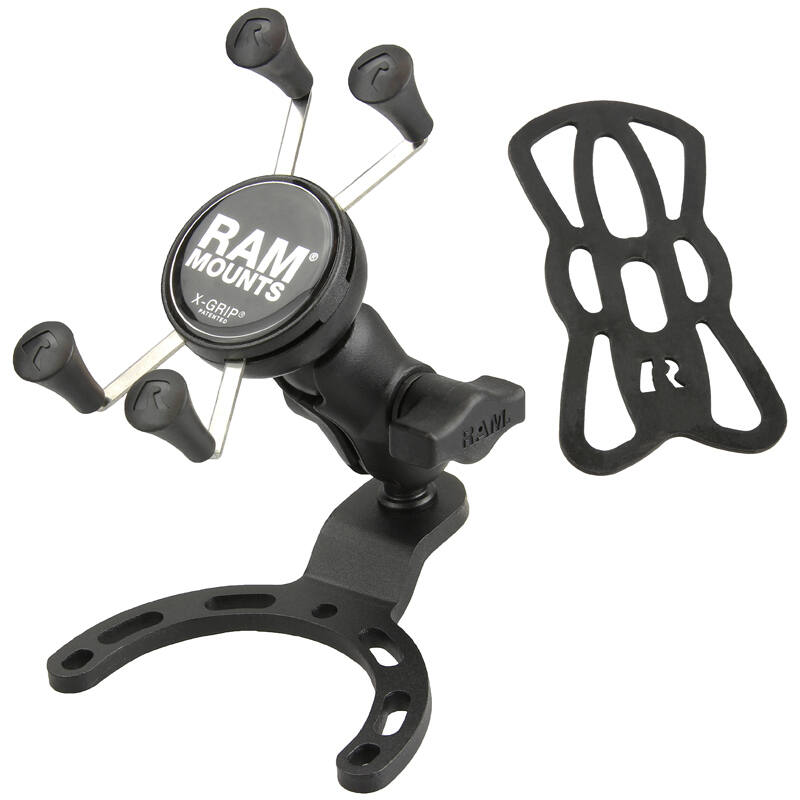

The X-Grip includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Minimum Width = 47.6mm / 1.875” – (if it is minimum width then the minimum height = 108mm / 4.25")
Maximum Width = 82.6mm / 3.25" – (if it is maximum width then the minimum height = 57.2mm / 2.25")
Maximum Thickness = 22.2mm / 0.875"
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU

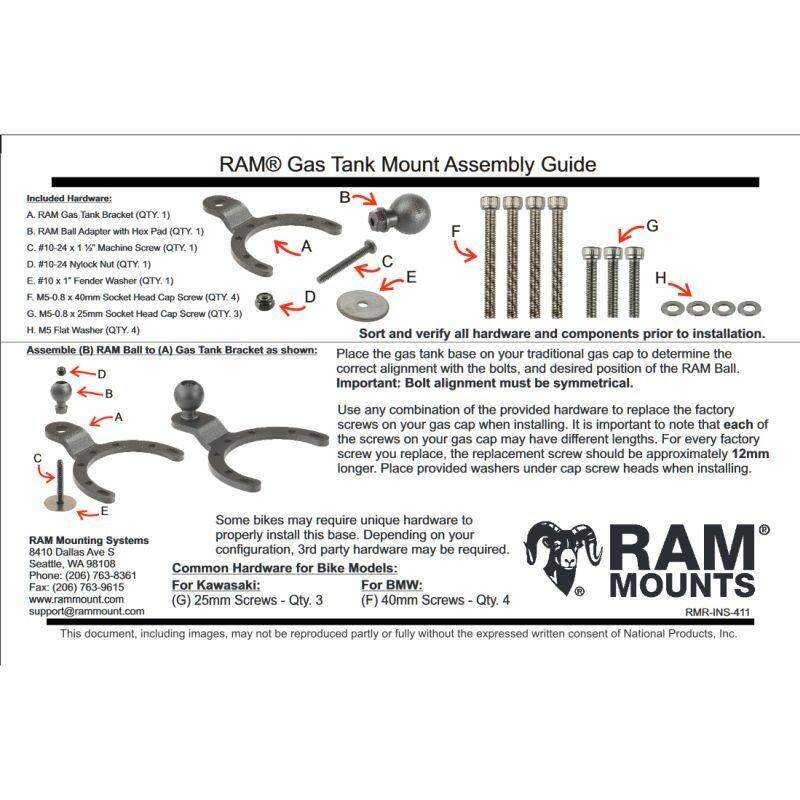

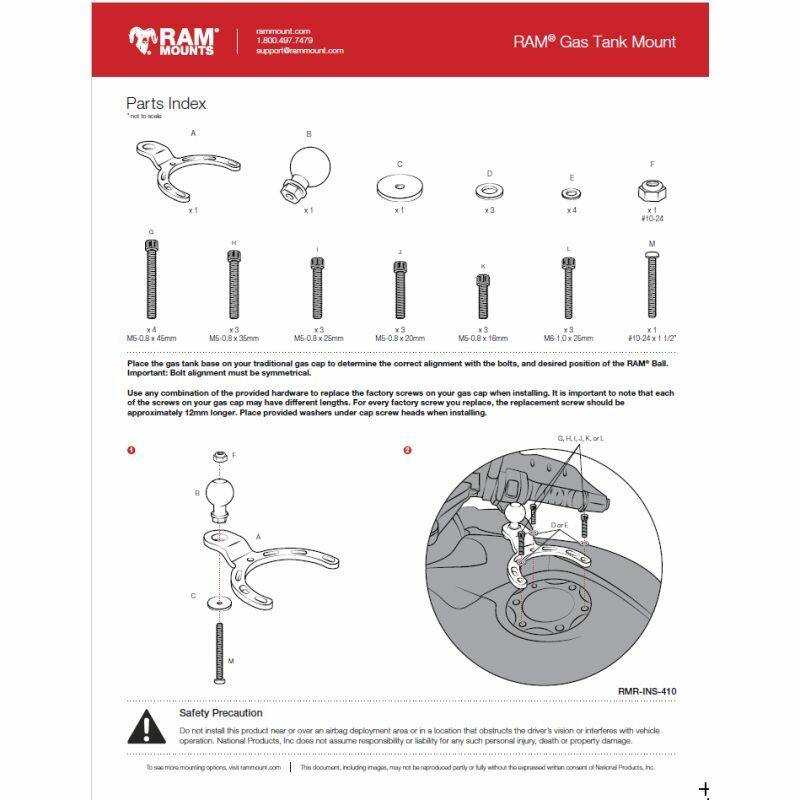

Included Hardware:
Qty. 3 M6-1.0 x 25MM Socket Head Cap Screw
Qty. 4 M5-0.8 x 45MM Socket Head Cap Screw
Qty. 3 M5-0.8 x 35MM Socket Head Cap Screw
Qty. 3 M5-0.8 x 25MM Socket Head Cap Screw
Qty. 3 M5-0.8 x 20MM Socket Head Cap Screw
Qty. 3 M5-0.8 x 16MM Socket Head Cap Screw
Qty. 4 M5 Stainless Steel Flat Washer
Qty. 3 M6 Stainless Steel Flat Washer
Arm Dimensions:
Overall Length: 60.5mm (2.38")
Socket-To-Socket Length: 51mm (2")
Ball Size:
1" Rubber Ball "B" Size

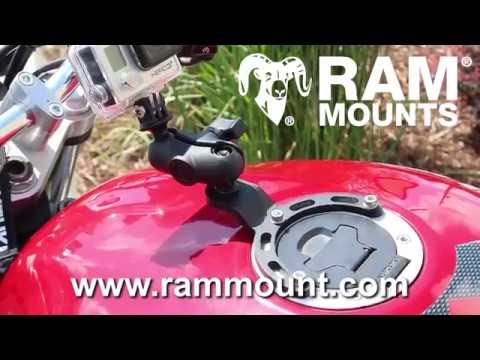

YouTube:
https://www.youtube.com/watch?v=gSplxuUrtmQ&t=1s
https://www.youtube.com/watch?v=S8ky_uKTw98
