RAM X-Grip Universal SmartPhone Cradle - Glare Shield Clamp and Short Arm

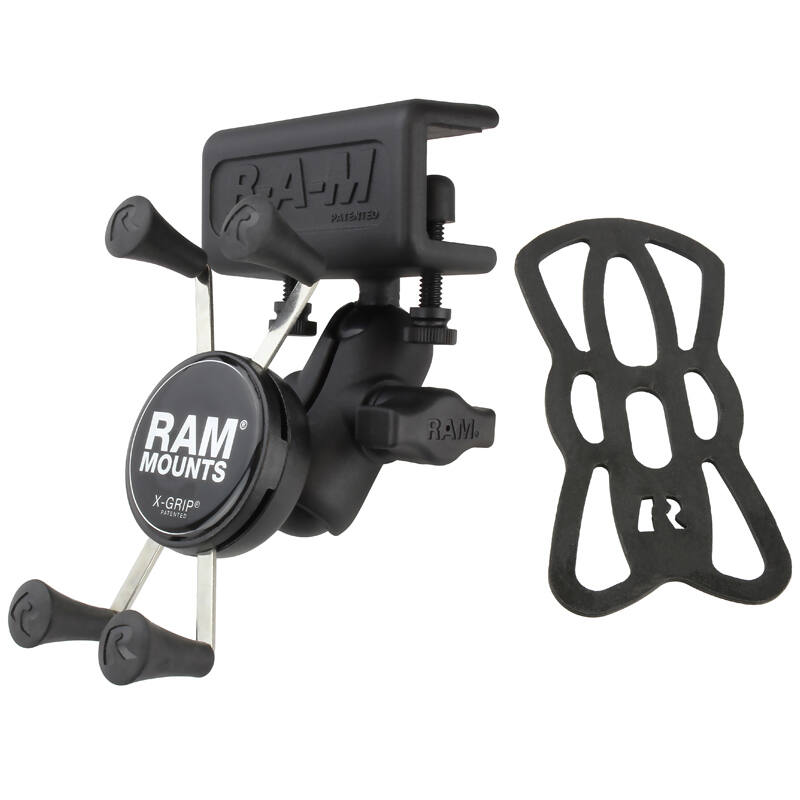

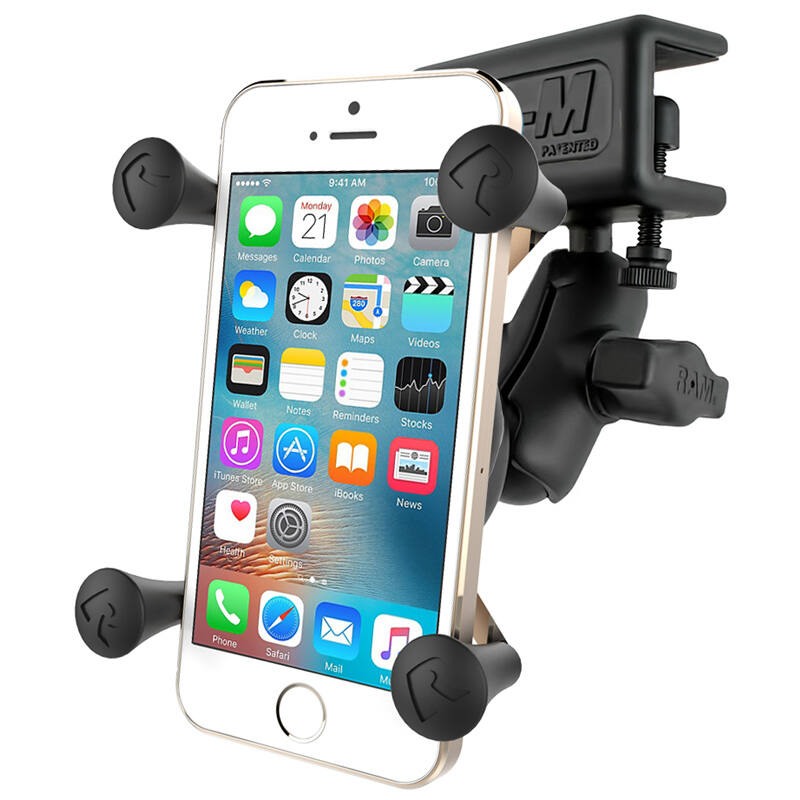

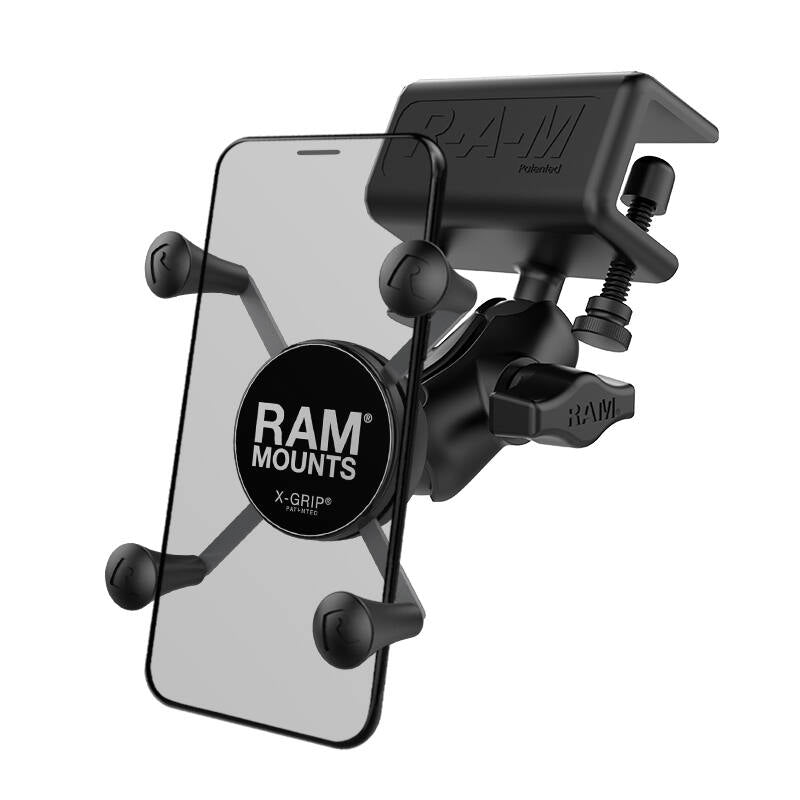

RAM-B-177-UN7U – RAM® X-Grip® Phone Mount with Glare Shield Clamp Base

The RAM-B-177-UN7U pairs the RAM® X-Grip® universal phone cradle with a glare shield clamp base, gripping any flat surface up to 15.875mm (0.625") thick with two nylon thumb screws. It's a common choice for aircraft glare shields and similar panel edges.

Key Features

• Spring-loaded X-Grip design with rubber caps holds the phone securely without covering the screen, camera, or buttons; includes an optional device tether for rugged use
• Glare shield clamp grips any flat surface up to 15.875mm (0.625") thick; secured with two nylon thumb screws
• Short-length B size RAM® double socket arm with ball-and-socket design for near-infinite positioning
• Powder-coated marine-grade aluminium, stainless steel hardware, and high-strength composite construction
• Backed by a lifetime warranty

What's Included

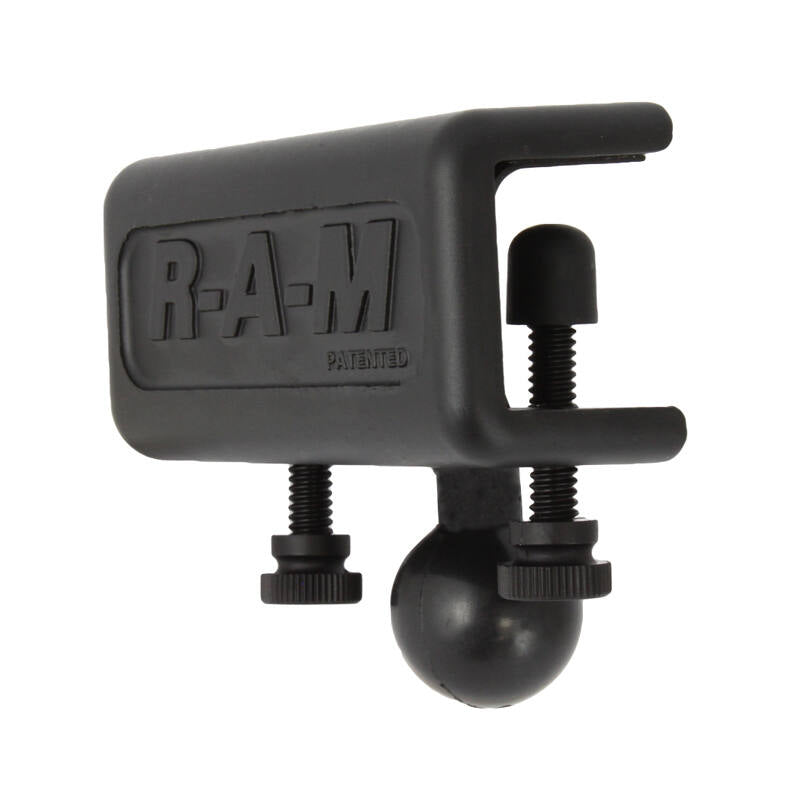

• RAM-B-127B / RAM-B-259U glare shield clamp base
• RAM-B-201U-A short double socket arm

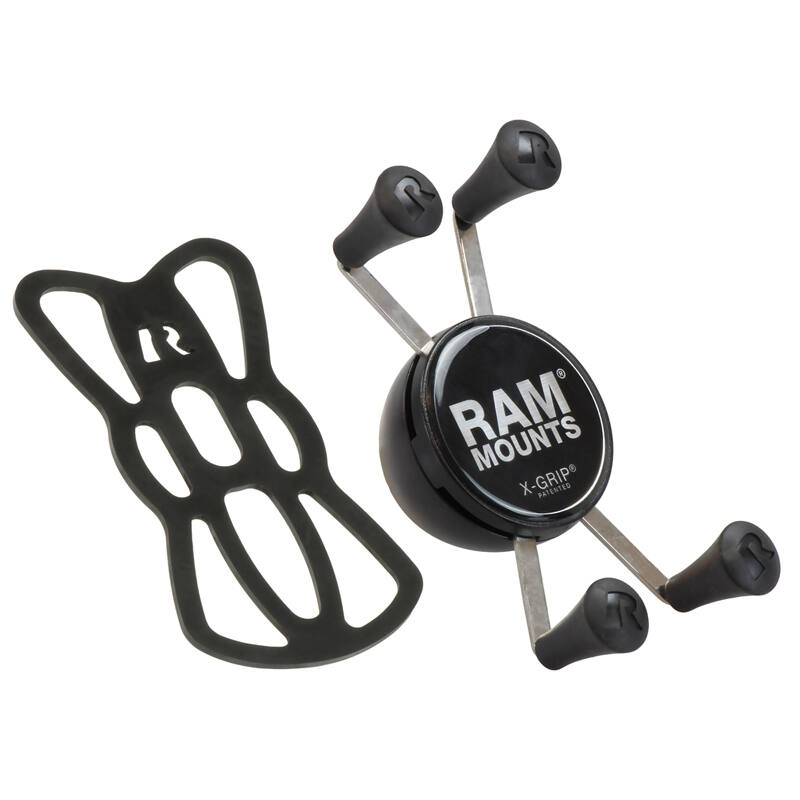

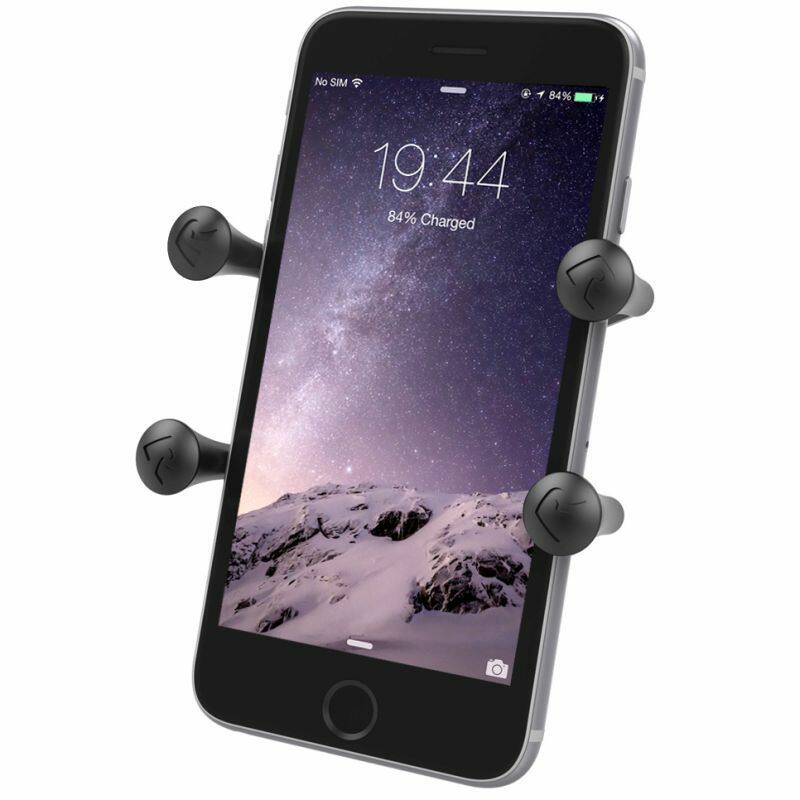

• RAM-HOL-UN7BU X-Grip® universal phone cradle

Dimensions & Specifications

• Glare shield clamp range: 0mm to 15.875mm (0" to 0.625") thick
• Arm length, overall: 60.5mm (2.38")
• Arm length, socket-to-socket: 51mm (2")
• Cradle minimum device width: 47.6mm (1.875") — requires minimum device height 108mm (4.25")
• Cradle maximum device width: 82.6mm (3.25") — requires minimum device height 57.2mm (2.25")
• Cradle maximum device depth: 22.2mm (0.875")
• Weight: 336g (0.74 lb)

Compatible Devices

Fits hand-held devices within the cradle dimensions above, with or without a case. For the full list of 100+ compatible phone models across 14 brands, see our RAM-HOL-UN7BU listing.

Videos

• RAM X-Grip overview

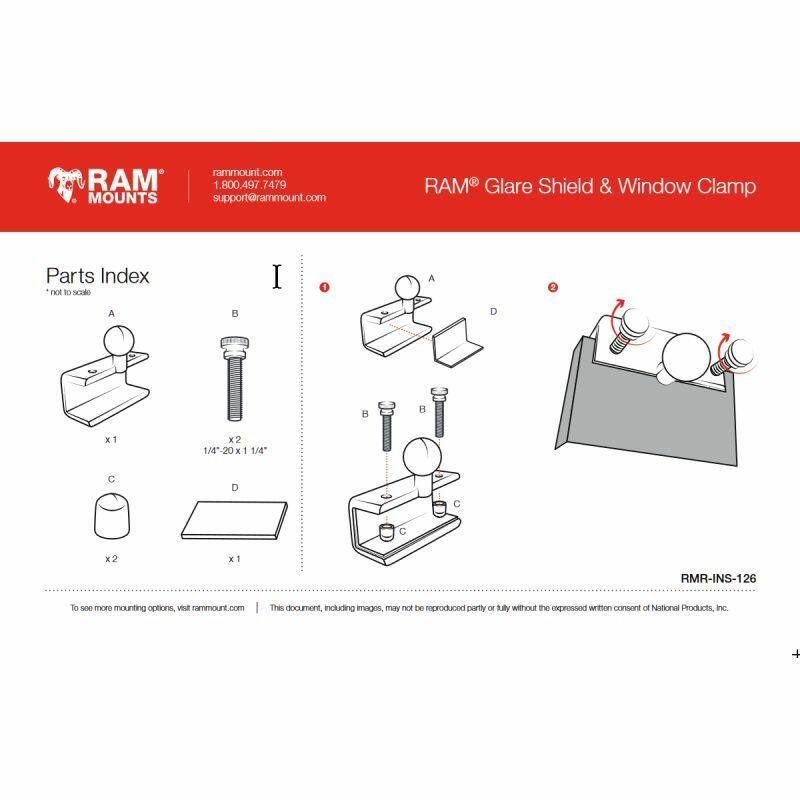

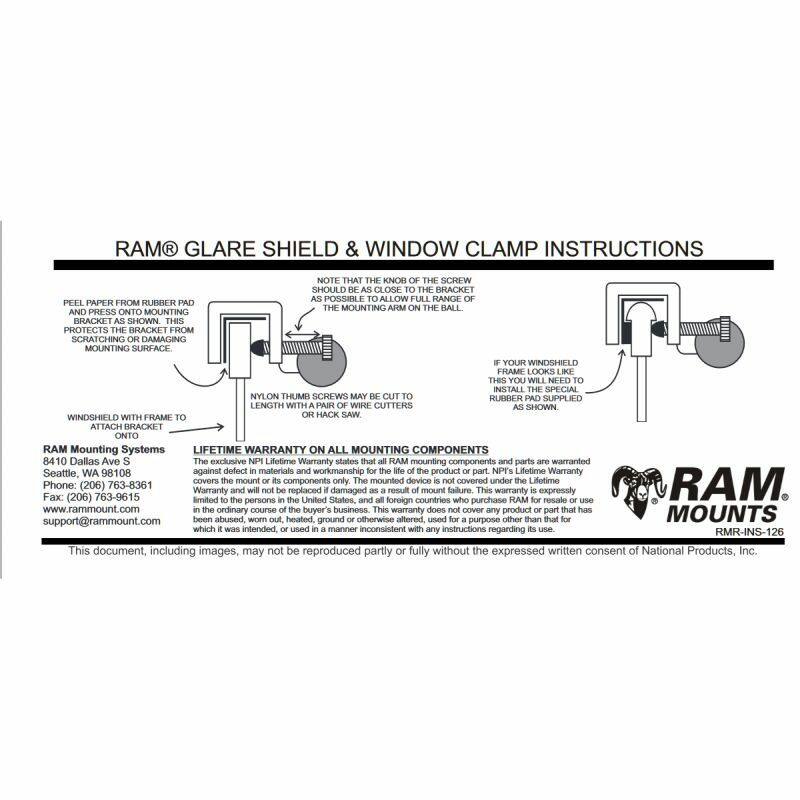

• Glare shield clamp installation
• Glare shield clamp demo
