RAM-B-367B-UN7U RAM® X-Grip® Phone Mount with Grab Handle Base
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
* Grab handle base is a stable base which works with any grab handle with an M8 threaded bolt - and keeps your field of vision clear
* RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

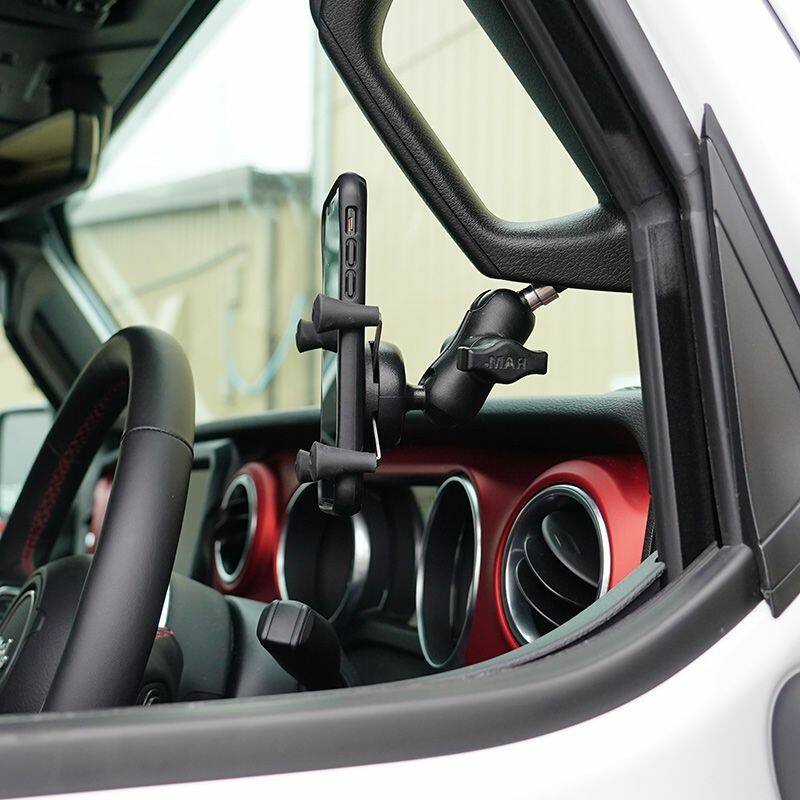

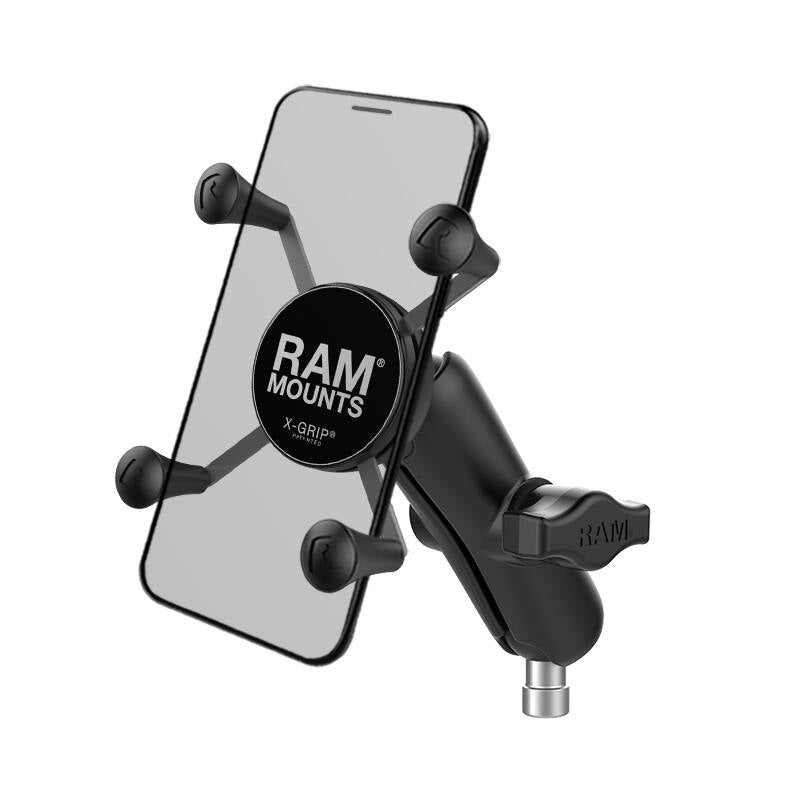

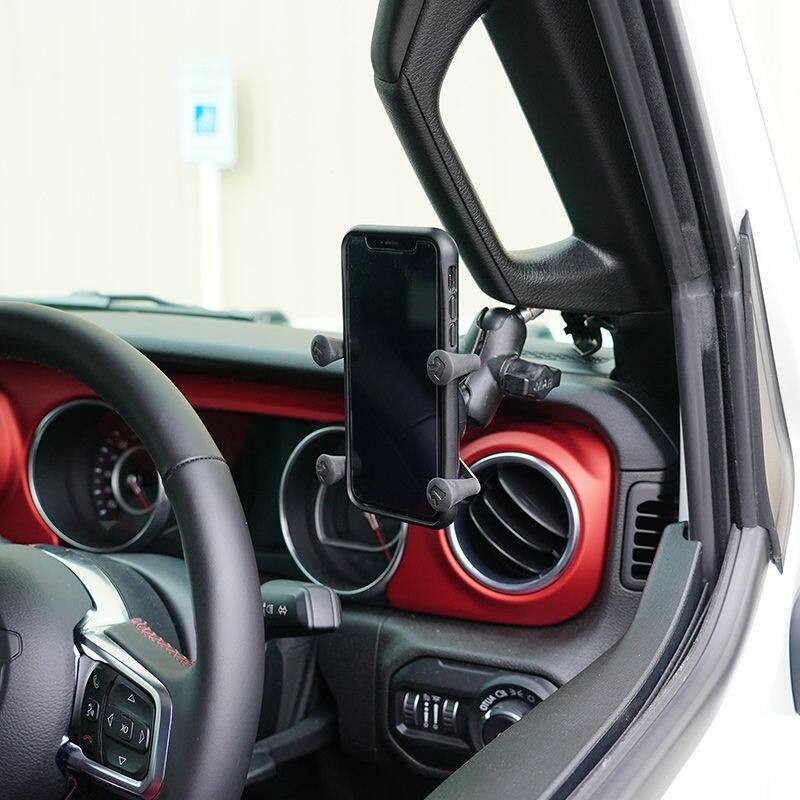

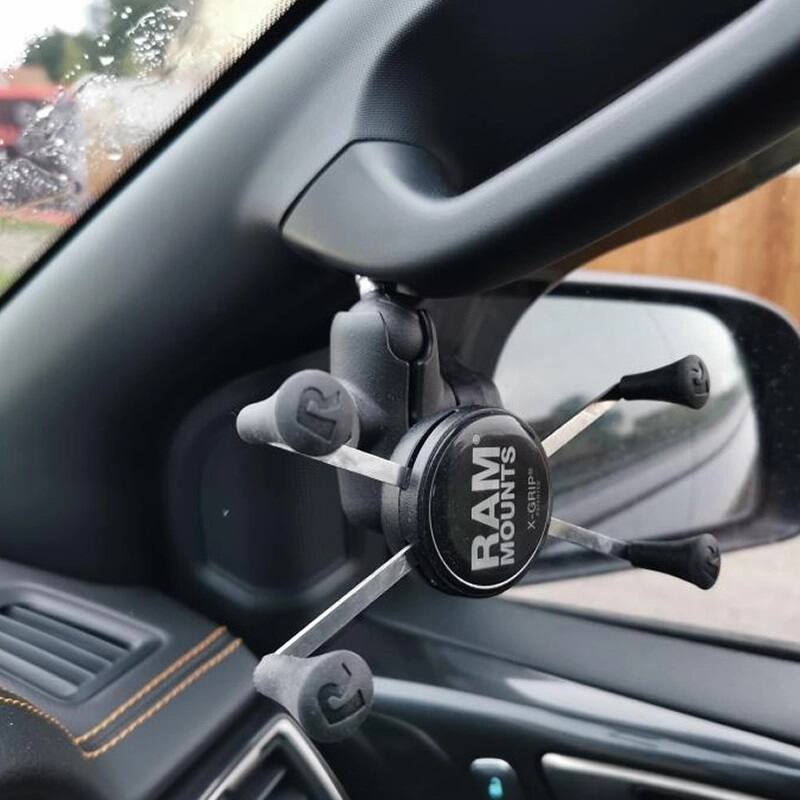

This is a car/truck grab handle base, double socket arm and universal X-Grip® cradle.The rubber ball and socket system allows for almost infinite adjustment and perfect viewing angles.

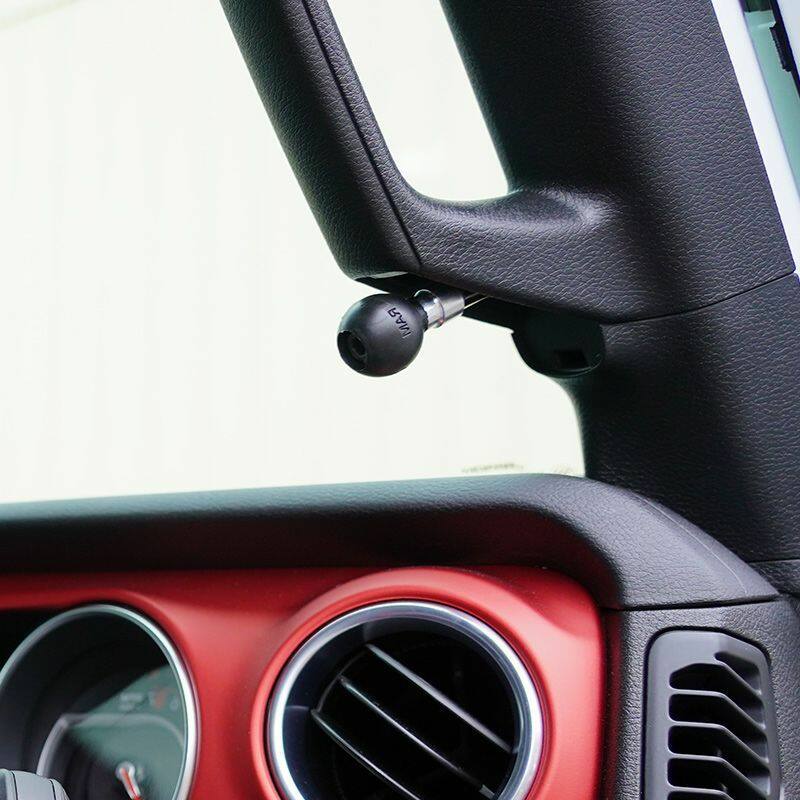

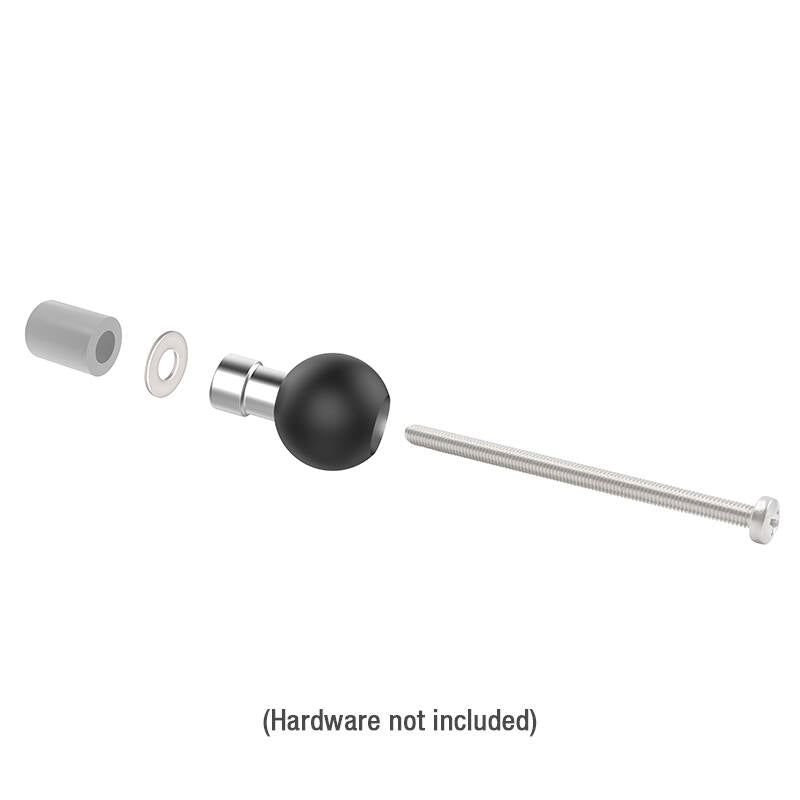

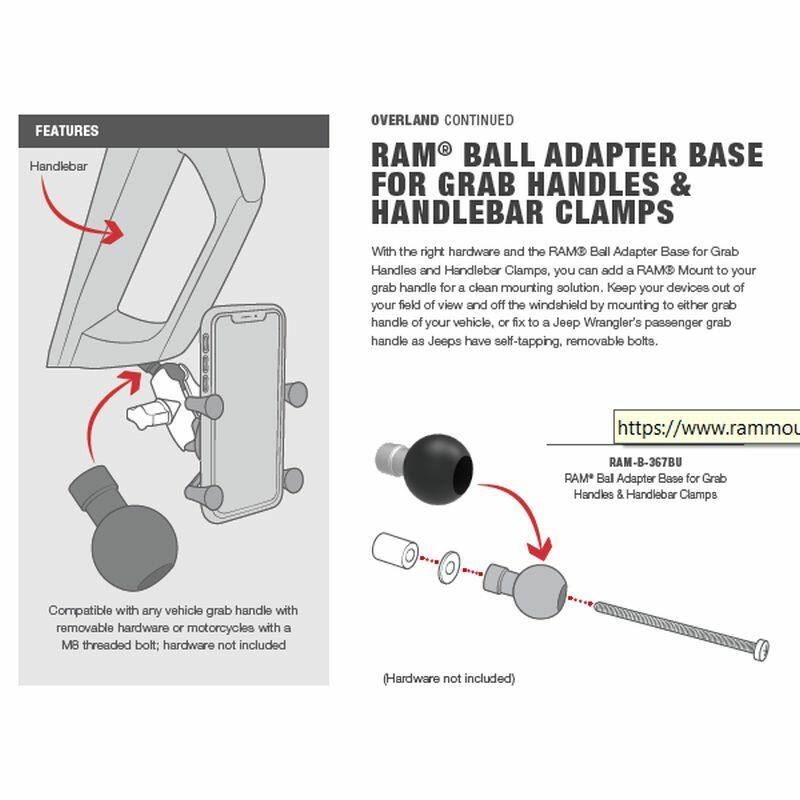

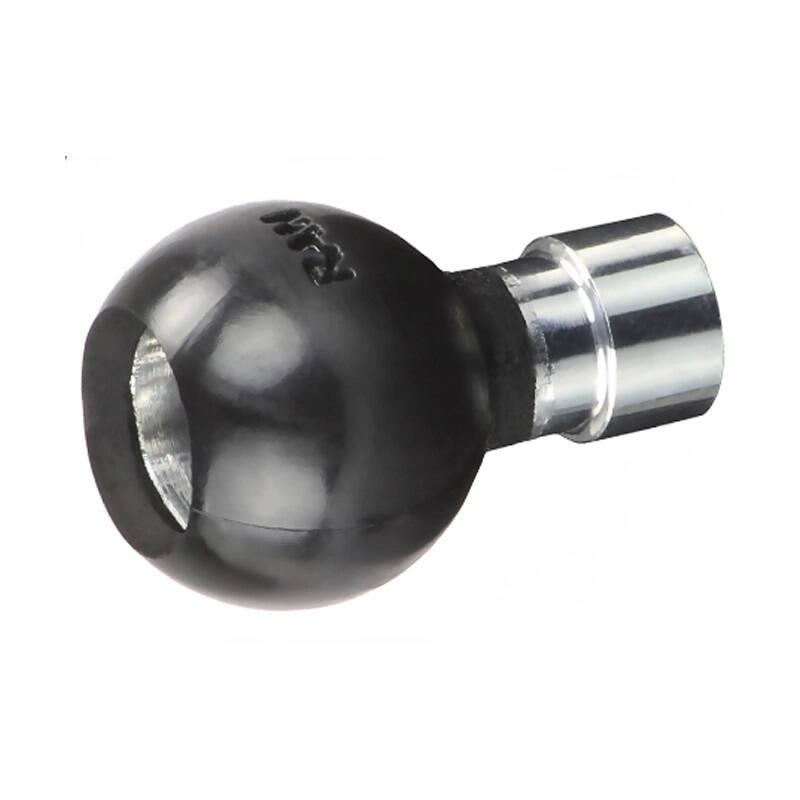

The RAM® Grab Handle Bolt Adapter Base is the ideal base for installing RAM® Mounts on a grab handle with an M8 threaded bolt. With a hollow center, you are able to feed an 8mm bolt or smaller to screw into your vehicle's grab handle for a stable mounting base with no drilling required. Keep your windshield clean, and your phone mount out of the way with this grab handle mount for phones, GPS devices, GoPros and more! After that, a world of mounting possibilities just opened up. Any vehicle, which employs an 8mm bolt or smaller on its structure is compatible with this product. A smaller bolt can be used, though the load capacity decreases with the bolt size.

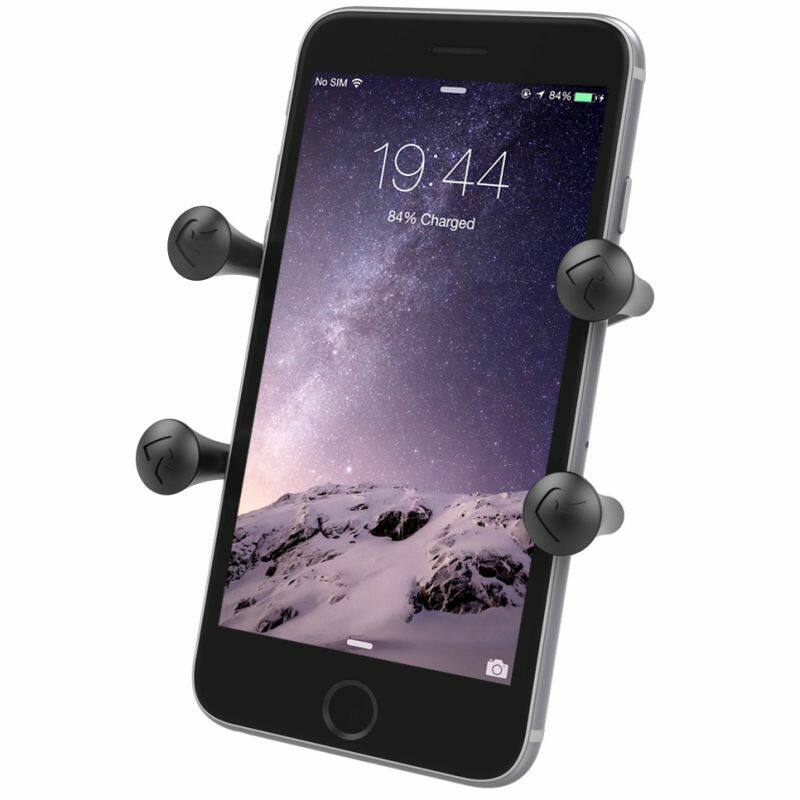

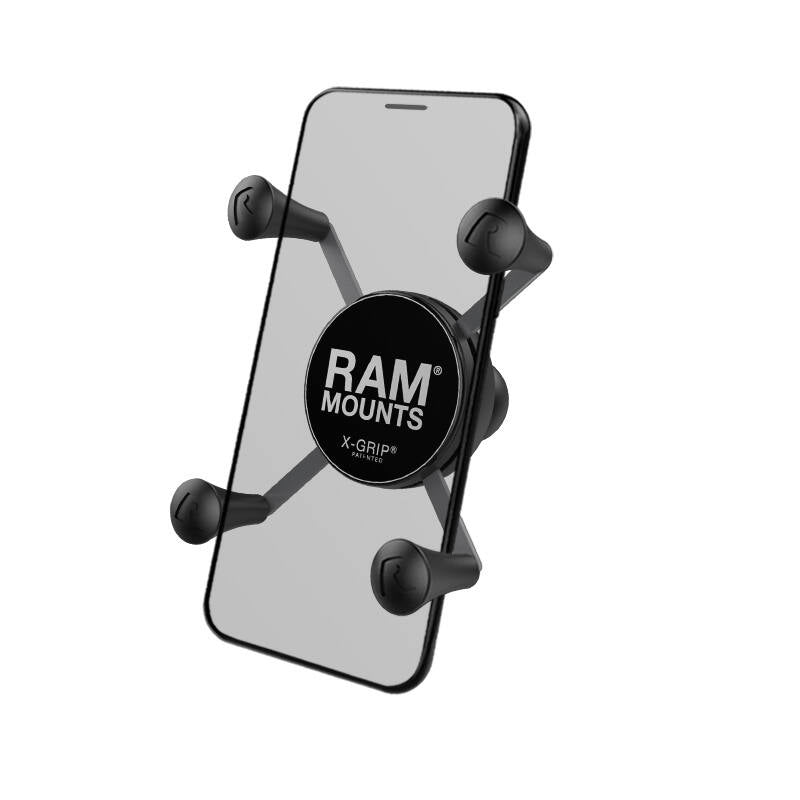

The cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications.
It is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Min Width = 47.6mm / 1.875” – (if min width then min height = 108mm / 4.25")
Max Width = 82.6mm / 3.25" – (if max width then min height = 57.2mm / 2.25")
Max Thickness = 22.2mm / 0.875"
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU
Material:
Powder Coated Marine Grade Aluminium
Marine Grade Stainless Steel Components
High Strength Composite
Ball Size:
B Size 1" Rubber Ball
Arm Dimensions:
Overall Length: 94mm (3.69")
Socket-To-Socket Length: 76mm (3")
Components:
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-367BU RAM Ball Adapter Base for Grab Handles & Handlebar Clamps
RAM-HOL-UN7BU X-GRIP UNIVERSAL HOLDER W/ 1" BALL
