RAM Mounts
RAM X-Grip Universal SmartPhone Cradle - Low Profile Suction Cup Base
RAM X-Grip Universal SmartPhone Cradle - Low Profile Suction Cup Base
Regular price
$126.45 NZD
Regular price
Sale price
$126.45 NZD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability

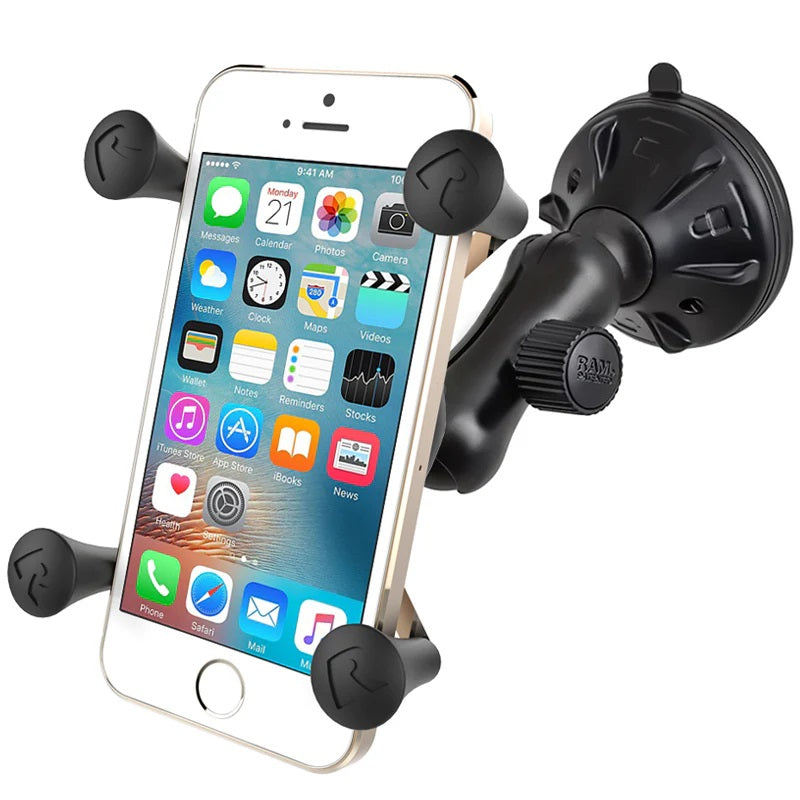

RAP-B-166-2-UN7U – RAM® X-Grip® Phone Mount with Low-Profile Twist-Lock™ Suction Cup

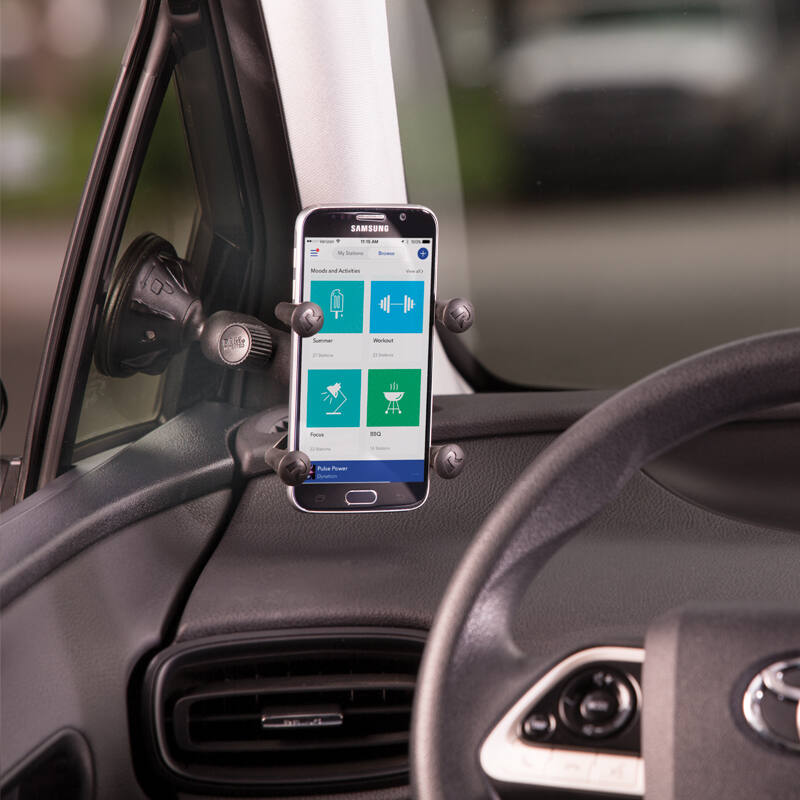

The RAP-B-166-2-UN7U pairs the RAM® X-Grip® universal phone cradle with a low-profile 70mm (2.75") RAM® Twist-Lock™ suction cup base and a lightweight composite double socket arm. The smaller suction footprint gives a strong hold on glass and smooth, non-porous surfaces and is ideal when space is at a premium, suiting modern dashboards and windscreens where a tidy, close-to-the-glass mount is wanted.
Key Features
- Spring-loaded 'X' design with rubber caps grips the phone firmly without covering the screen, camera, or buttons
- 70mm (2.75") Twist-Lock™ suction cup base for a strong hold on smooth, non-porous surfaces, including adhesive disks
- Lightweight composite double socket arm; ball-and-socket design allows near-infinite positioning

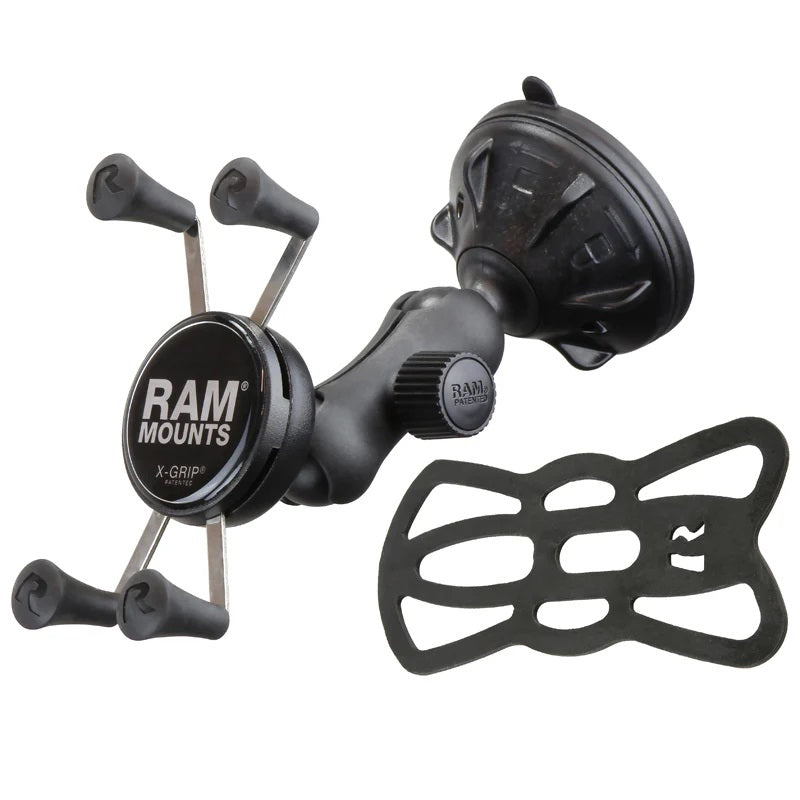

- Includes an optional device tether for extra security during outdoor use
- High-strength composite and stainless steel construction; backed by a lifetime warranty
What's Included

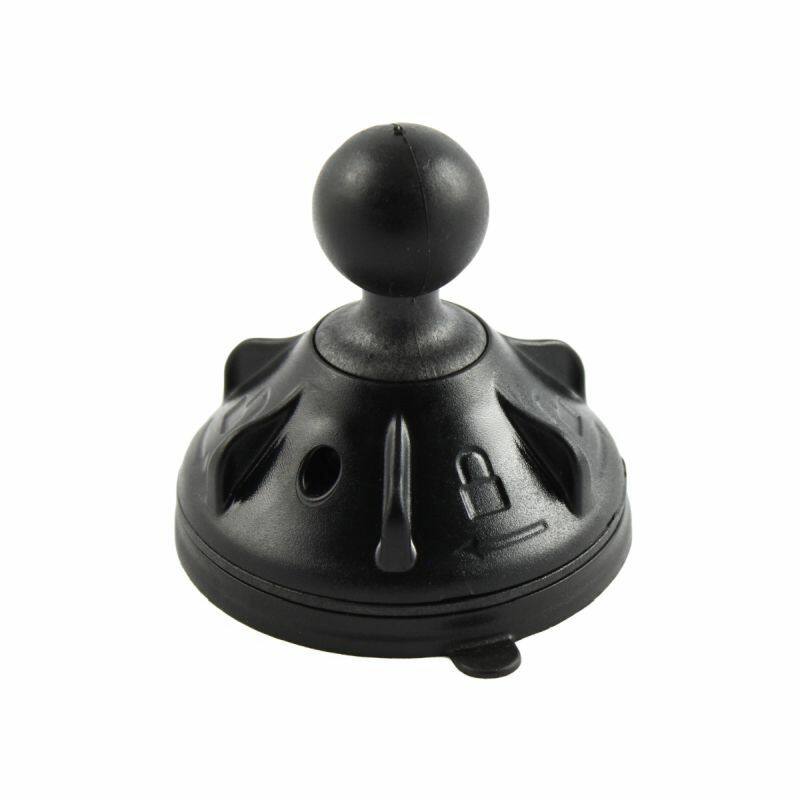

- RAP-B-224-2U low-profile Twist-Lock™ suction cup base, 69.9mm (2.75") diameter
- RAP-B-201-1U lightweight composite double socket arm (B size)
- RAM-HOL-UN7BU X-Grip® universal phone cradle with device tether
Dimensions & Specifications
- Suction cup diameter: 69.9mm (2.75")
- Arm socket-to-socket length: 53.3mm (2.1")
- Cradle minimum device width 47.6mm (1.875"), which needs a minimum height of 108mm (4.25")
- Cradle maximum device width 82.6mm (3.25"), which needs a minimum height of 57.2mm (2.25")
- Cradle maximum device thickness: 22.2mm (0.875")
- Ball size: B size, 1" rubber ball
- Weight: 204g (0.45 lb)
- Materials: high-strength composite, stainless steel
Compatible Devices
The X-Grip cradle fits hand-held devices within the width and thickness ranges above. Always measure your device with any case, sleeve, or skin fitted before ordering. For the full list of compatible models across 14 major brands, see our RAM-HOL-UN7BU cradle listing.
