RAP-B-166-2-A-UN7U RAM® X-Grip® Phone Mount with RAM® Twist-Lock™ Low Profile Suction Base
Features:

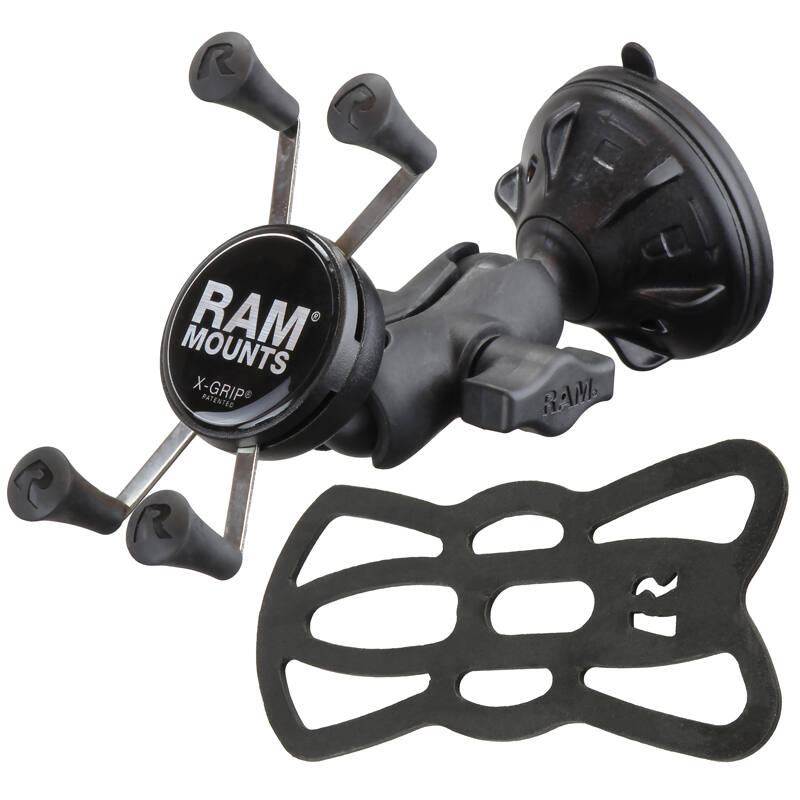

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
* Includes low-profile RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of stainless steel components and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

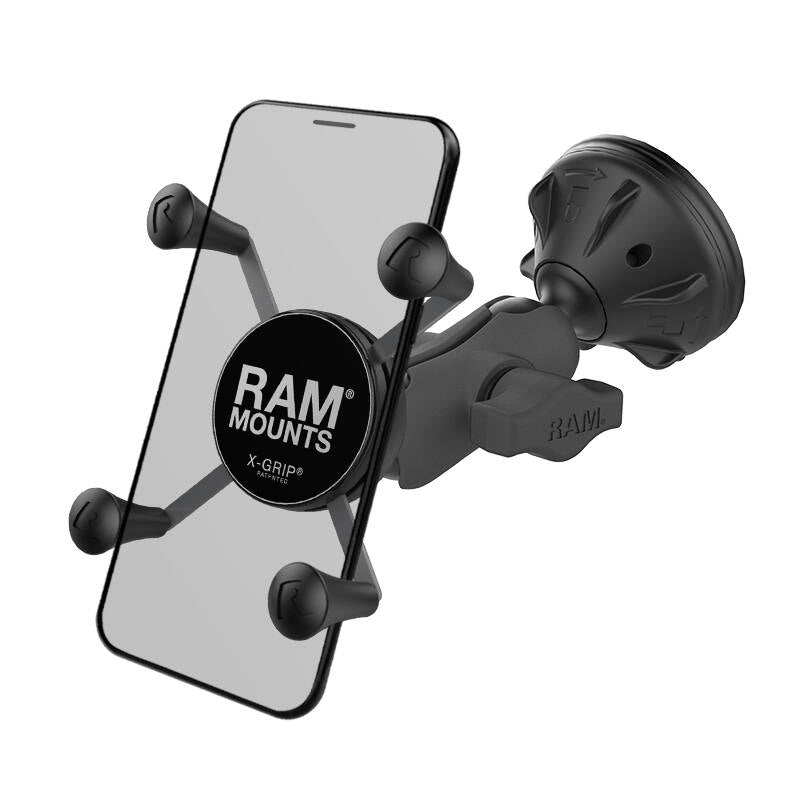

Ideal for vehicle windshields, the RAP-B-166-2-A-UN7U consists of a 2.75" diameter low-profile RAM® Twist-Lock™ suction cup base, short length double socket arm, and the popular spring-loaded RAM® X-Grip® phone holder. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping.
The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of high-strength composite and stainless steel, this version of the RAM® X-Grip® fits phones ranging from 1.87" to 3.25" in width and keeps your device completely functional and accessible. It has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The RAM X-Grip is the cell phone holder evolved.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Minimum Width = 47.6mm / 1.875” – (if it is minimum width then the minimum height = 108mm / 4.25")
Maximum Width = 82.6mm / 3.25" – (if it is maximum width then the minimum height = 57.2mm / 2.25")
Maximum Thickness = 22.2mm / 0.875"
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU
Arm Dimensions:
Overall Length: 60.5mm (2.38")
Socket-To-Socket Length: 51mm (2")
Suction Size
69.9mm (2.75") Diameter
Material:
Marine Grade Stainless Steel Components
High Strength Composite
Components:

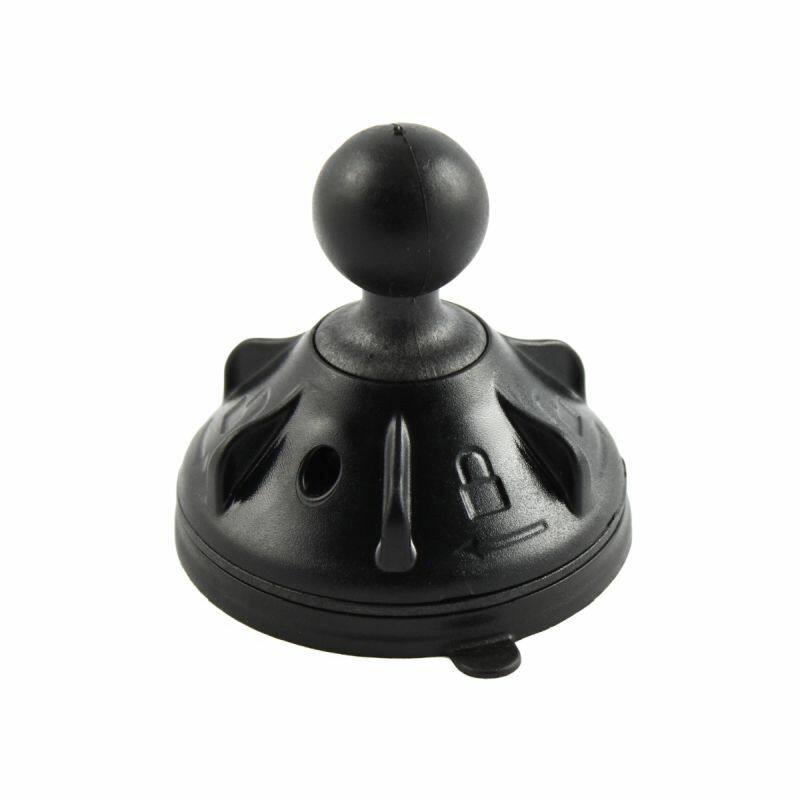

RAP-B-224-2U RAM 2.75" Diameter Suction Cup Base with 1" Ball

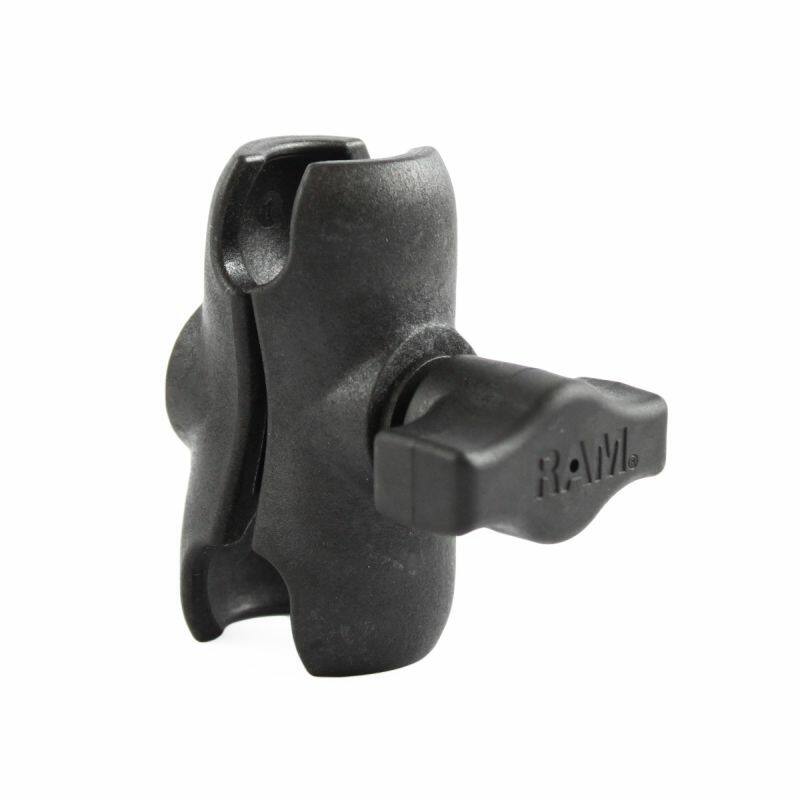

RAP-B-201U-A RAM PLASTIC DBL SOCKET ARM B BALL A LNG
RAM-HOL-UN7BU X-GRIP UNIVERSAL HOLDER W/ 1" BALL
YouTube:
https://www.youtube.com/watch?v=S8ky_uKTw98
