RAM-B-367-A-UN7U RAM® X-Grip® Phone Mount with Motorcycle Handlebar Clamp Base - short arm
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone

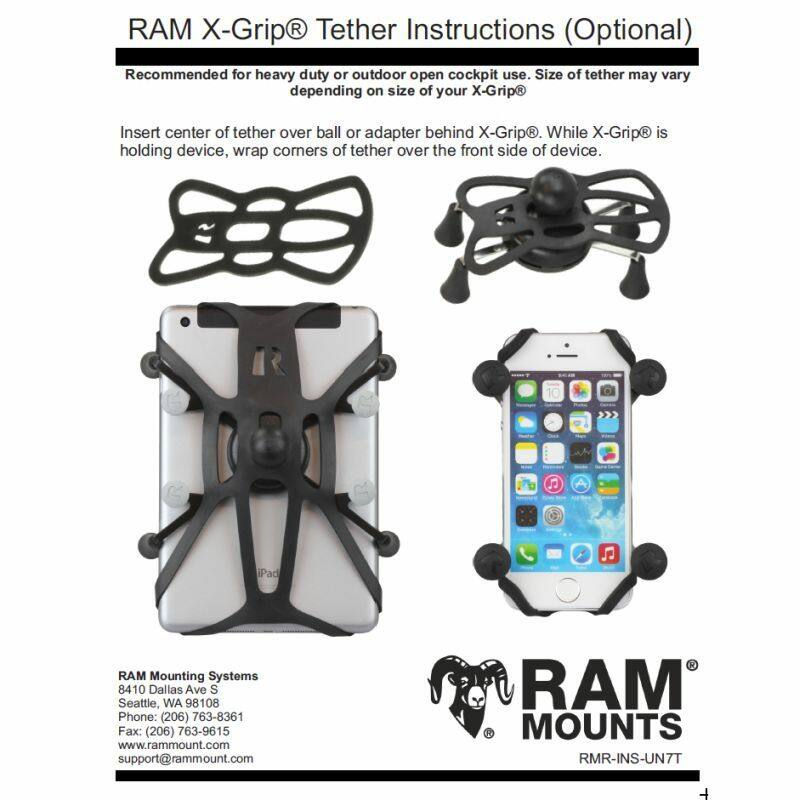

* Includes optional device tether for peace of mind during rugged use

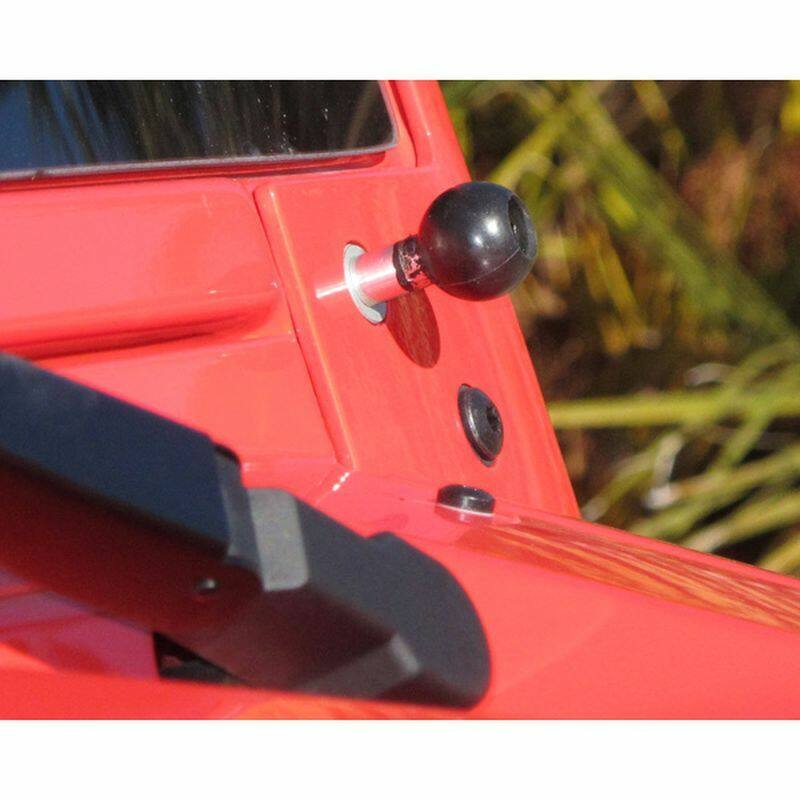

* M8 bolt heads replace any existing M8 bolts on your bike with a rubber ball giving many potential mounting locations
* B size SHORT RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

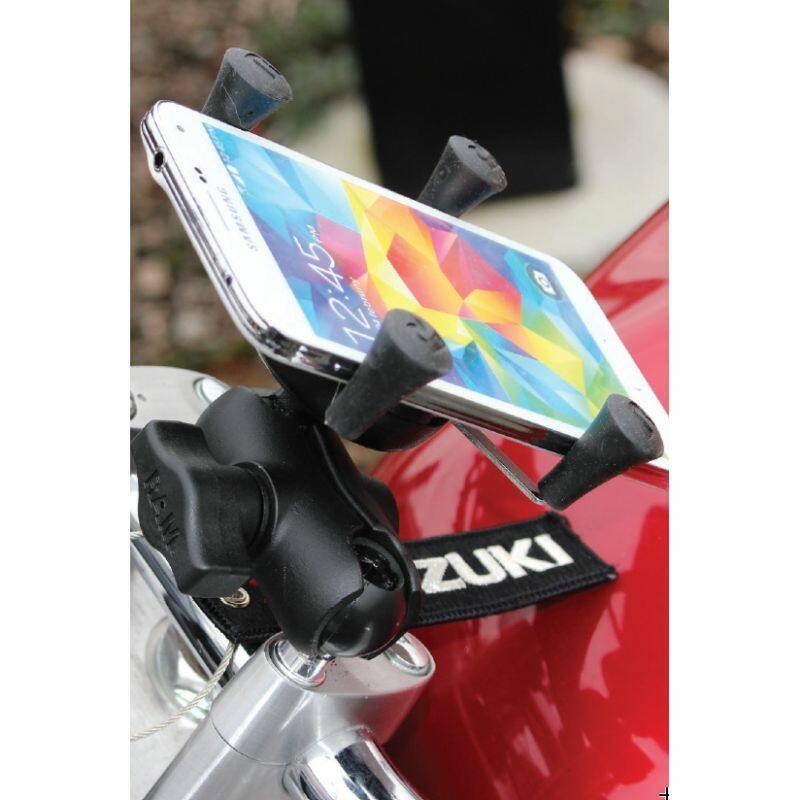

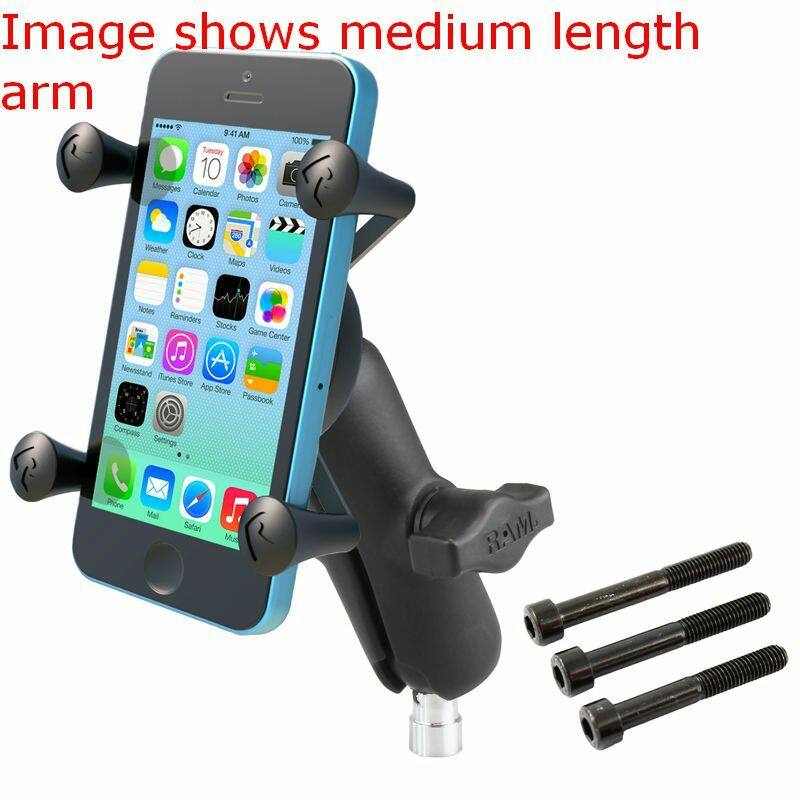

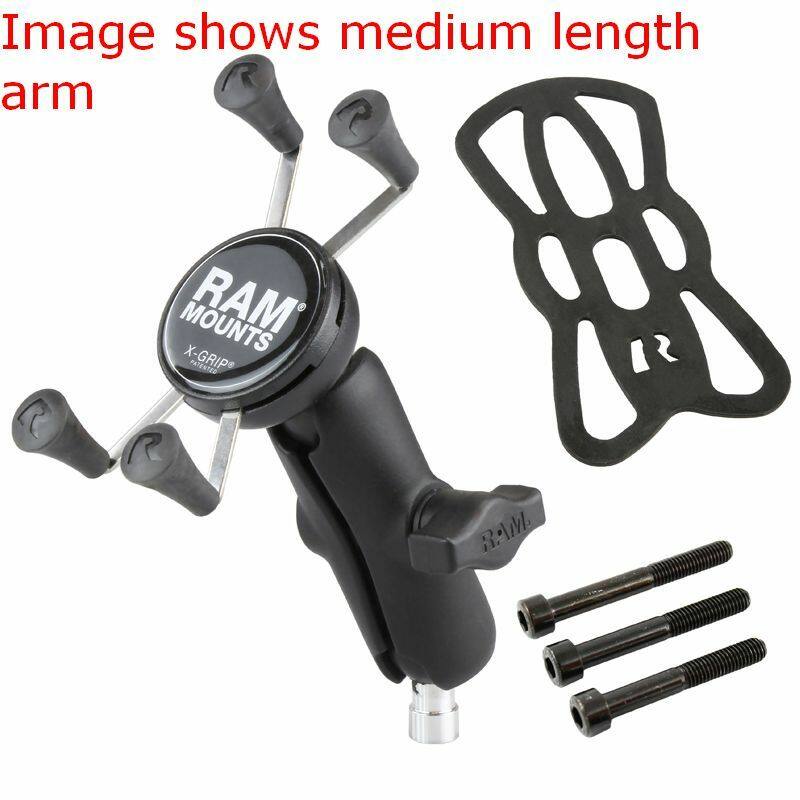

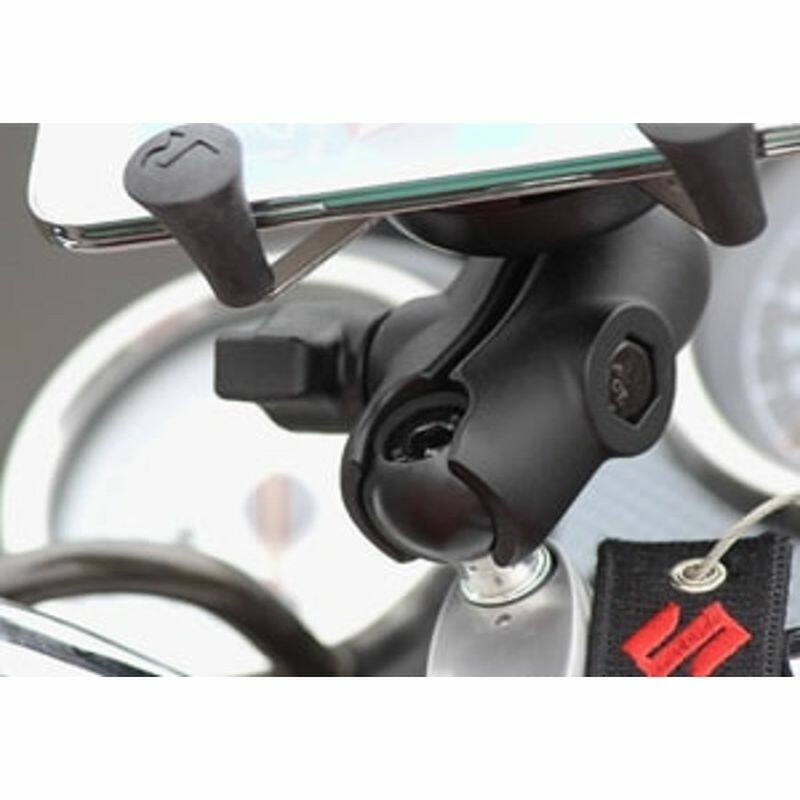

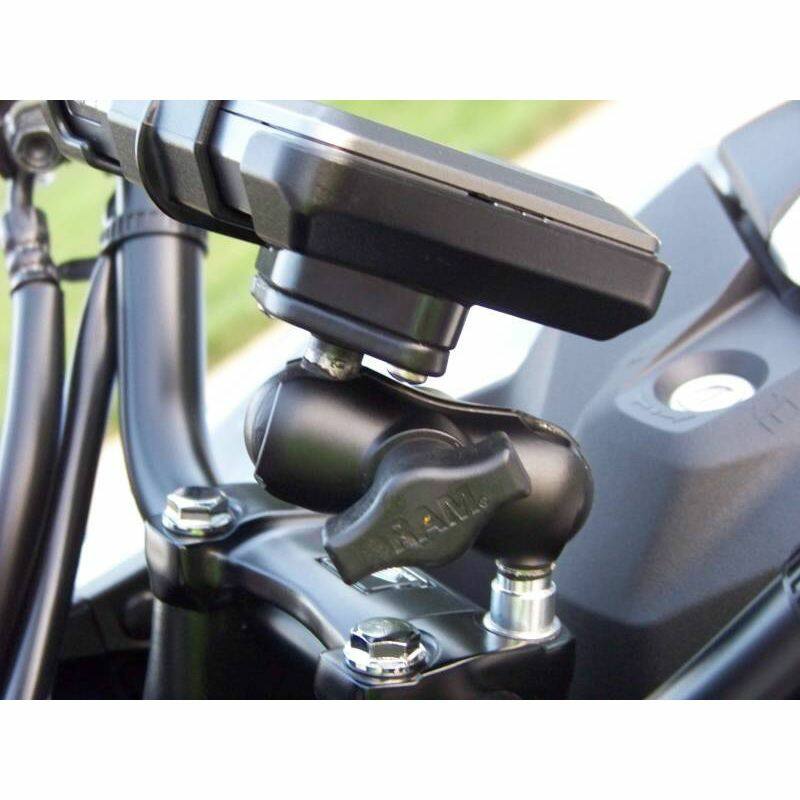

This is a motorcycle handlebar clamp base with M8 threads, short double socket arm and universal X-Grip® cradle. The rubber ball and socket system allows for almost infinite adjustment and perfect viewing angles.

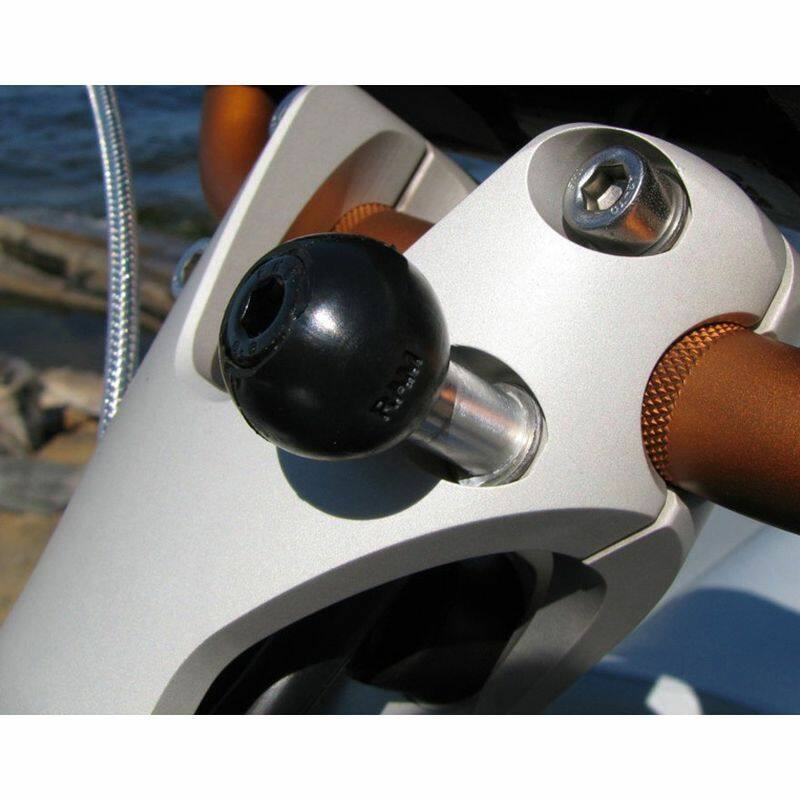

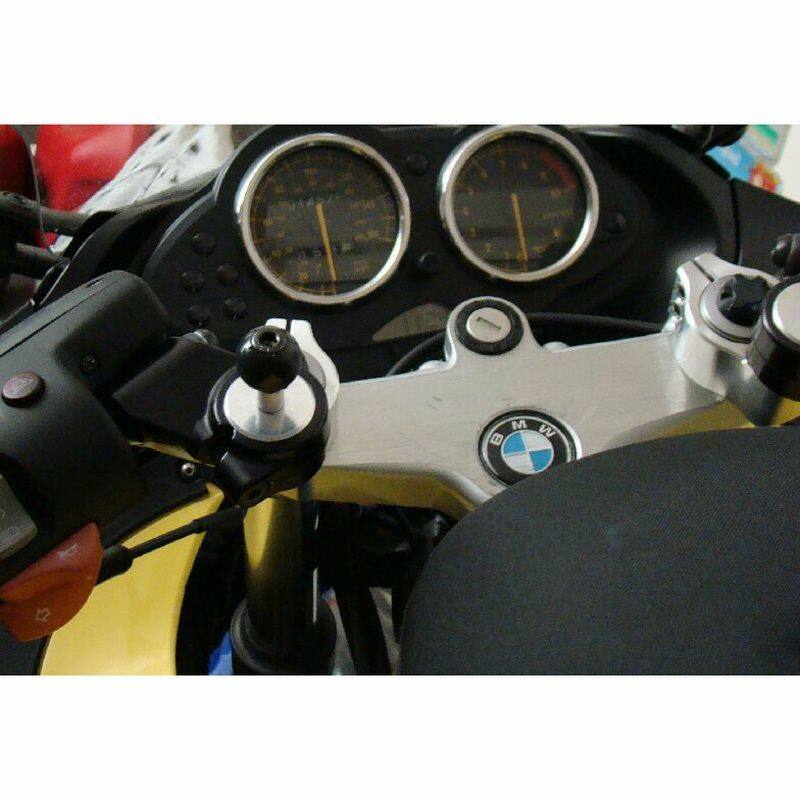

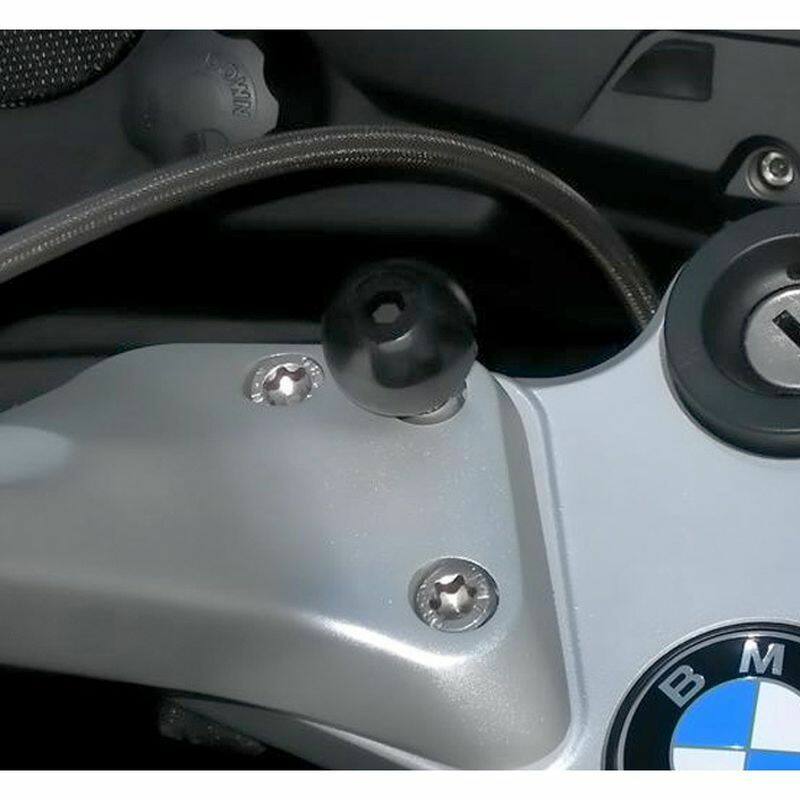

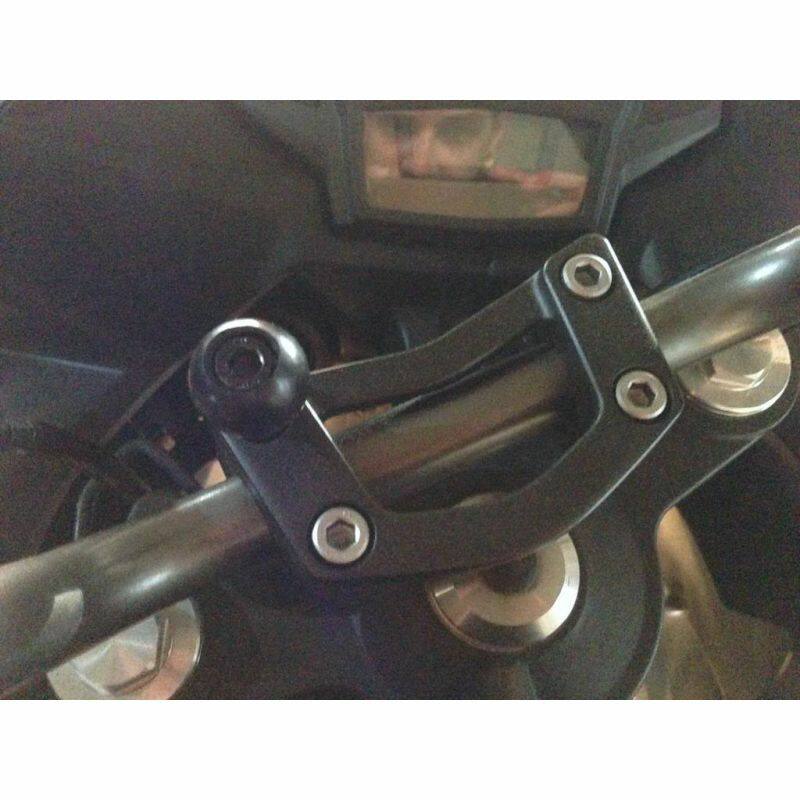

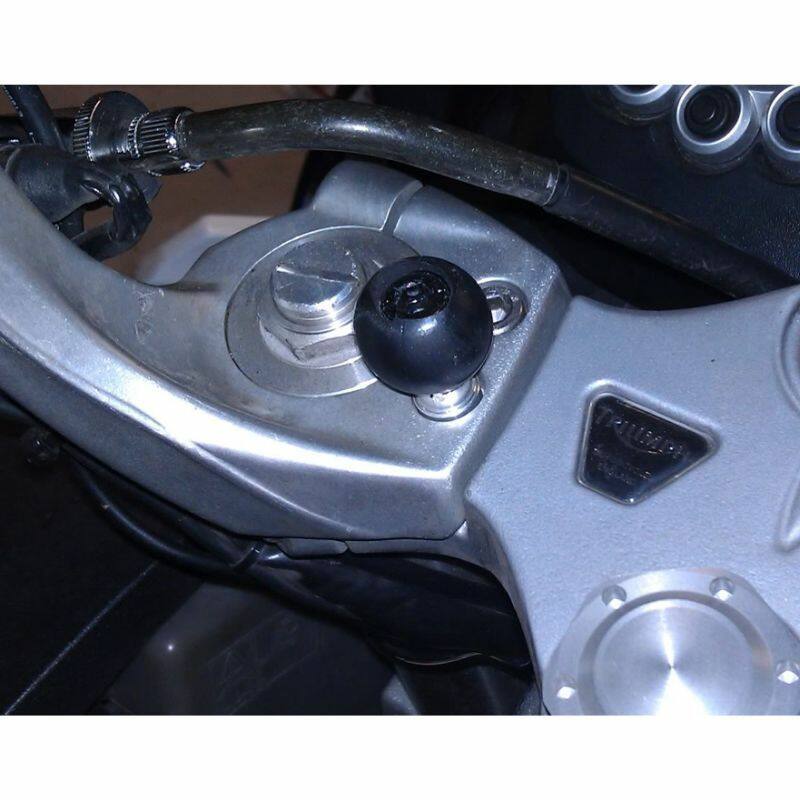

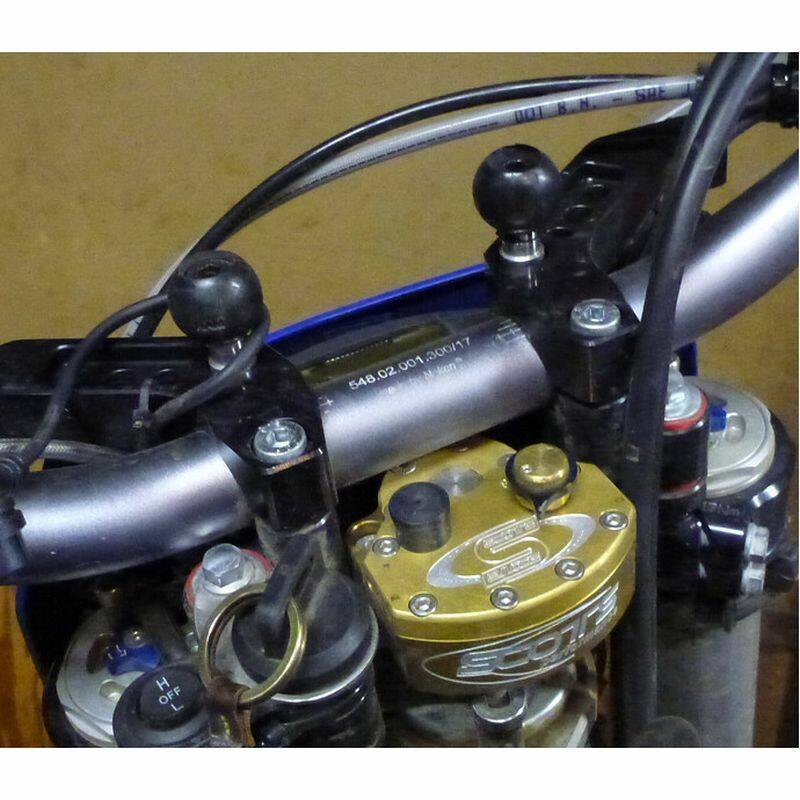

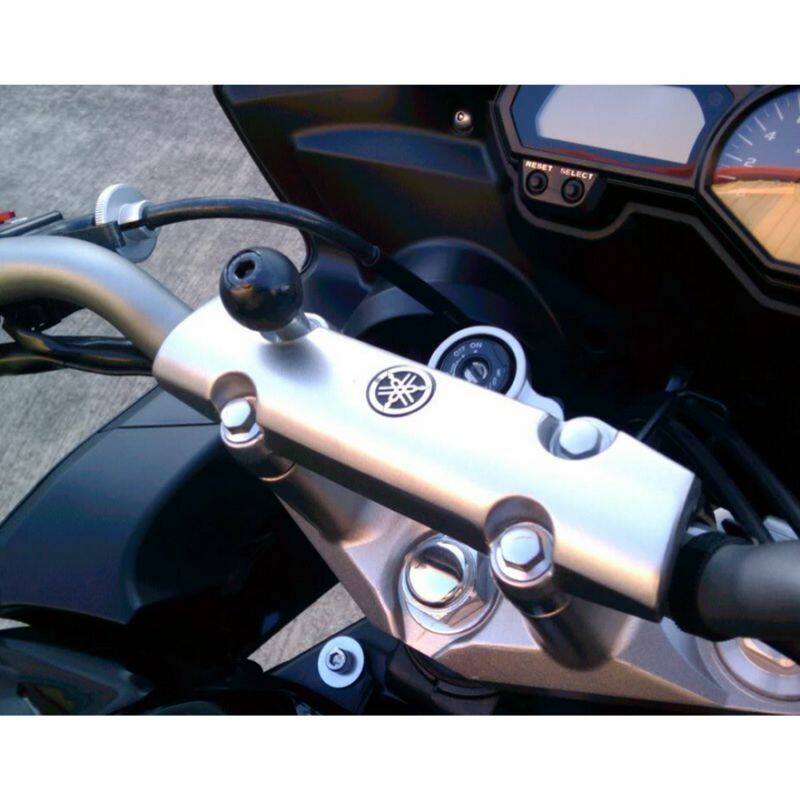

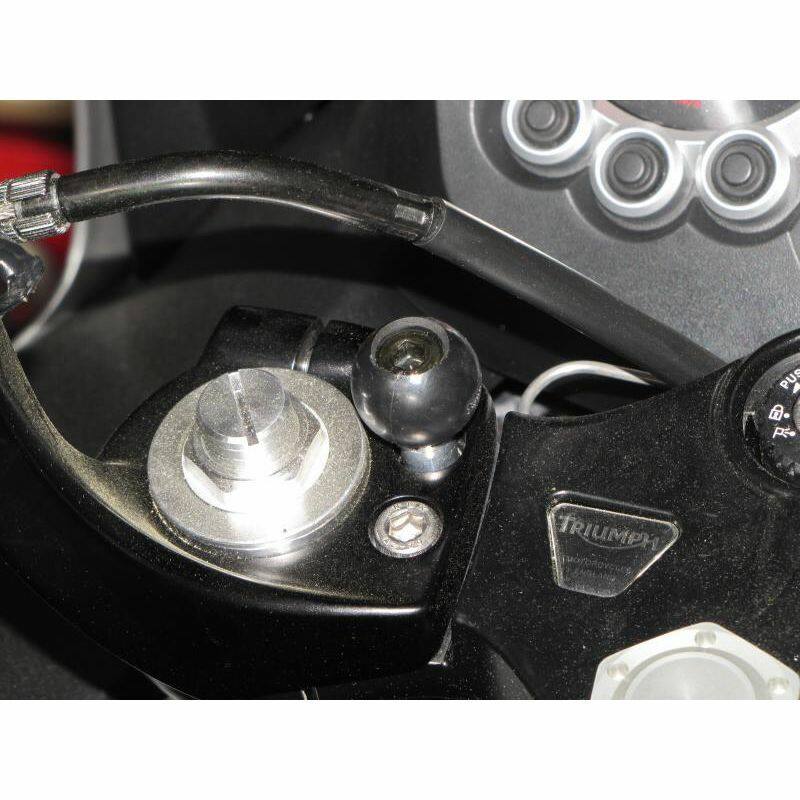

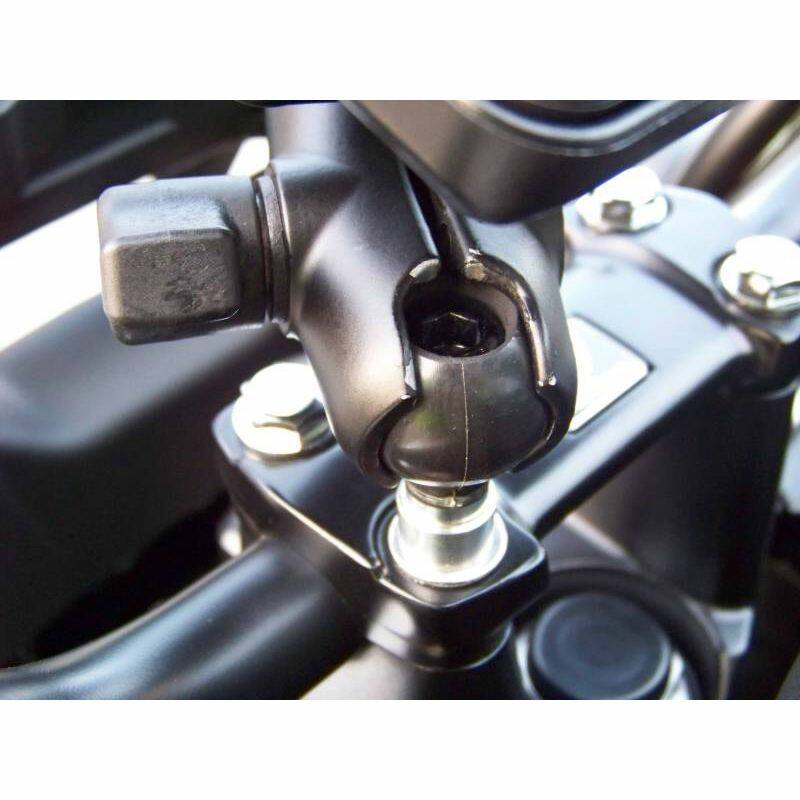

The base will replace one of the M8 bolt heads on your handlebar clamp system with a rubber ball, positioning your device clean in the centre and providing shock and vibration damping. To determine bolt compatibility measure your bikes bolt diameter and add 30mm to the length. If it does not match, you may be able to source the correct length of bolt locally.

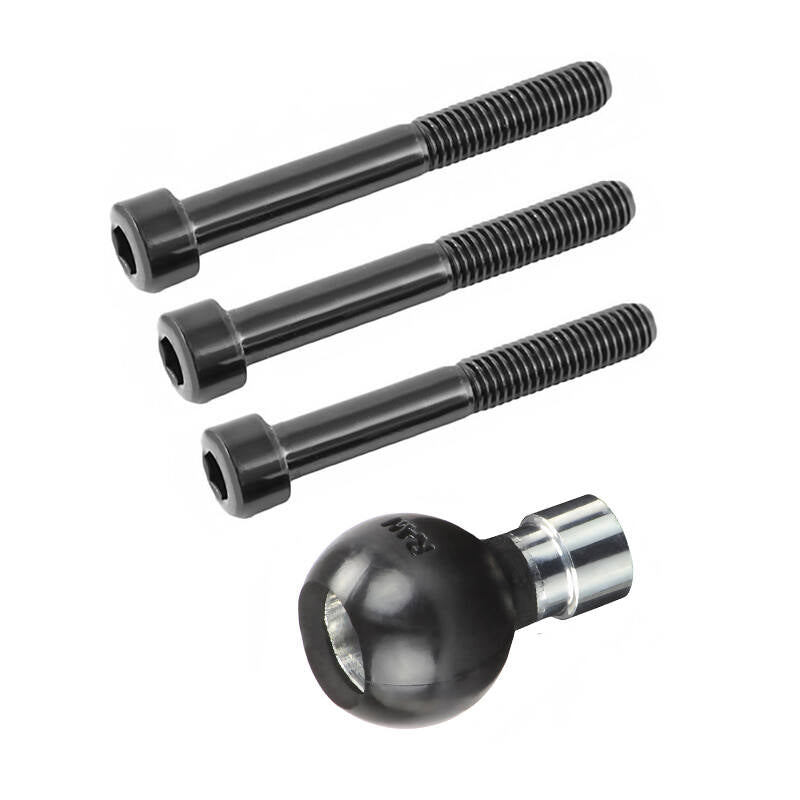

Includes (all 1.25 thread pitch):
M8 x 55 bolt
M8 x 60 bolt
M8 x 65 bolt

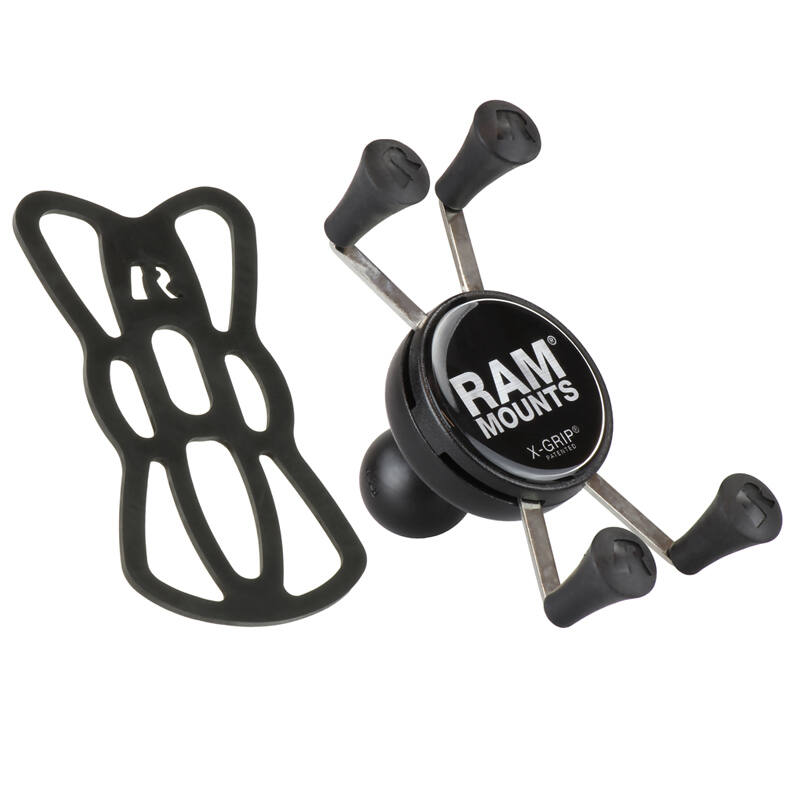

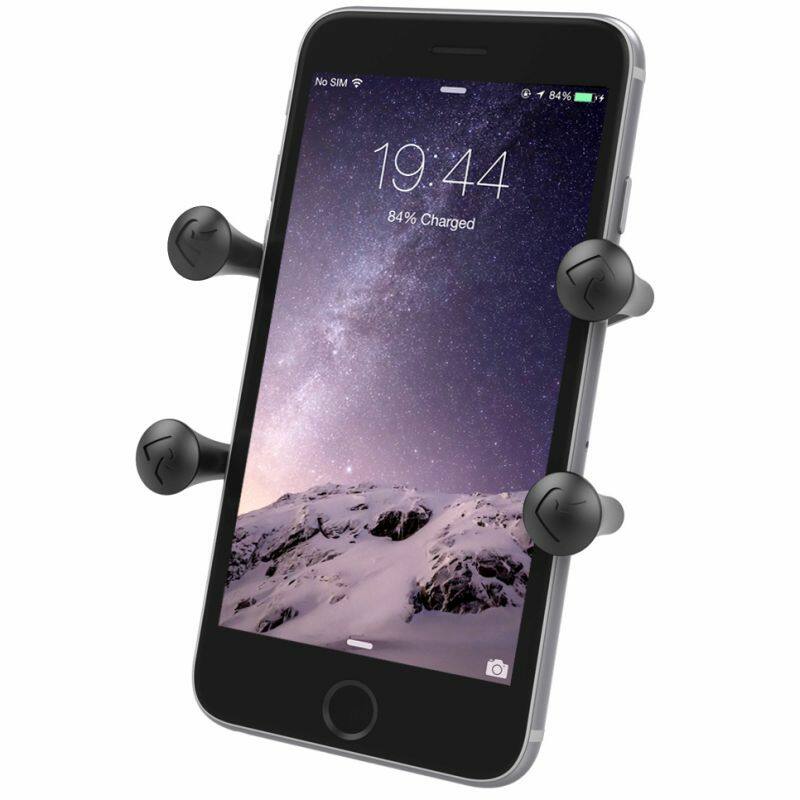

The cradle has a clean and clever 4-leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications.
It is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Min Width = 47.6mm (1.875”) – (if min width then min height = 108mm / 4.25")
Max Width = 82.6mm (3.25") – (if max width then min height = 57.2mm / 2.25")
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU
Material:
Powder Coated Marine Grade Aluminium
Marine Grade Stainless Steel
High Strength Composite
Ball Size:
B Size 1" Ball
Arm Length Overall:
60.5mm (2.38')
Components:
RAM-B-201U-A Short DOUBLE SOCKET ARM
RAM-B-367U MOTORCYCLE BASE W HOLE M8 SCREW
RAM-HOL-UN7BU X-GRIP UNIVERSAL HOLDER W/ 1" BALL
