RAM Mounts

RAM X-Grip Universal Smartphone Cradle - Motorcycle Fork Stem Mount

RAM X-Grip Universal Smartphone Cradle - Motorcycle Fork Stem Mount

SKU:RAM-B-176-A-UN7U

Regular price $154.21 NZD
Regular price Sale price $154.21 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

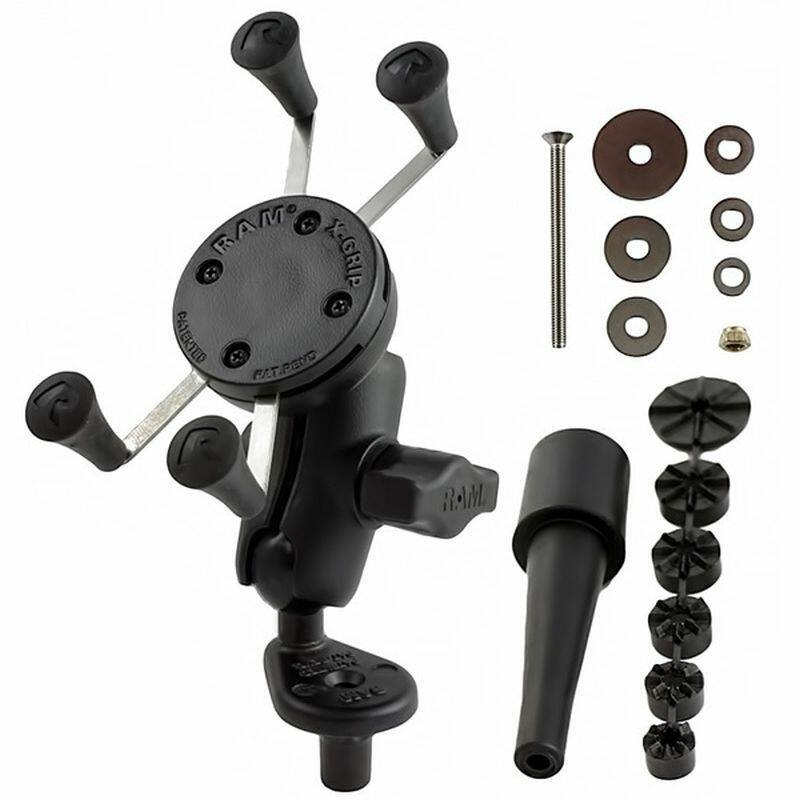

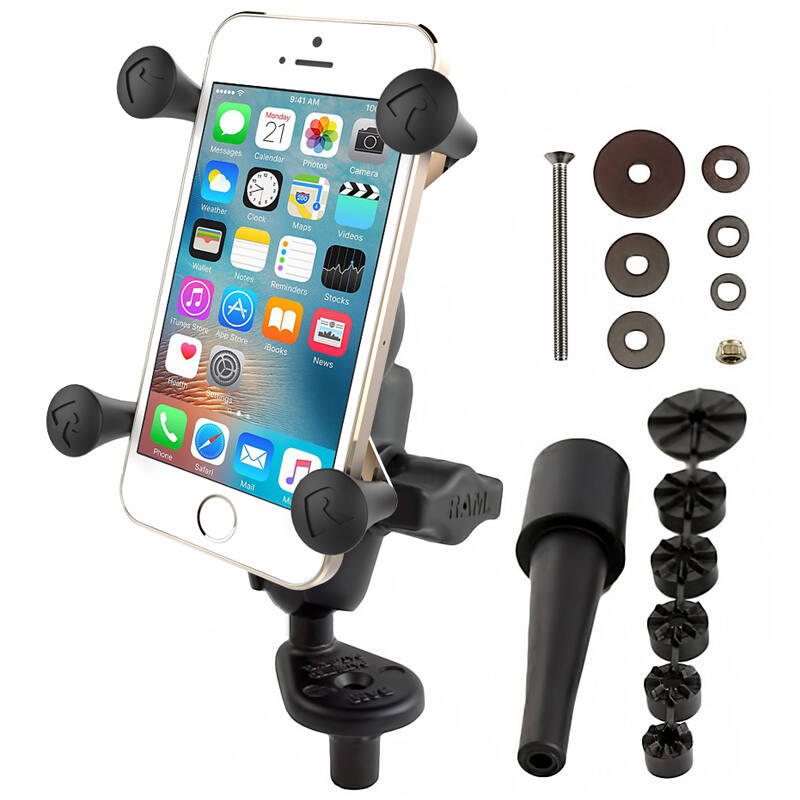

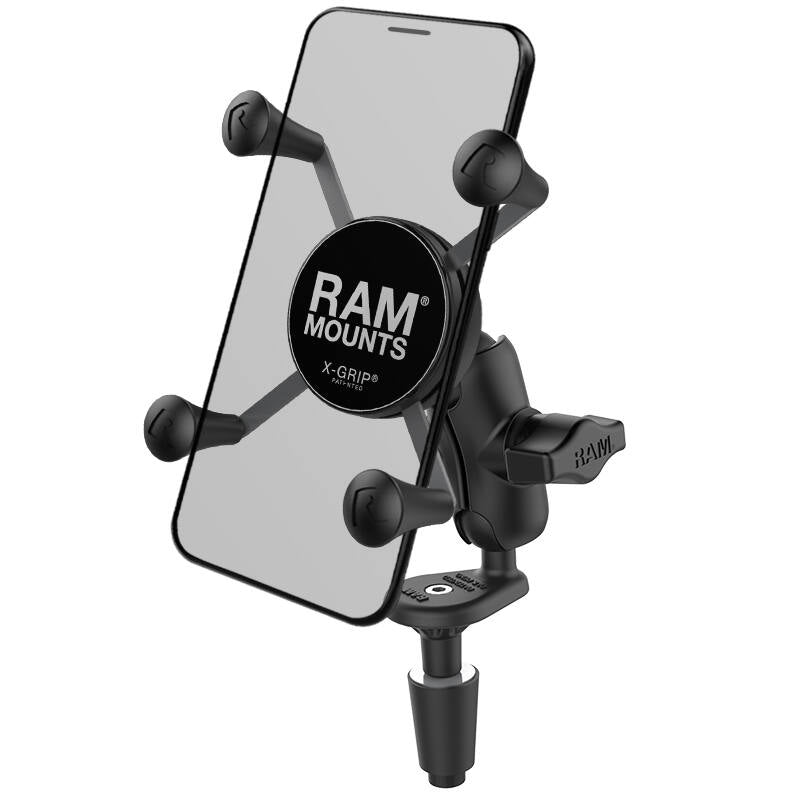

RAM-B-176-A-UN7U RAM® X-Grip® Phone Holder with Motorcycle Fork Stem Base


Features

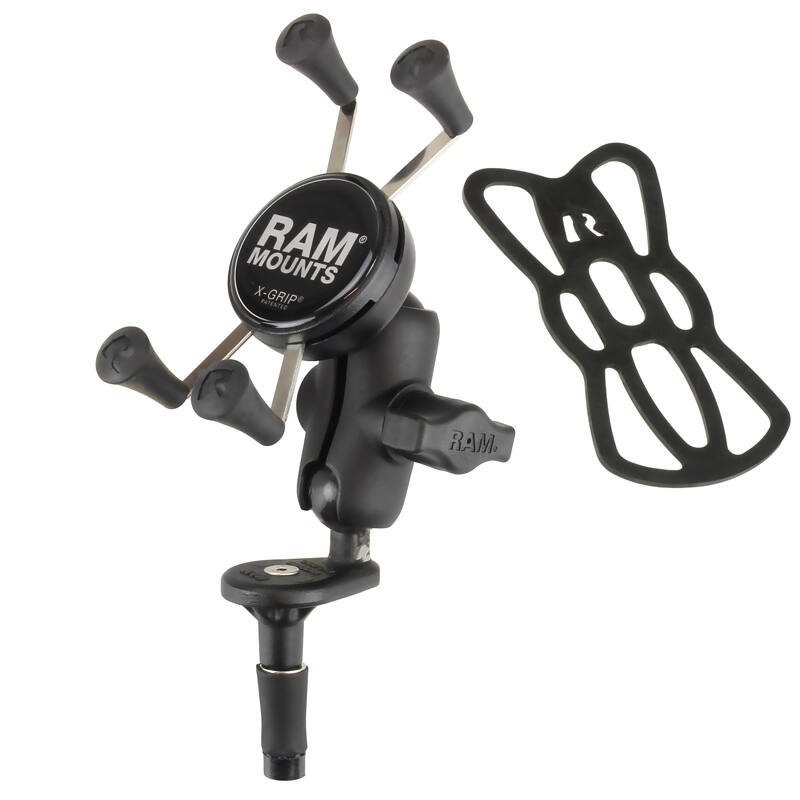

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
* Includes motorcycle fork stem base that works with stems 12mm to 38mm in diameter and short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of stainless steel components, high-strength composites, and powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

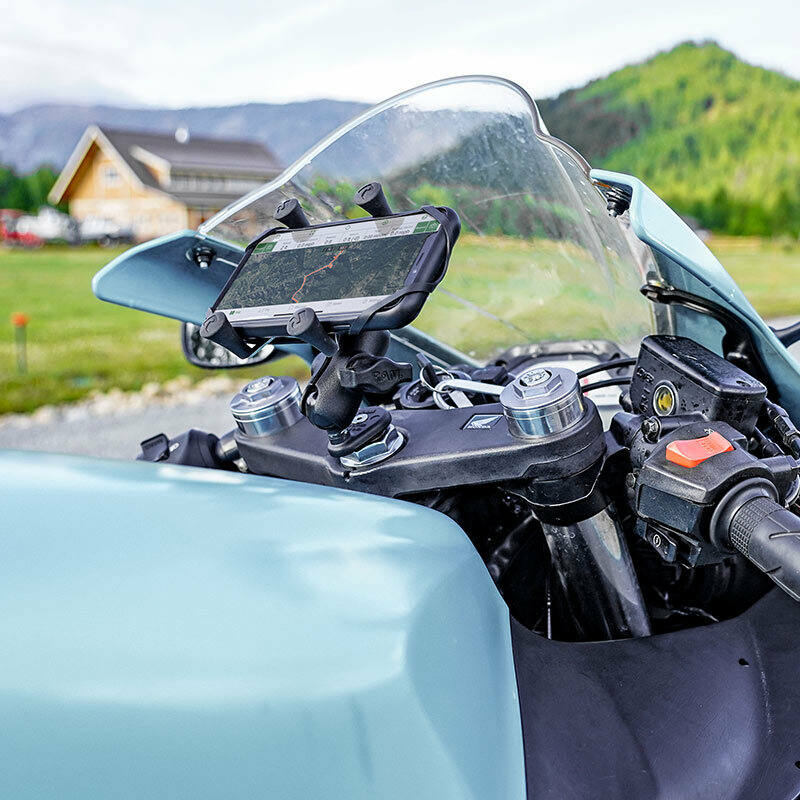

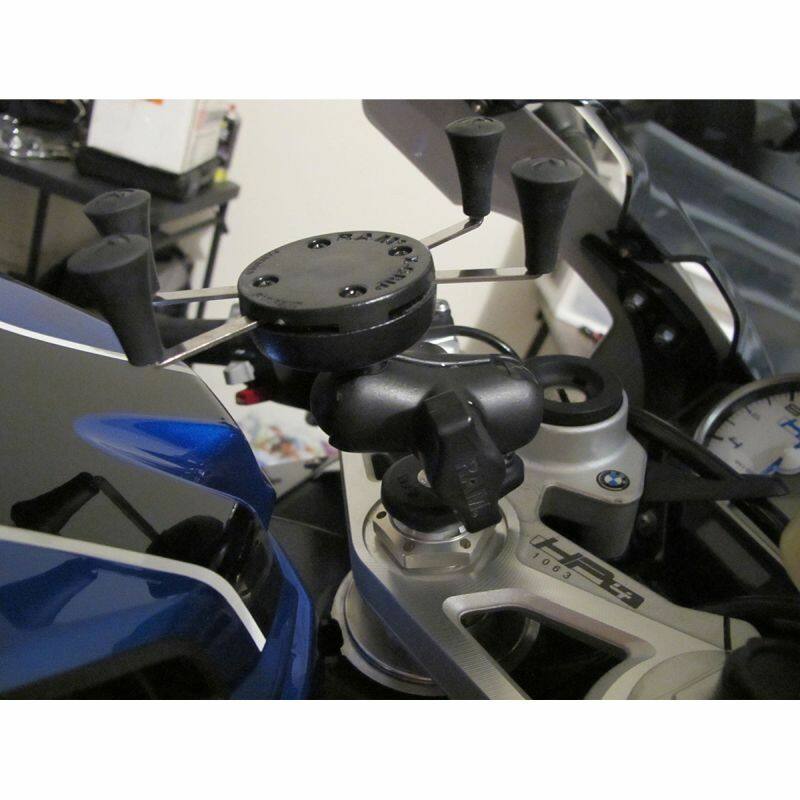

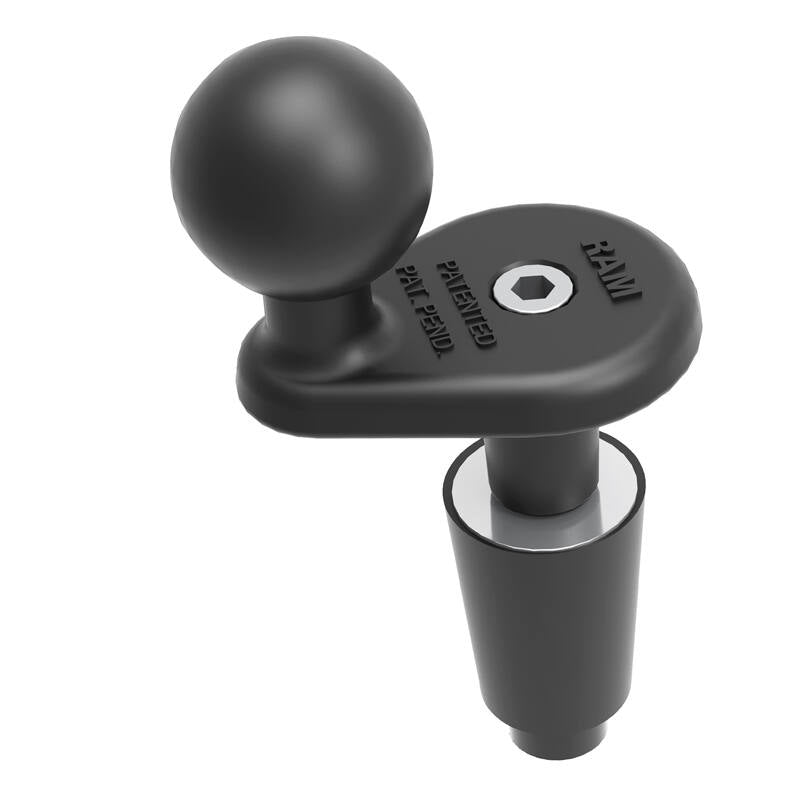

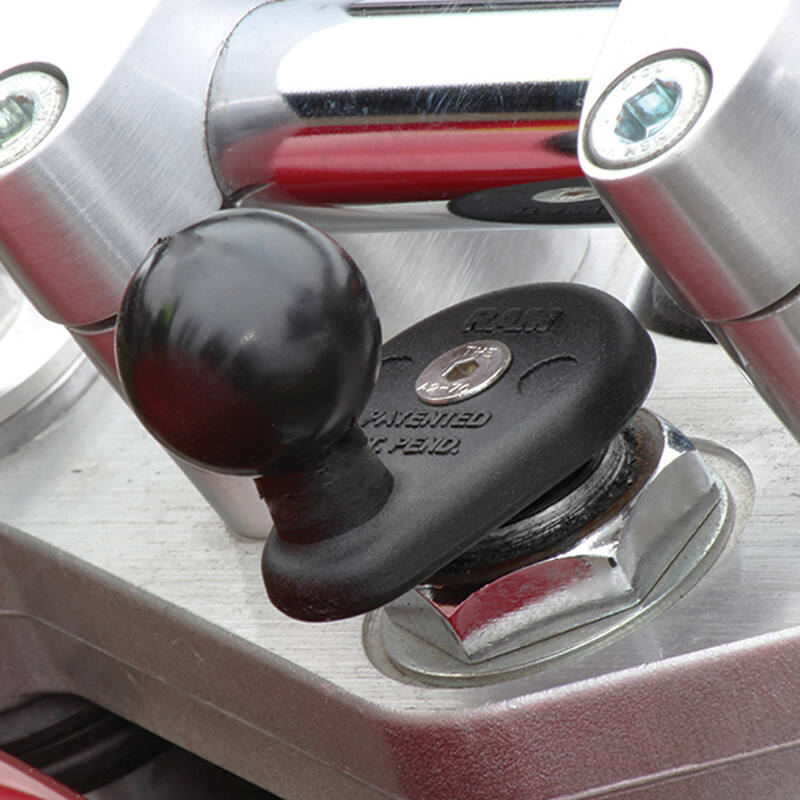

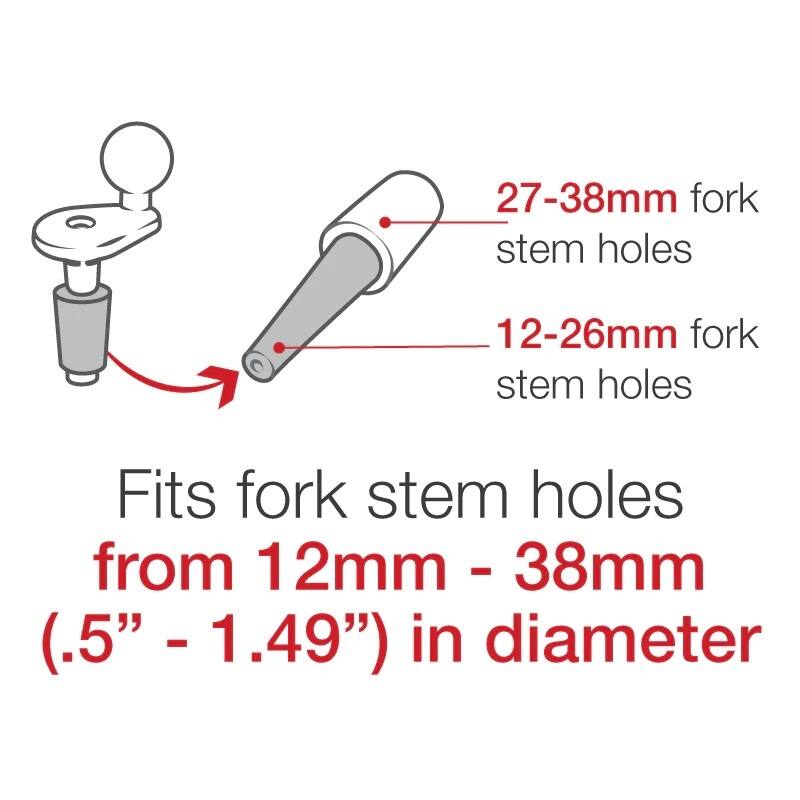

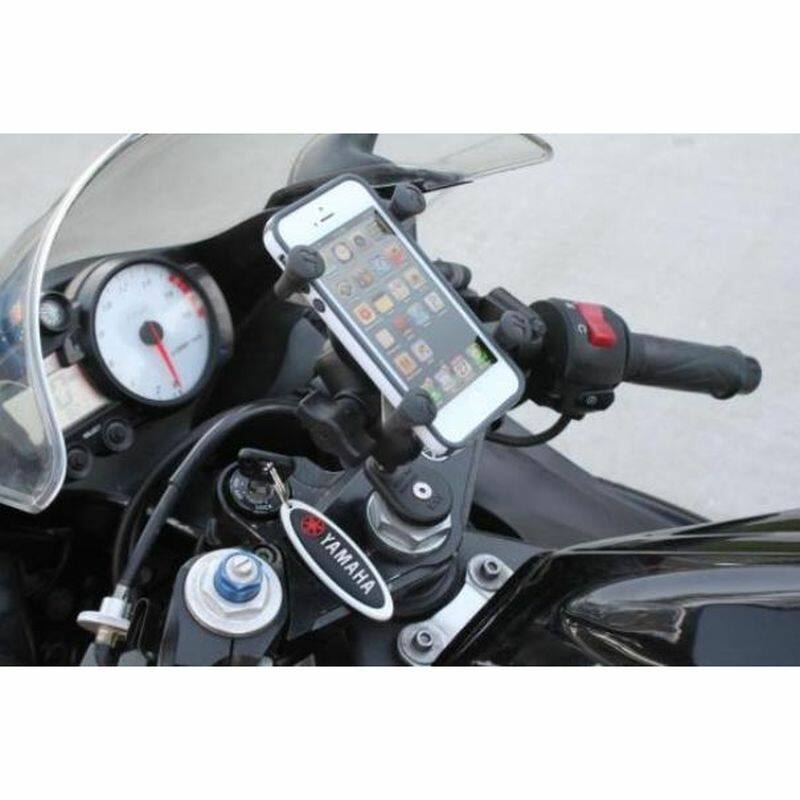

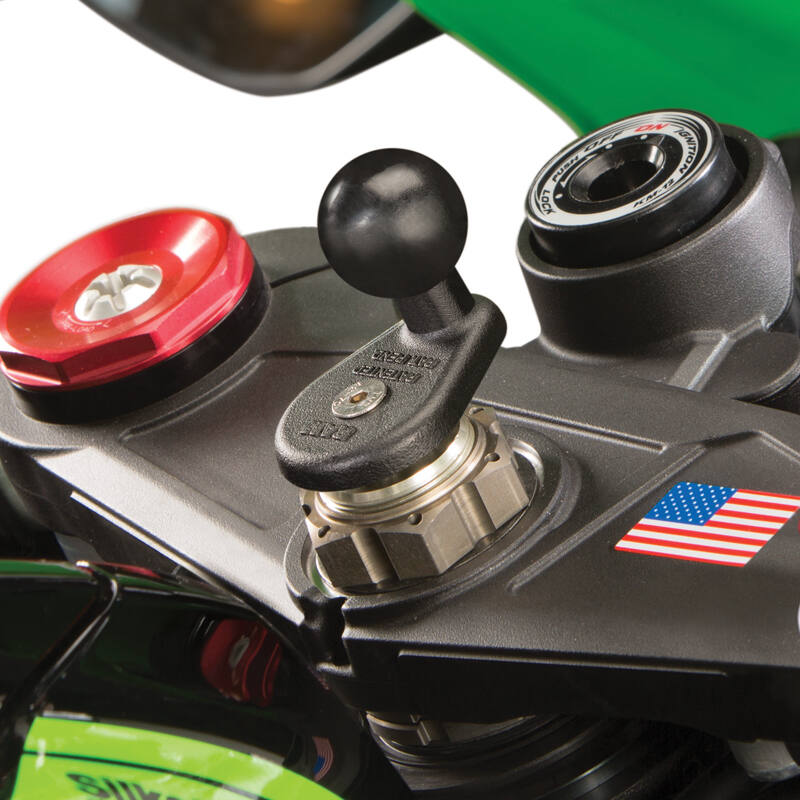

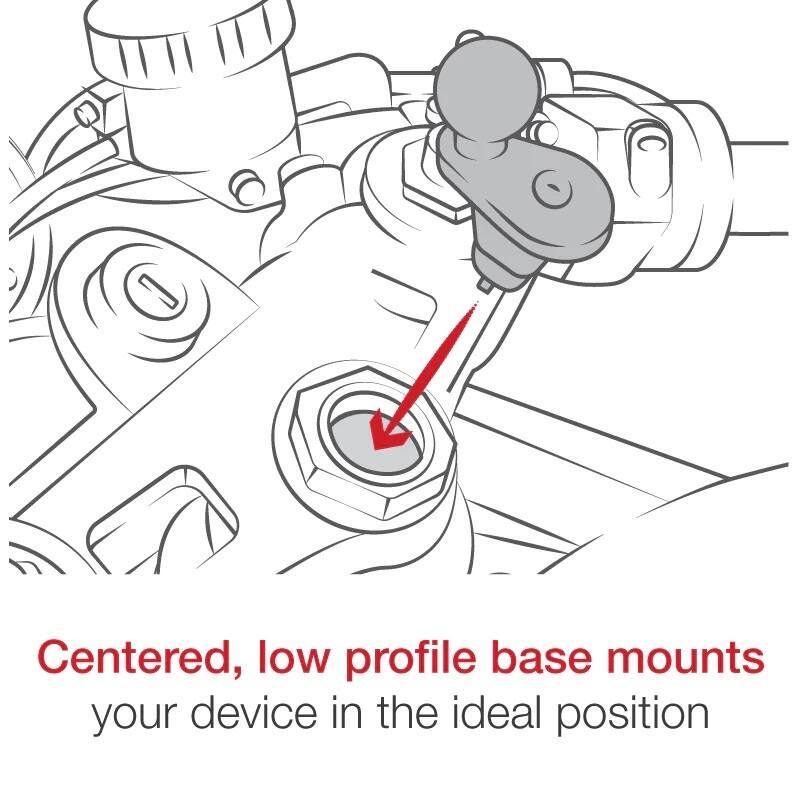

The RAM® motorcycle fork stem base is one of the cleanest and most popular solutions for mounting your favourite device on the centre of your bike. With 1" rubber ball, this is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure 12mm to 38mm (.5” to 1.49”) in diameter.

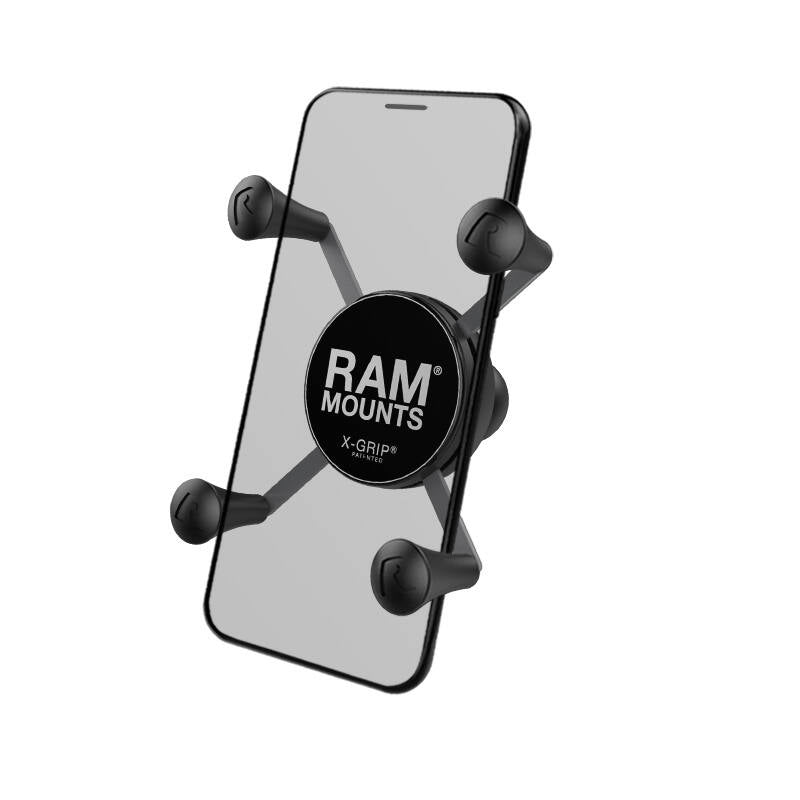

The X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved.

The cradle is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size

Cradle Dimensions
Min Width = 47.6mm / 1.875” – (if min width then min height = 108mm / 4.25")
Max Width = 82.6mm / 3.25" – (if max width then min height = 57.2mm / 2.25")
Max Thickness = 22.2mm / 0.875"

Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU but includes phones up to iPhone 11/12 or Galaxy S10/S20/S21 size.


Arm Dimenisons:
Overall:
60.5mm (2.38")
Socket-To-Socket
Length: 51mm (2")

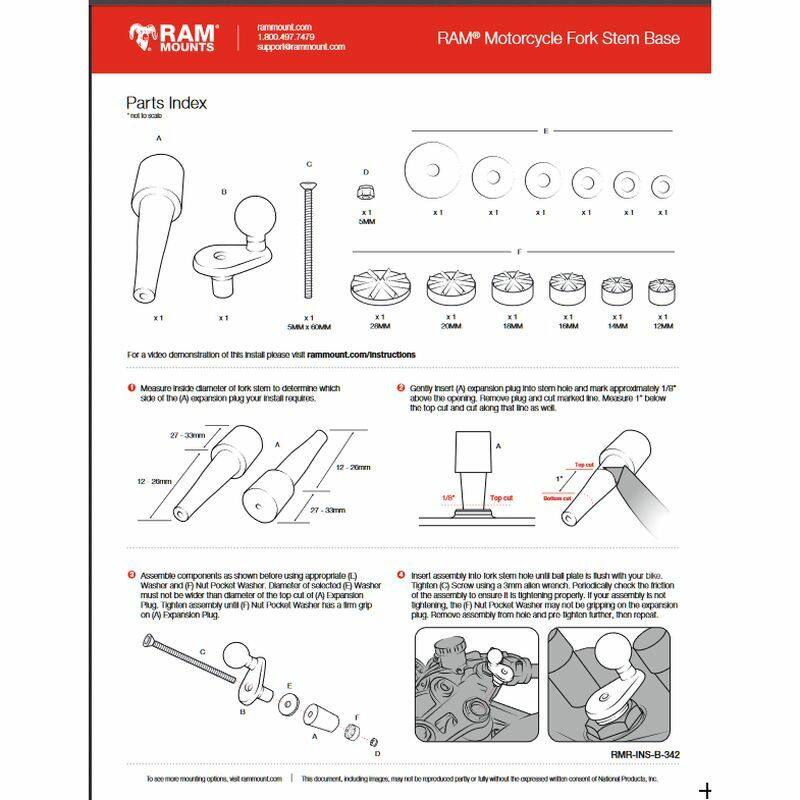

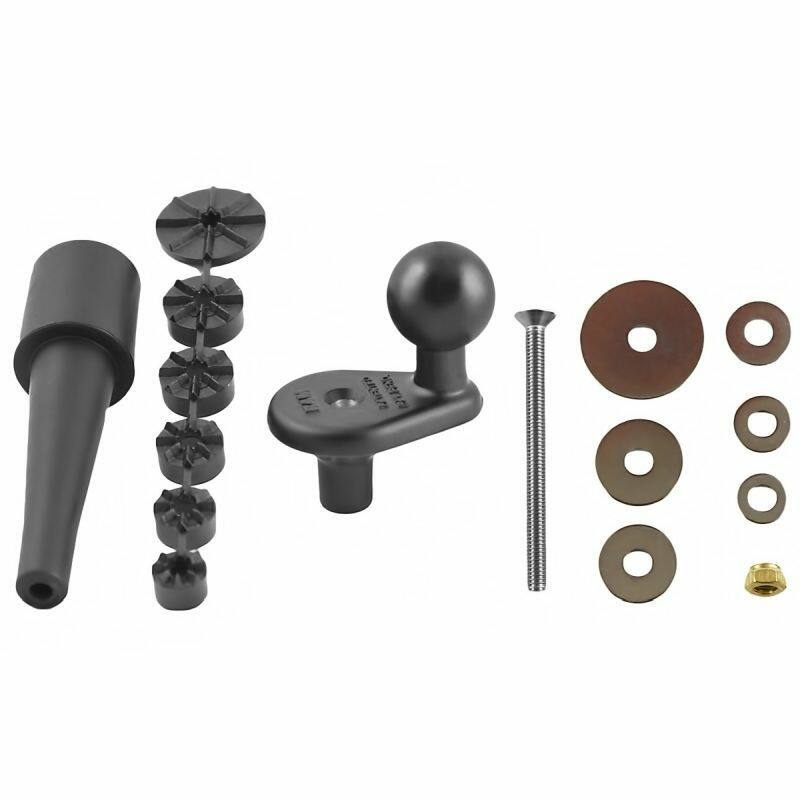

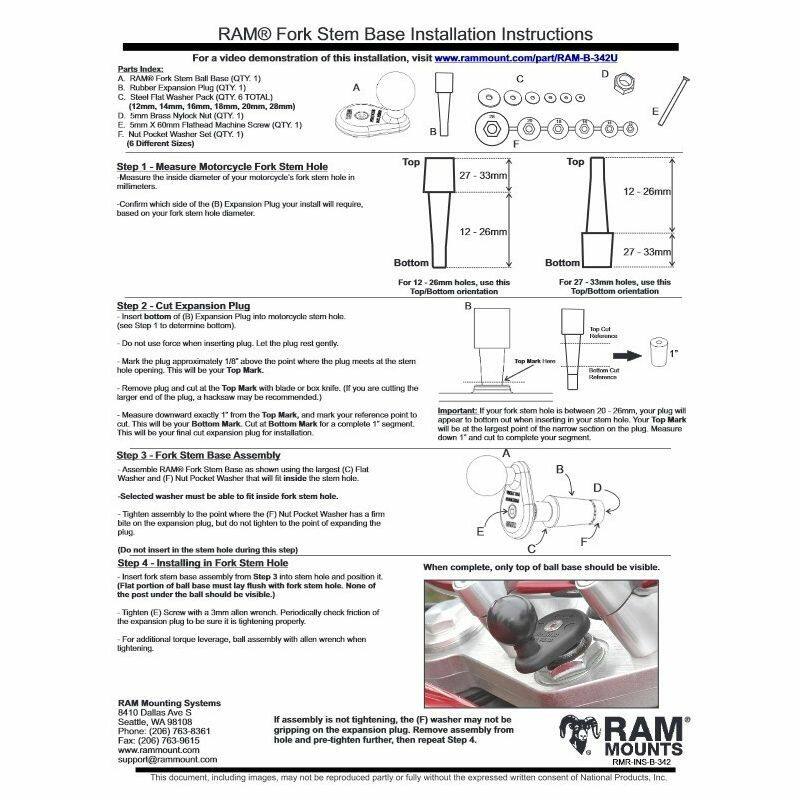

Hardware Included
(1) Expansion Plug 12mm - 38mm (.5" - 1.49")
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut

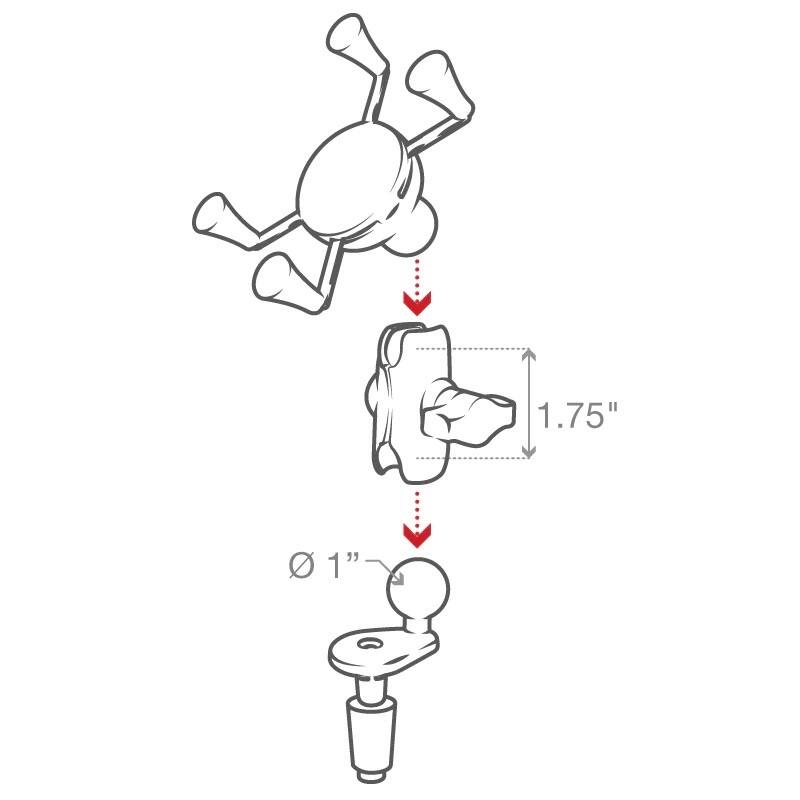

Ball Size:
1" Rubber Ball "B" Size

Weight:
272 grams (0.6 lbs.)

Weight Capacity:
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)


YouTube:
https://www.youtube.com/watch?v=gSplxuUrtmQ
https://www.youtube.com/watch?v=S8ky_uKTw98
https://www.youtube.com/watch?v=iL6UI4EXzBw&t=306s
