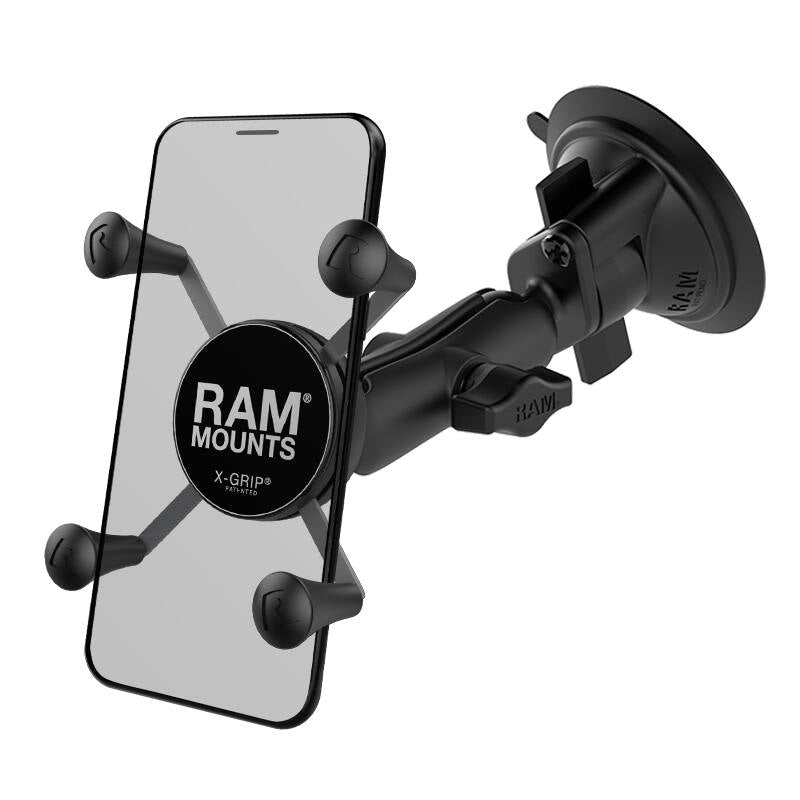

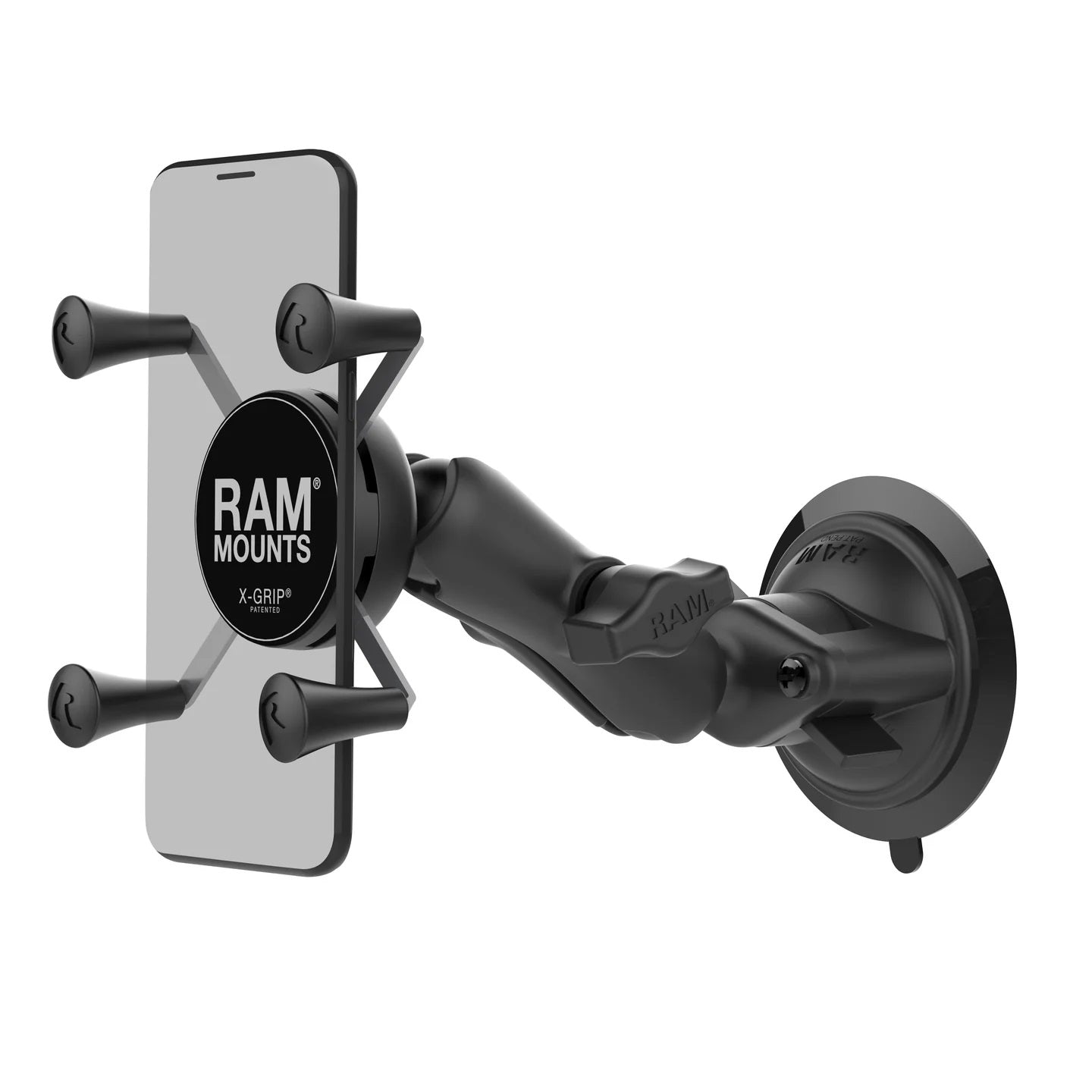

RAM-B-166-UN7U – RAM® X-Grip® Phone Mount with Twist-Lock™ Suction Cup

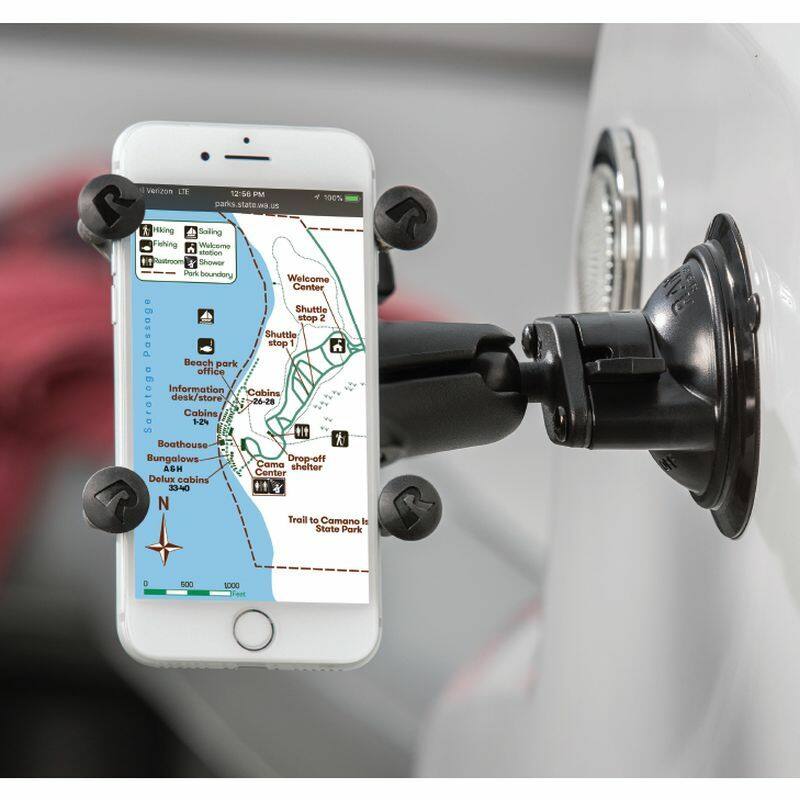

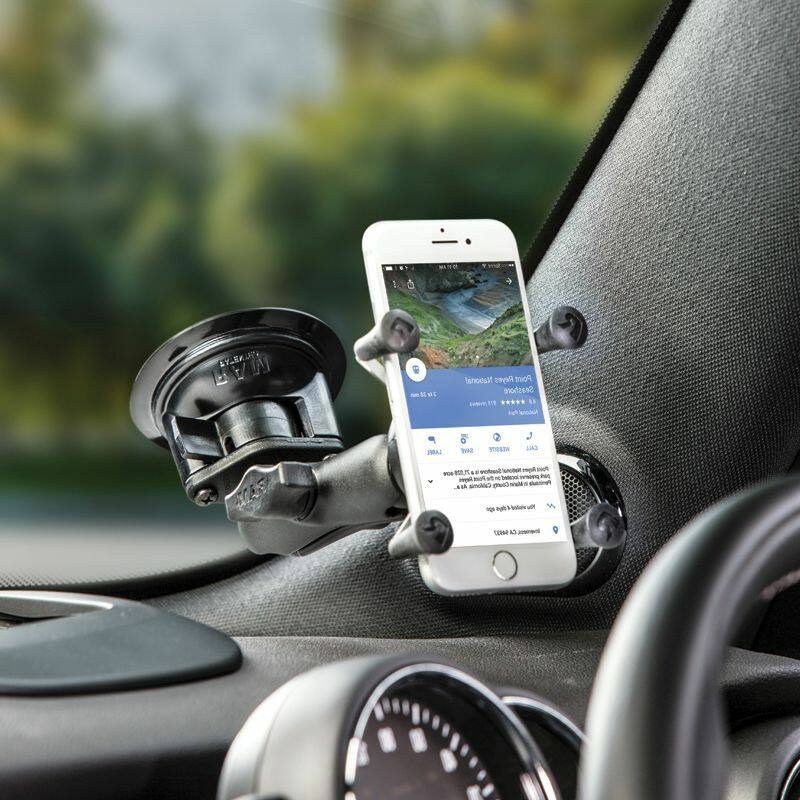

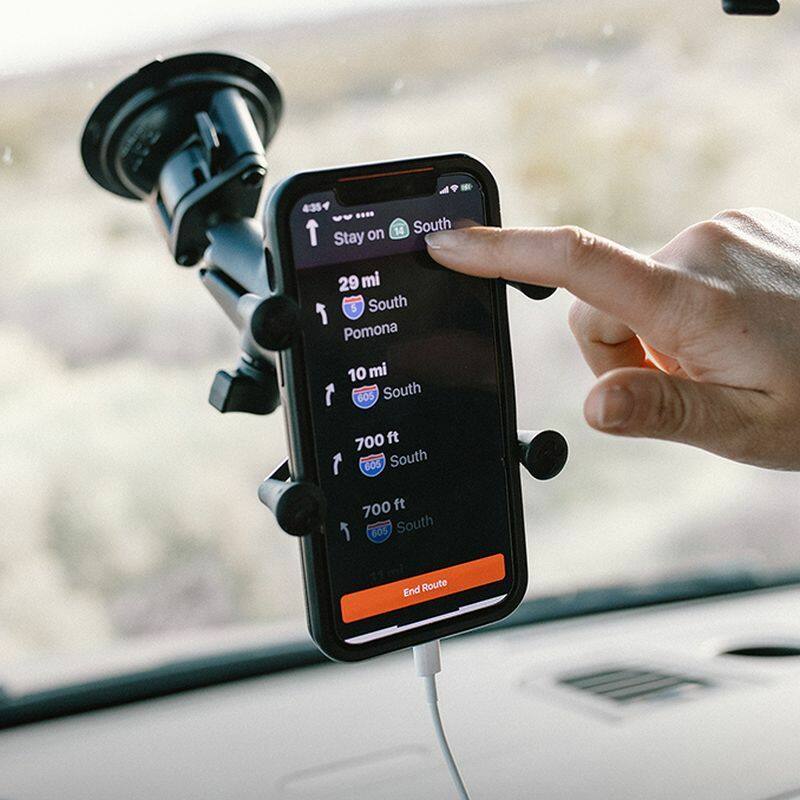

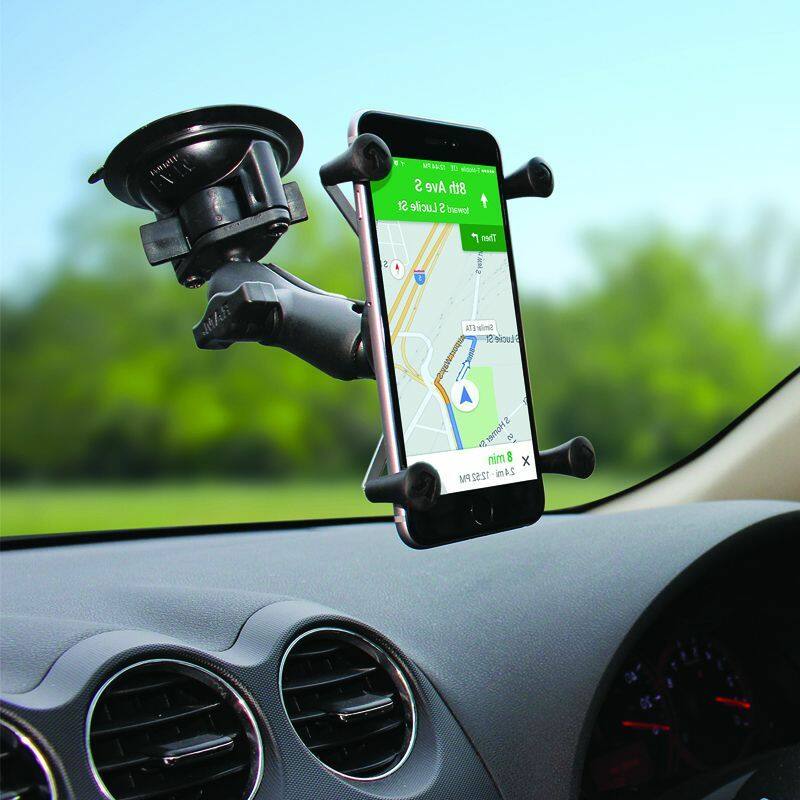

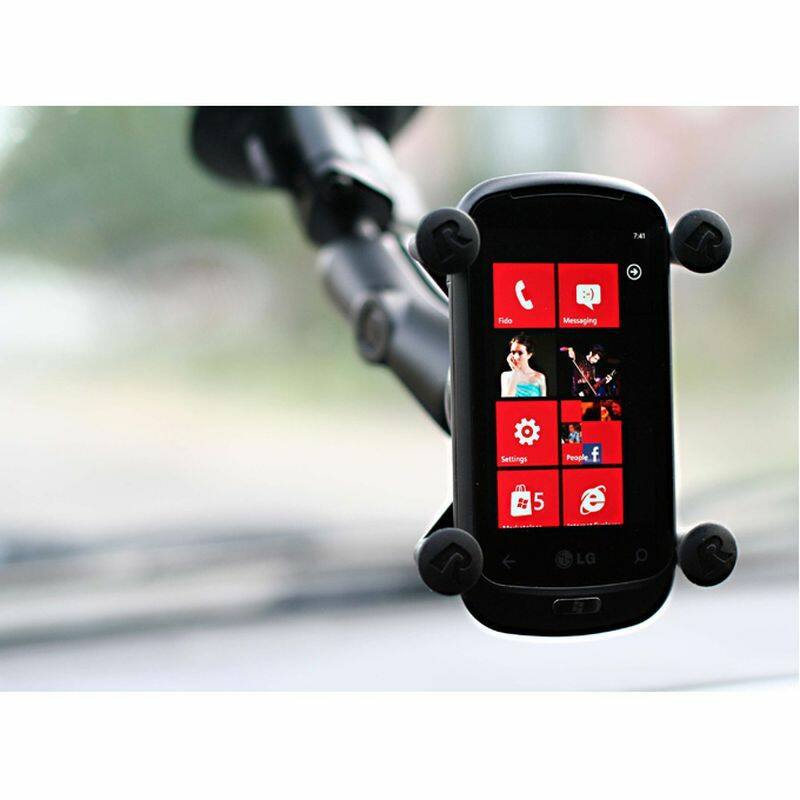

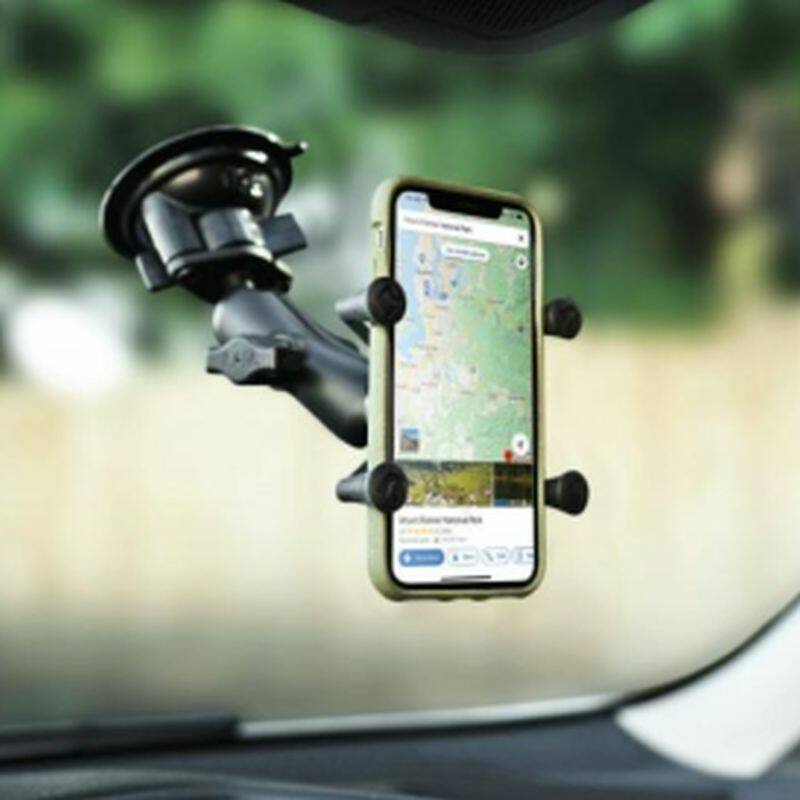

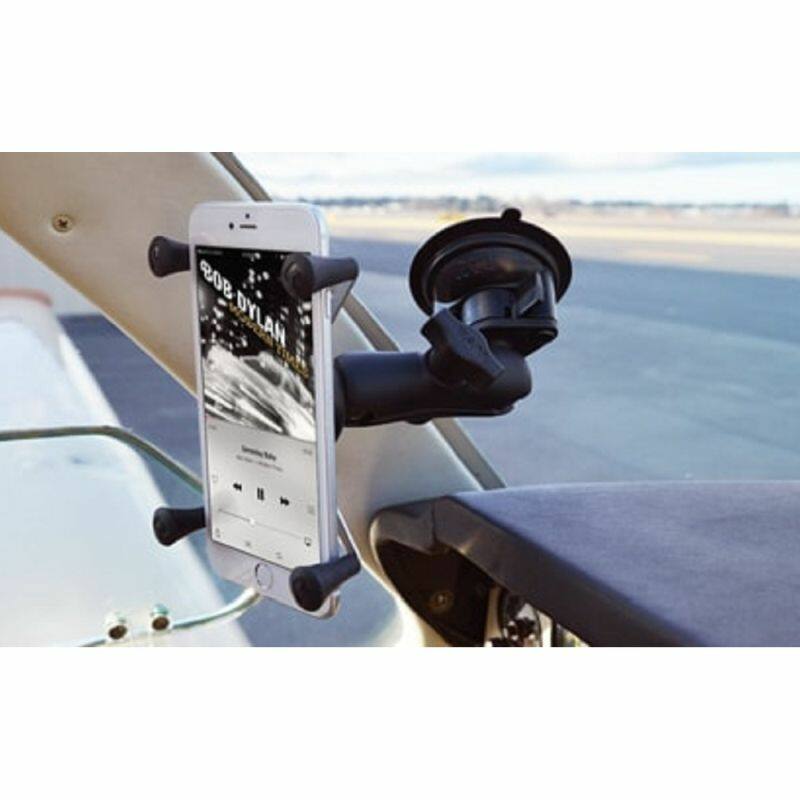

The RAM-B-166-UN7U pairs the RAM® X-Grip® universal phone cradle with a Twist-Lock™ suction cup base and a medium-length arm, for a strong hold on windscreens, dashboards, and other smooth, non-porous surfaces. It's built for daily in-vehicle use rather than the lighter-duty suction mounts sold elsewhere.
Key Features

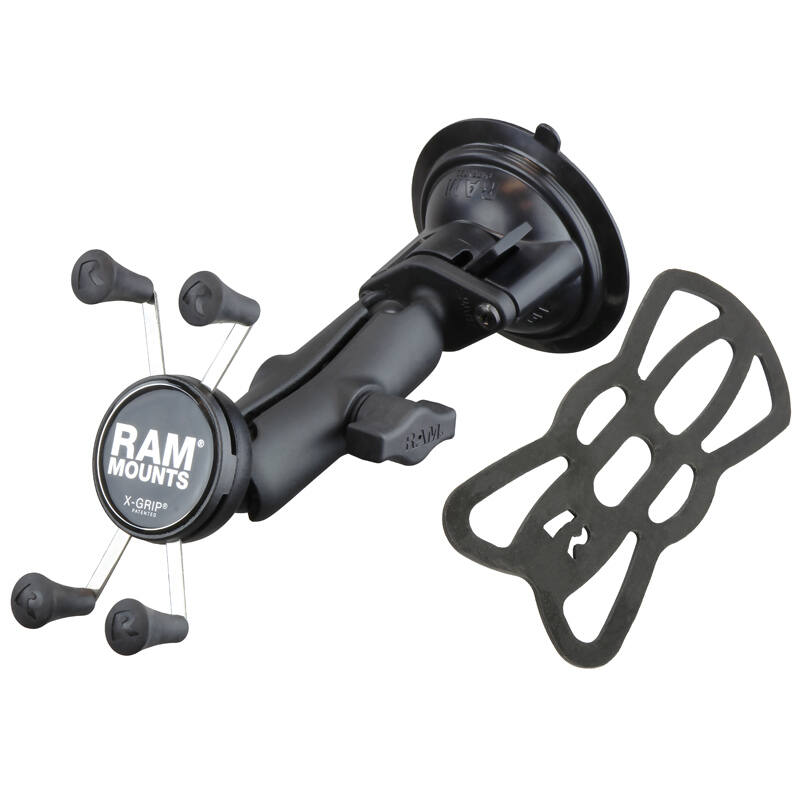

- Spring-loaded X-Grip design with rubber caps holds the phone securely without covering the screen, camera, or buttons; includes an optional device tether for rugged use
- Twist-Lock™ suction cup base, 84mm (3.3") diameter, grips glass and non-porous plastic surfaces, including RAM adhesive disks
- Medium-length B size RAM® double socket arm with ball-and-socket design for near-infinite positioning
- Powder-coated marine-grade aluminium, stainless steel hardware, and high-strength composite construction
- Backed by a lifetime warranty

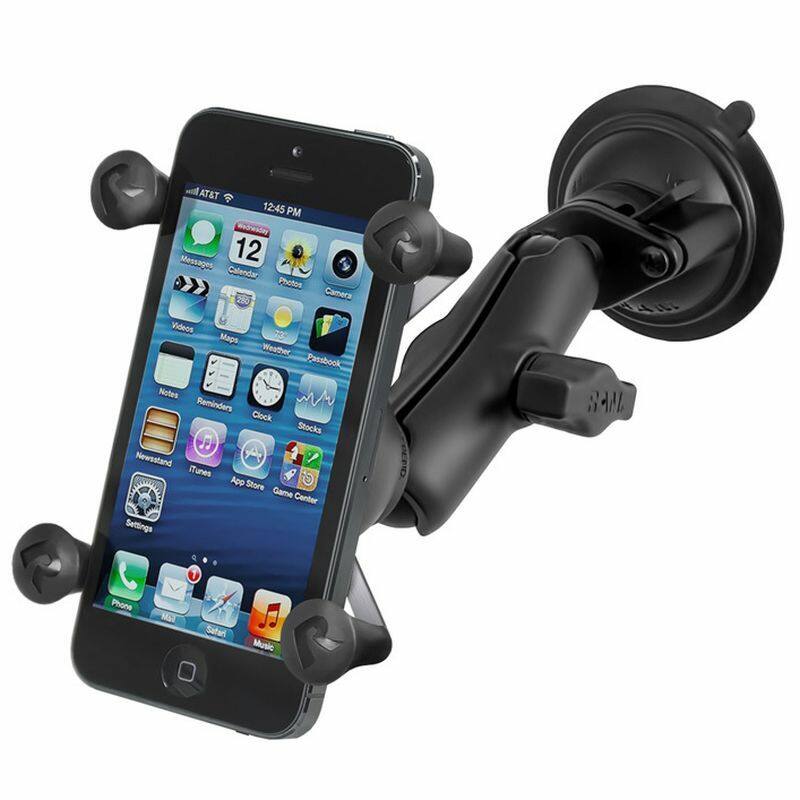

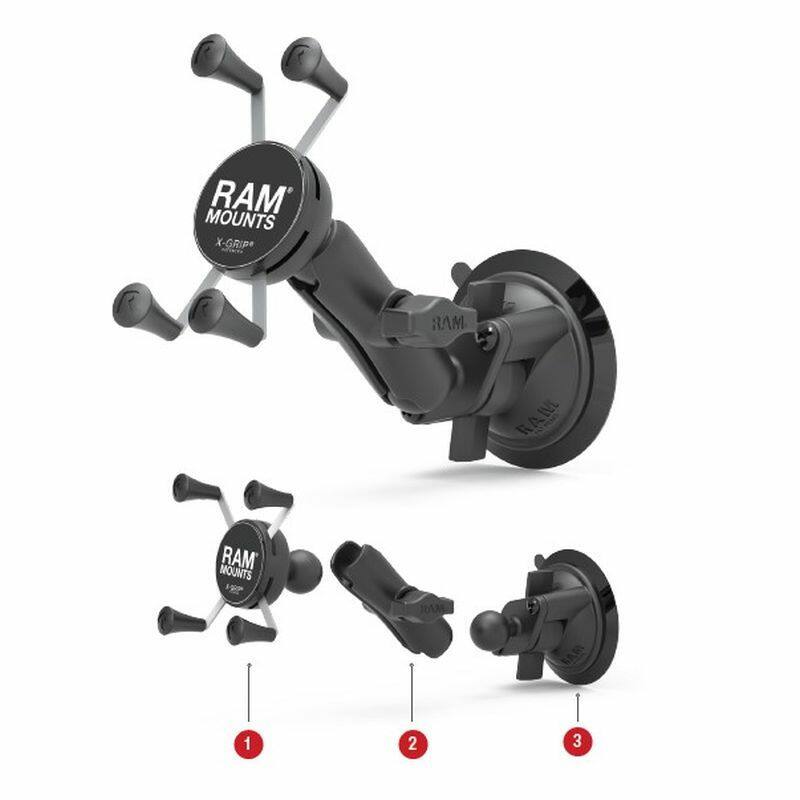

What's Included
- RAM-B-224-1U Twist-Lock™ suction cup base, 84mm (3.3") diameter, with aluminium diamond base and 1" ball
- RAM-B-201U B size double socket arm, medium length
- RAM-HOL-UN7BU X-Grip® universal phone cradle with device tether

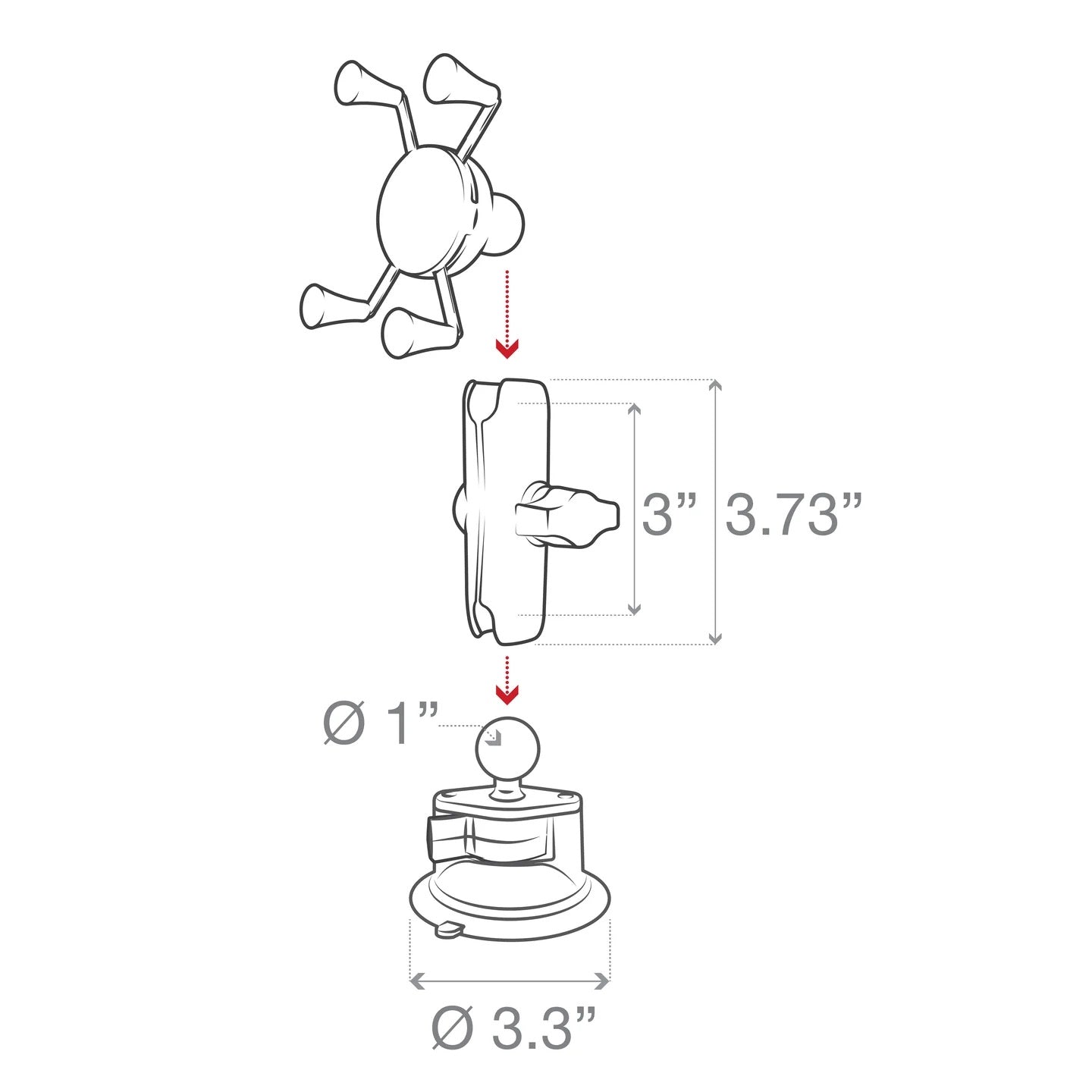

Dimensions & Specifications
- Suction cup base diameter: 83.8mm (3.3")
- Arm length, overall: 94mm (3.69")
- Arm length, socket-to-socket: 76mm (3")
- Cradle minimum device width: 47.6mm (1.875"); requires minimum device height 108mm (4.25")
- Cradle maximum device width: 82.6mm (3.25"); requires minimum device height 57.2mm (2.25")
- Cradle maximum device depth: 22.2mm (0.875")
- Ball size: B size, 1" rubber ball
- Weight: 344g (0.76 lb)
- Materials: powder-coated marine-grade aluminium, marine-grade stainless steel, high-strength composite
Compatible Devices
Fits hand-held devices within the cradle dimensions above, with or without a case. For the full list of 100+ compatible phone models across 14 brands, see our RAM-HOL-UN7BU listing.
Videos
FAQs
Is this a complete mount? Yes. The suction base, medium arm and X-Grip phone cradle are all included; there's nothing else to buy to get your phone onto the glass.
What surfaces will the cup stick to? Glass and other smooth, non-porous surfaces. Textured dashboards, matte plastic and any surface with a grain won't hold; clean both the cup and the surface before mounting. A RAM® adhesive disk gives the cup a smooth face to grip on an otherwise unsuitable surface.
Will my phone fit with a case on? Measure the width of your phone with the case fitted. The cradle opens from 47.6mm to 82.6mm wide and takes devices up to 22.2mm thick, which covers most phones in a standard case. Thick rugged cases and battery cases are the usual exception.
Is the tether included? Yes. We'd recommend fitting it for off-road, marine and any other high-vibration use; it's cheap insurance if the phone is ever knocked loose.
Is the medium arm the right choice? The 94mm arm suits most windscreen and side-window mounting. Short and long arm versions of this same kit are also available if you need the phone held tighter to the glass or pushed further out.
