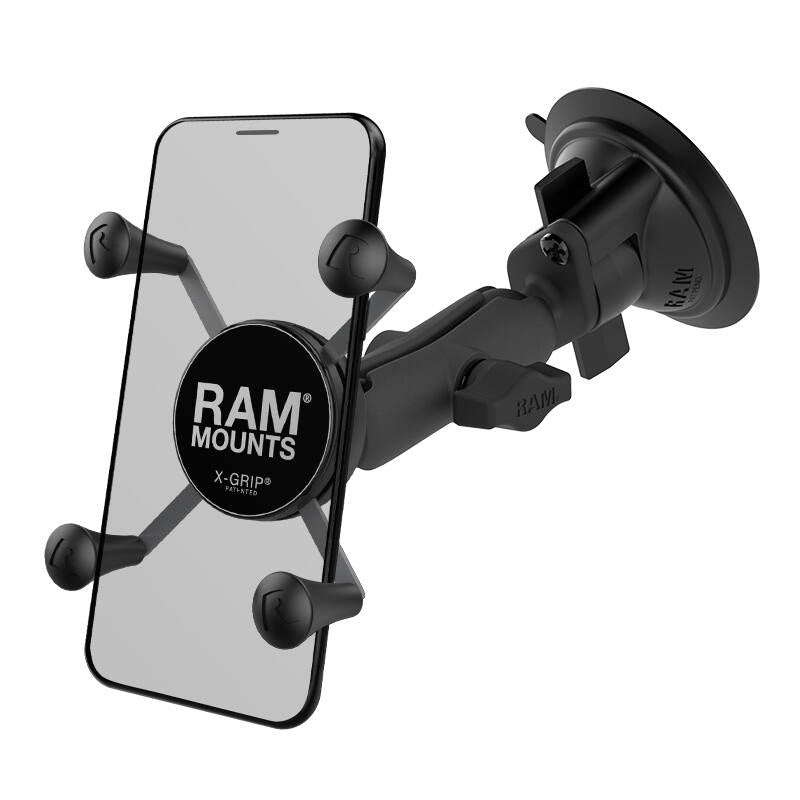

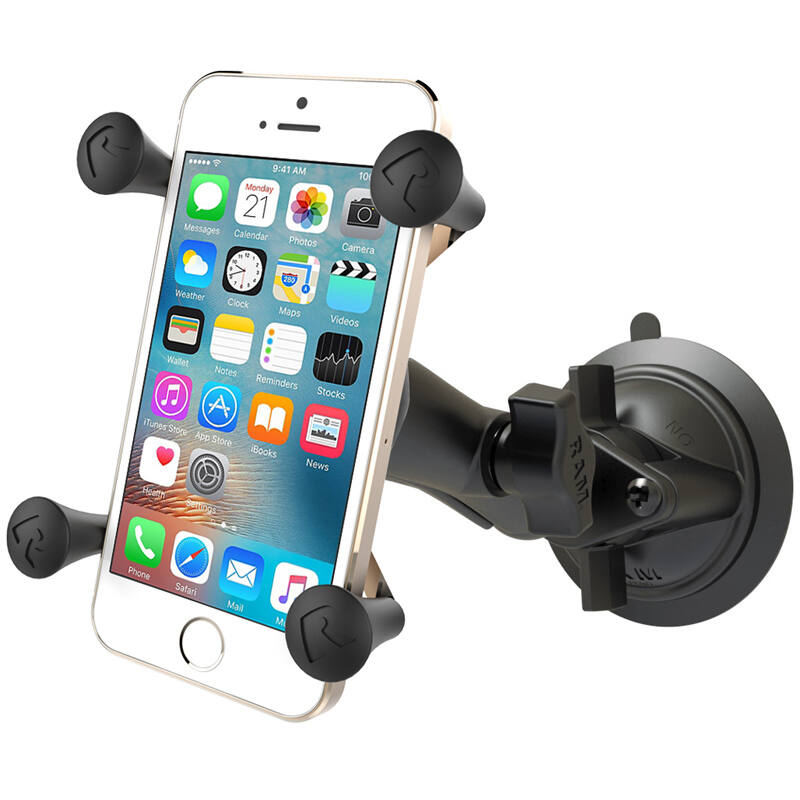

RAP-B-166-UN7U – RAM® X-Grip® Phone Mount with Composite Twist-Lock™ Suction Cup

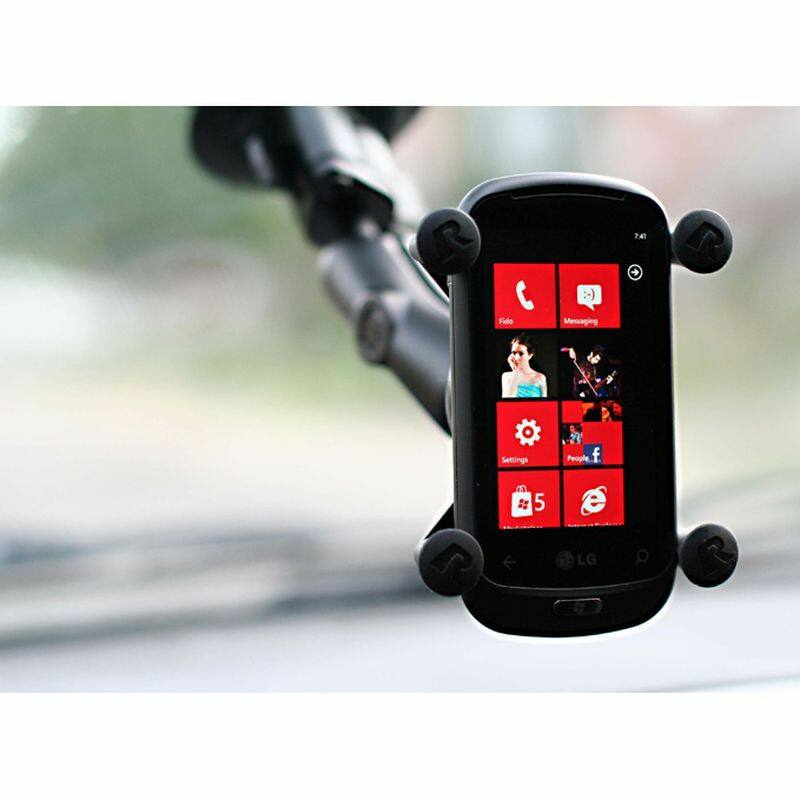

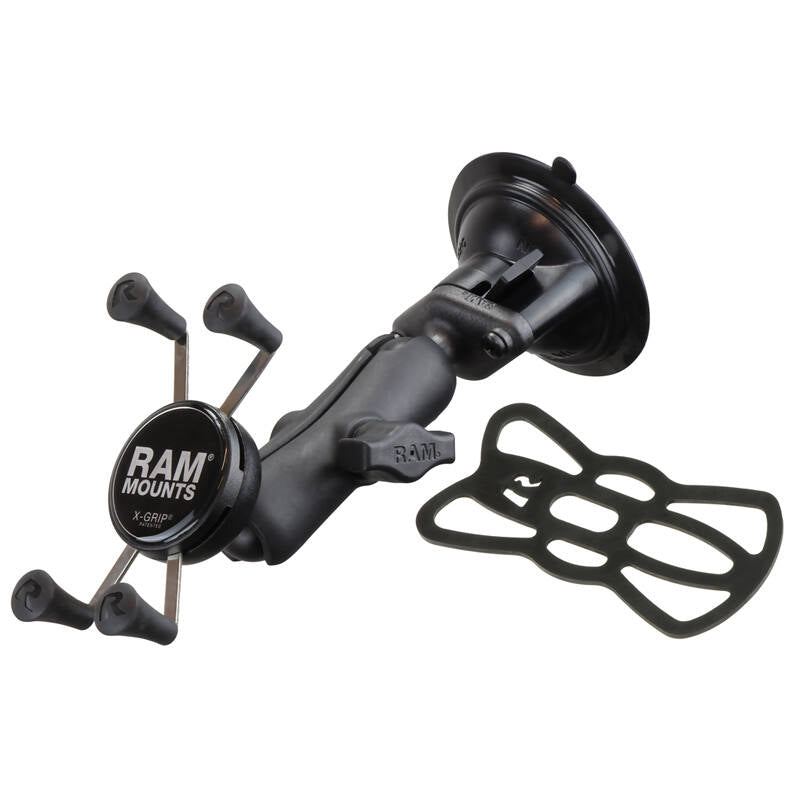

The RAP-B-166-UN7U pairs the RAM® X-Grip® universal phone cradle with a composite Twist-Lock™ suction cup base and a medium-length arm, for a strong hold on vehicle windscreens and other smooth, non-porous surfaces.
Key Features
- Spring-loaded X-Grip design with rubber caps holds the phone securely without covering the screen, camera, or buttons; includes an optional device tether for rugged use

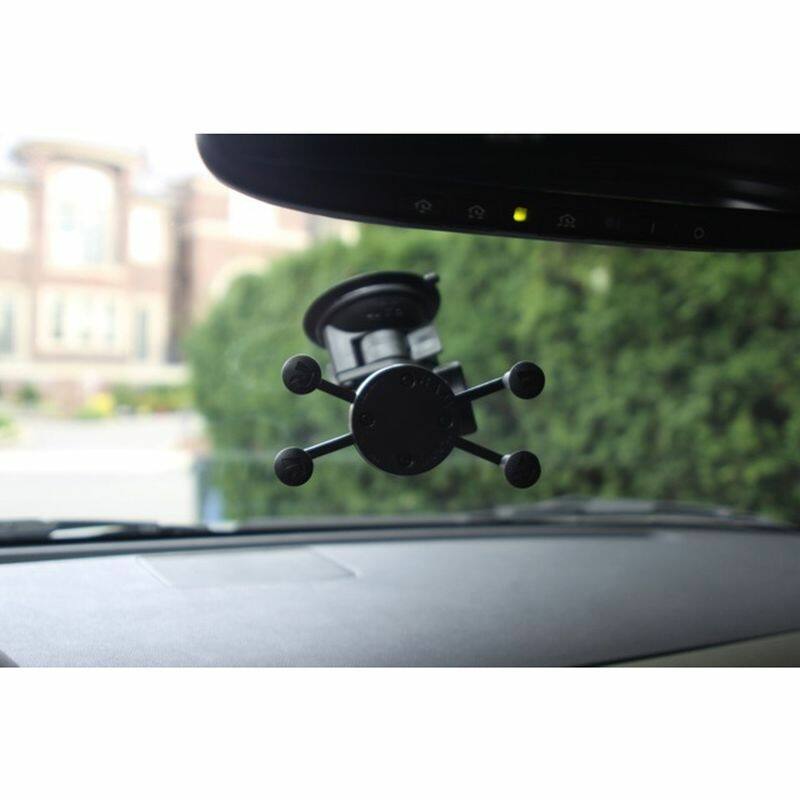

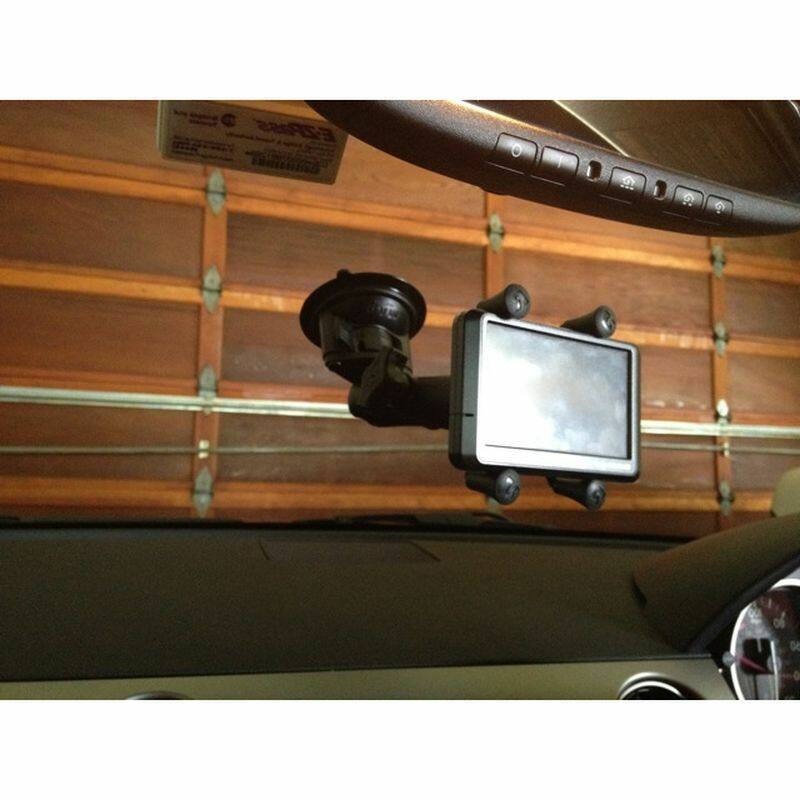

- Twist-Lock™ suction cup base, 84mm (3.3") diameter, grips windscreens and other smooth, non-porous surfaces
- Medium-length B size double socket arm with ball-and-socket design for near-infinite positioning, with shock and vibration damping
- Stainless steel hardware and high-strength composite construction
- Backed by a lifetime warranty
What's Included
-

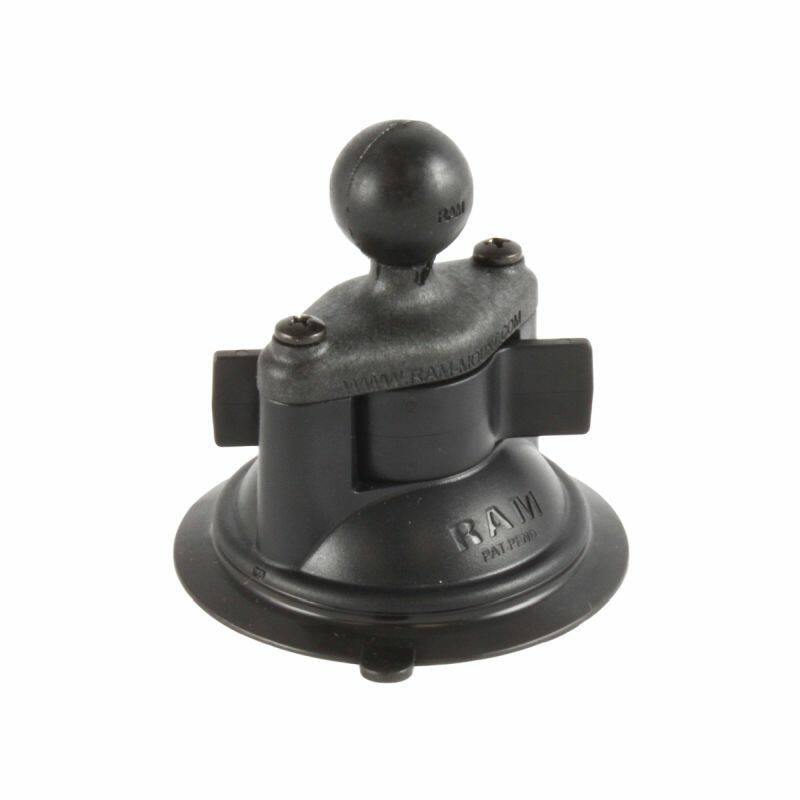

RAP-B-224-1U composite Twist-Lock™ suction cup base, 84mm (3.3") diameter
-

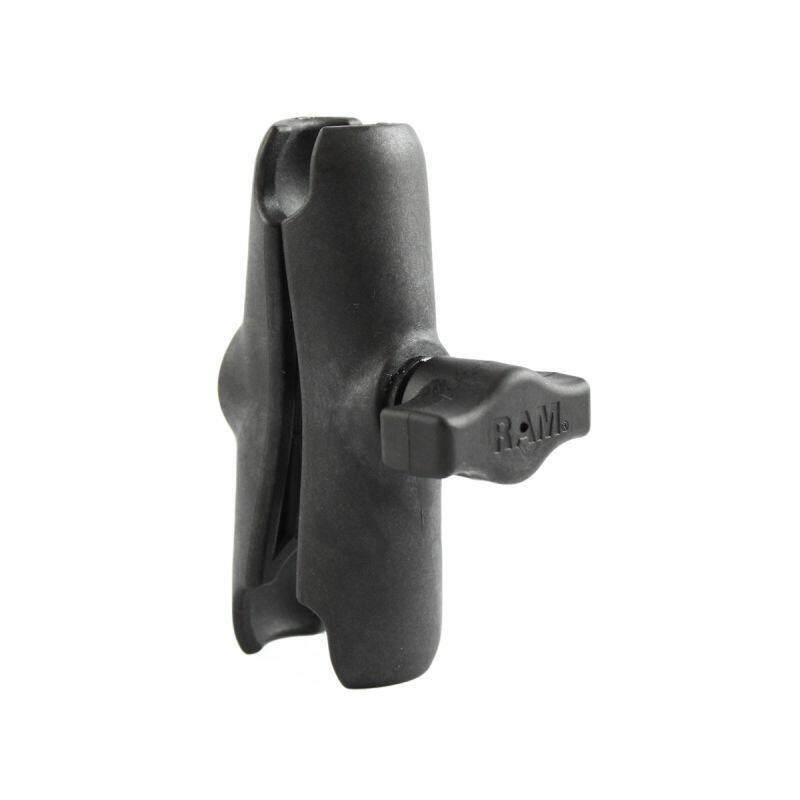

RAP-B-201U composite double socket arm, medium length (B size)
-
RAM-HOL-UN7BU X-Grip® universal phone cradle with device tether

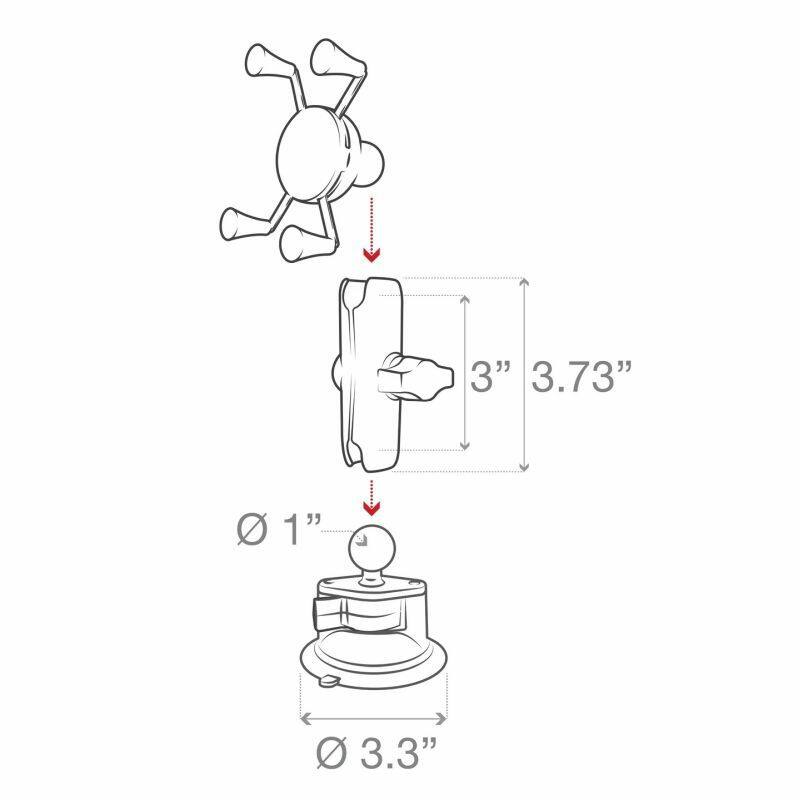

Dimensions & Specifications
- Suction cup base diameter: 83.8mm (3.3")
- Arm length, overall: 94.7mm (3.73")
- Arm length, socket-to-socket: 76.2mm (3")
- Cradle minimum device width: 47.6mm (1.875"); requires minimum device height 108mm (4.25")
- Cradle maximum device width: 82.6mm (3.25"); requires minimum device height 57.2mm (2.25")
- Cradle maximum device depth: 22.2mm (0.875")
- Ball size: B size, 1" rubber ball
- Weight: 290g (0.64 lb)
Compatible Devices
Fits hand-held devices within the cradle dimensions above, with or without a case. For the full list of 100+ compatible phone models across 14 brands, see our RAM-HOL-UN7BU listing.
Videos
FAQs
Is this a complete mount? Yes. The suction base, medium arm and X-Grip phone cradle are all included; there's nothing else to buy to get your phone onto the glass.
What surfaces will the cup stick to? Glass and other smooth, non-porous surfaces. Textured dashboards, matte plastic and any surface with a grain won't hold; clean both the cup and the surface before mounting. A RAM® adhesive disk gives the cup a smooth face to grip on an otherwise unsuitable surface.
What's the difference between this and the RAM-B-166-UN7U? This is the composite version. The base and arm are high-strength composite rather than powder-coated aluminium, which makes it lighter and a little more affordable. The aluminium RAM-B-166-UN7U is the tougher choice for commercial or off-road use; for everyday in-car mounting the composite version does the same job.
Will my phone fit with a case on? Measure the width of your phone with the case fitted. The cradle opens from 47.6mm to 82.6mm wide and takes devices up to 22.2mm thick, which covers most phones in a standard case. Thick rugged cases and battery cases are the usual exception.

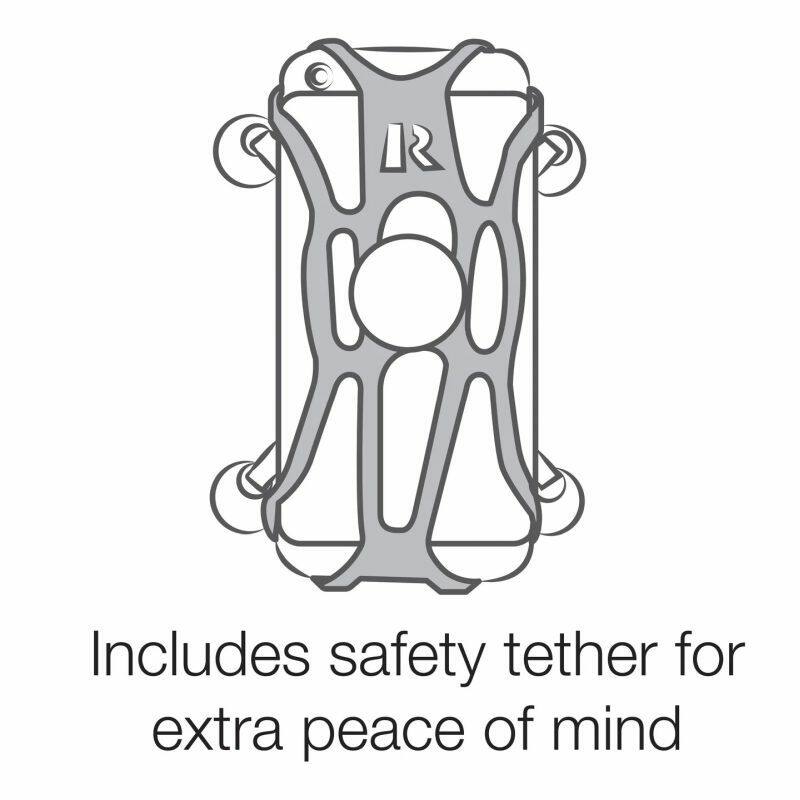

Is the tether included? Yes. We'd recommend fitting it for off-road, marine and any other high-vibration use; it's cheap insurance if the phone is ever knocked loose.
Shipping: If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
