RAM X-Grip Universal SmartPhone Cradle - Suction Cup Base & Long Arm

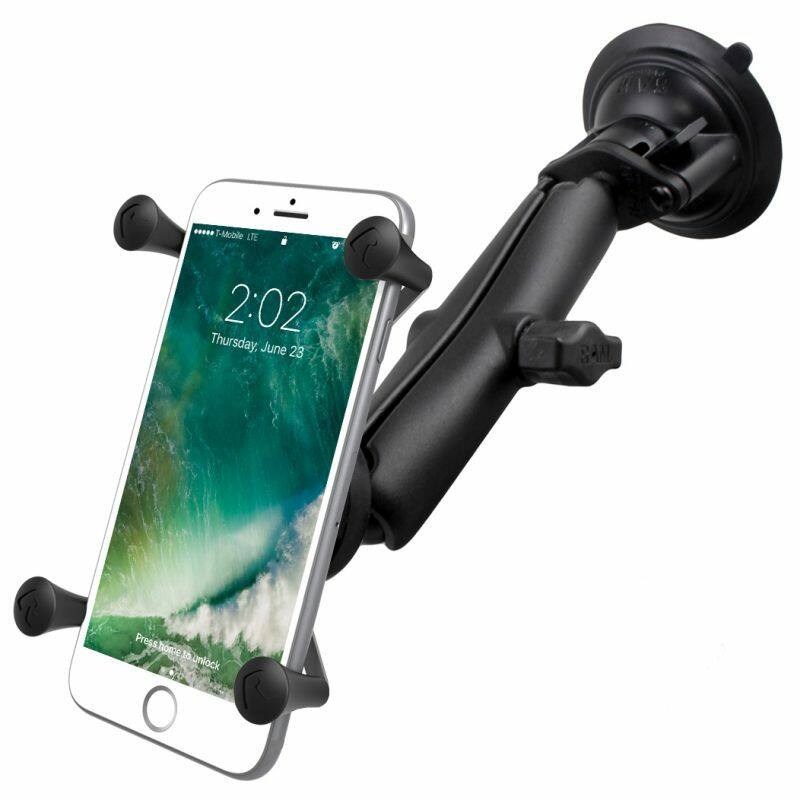

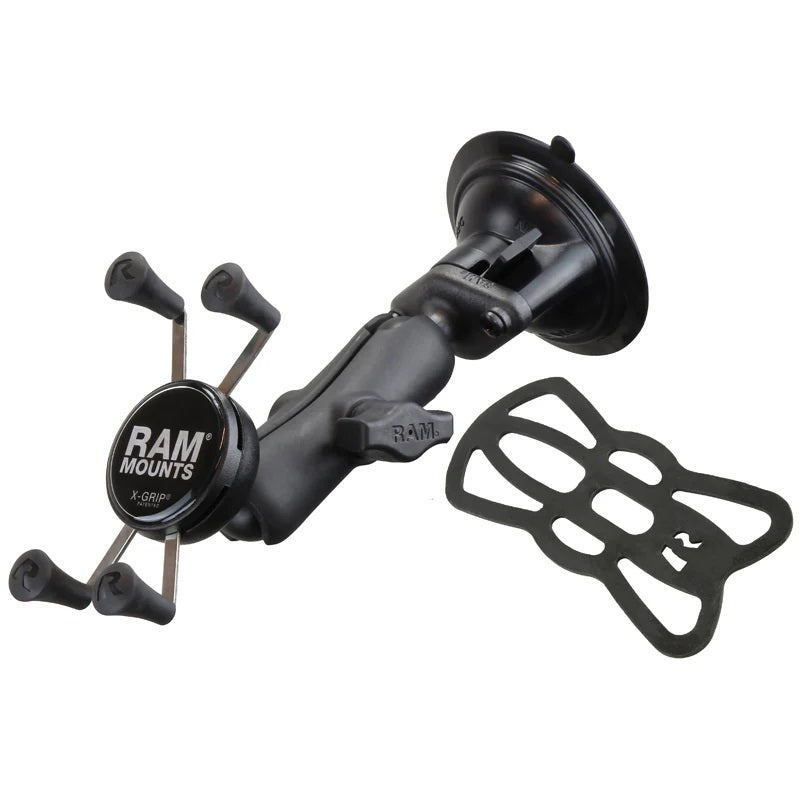

RAM-B-166-C-UN7U – RAM® X-Grip® Phone Mount with Twist-Lock™ Suction Cup (Long Arm)

The RAM-B-166-C-UN7U pairs the RAM® X-Grip® universal phone cradle with a RAM® Twist-Lock™ suction cup base and a long 152mm double socket arm. The extra reach puts your phone front and centre, making it ideal for utes and larger vehicles with deeper dashboards. The twist-lock base grips glass and smooth, non-porous surfaces, including RAM adhesive disks.

Key Features

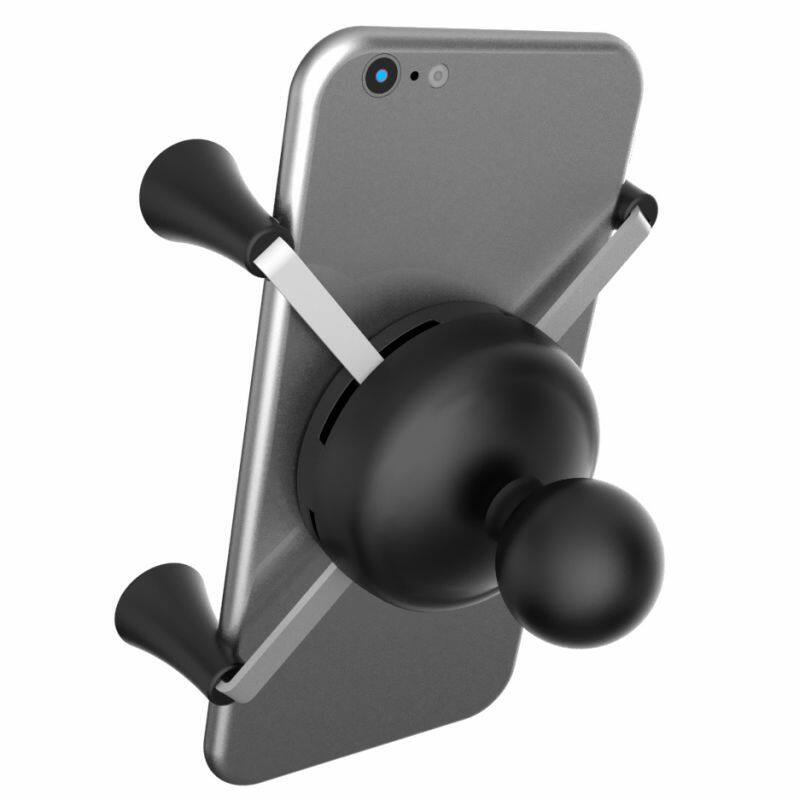

• Spring-loaded 'X' design with rubber caps grips the phone firmly without covering the screen, camera, or buttons
• Twist-Lock™ suction cup base holds firmly on glass and non-porous surfaces; twist the collar to lock the seal
• Long 152mm double socket arm brings the phone closer across deep dashboards; ball-and-socket design allows near-infinite positioning

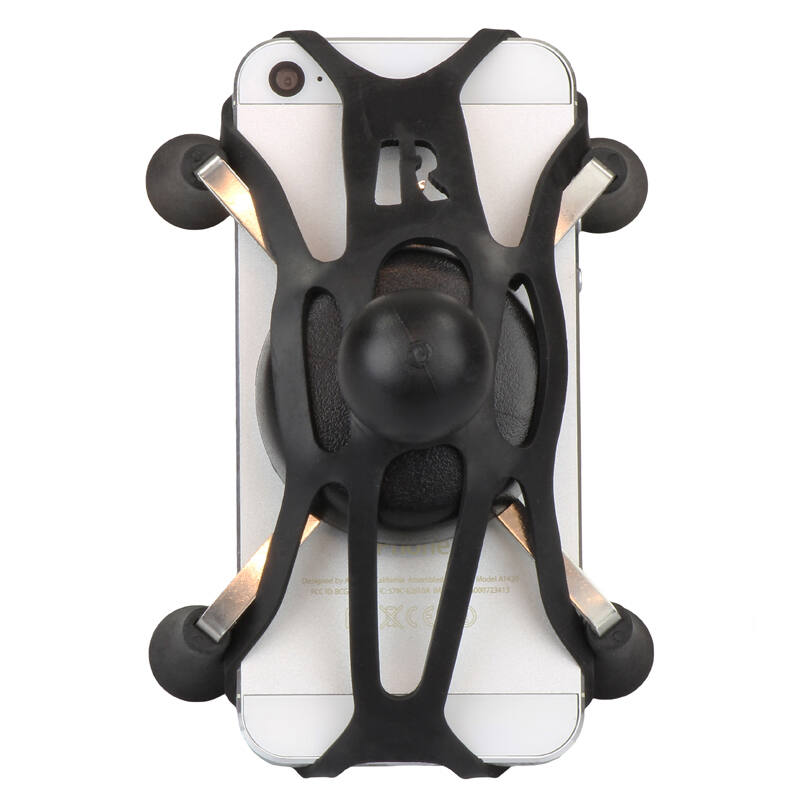

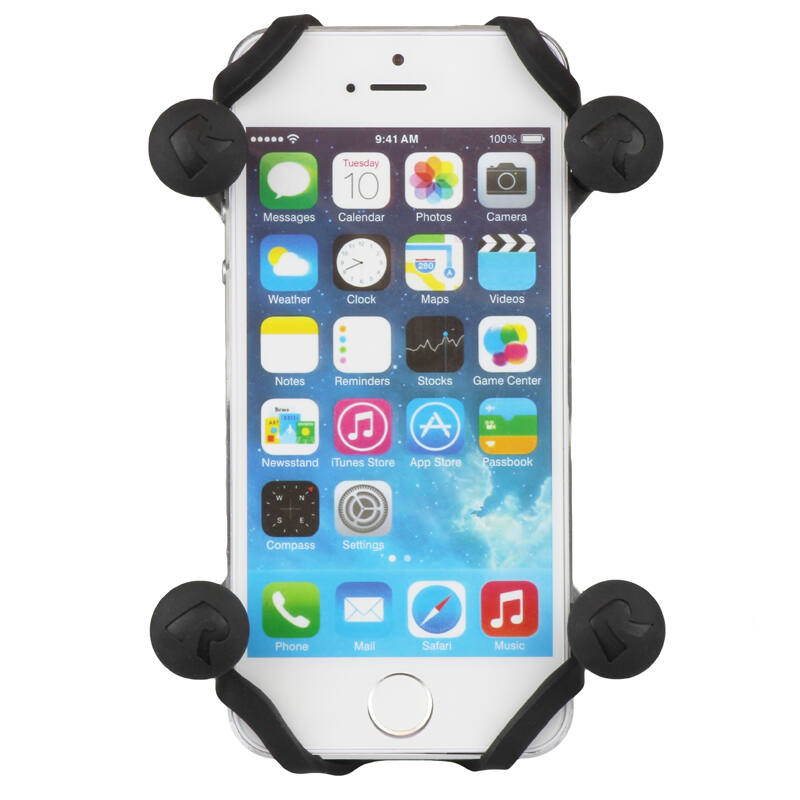

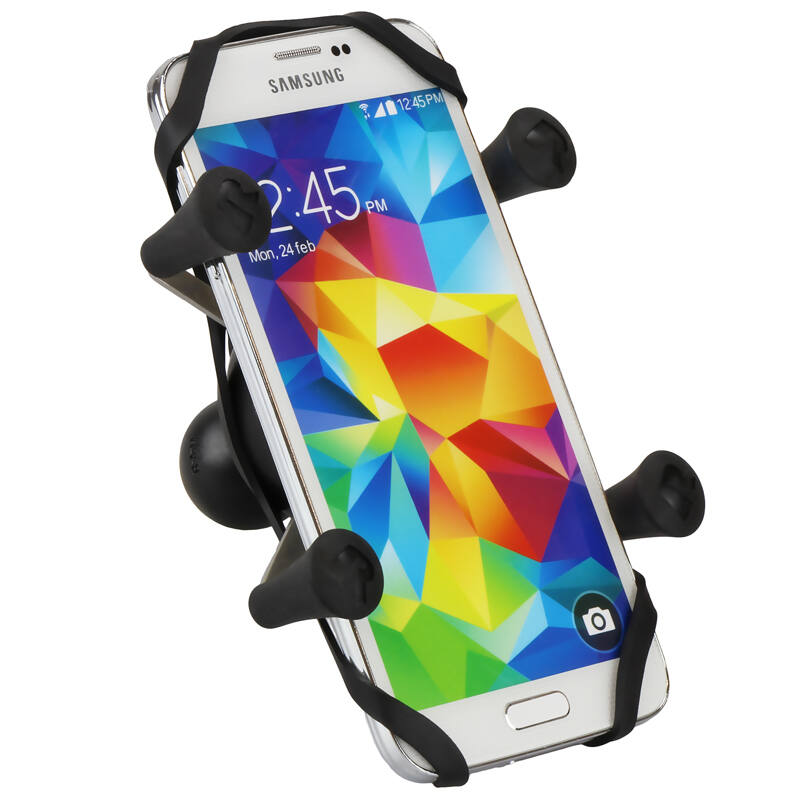

• Includes an optional device tether for extra security during outdoor use
• Powder-coated marine-grade aluminium, stainless steel hardware, and high-strength composite; backed by a lifetime warranty

What's Included

• RAM-B-224-1U Twist-Lock™ suction cup base, 83.8mm (3.3") diameter
• RAM-B-201U-C long double socket arm

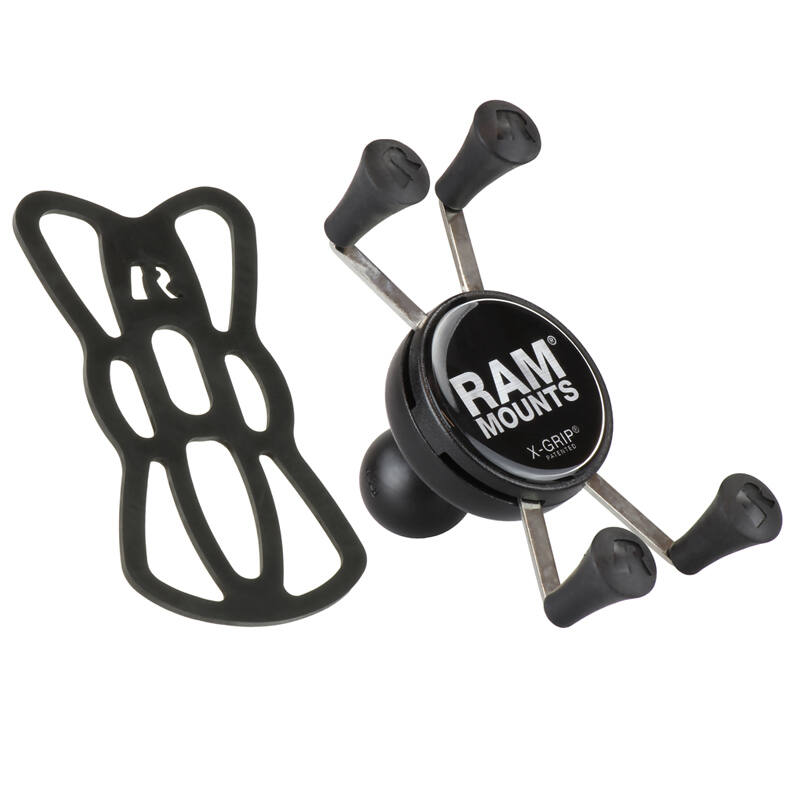

• RAM-HOL-UN7BU X-Grip® universal phone cradle with device tether

Dimensions & Specifications

• Suction cup diameter: 83.8mm (3.3")
• Arm overall length: 152mm (6"); socket-to-socket 134mm (5.25")
• Cradle minimum device width 47.6mm (1.875"), which needs a minimum height of 108mm (4.25")
• Cradle maximum device width 82.6mm (3.25"), which needs a minimum height of 57.2mm (2.25")
• Cradle maximum device thickness: 22.2mm (0.875")
• Ball size: B size, 1" rubber ball
• Weight: 476g (1.05 lb)
• Materials: powder-coated marine-grade aluminium, stainless steel, high-strength composite

Compatible Devices

The X-Grip cradle fits hand-held devices within the width and thickness ranges above. Always measure your device with any case, sleeve, or skin fitted before ordering. For the full list of compatible models across 14 major brands, see our RAM-HOL-UN7BU cradle listing.

Videos

• RAM X-Grip overview
• RAM Twist-Lock suction cup demo

FAQs

Is this a complete mount? Yes. The suction base, long arm and X-Grip phone cradle are all included — there's nothing else to buy to get your phone onto the glass.

What surfaces will the cup stick to? Glass and other smooth, non-porous surfaces. Textured dashboards, matte plastic and any surface with a grain won't hold — clean both the cup and the surface before mounting. A RAM® adhesive disk gives the cup a smooth face to grip on an otherwise unsuitable surface.

Will my phone fit with a case on? Measure the width of your phone with the case fitted. The cradle opens from 47.6mm to 82.6mm wide and takes devices up to 22.2mm thick, which covers most phones in a standard case. Thick rugged cases and battery cases are the usual exception.

Is the tether included? Yes. We'd recommend fitting it for off-road, marine and any other high-vibration use — it's cheap insurance if the phone is ever knocked loose.

Is the long arm the right choice? The 152mm arm is for deep dashboards and raked windscreens where a shorter arm leaves the phone out of comfortable reach. Bear in mind that the extra length puts more leverage on the suction cup, so make sure both faces are clean and the collar is fully locked before driving. The same kit is also available with a short 60.5mm arm or a medium 94mm arm.
