RAM X-Grip Universal SmartPhone Cradle - Suction Cup Base & Short Arm

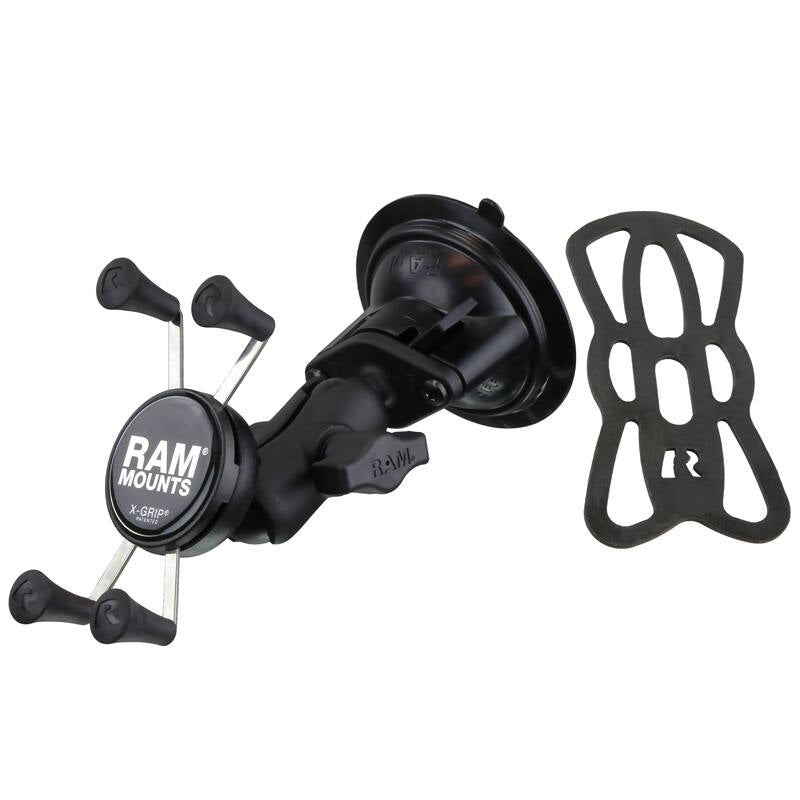

RAM-B-166-A-UN7U – RAM® X-Grip® Phone Mount with Twist-Lock™ Suction Cup (Short Arm)

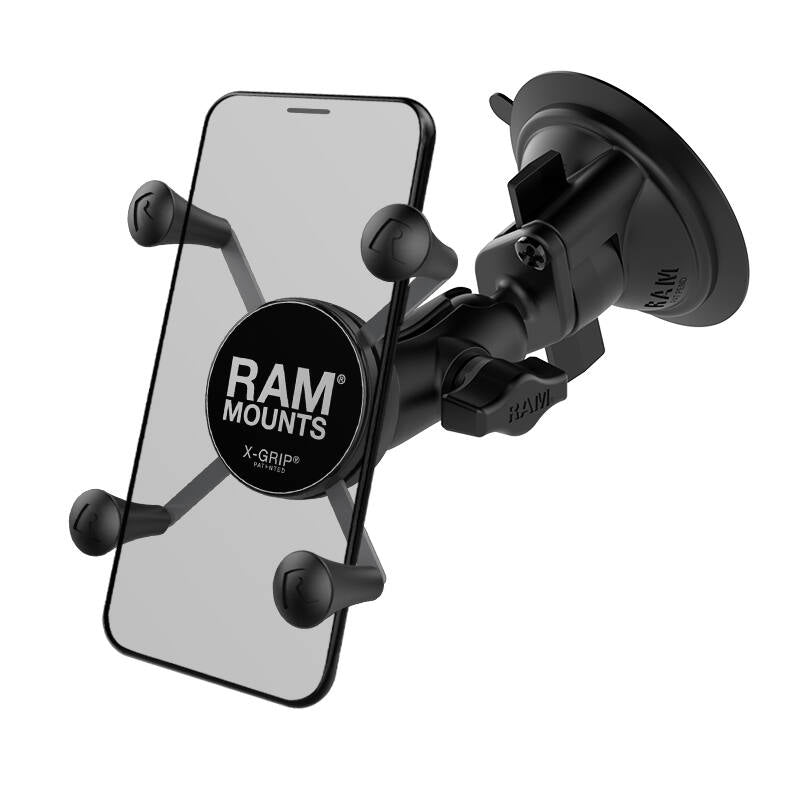

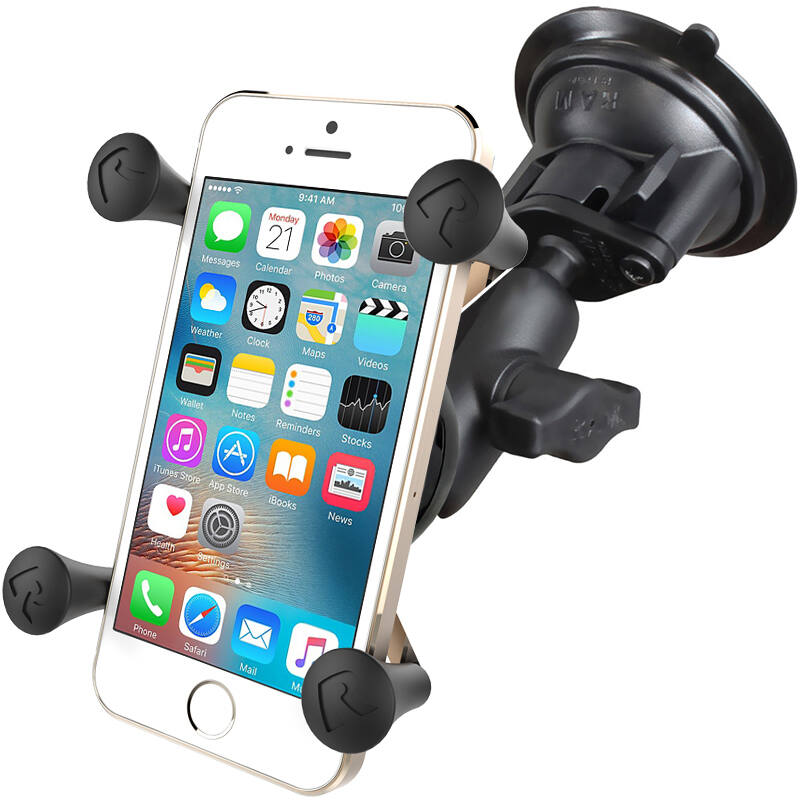

The RAM-B-166-A-UN7U pairs the RAM® X-Grip® universal phone cradle with a RAM® Twist-Lock™ suction cup base and a short double socket arm. The twist-lock base grips glass and smooth, non-porous surfaces (including RAM adhesive disks), making it a tidy windscreen or dashboard mount for cars, trucks, and boats.

Key Features

• Spring-loaded 'X' design with rubber caps grips the phone firmly without covering the screen, camera, or buttons
• Twist-Lock™ suction cup base holds firmly on glass and non-porous surfaces; twist the collar to lock the seal
• Short double socket arm keeps the phone close to the glass; ball-and-socket design allows near-infinite positioning
• Includes an optional device tether for extra security during outdoor use
• Powder-coated marine-grade aluminium, stainless steel hardware, and high-strength composite; backed by a lifetime warranty

What's Included

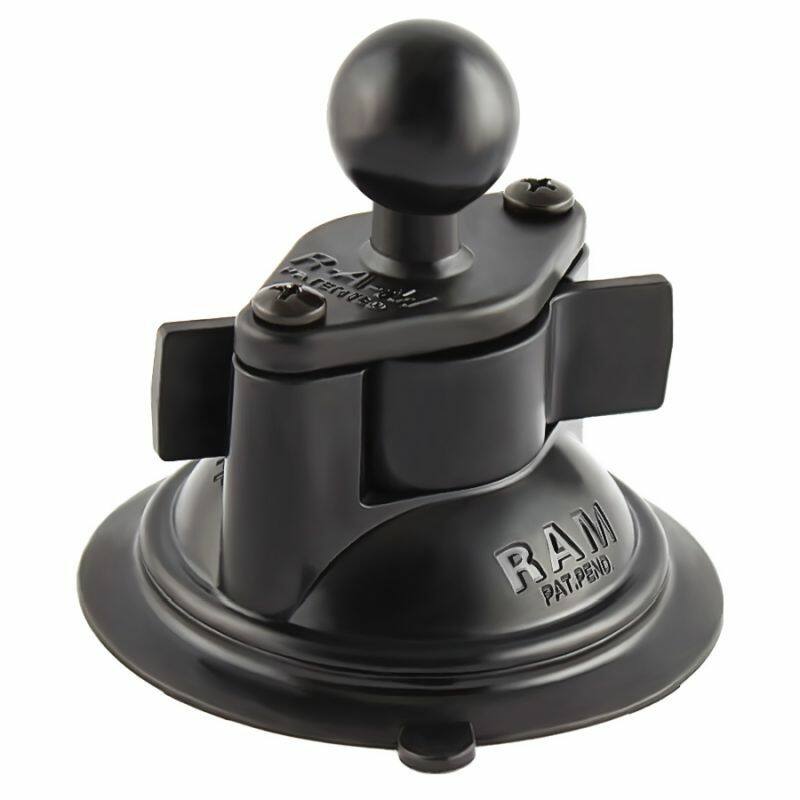

• RAM-B-224-1U Twist-Lock™ suction cup base, 84mm (3.3") diameter
• RAM-B-201U-A short double socket arm

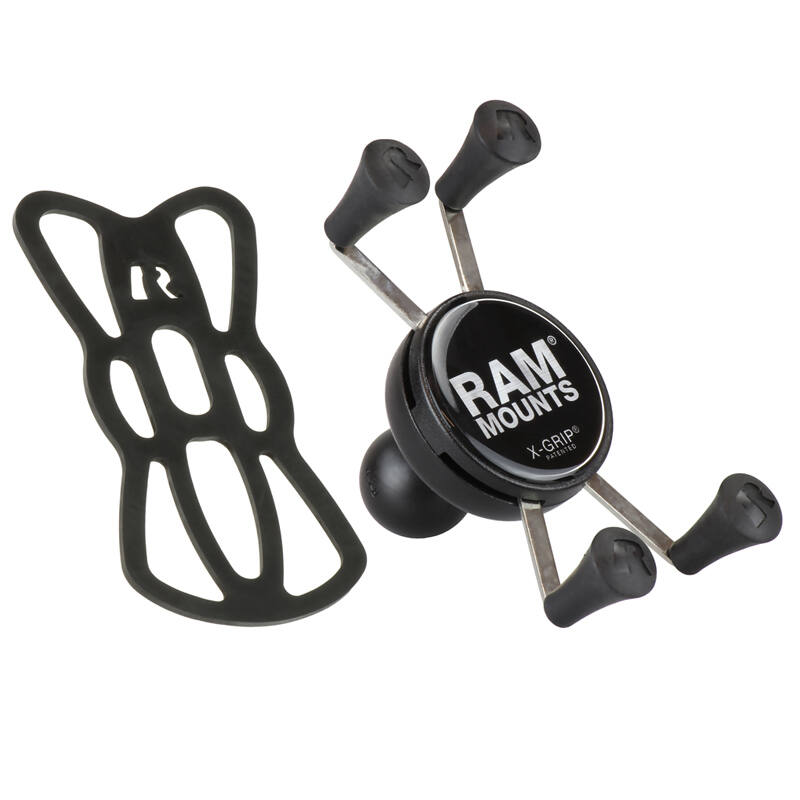

• RAM-HOL-UN7BU X-Grip® universal phone cradle with device tether

Dimensions & Specifications

• Suction cup diameter: 83.8mm (3.3")
• Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
• Cradle minimum device width 47.6mm (1.875"), which needs a minimum height of 108mm (4.25")
• Cradle maximum device width 82.6mm (3.25"), which needs a minimum height of 57.2mm (2.25")
• Cradle maximum device thickness: 22.2mm (0.875")
• Ball size: B size, 1" rubber ball
• Weight: 304g (0.67 lb)
• Materials: powder-coated marine-grade aluminium, stainless steel, high-strength composite

Compatible Devices

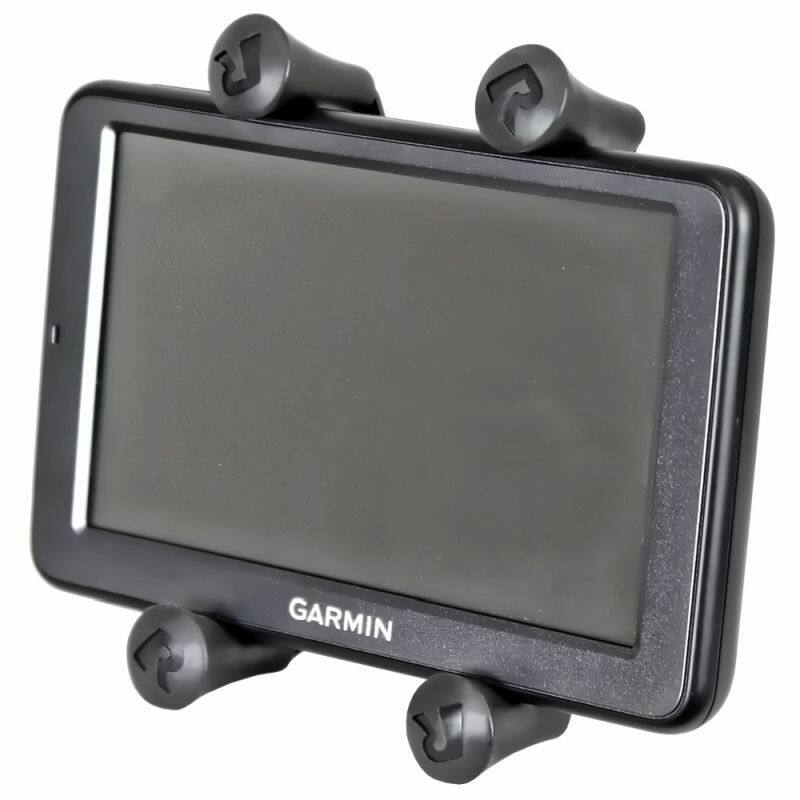

The X-Grip cradle fits hand-held devices within the width and thickness ranges above. Always measure your device with any case, sleeve, or skin fitted before ordering. For the full list of compatible models across 14 major brands, see our RAM-HOL-UN7BU cradle listing.

Videos

• RAM X-Grip overview
• RAM Twist-Lock suction cup demo
• RAM short double socket arm overview

FAQs

Is this a complete mount? Yes. The suction base, short arm and X-Grip phone cradle are all included; there's nothing else to buy to get your phone onto the glass.

What surfaces will the cup stick to? Glass and other smooth, non-porous surfaces. Textured dashboards, matte plastic and any surface with a grain won't hold; clean both the cup and the surface before mounting. A RAM® adhesive disk gives the cup a smooth face to grip on an otherwise unsuitable surface.

Will my phone fit with a case on? Measure the width of your phone with the case fitted. The cradle opens from 47.6mm to 82.6mm wide and takes devices up to 22.2mm thick, which covers most phones in a standard case. Thick rugged cases and battery cases are the usual exception.

Is the tether included? Yes. We'd recommend fitting it for off-road, marine and any other high-vibration use; it's cheap insurance if the phone is ever knocked loose.

Is the short arm the right choice? The 60.5mm arm holds the phone tight against the glass, which suits tight cabs, small windscreens and anywhere you want the mount to intrude as little as possible. If you need the phone brought closer to hand, the same kit is available with a medium 94mm arm or a long 152mm arm.

Shipping: If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
