RAM Mounts

RAM X-Grip Universal SmartPhone Cradle - Torque Base (Large Bars) & Locking Arm

RAM X-Grip Universal SmartPhone Cradle - Torque Base (Large Bars) & Locking Arm


Regular price $167.00 NZD
Regular price Sale price $167.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

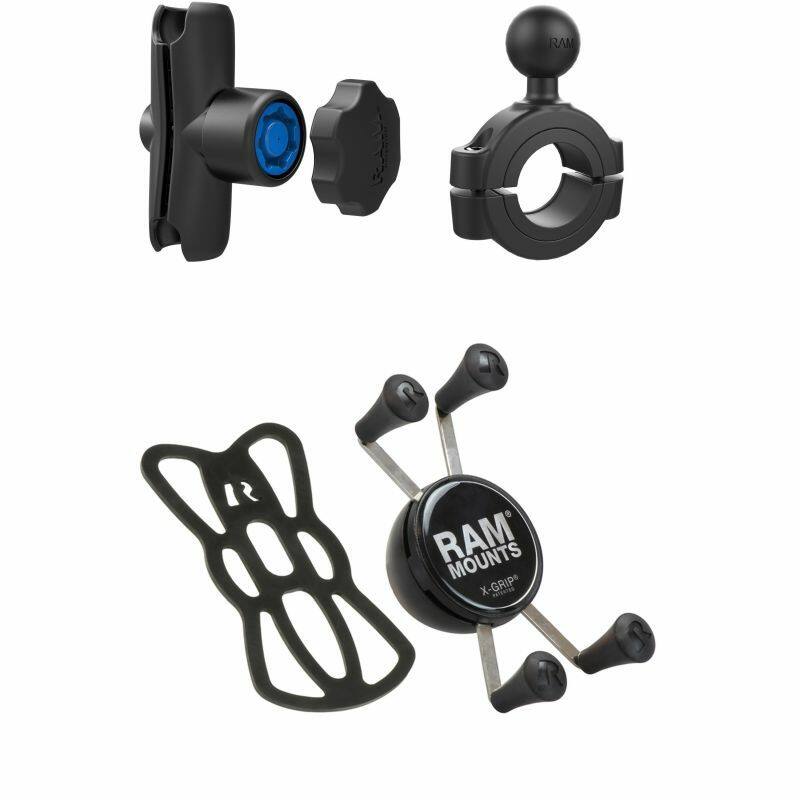

RAM-B-408-112-15-SU-UN7U Large Torque™ Rail Base with 1" Ball, Locking Arm and RAM® X-Grip® for smart-phones


* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
* Handlebar mounting base with B size 1" rubber ball accommodates LARGE rails 28.5-38mm in diameter
* Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening

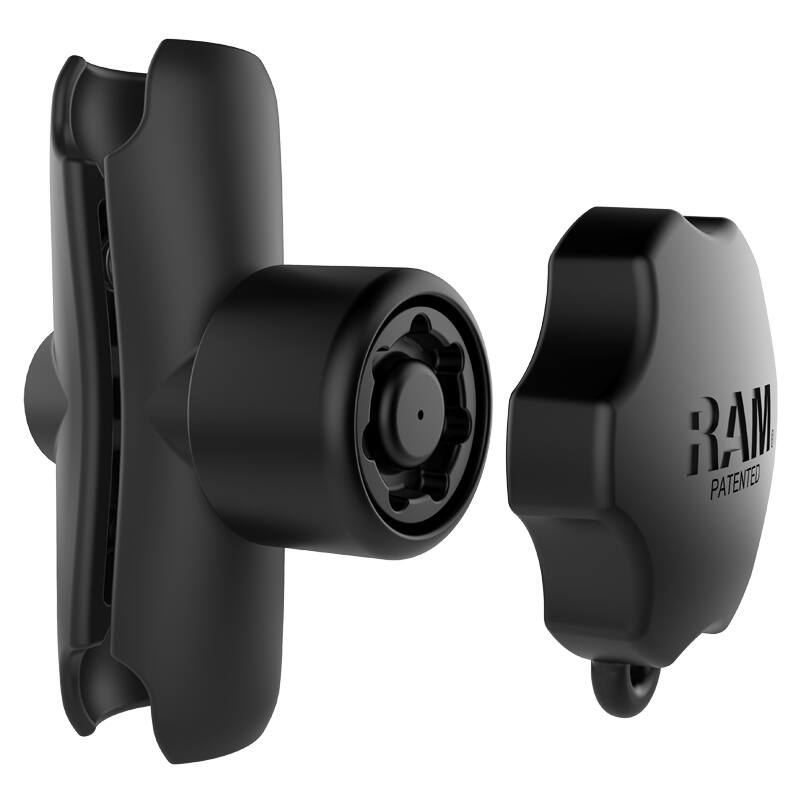

* Medium RAM® double socket arm with locking function adds extra security to the mount
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

Take your mobile entertainment on the road with the new RAM® Torque™ handlebar and rail mounting base and locking arm for added security.

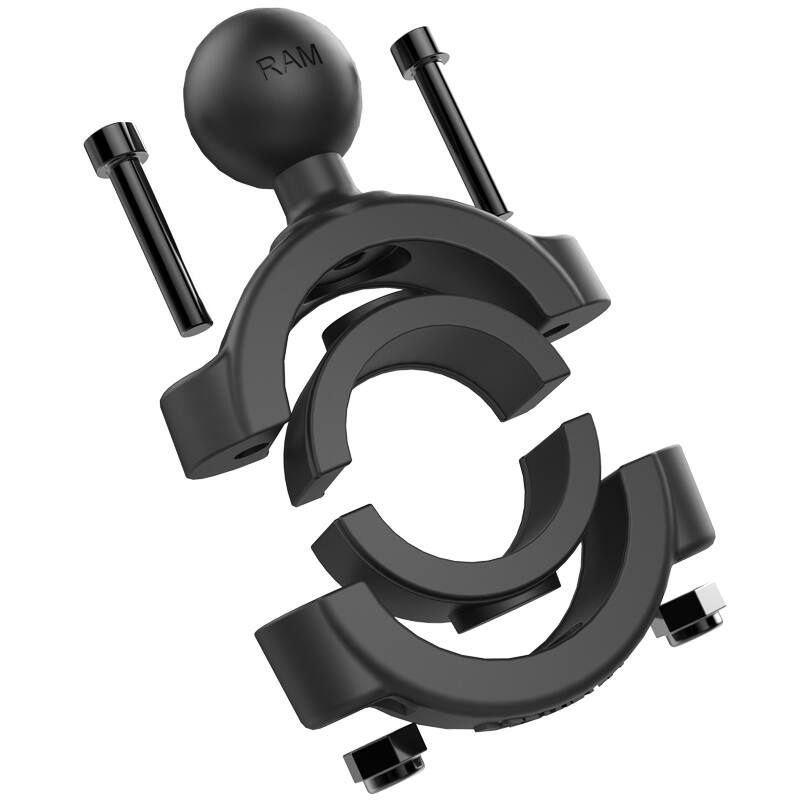

The RAM Torque handlebar and rail mounting base has a 1” rubber ball and accommodates bars 28.5-38mm in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock-nuts to prevent loosening in high vibration environments.

The X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications.

The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size

Cradle Dimensions
Min Width = 47.6mm / 1.875” – (if min width then the min height = 108mm / 4.25")
Max Width = 82.6mm / 3.25" – (if max width then the min height = 57.2mm / 2.25")
Max Thickness = 22.2mm / 0.875"

Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU

Torque Base Dumensions
28.5-38mm (1 1/8" to 1.5") diameter

Locking Arm Dimensions:
94mm (3.69")
76mm (3")

Ball Size:
1" Rubber Ball "B" Size

267 grams (0.59 lbs.)

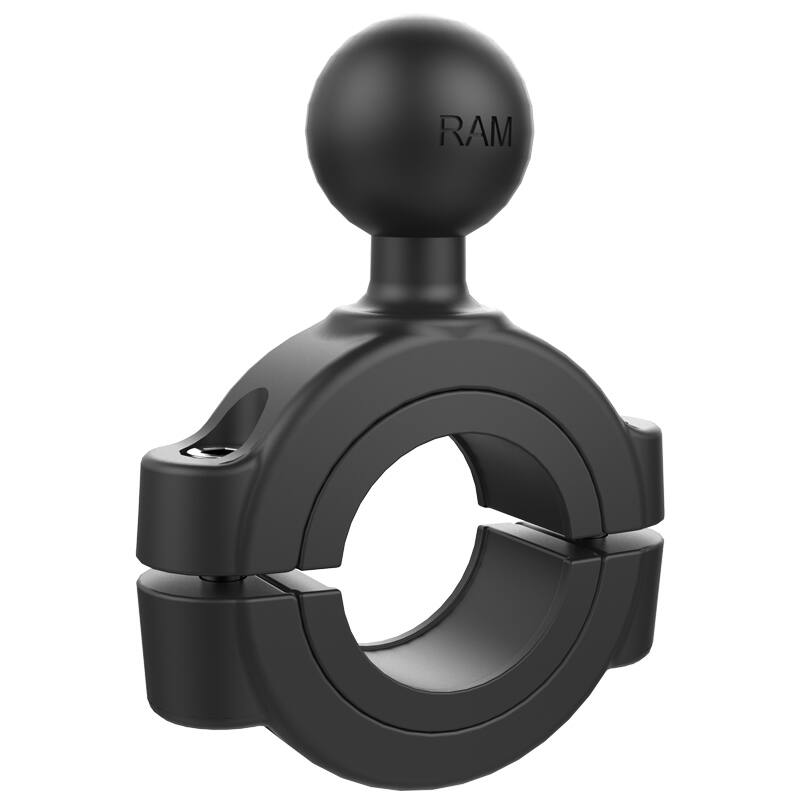

RAM-B-408-112-15U Large Torque™ Handlebar/Rail Base with 1" Ball

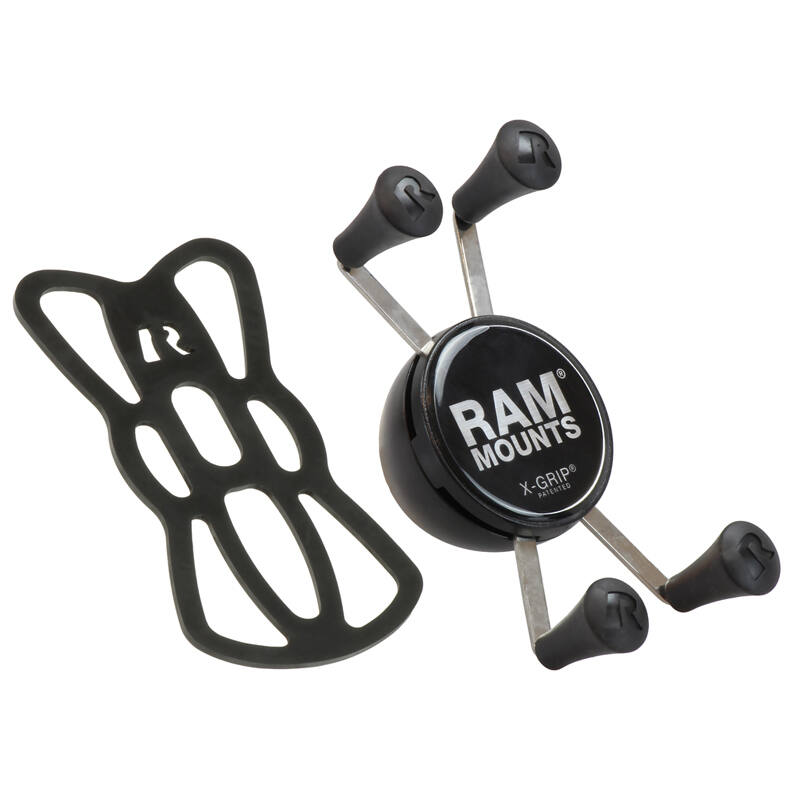

RAM-HOL-UN7BU X-Grip® Cell/iPhone Cradle
