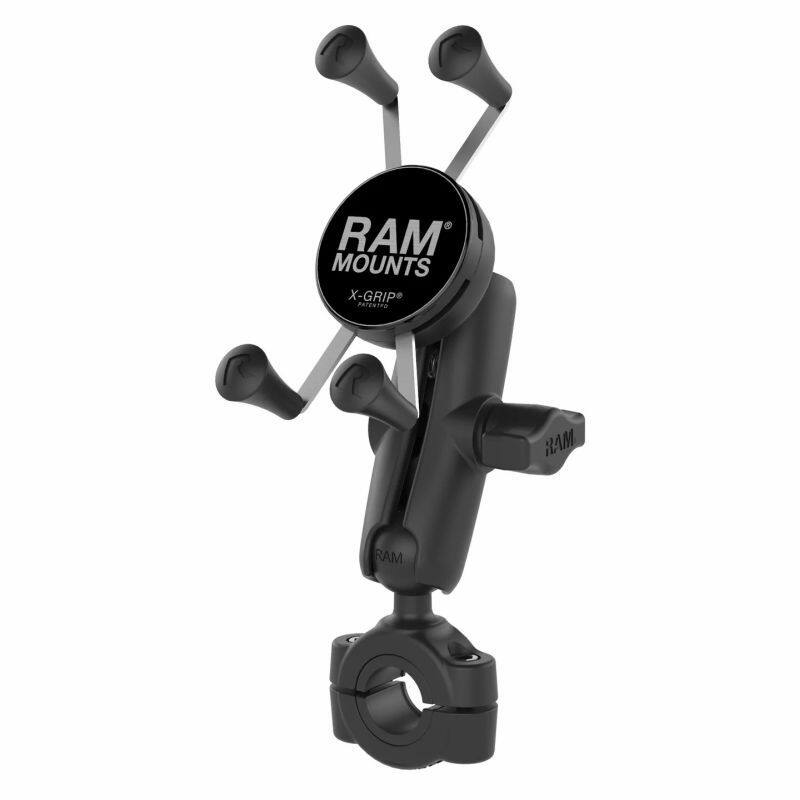

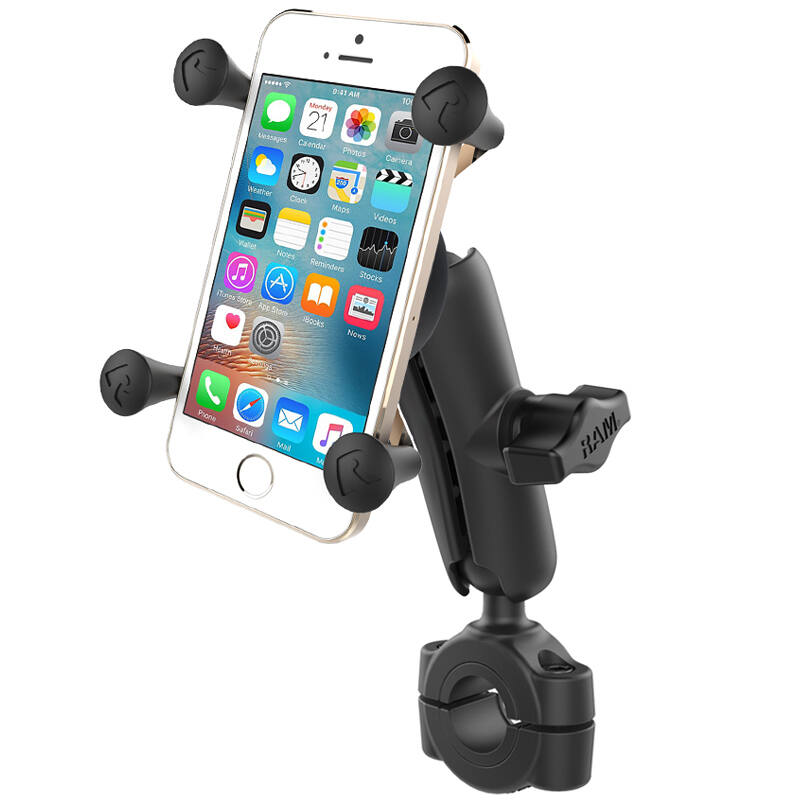

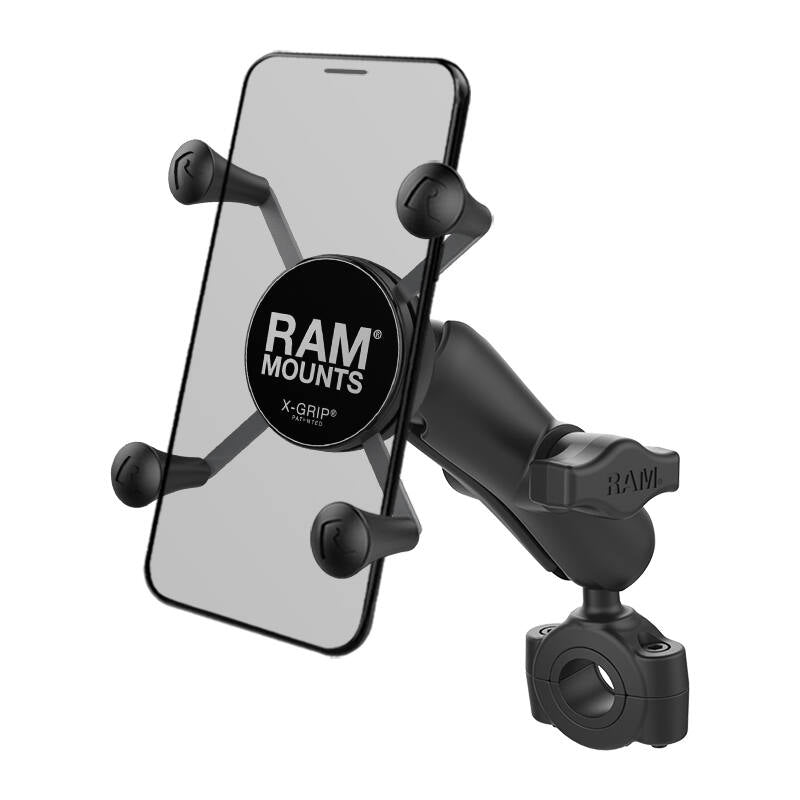

RAM-B-408-75-1-UN7U RAM® X-Grip® Phone Mount with RAM® Torque™ Medium Rail Base - Medium
Features

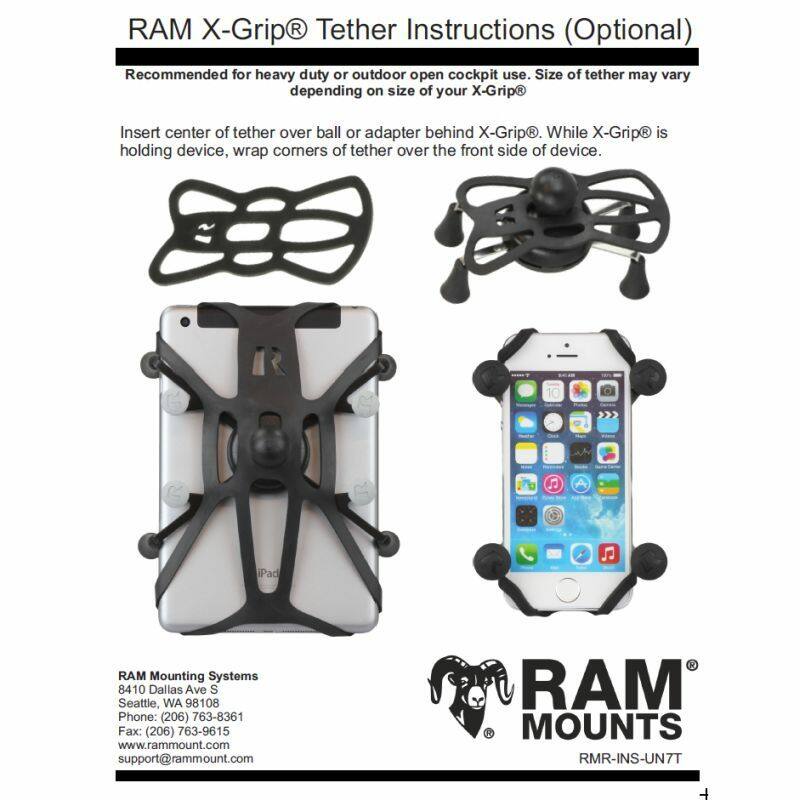

* Spring-loaded 'X' design for standard size phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
* Kit includes RAM® Torque™ Medium Rail Base and medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

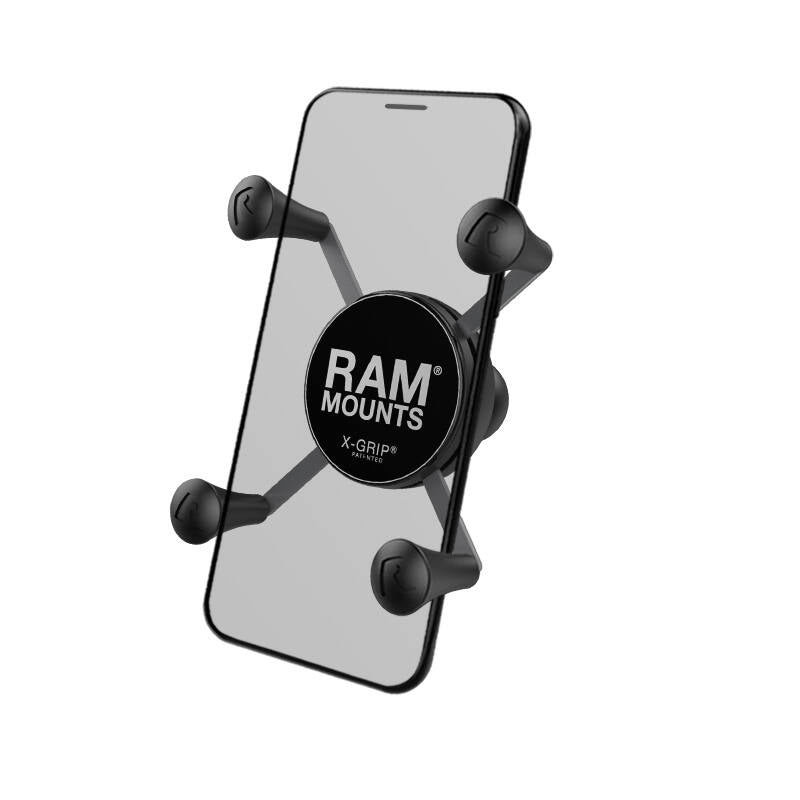

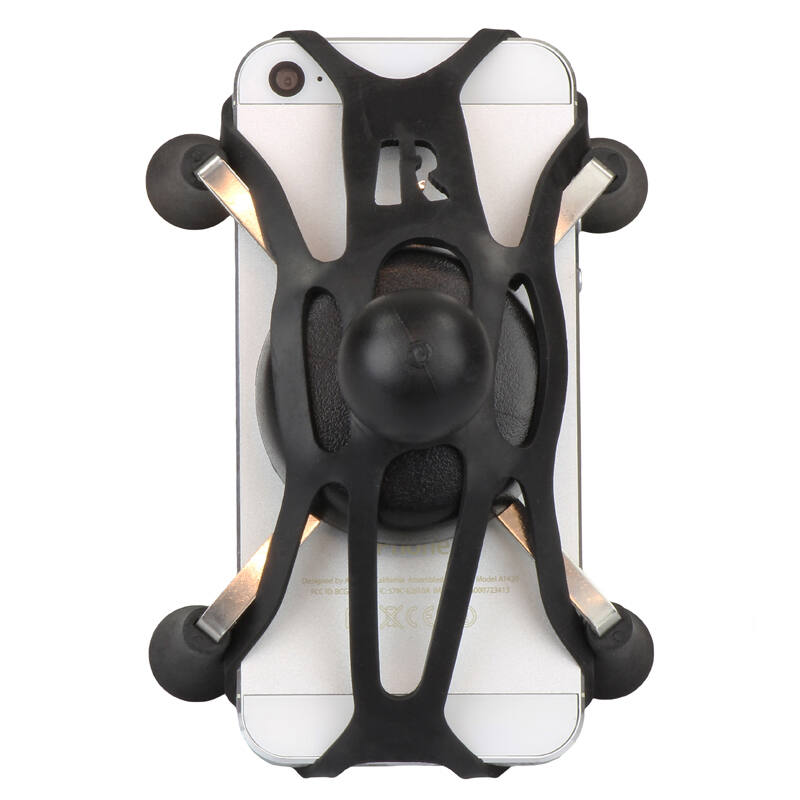

The X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. Please check the dimensions of your hand-held device with a case/sleeve/skin (if applicable)
Cradle Dimensions
Min Width = 47.6mm (1.875”) – (if min width then the min height = 108mm / 4.25")
Max Width = 82.6mm (3.25") – (if max width then the min height = 57.2mm / 2.25")
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU

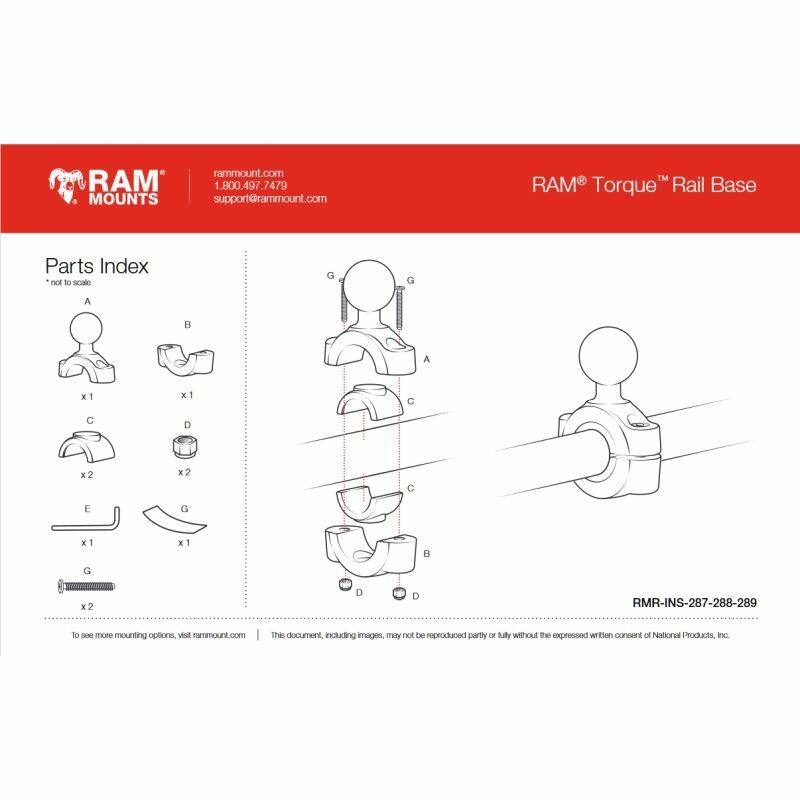

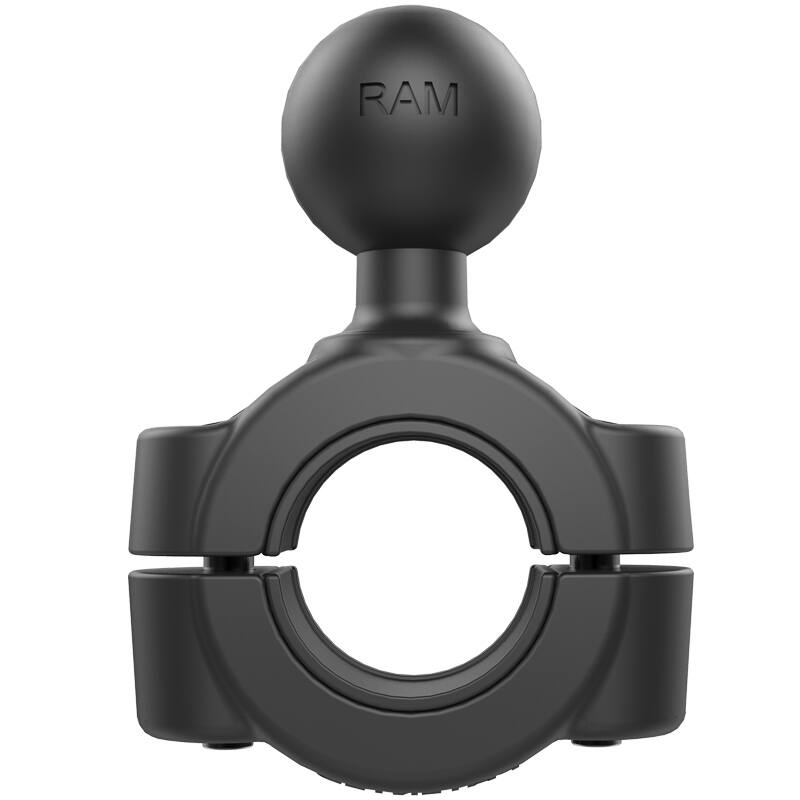

Base Dimensions:
Rail diameter 19.05mm to 25.4mm (3/4 - 1")
Sizing inserts are included to provide a snug fit and offer additional protection for the rail.
Arm Dimensions:
Overall: 94mm (3.69")
Socket-To-Socket: 76mm (3")
Ball Size:
1" Rubber Ball "B" Size
Weight:
267 grams (0.59 lbs.)
Components:

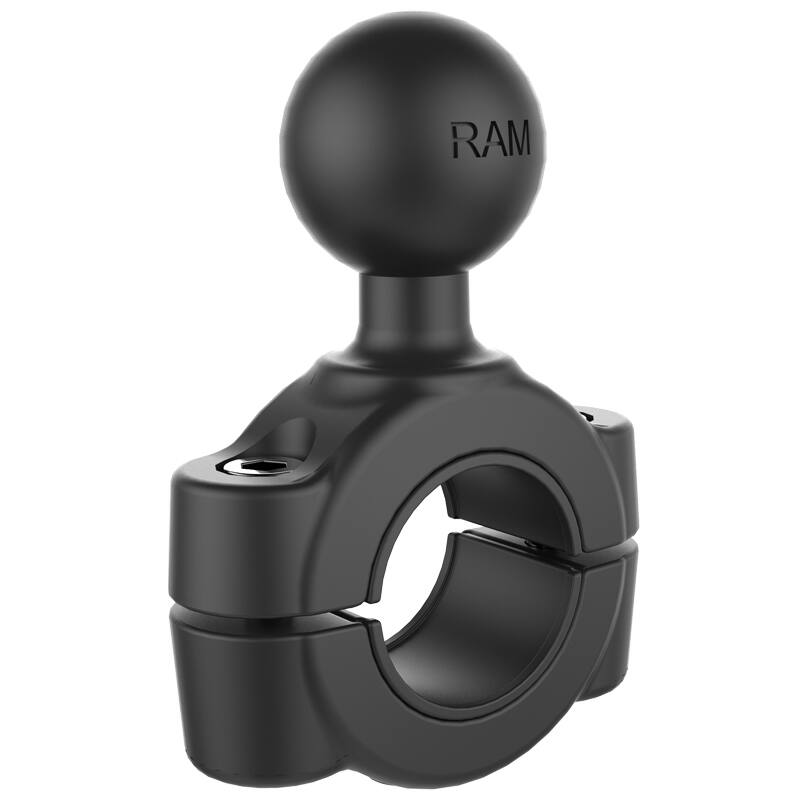

RAM-B-408-75-1U - Medium Torque Handlebar/Rail Base

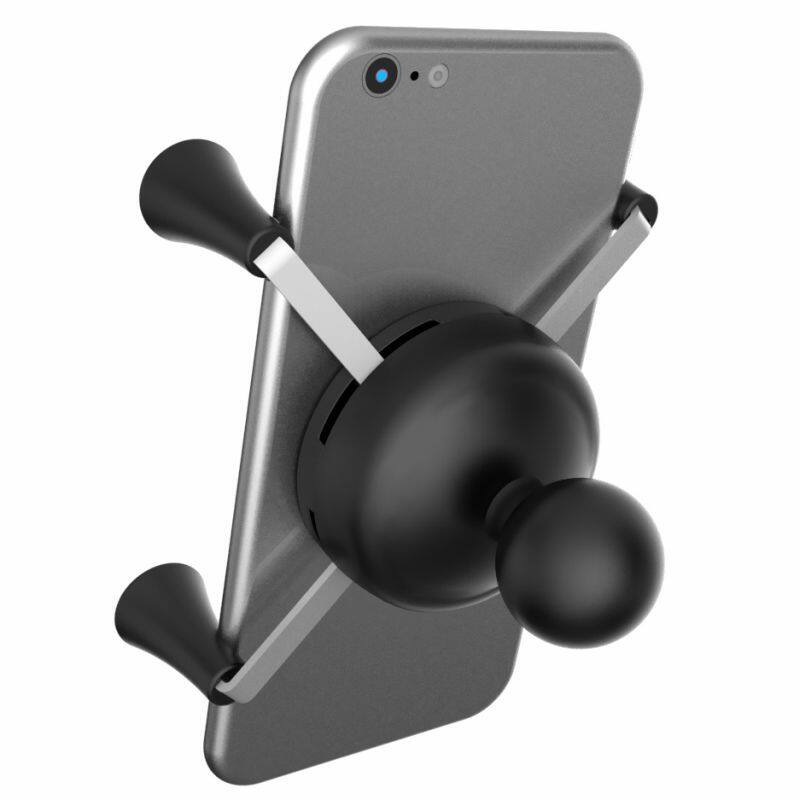

RAM-HOL-UN7BU - X-Grip Cell/iPhone Cradle
RAM-B-201U - Medium Double Socket Arm
