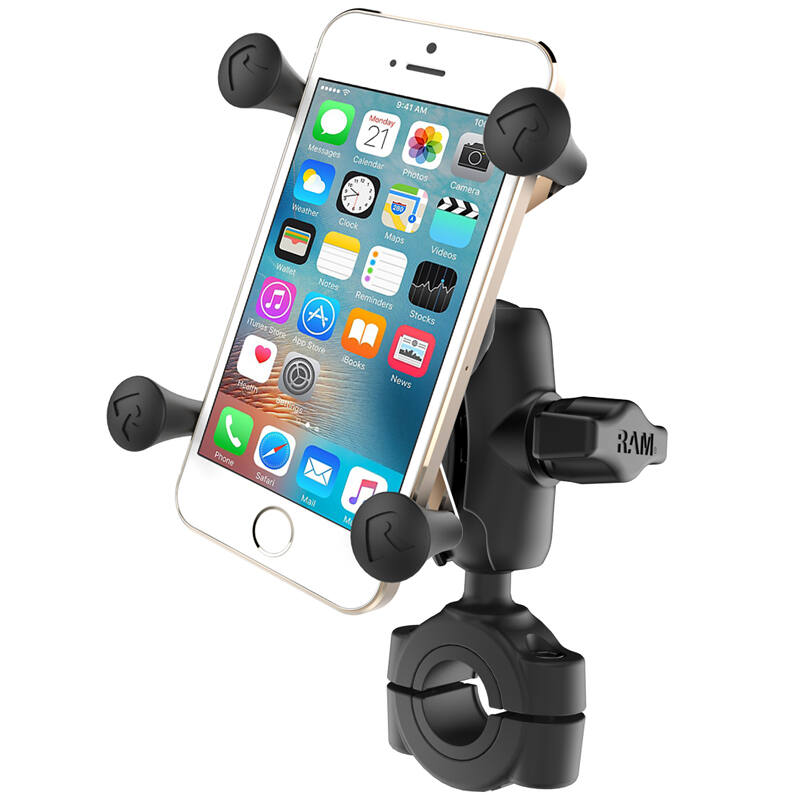

RAM-B-408-75-1-A-UN7U – RAM® X-Grip® Phone Mount with Torque™ Medium Rail Base (Short Arm)

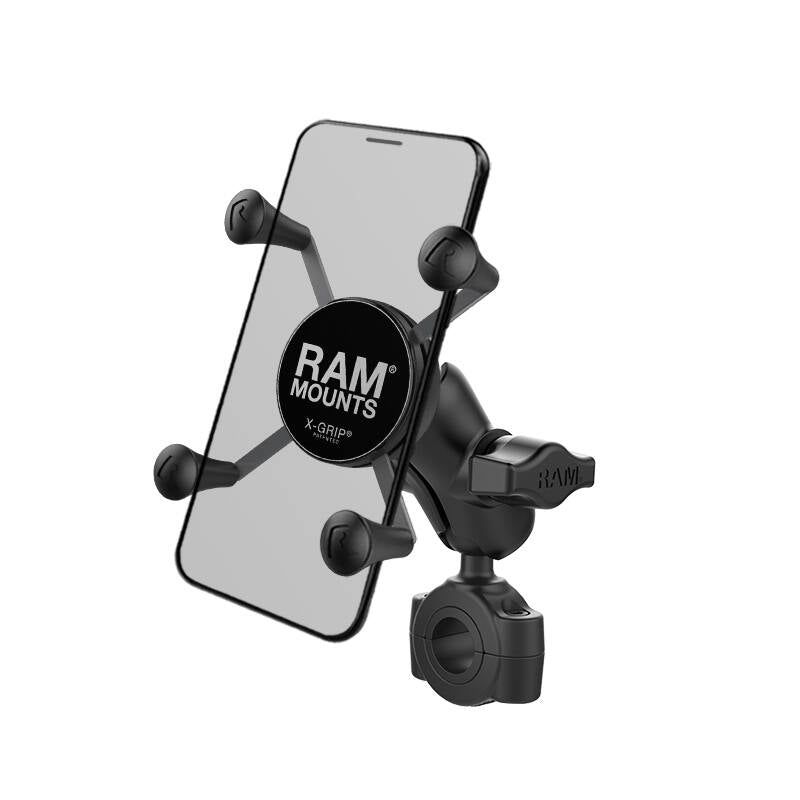

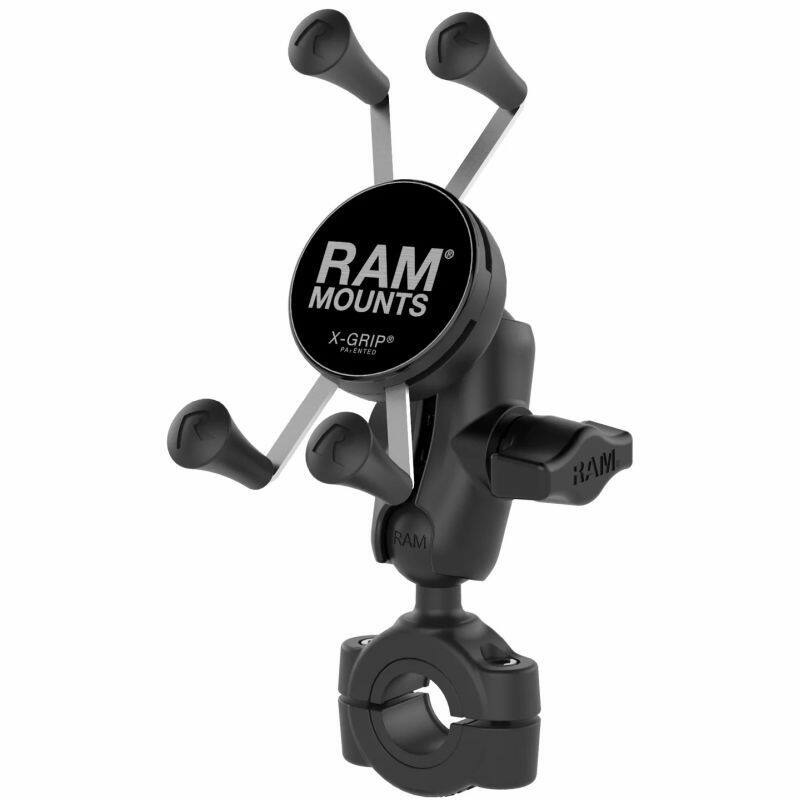

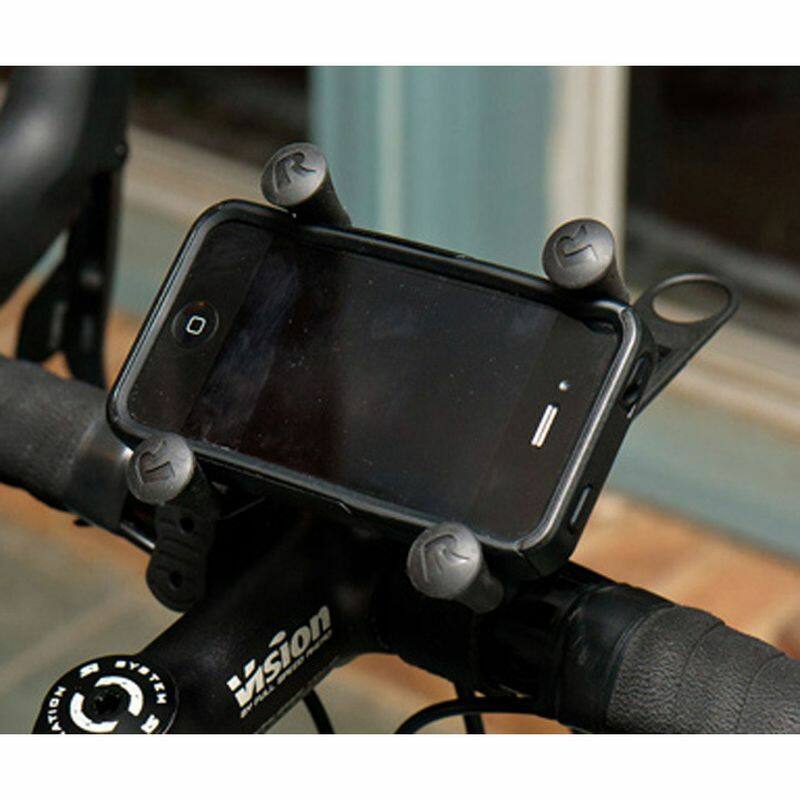

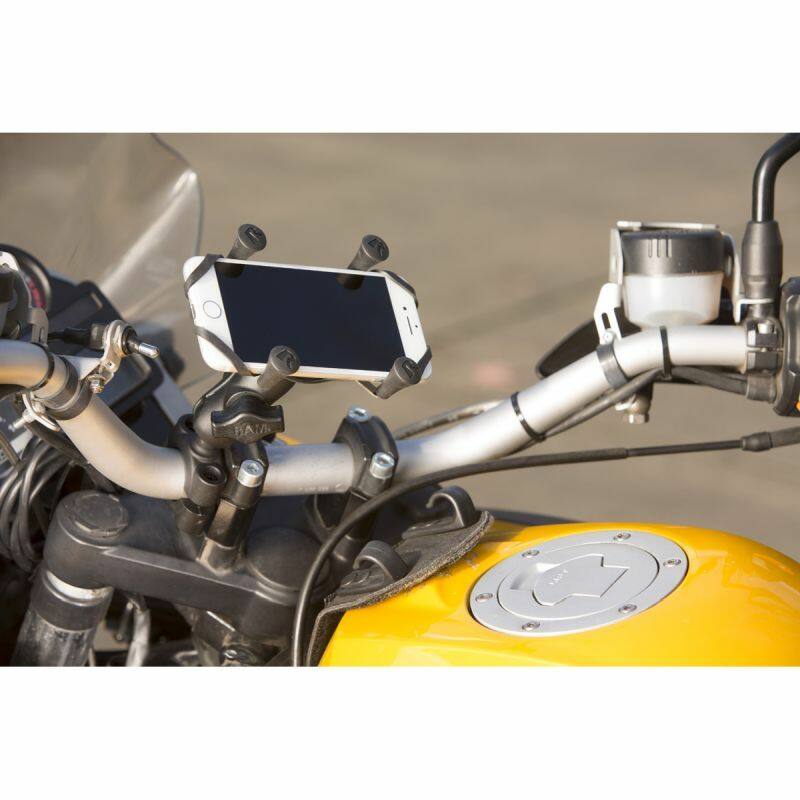

The RAM-B-408-75-1-A-UN7U pairs the RAM® X-Grip® universal phone cradle with the medium RAM® Torque™ rail base and a short double socket arm. It clamps to bars and rails from 19mm to 25.4mm (3/4" to 1") in diameter and ships with sizing inserts for a snug fit, making it a tidy, low-profile mount for handlebars, roll bars, and rails.
Key Features

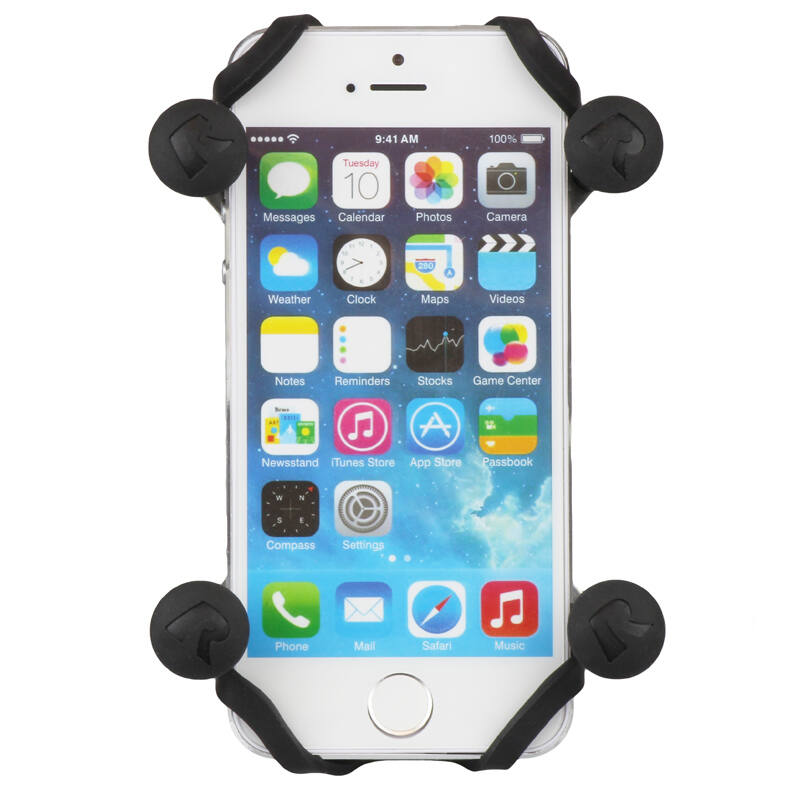

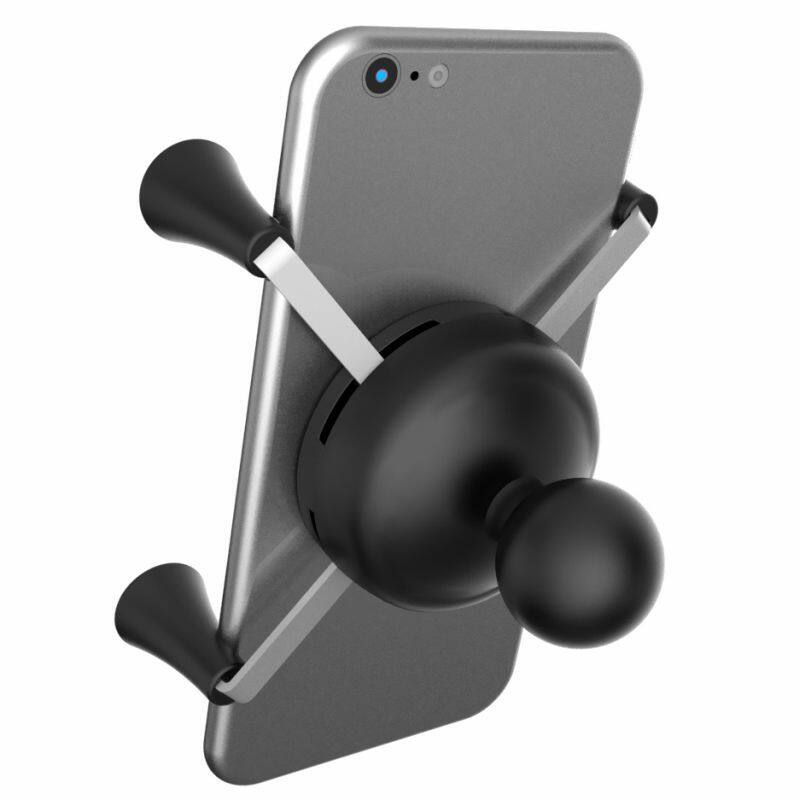

Spring-loaded 'X' design with rubber caps grips the phone firmly without covering the screen, camera, or buttons
Medium Torque™ rail base clamps standard bars and rails; nylon-insert locknuts resist loosening in high-vibration use
Sizing inserts included for a snug fit and added protection of the rail
Short double socket arm keeps the mount low-profile; ball-and-socket design allows near-infinite positioning

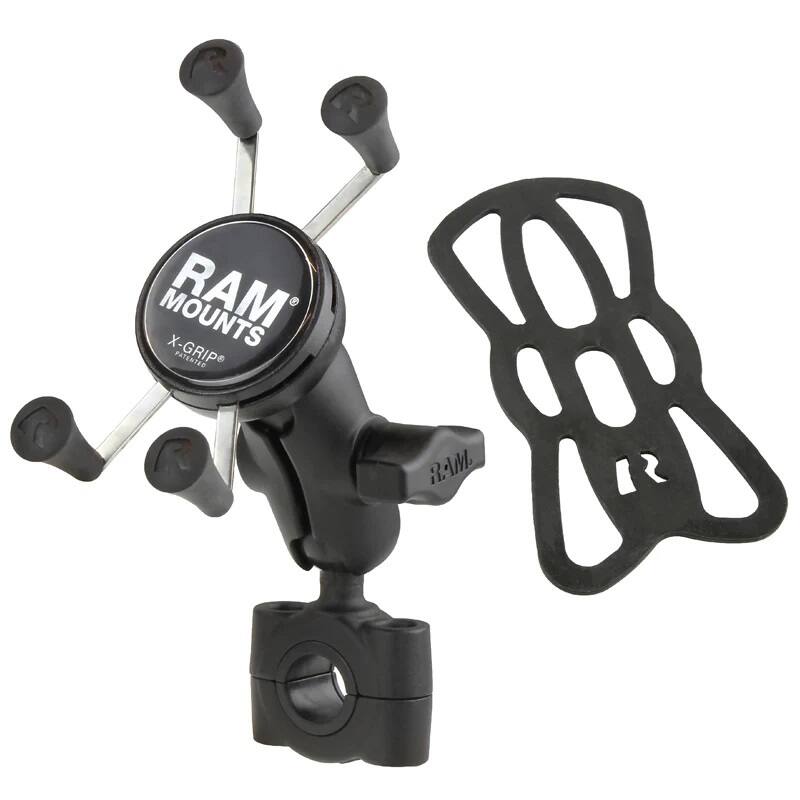

Includes an optional device tether; powder-coated marine-grade aluminium, stainless steel hardware, and high-strength composite; backed by a lifetime warranty
What's Included

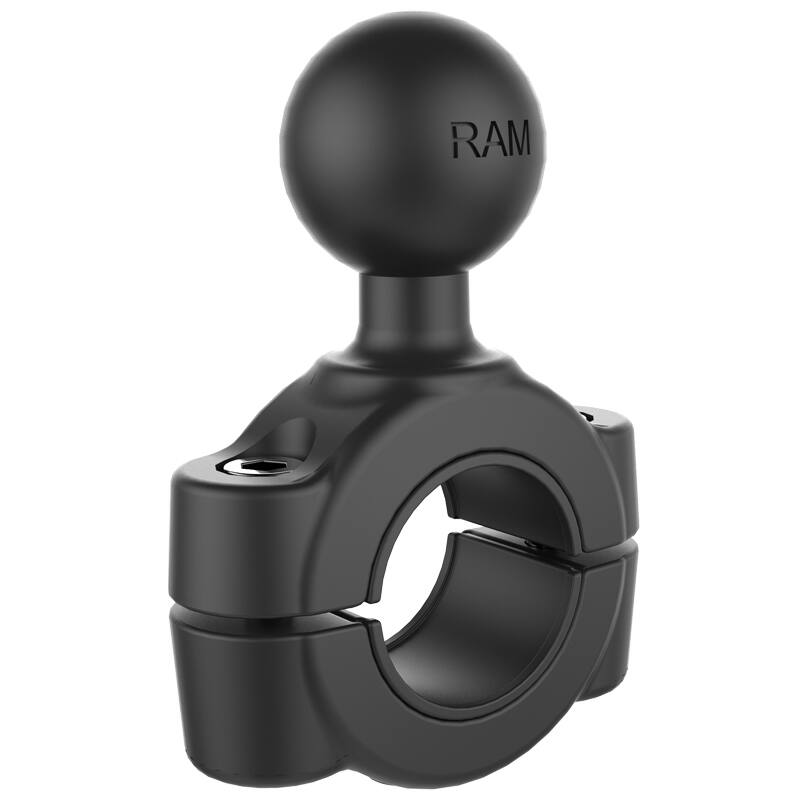

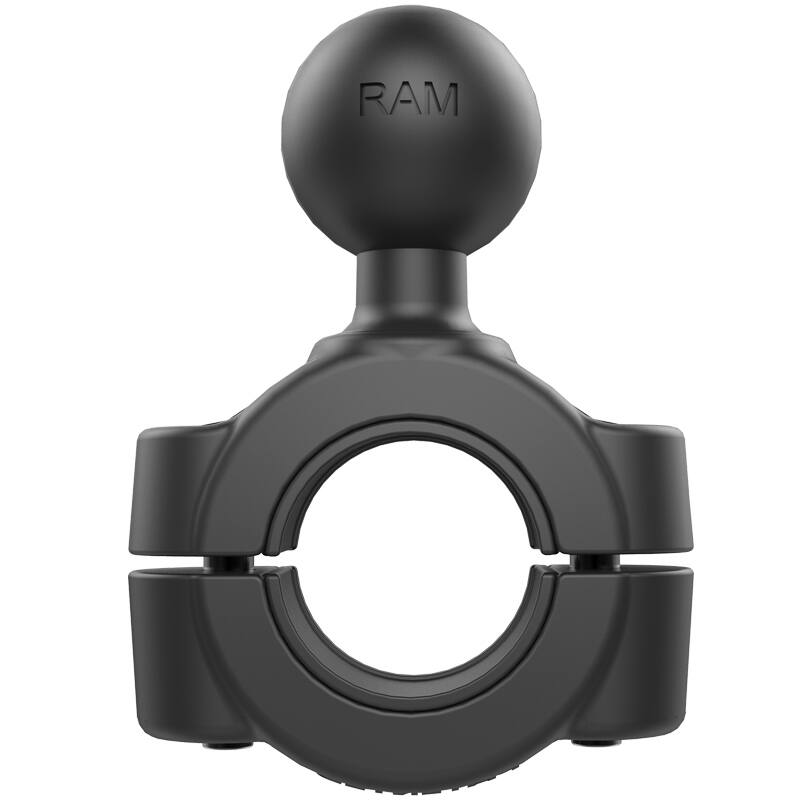

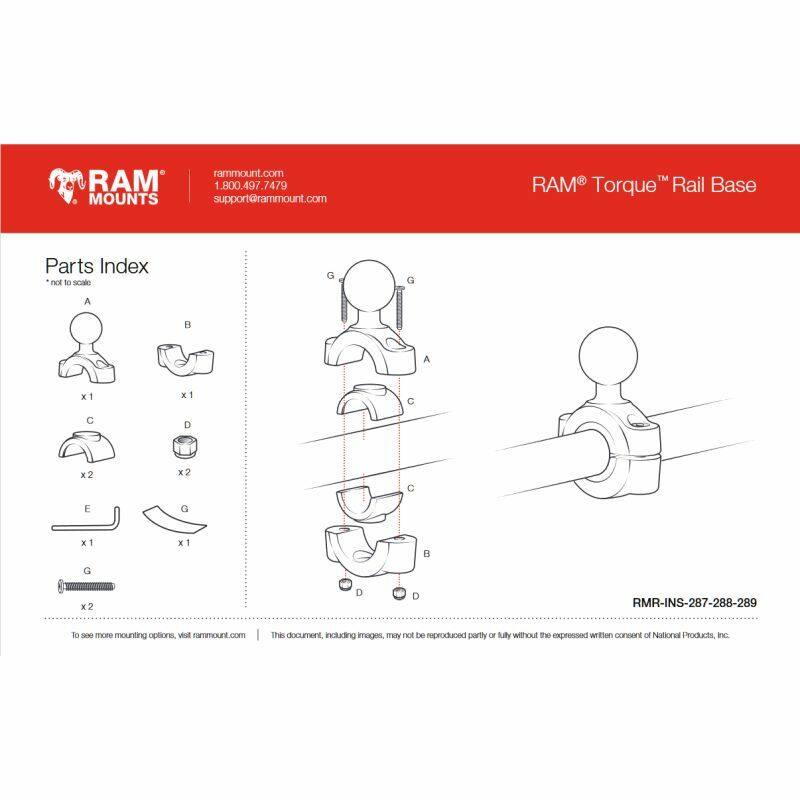

RAM-B-408-75-1U medium Torque™ rail base with 1" B-size ball
RAM-B-201U-A short double socket arm

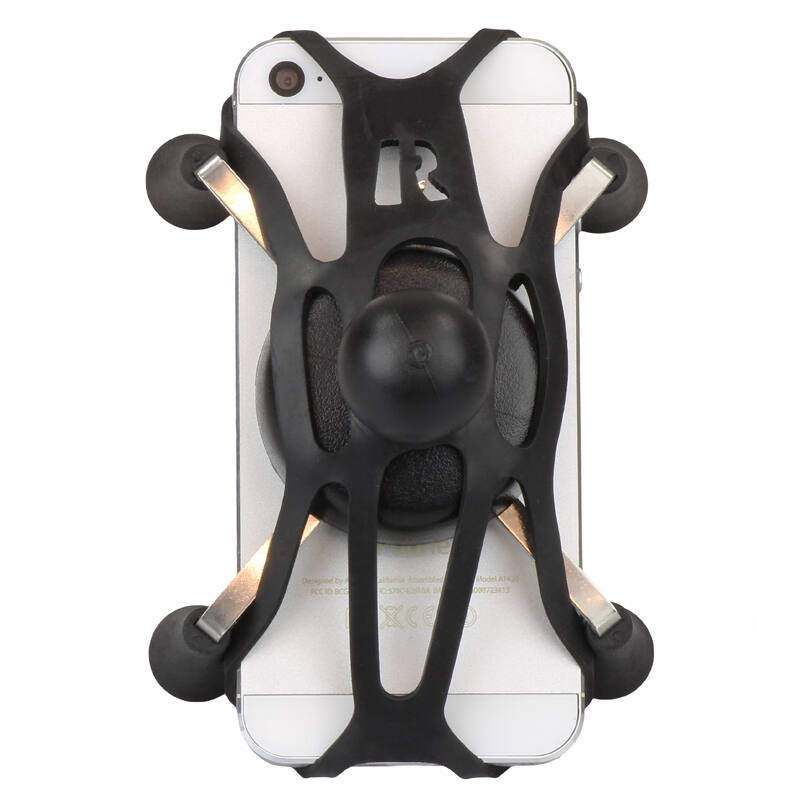

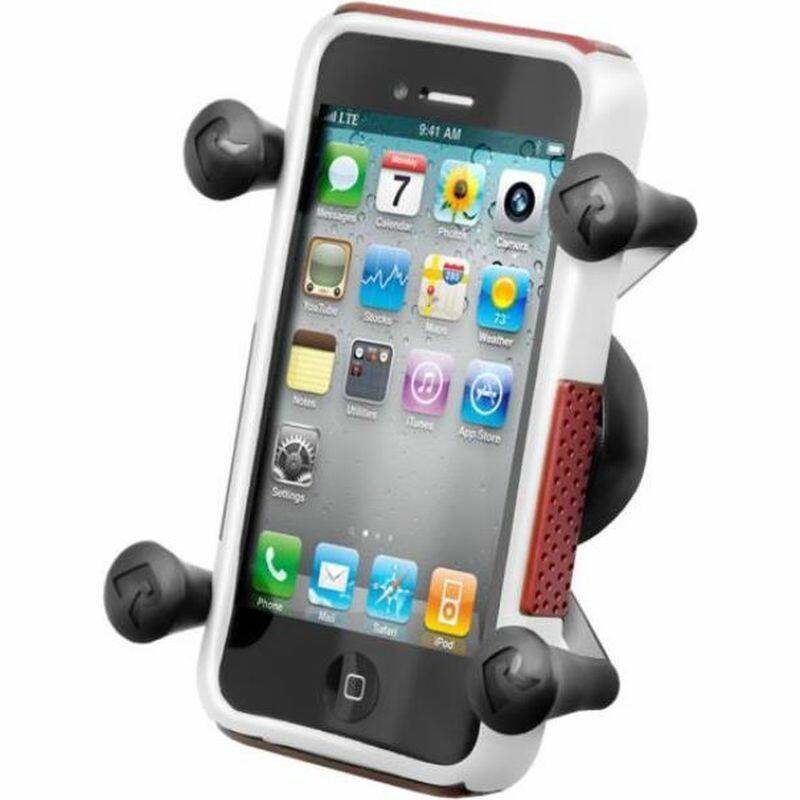

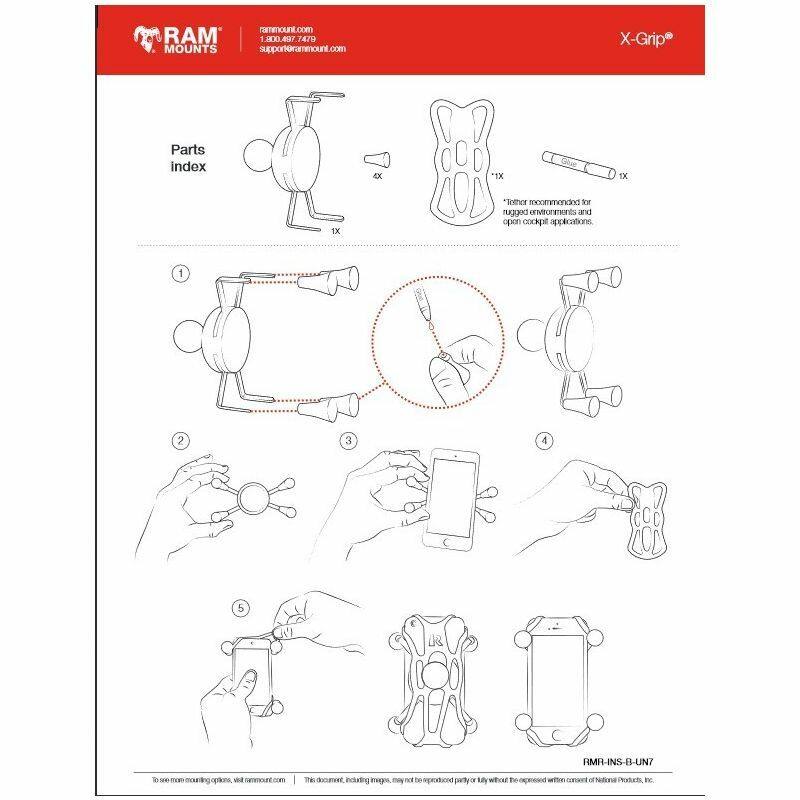

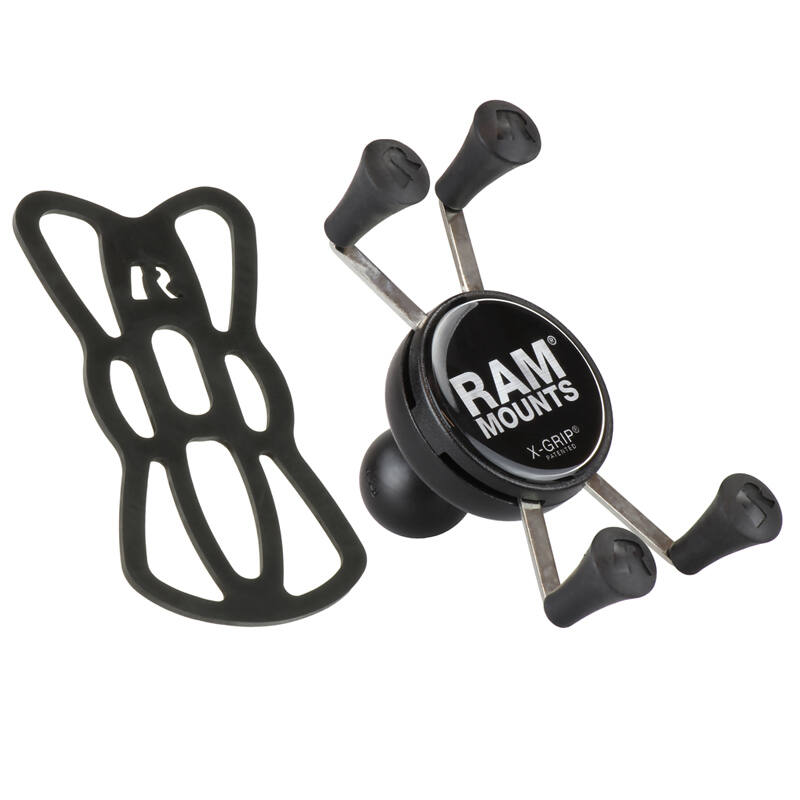

RAM-HOL-UN7BU X-Grip® universal phone cradle with device tether
Dimensions & Specifications
Rail diameter accommodated: 19mm to 25.4mm (3/4" to 1")
Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
Cradle minimum device width 47.6mm (1.875"), which needs a minimum height of 108mm (4.25")
Cradle maximum device width 82.6mm (3.25"), which needs a minimum height of 57.2mm (2.25")
The X-Grip cradle fits hand-held devices within the width and thickness ranges above. Always measure your device with any case, sleeve, or skin fitted before ordering. For the full list of compatible models across 14 major brands, see our RAM-HOL-UN7BU cradle listing.
