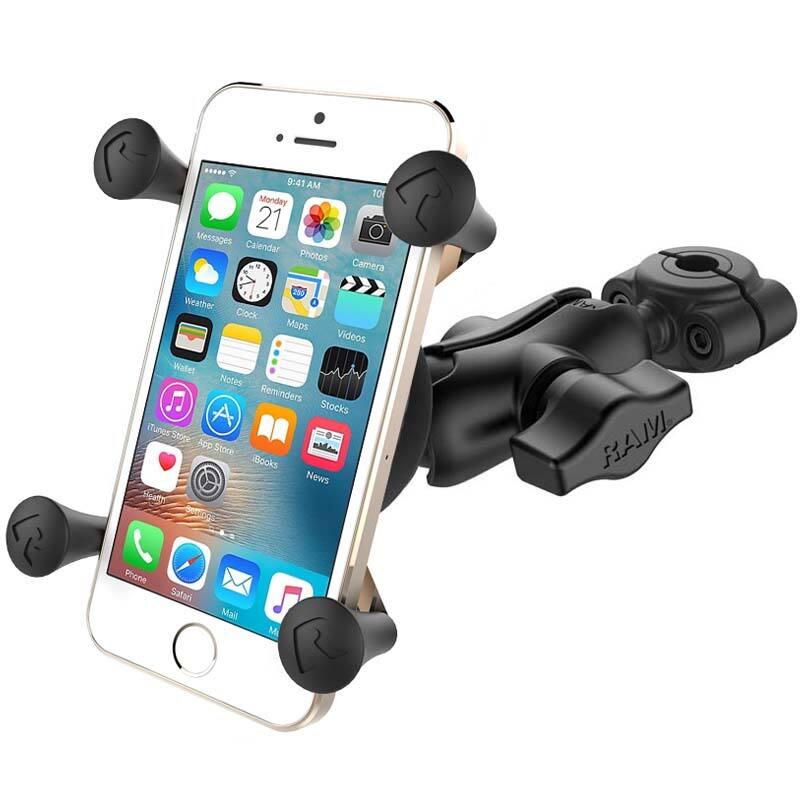

RAM-B-408-37-62-A-UN7U – RAM® X-Grip® Phone Mount with Torque™ Small Rail Base (Short Arm)

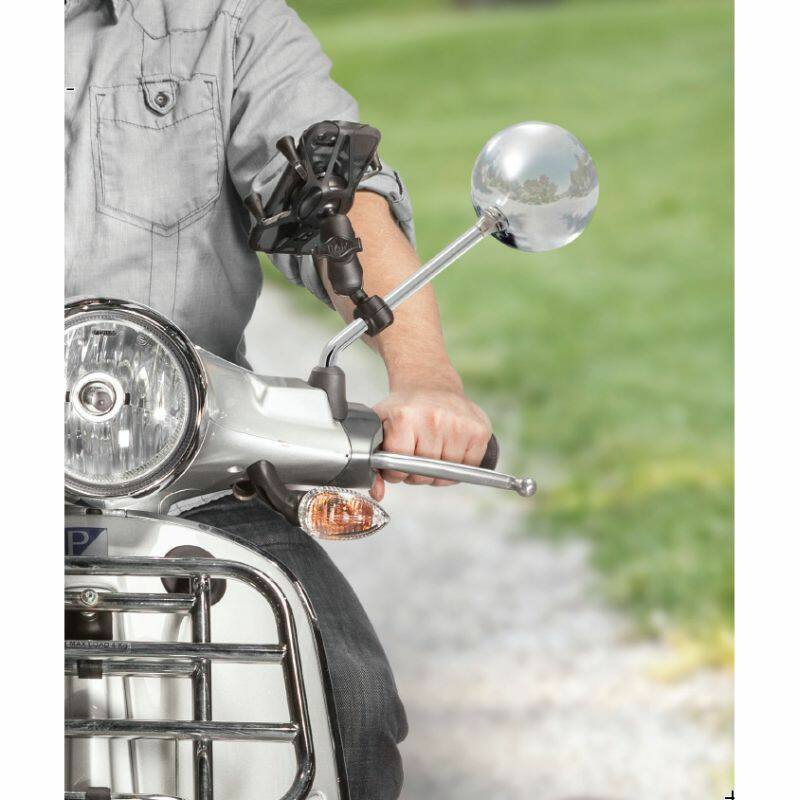

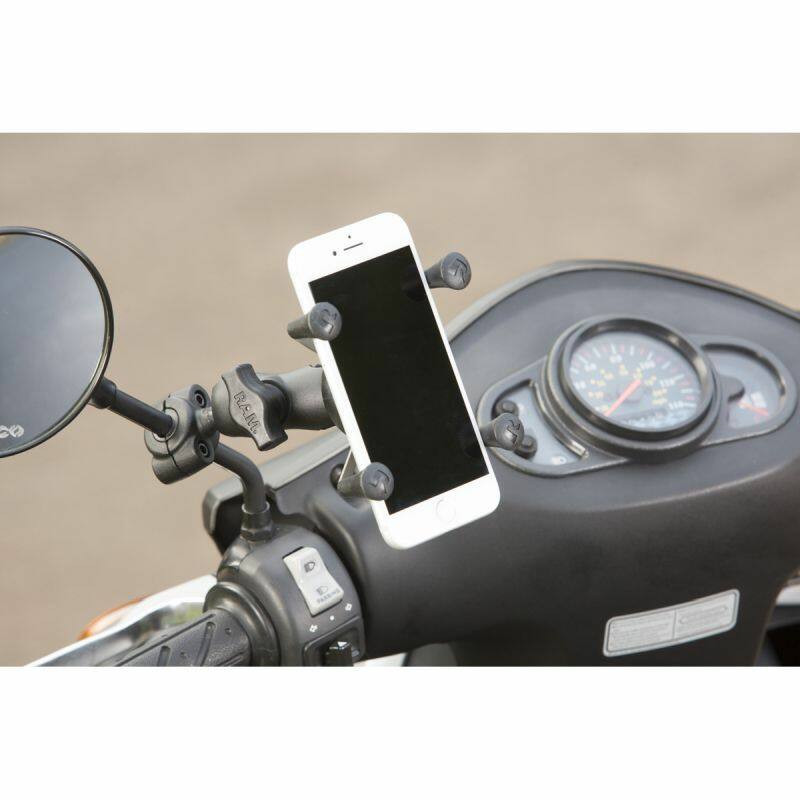

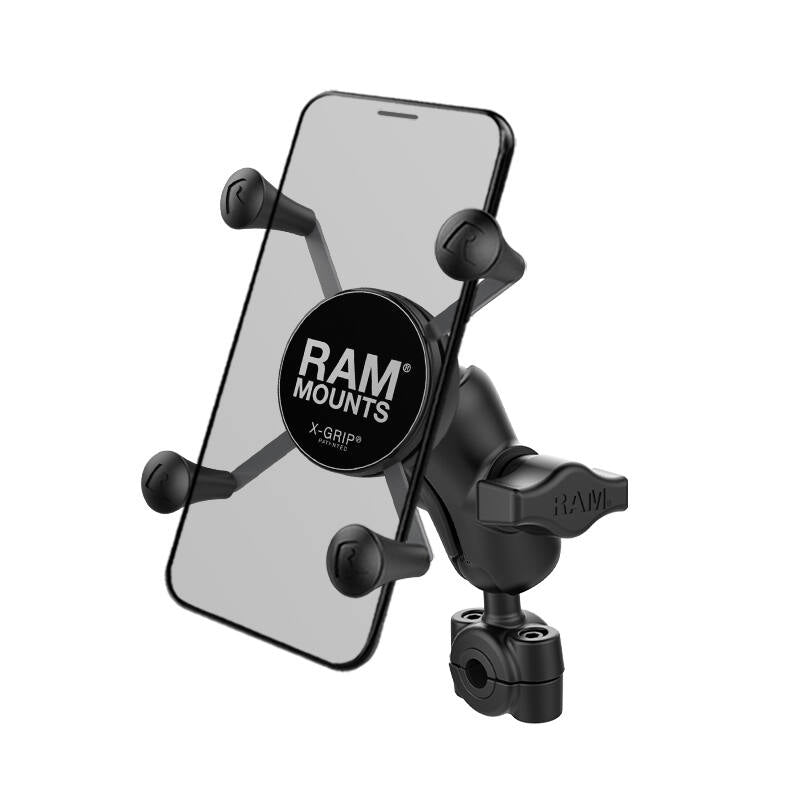

The RAM-B-408-37-62-A-UN7U pairs the RAM® X-Grip® universal phone cradle with the small RAM® Torque™ rail base and a short double socket arm. It clamps to thin bars and posts from 9.5mm to 15.9mm (3/8" to 5/8") in diameter, making it ideal for motorcycle mirror posts, scooter mirror stems, and vehicle headrest rails where there's no handlebar to mount to.
Key Features

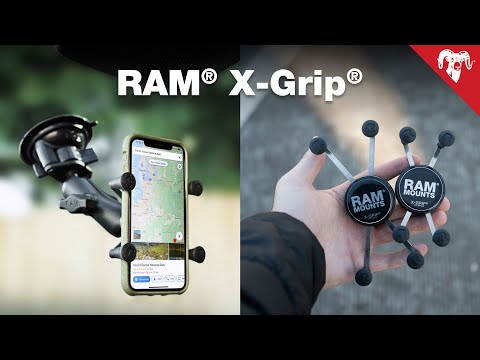

Spring-loaded 'X' design with rubber caps grips the phone firmly without covering the screen, camera, or buttons

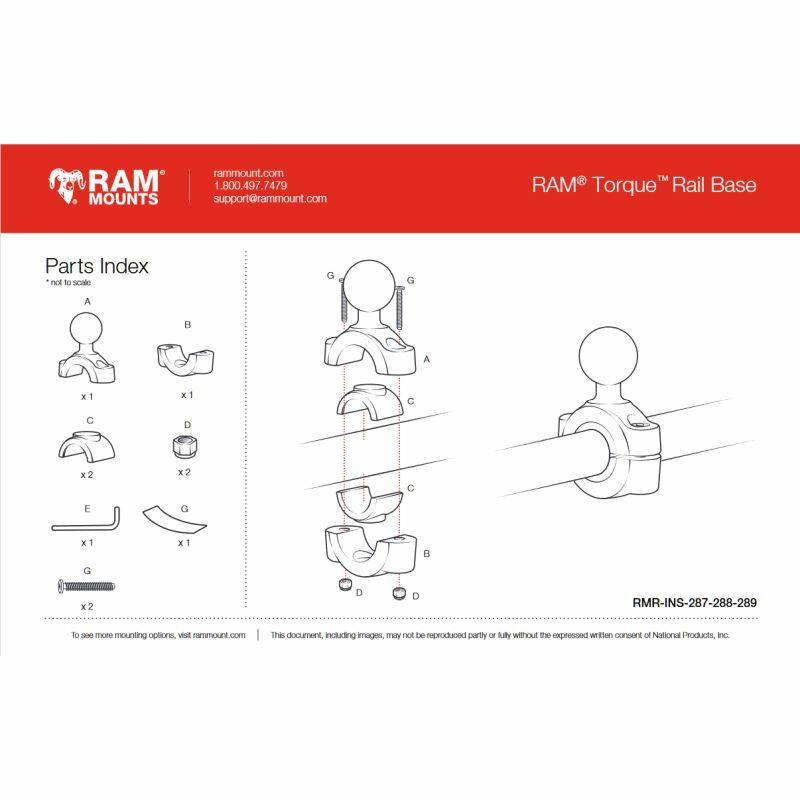

Small Torque™ rail base clamps thin bars and posts (mirror stems, headrest rails) and uses nylon-insert locknuts to resist loosening in high-vibration use
Short double socket arm keeps the mount low-profile; ball-and-socket design allows near-infinite positioning

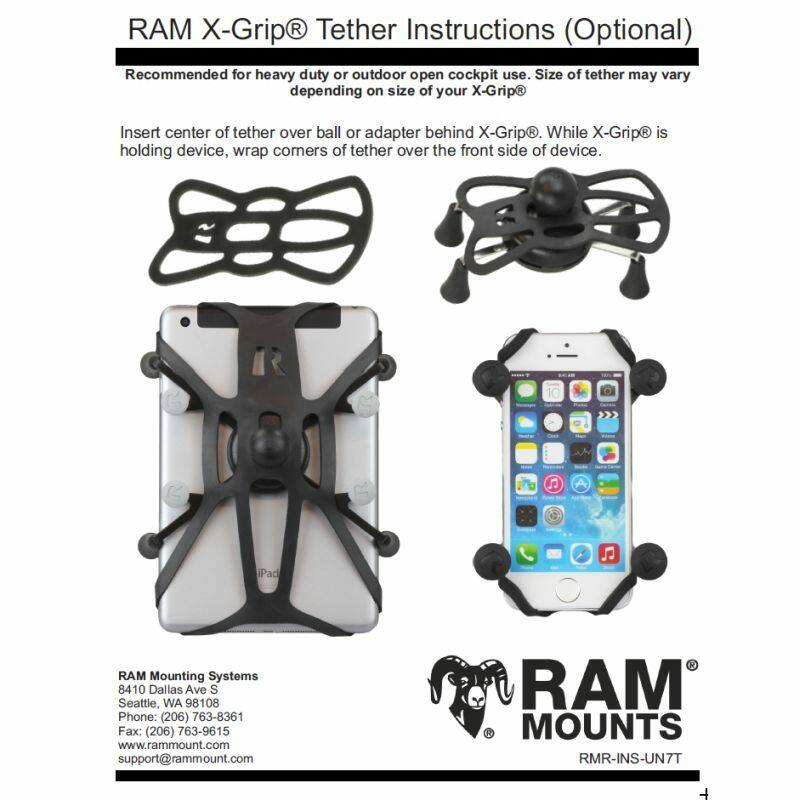

Includes an optional device tether for extra security during outdoor or off-road use
Powder-coated marine-grade aluminium, stainless steel hardware, and high-strength composite; backed by a lifetime warranty
What's Included

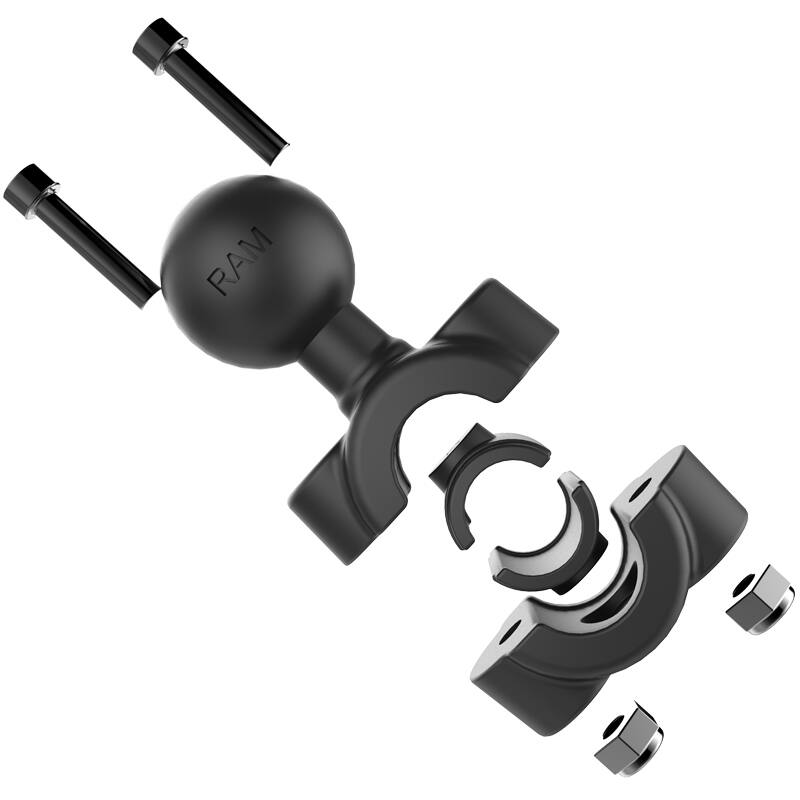

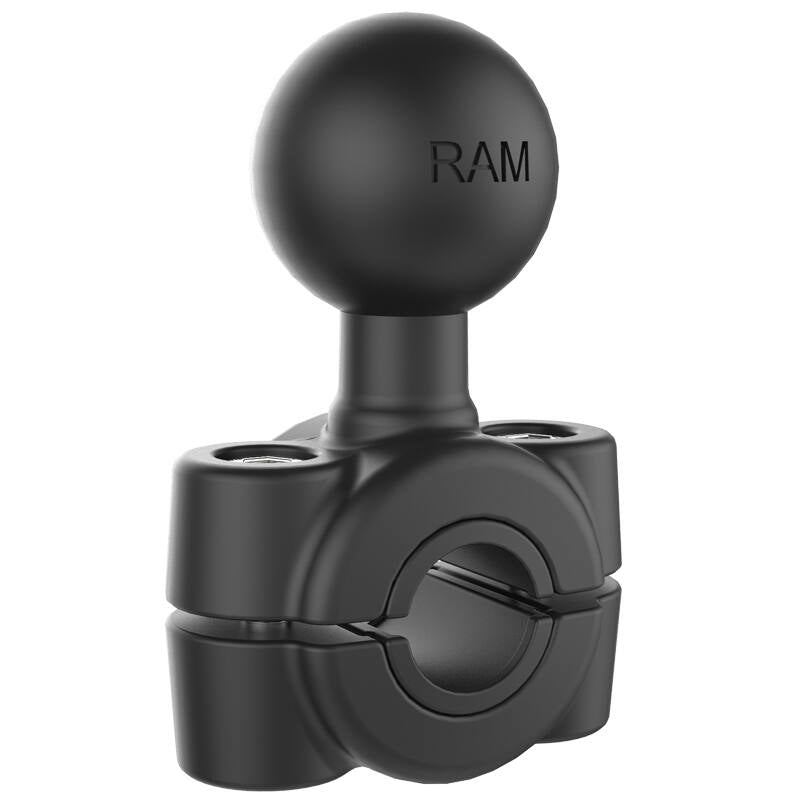

RAM-B-408-37-62U small Torque™ rail base with 1" B-size ball
RAM-B-201U-A short double socket arm

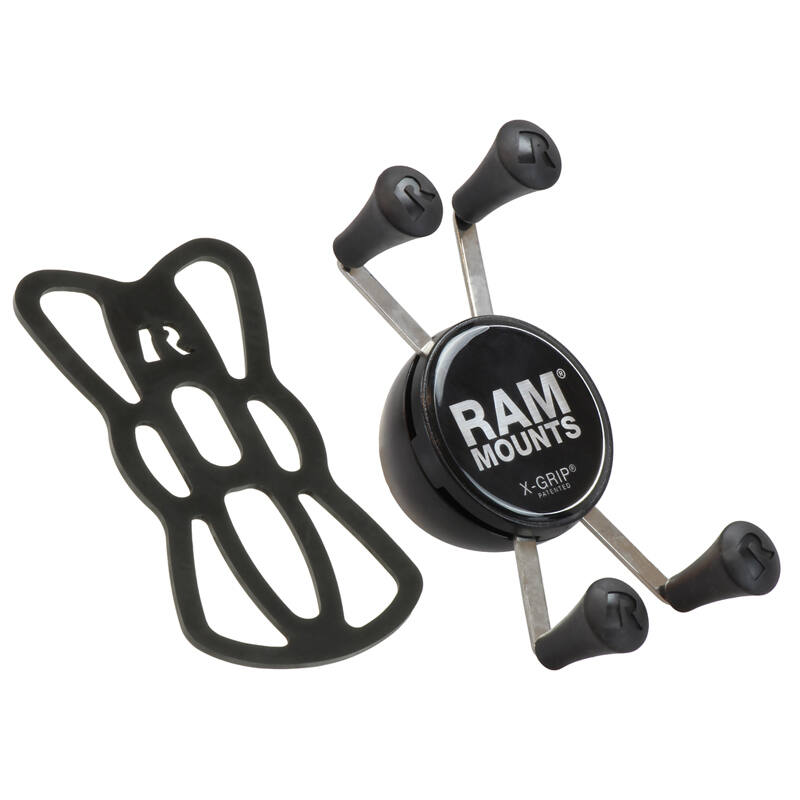

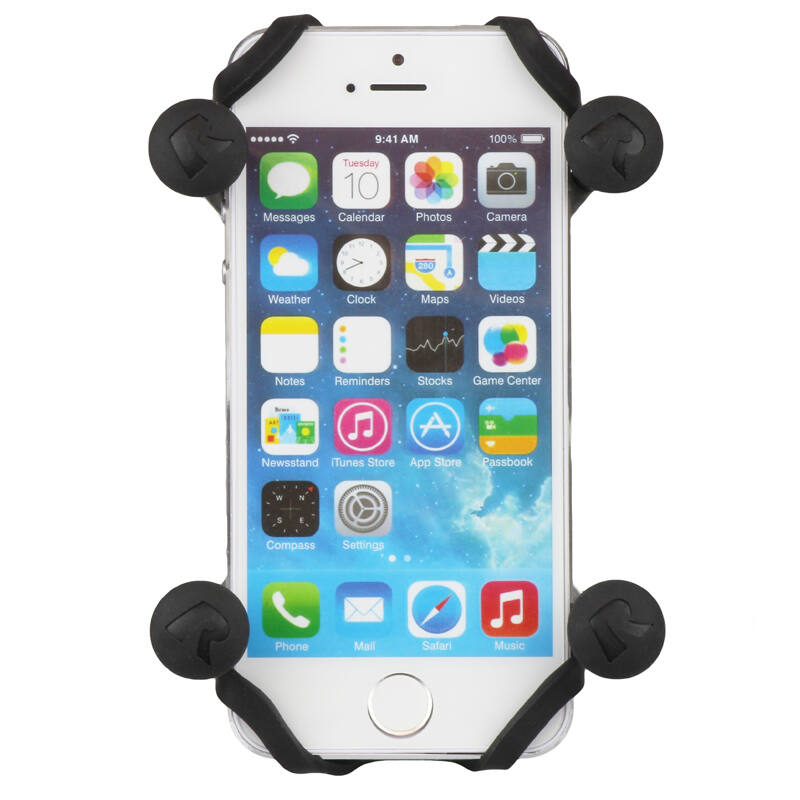

RAM-HOL-UN7BU X-Grip® universal phone cradle with device tether
Dimensions & Specifications
Rail diameter accommodated: 9.5mm to 15.9mm (3/8" to 5/8")

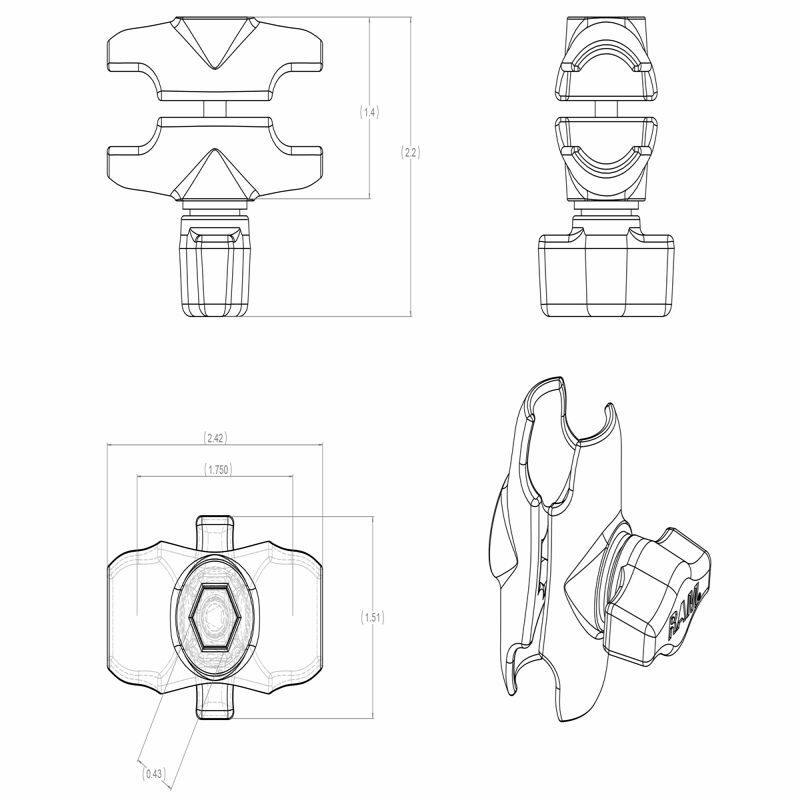

Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
Cradle minimum device width 47.6mm (1.875"), which needs a minimum height of 108mm (4.25")
Cradle maximum device width 82.6mm (3.25"), which needs a minimum height of 57.2mm (2.25")
The X-Grip cradle fits hand-held devices within the width and thickness ranges above. Always measure your device with any case, sleeve, or skin fitted before ordering. For the full list of compatible models across 14 major brands, see our RAM-HOL-UN7BU cradle listing.
