RAM Mounts

RAM X-Grip Universal Smartphone Cradle - Tough-Claw Handlebar Base + Long Arm

RAM X-Grip Universal Smartphone Cradle - Tough-Claw Handlebar Base + Long Arm


Regular price $288.33 NZD
Regular price Sale price $288.33 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

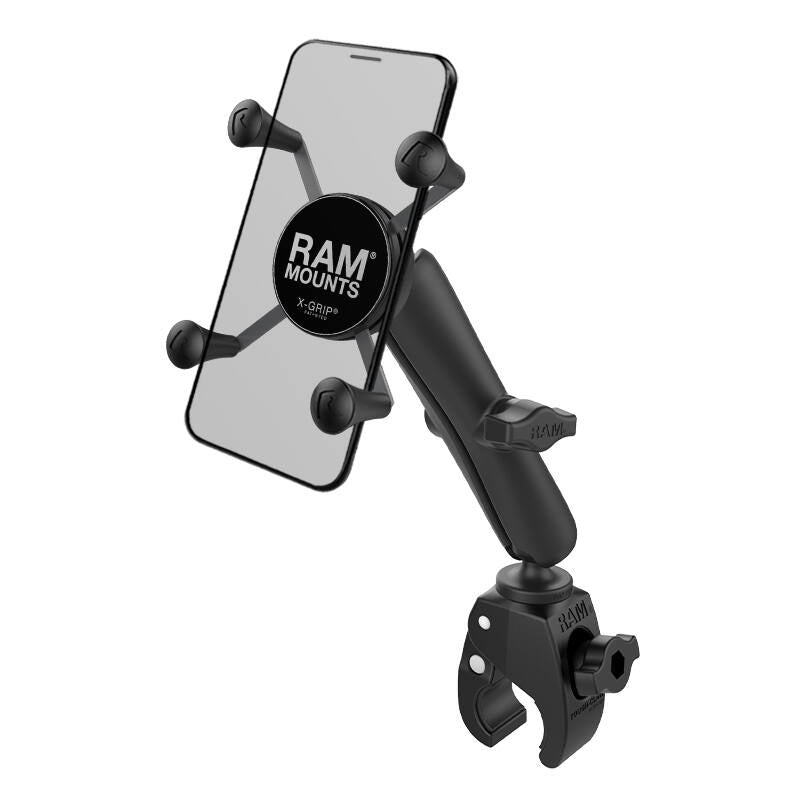

RAM-B-400-C-UN7U RAM® X-Grip® Phone Mount with RAM® Tough-Claw™ Small Clamp Base - Long


* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
* Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface

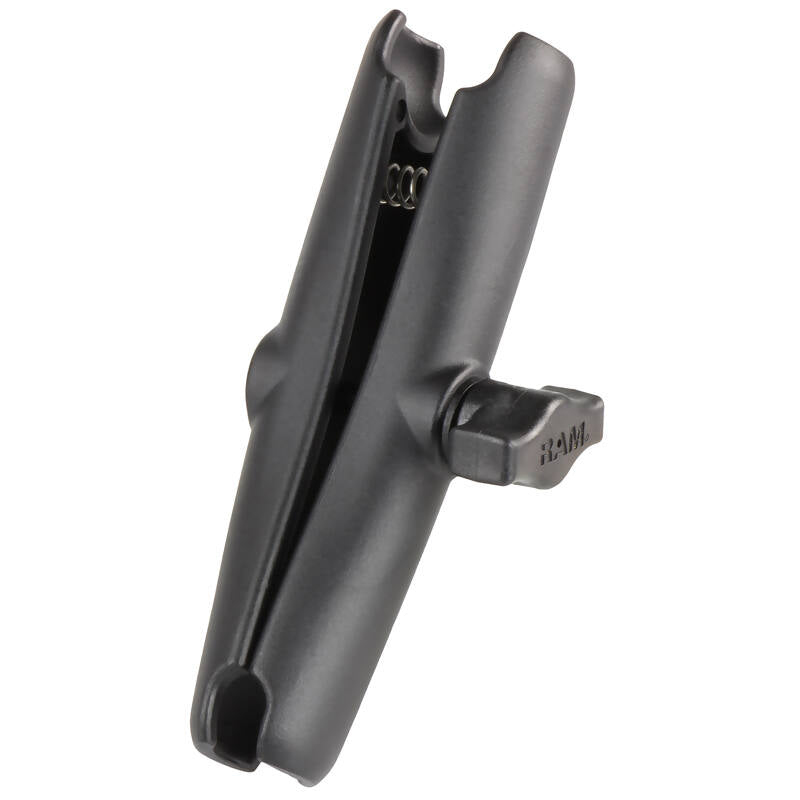

* Long length B size RAM® Mounts double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

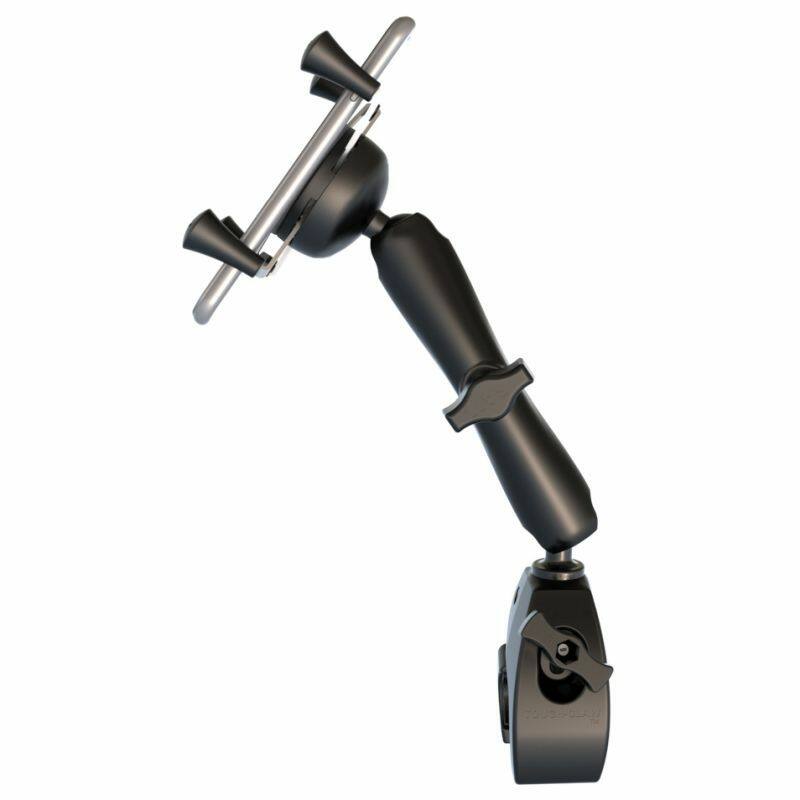

The RAM-B-400-C-UN7U consists of the Tough-Claw™ rail clamp base, LONG length double socket arm and universal spring loaded X-Grip® cradle for phones.

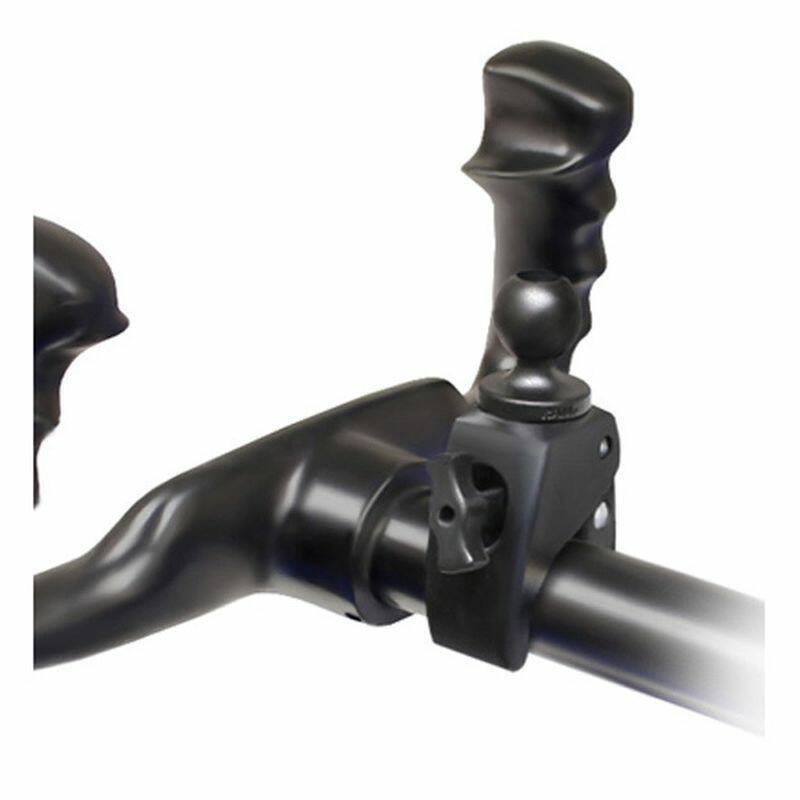

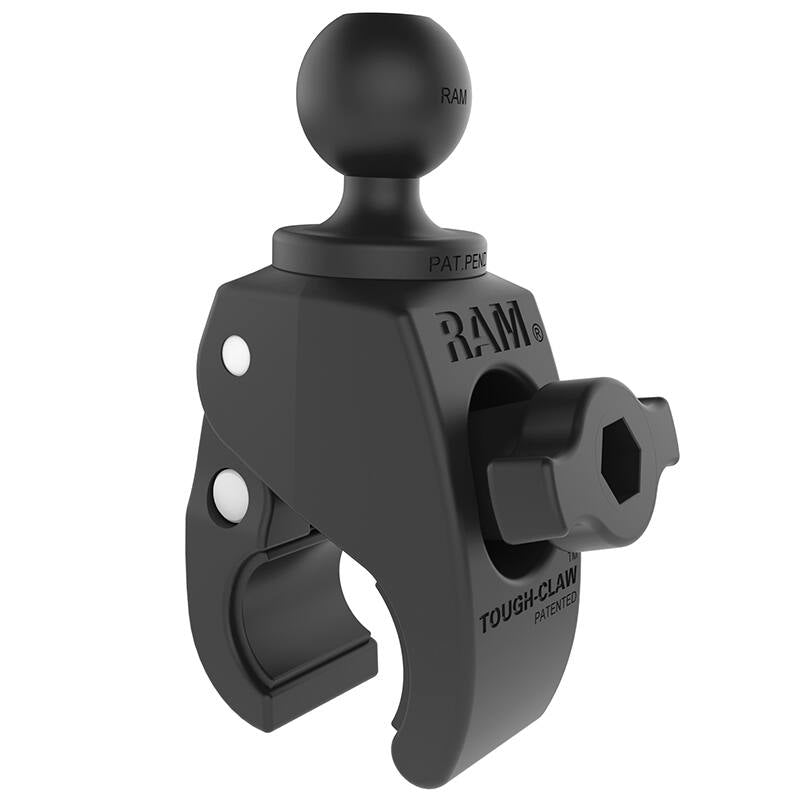

The Tough-Claw rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars.
This mount can be clamped on rails and bars from 16 to 28mm outer diameter. Perfectly suited for mounting on the yoke of an aircraft, frames of wheel chairs and mobility devices, handlebars and seat posts of bicycles, motorcycles, kayak rails, roll bars and much more.

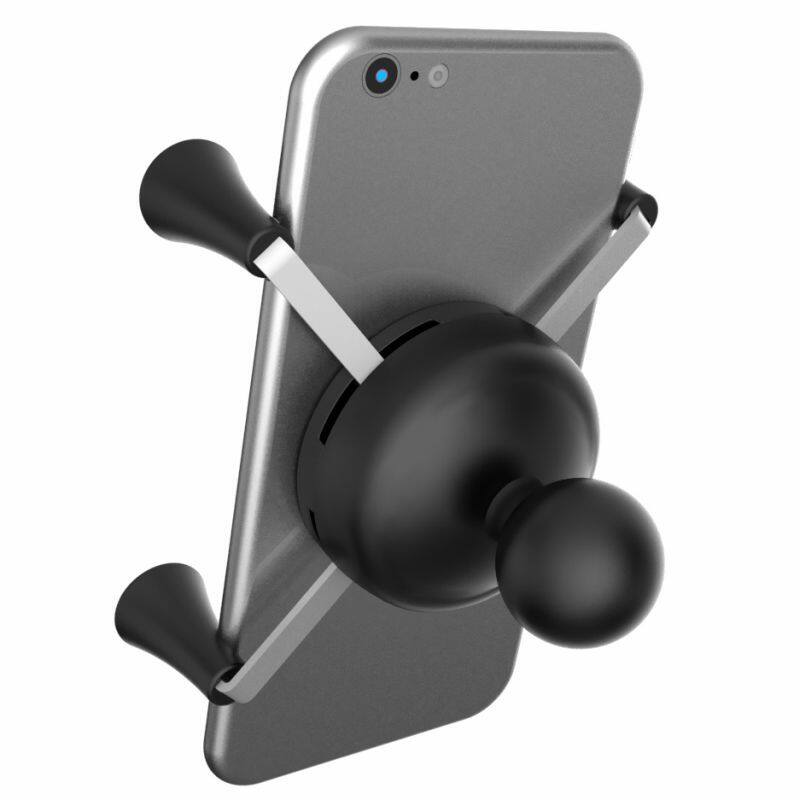

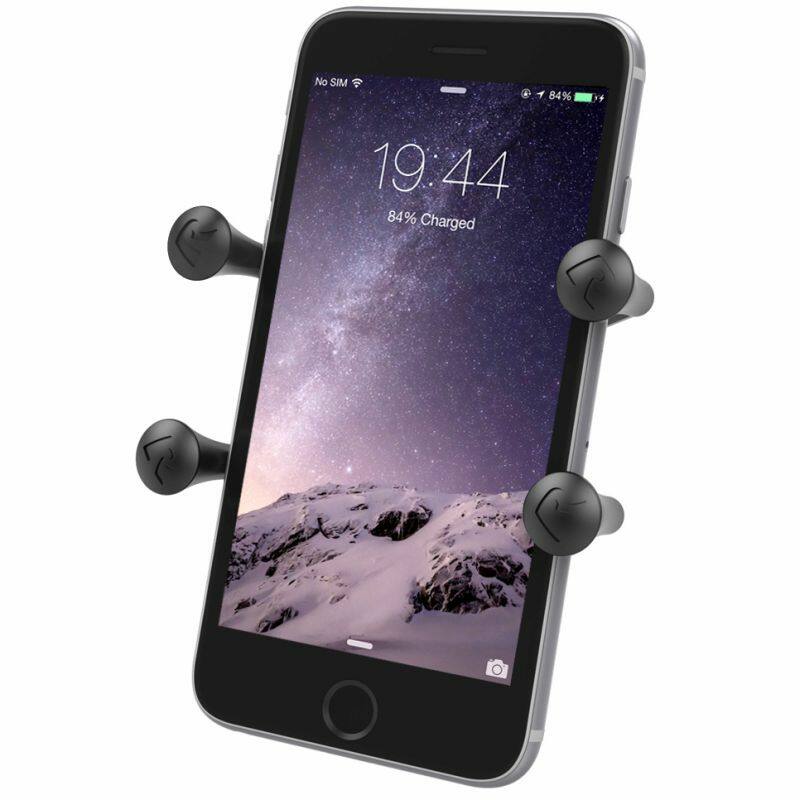

The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone. The RAM X-Grip is the cell phone holder evolved and includes a device tether recommended for outdoor applications.

The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size

Cradle Dimensions
Min Width = 47.6mm / 1.875” – (if min width then the min height = 108mm / 4.25")
Max Width = 82.6mm / 3.25" – (if max width then the min height = 57.2mm / 2.25")
Max Thickness = 22.2mm / 0.875"

Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU

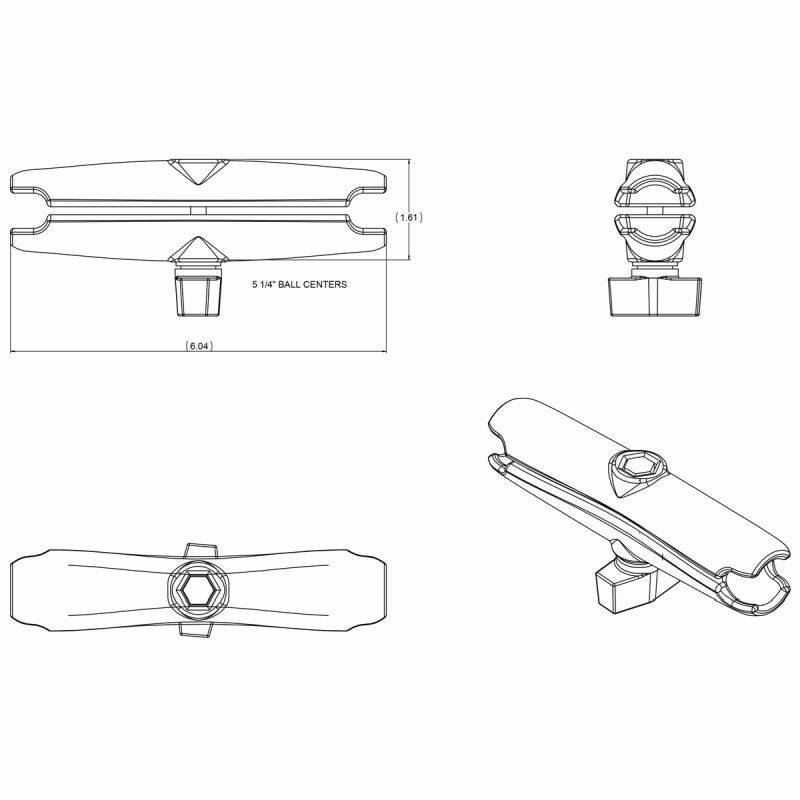

Arm Dimensions:
Overall Length:
152 mm (6 inches)
Socket-To-Socket Length:
134 mm (5.25 inches)

Ball Size:
1" Rubber Ball "B" Size


Other options available and possible. Please ask!
