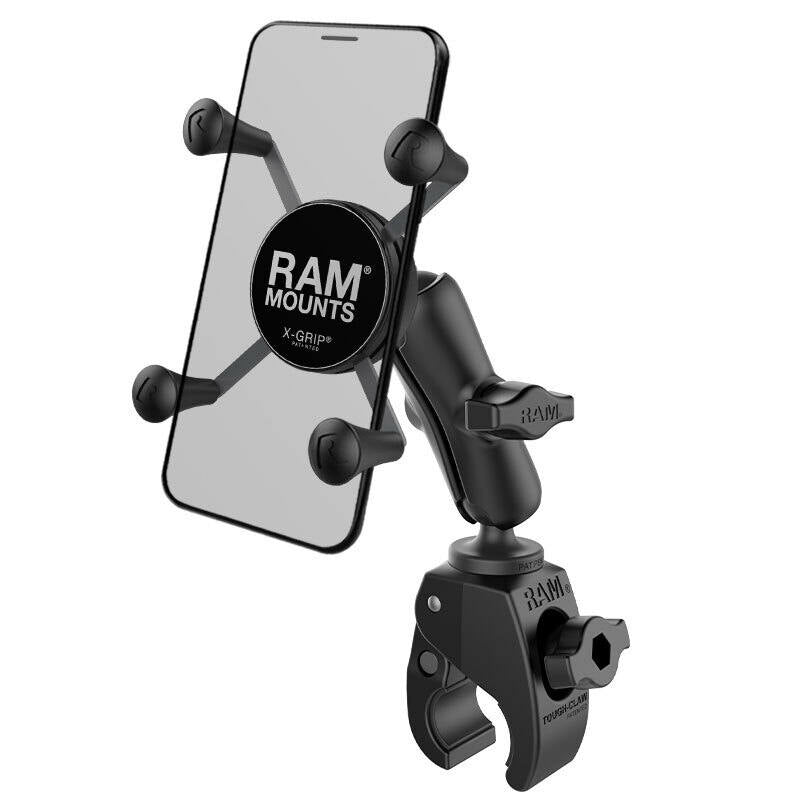

RAM-B-400-HOL-UN7BU – RAM® X-Grip® Phone Mount with Tough-Claw™ Small Clamp Base, Medium Arm

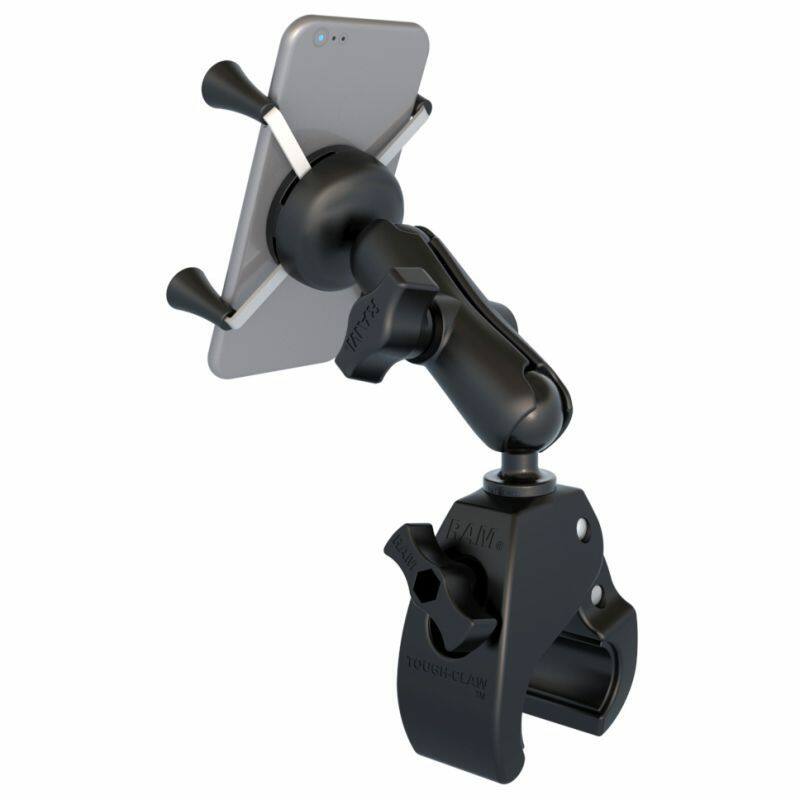

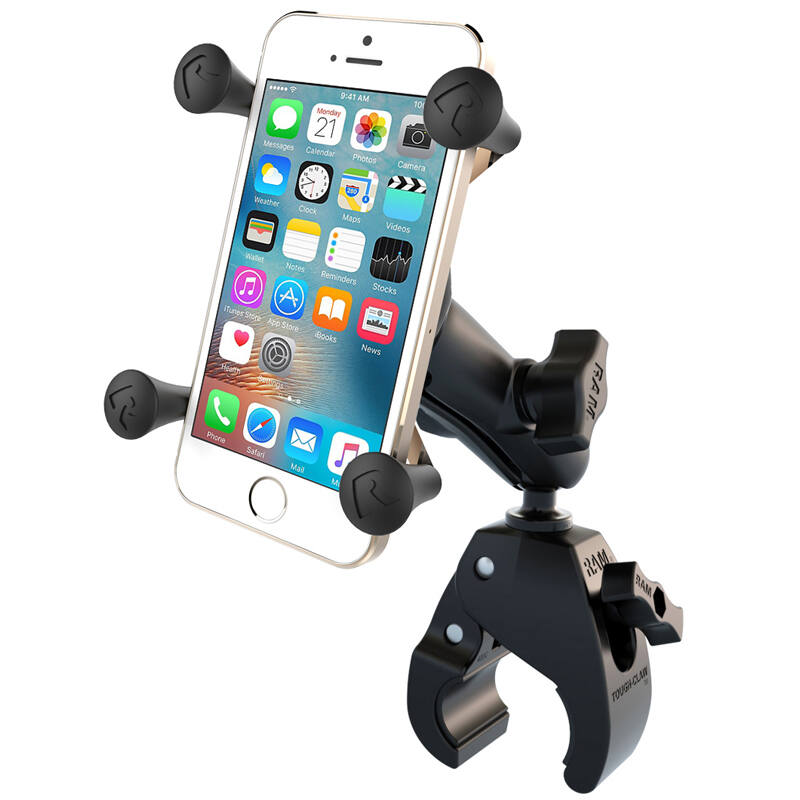

The RAM-B-400-HOL-UN7BU pairs the RAM® X-Grip® universal phone cradle with a small RAM® Tough-Claw™ clamp base and a medium double socket arm, giving you a tool-less mount for round, square, or odd-shaped rails and bars from 15.9mm to 29mm in diameter.
Key Features

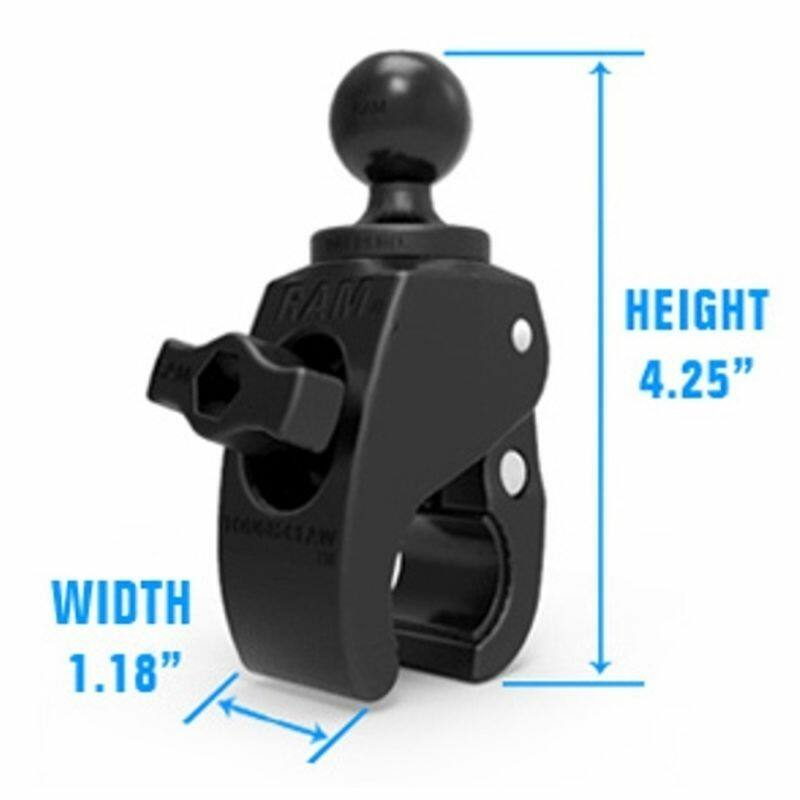

- Small RAM® Tough-Claw™ base clamps tool-lessly to rails and bars 15.9-29mm in outer diameter; rubber pads protect the mounting surface

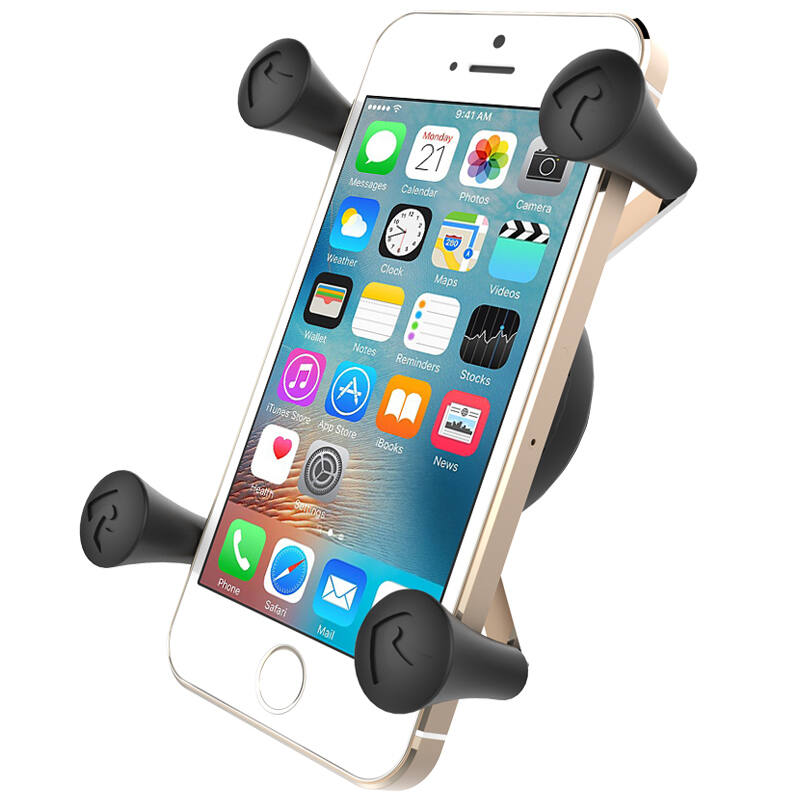

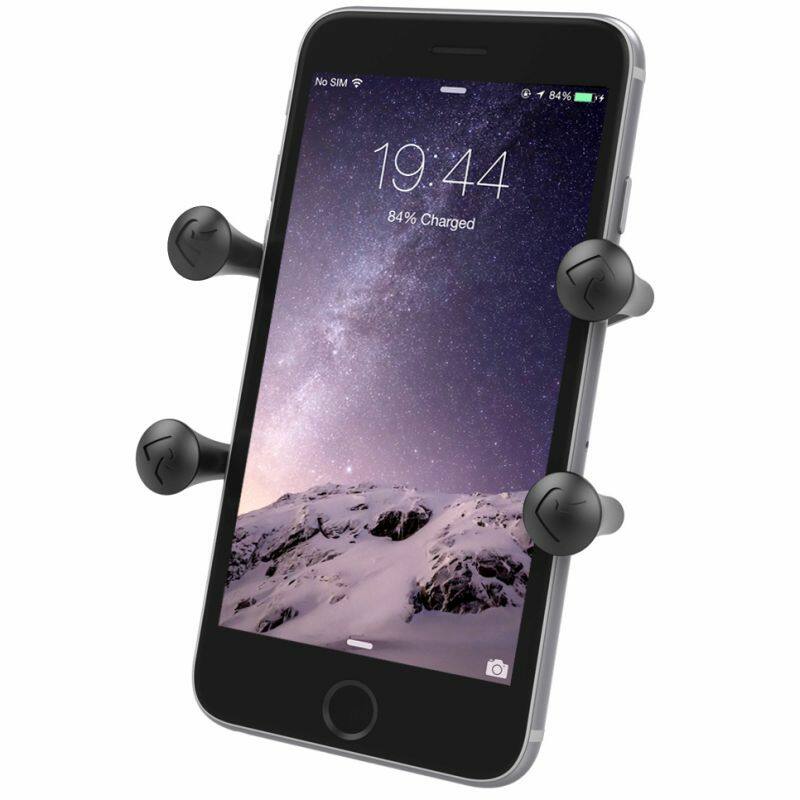

- Spring-loaded 'X' design X-Grip® cradle grips large phones firmly without hiding the screen, camera, or buttons; includes an optional device tether for extra security during rugged use
- Constructed from high-strength composite and stainless steel hardware for durability in demanding environments
- Backed by a lifetime warranty

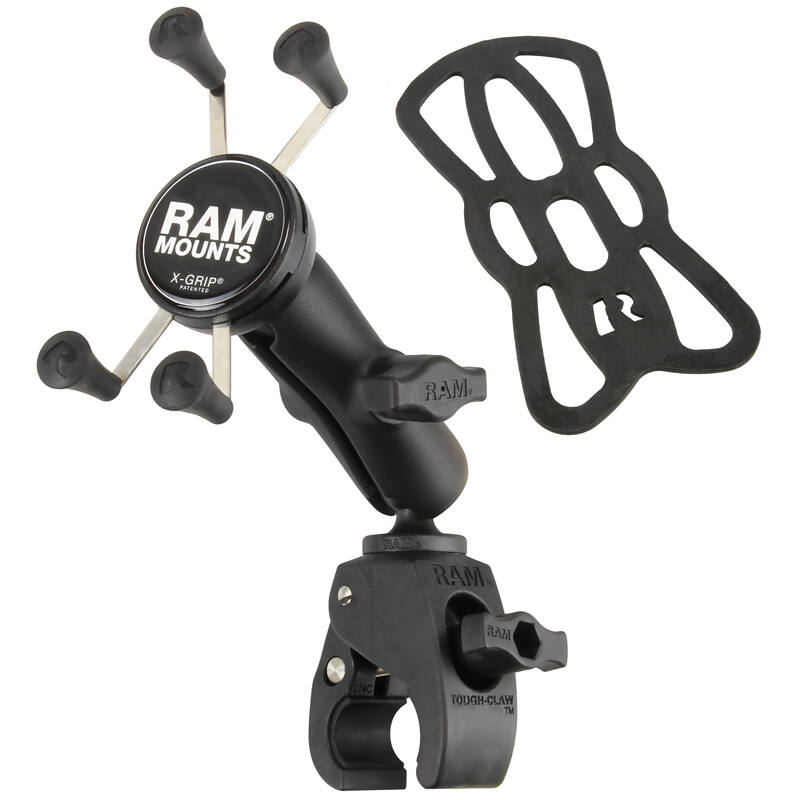

What's Included
- RAM-B-201U double socket arm

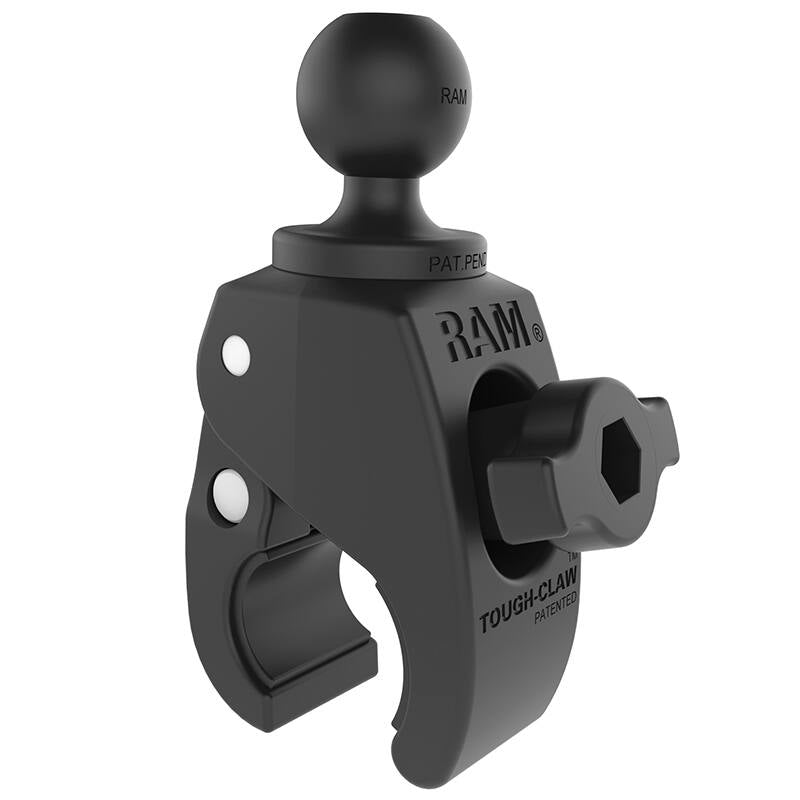

- RAP-B-400U small Tough-Claw™ base

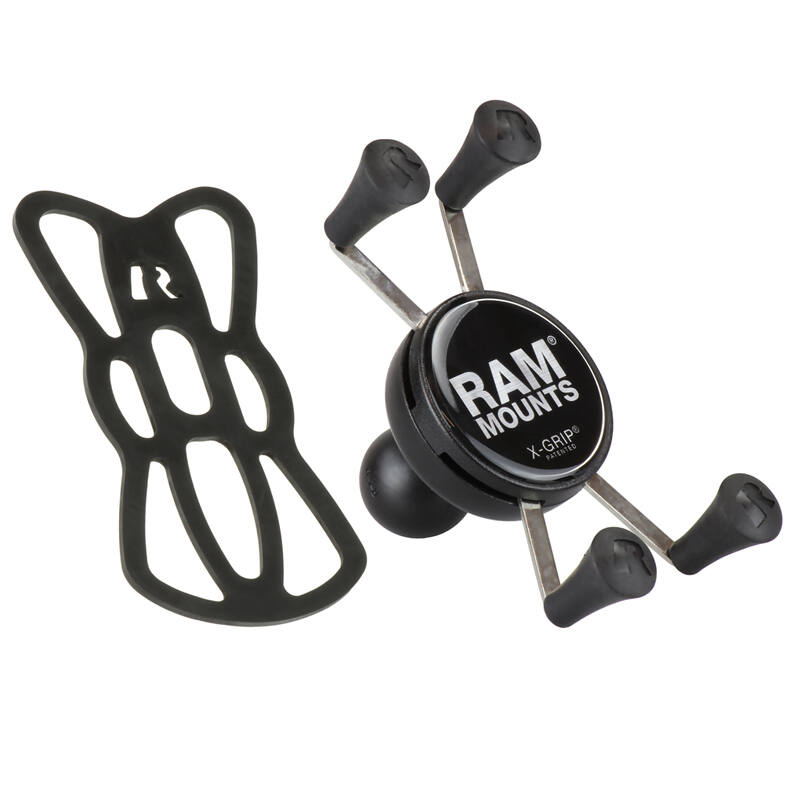

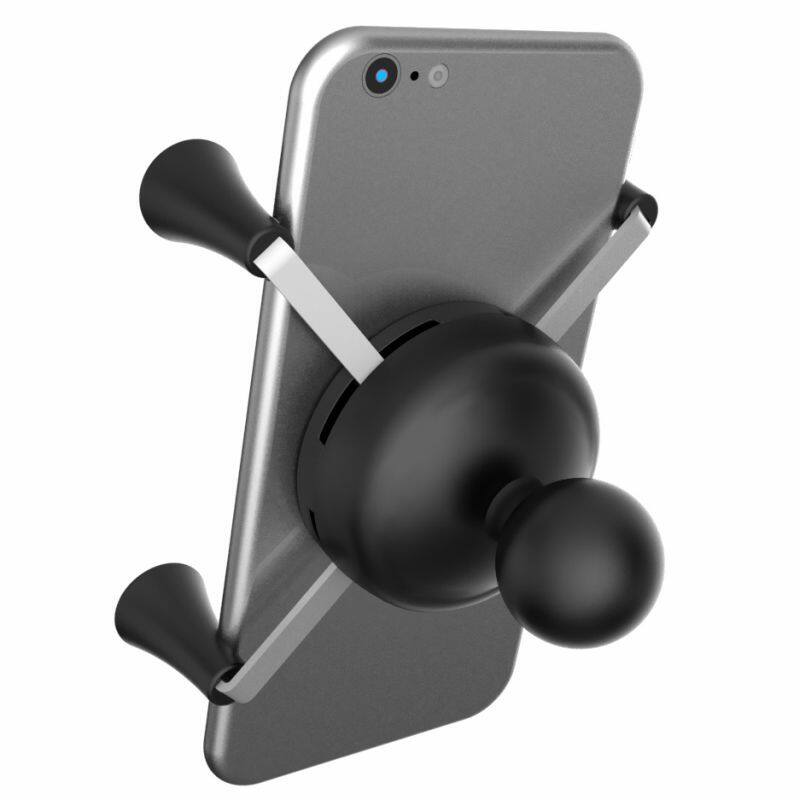

- RAM-HOL-UN7BU X-Grip® cradle
Common Uses

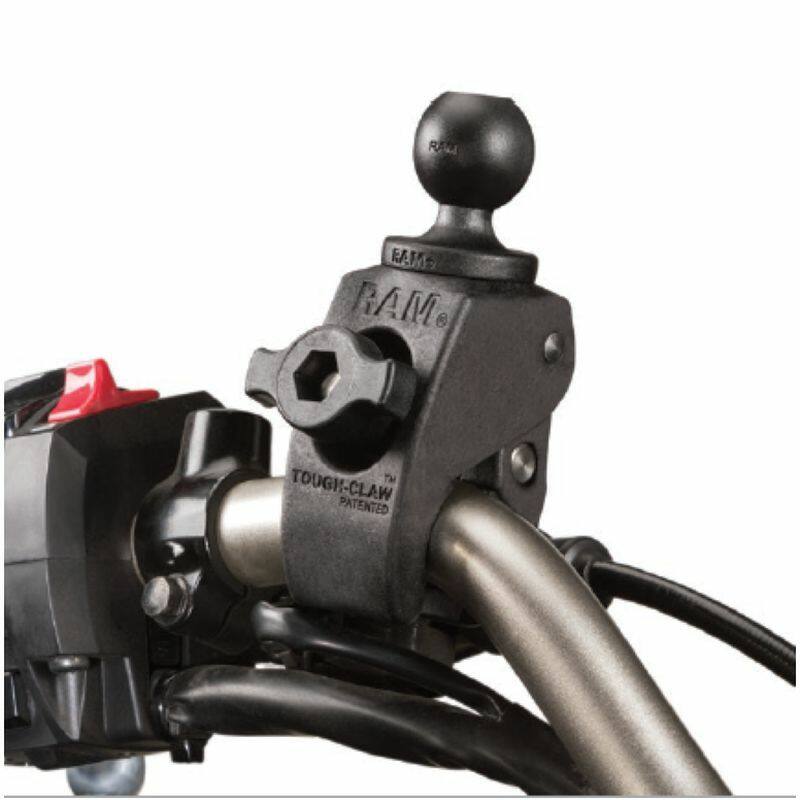

Designed for tool-less mounting on aircraft yokes, bicycle and motorcycle handlebars and seat posts, kayak rails, roll bars, and similar tubing. Also a popular choice for wheelchairs and other mobility devices, since it installs or relocates quickly without tools.
Dimensions & Specifications
- Cradle minimum device width: 47.6mm (1.875") — requires minimum height 108mm (4.25")
- Cradle maximum device width: 82.6mm (3.25") — requires minimum height 57.2mm (2.25")
- Cradle max thickness: 22.2mm (0.875")

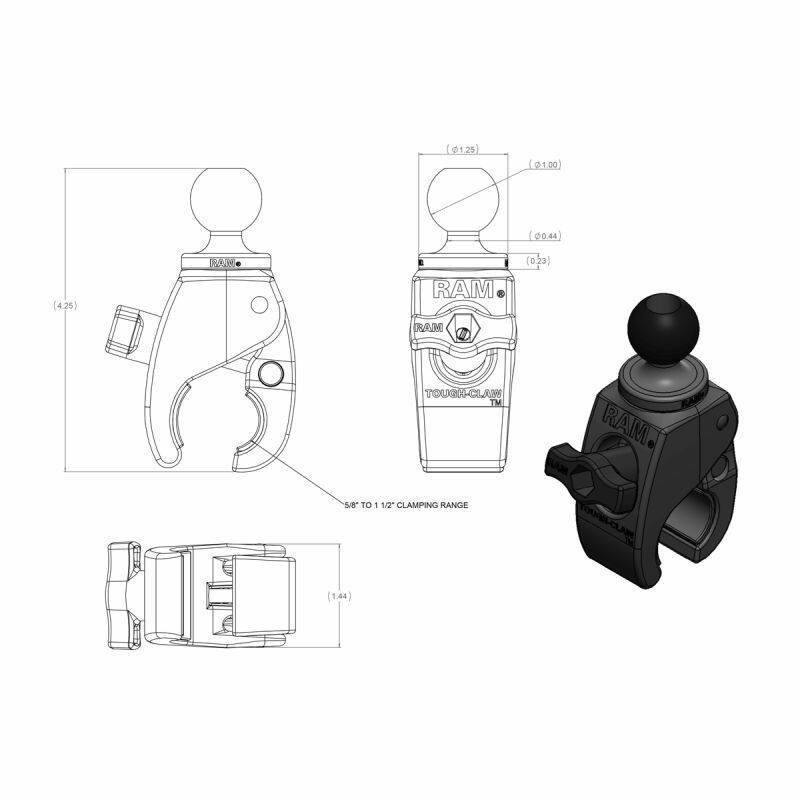

- Clamping range, rail/tube surfaces: 15.9mm to 29mm (0.625" to 1.14")
- Clamping range, flat surfaces: 0mm to 29mm (0" to 1.14")
- Arm overall length: 94mm (3.69")
- Arm socket-to-socket length: 76mm (3")
- Weight: 367g (0.81 lb)
- Weight capacity: 907g (2 lbs) standard use; 454g (1 lb) heavy-duty use
Compatible Devices
This kit uses the same RAM-HOL-UN7BU X-Grip® cradle — see the full compatible device list (100+ models across 14 brands) on the RAM-HOL-UN7BU listing.

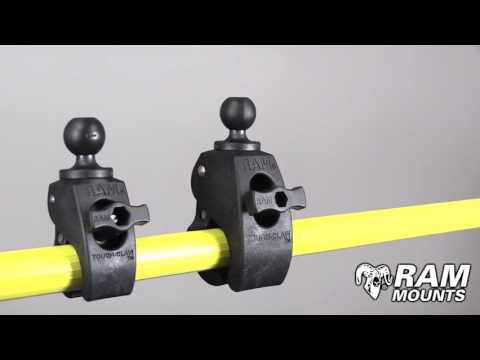

Videos
FAQs
Is this a complete mount? Yes. The base, arm and cradle are all included — there's nothing else to buy to get your phone onto the bar.
Will the Tough-Claw fit my handlebar? It clamps tool-free to round, square and odd-shaped bars from 15.9mm to 29mm outer diameter, and to flat surfaces up to 29mm thick. Most motorcycle and bicycle bars, aircraft yokes, kayak rails and roll bars sit inside that range — measure yours before ordering.
Will my phone fit with a case on? Measure the width of your phone with the case, sleeve or skin fitted. The X-Grip cradle holds devices from 47.6mm to 82.6mm wide. If you run a large phone, choose the UN10 version of this kit instead.
Short arm or medium arm? This kit uses the medium RAM-B-201U arm, which gives more reach and a wider range of viewing angles. The short-arm version of the same kit keeps the phone tighter to the bar where cockpit or bar space is tight.
Is the tether included? Yes. We'd recommend fitting it for motorcycle, off-road, marine and any other high-vibration use — it's cheap insurance if the phone is ever knocked loose.
