RAP-460-UN7U – RAM® X-Grip® Phone Mount with RAM® Tough-Strap™ Handlebar Base

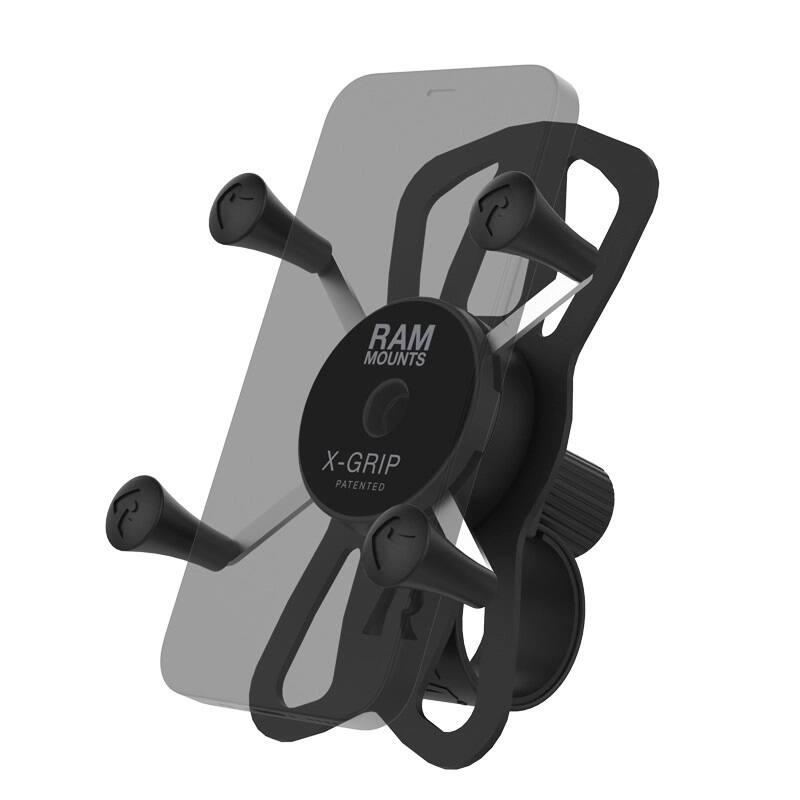

The RAP-460-UN7U pairs the RAM® X-Grip® universal phone cradle with the low-profile RAM® Tough-Strap™ handlebar base. It fits to your bars with the turn of a single knob and clips the X-Grip on via the RAM® Pin-Lock™ system, making it an ideal low-profile mount for mountain bikes, road bikes, and e-bikes.
Key Features

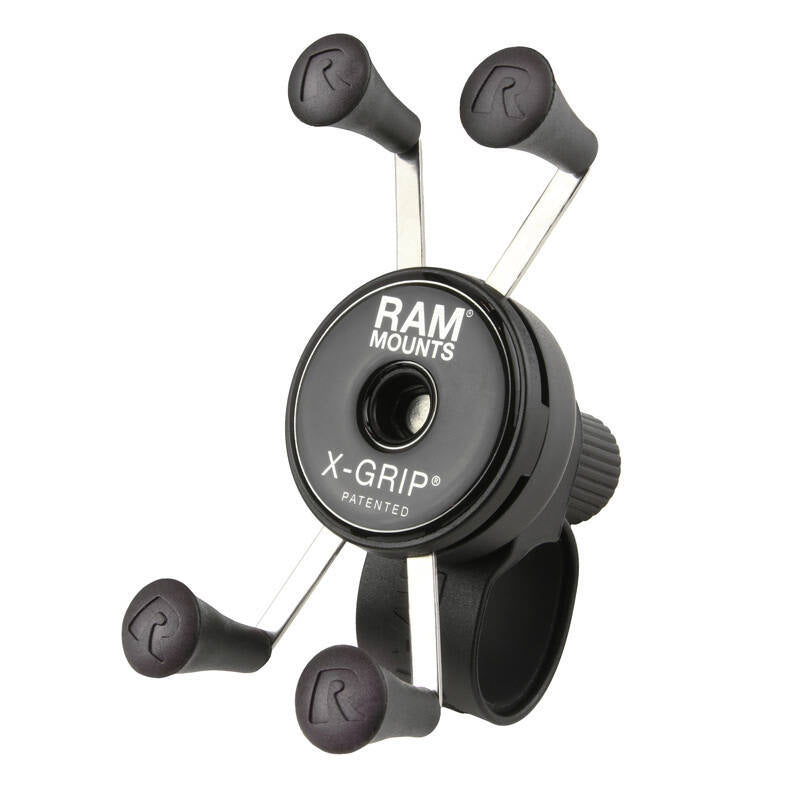

Spring-loaded 'X' design with rubber caps grips a standard-size phone firmly without covering the screen, camera, or buttons
Low-profile Tough-Strap™ base fits with a single knob; two strap sizes cover handlebars from 22mm to 35mm
RAM® Pin-Lock™ system clips the X-Grip directly to the base for a compact, low-profile fit
Includes an optional device tether for extra security during rugged use
High-strength composite and stainless steel construction; backed by a lifetime warranty
What's Included
RAP-460 Tough-Strap™ handlebar base with RAM® Pin-Lock™ (long and short straps)
RAM-HOL-UN7BU X-Grip® universal phone cradle with device tether
Dimensions & Specifications
Clamp range: 22.2mm to 35.05mm (0.875" to 1.38")
Long strap fits bars 31.75mm to 35mm; short strap fits 22mm to 25mm; trim the spare strip for 25mm to 28.6mm
Cradle minimum device width 47.6mm (1.875"), which needs a minimum height of 108mm (4.25")
Cradle maximum device width 82.6mm (3.25"), which needs a minimum height of 57.2mm (2.25")
The X-Grip cradle fits hand-held devices within the width and thickness ranges above. Always measure your device with any case, sleeve, or skin fitted before ordering. For the full list of compatible models across 14 major brands, see our RAM-HOL-UN7BU cradle listing.
