RAM Mounts

RAM X-Grip Universal SmartPhone Cradle - Track Ball Base

RAM X-Grip Universal SmartPhone Cradle - Track Ball Base

SKU:RAP-HOL-UN7B-354-TRA1U-v

Regular price $125.16 NZD
Regular price Sale price $125.16 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAP-HOL-UN7B-354-TRA1U - RAM® X-Grip® Phone Mount with Track Ball™ Base

Features

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone
* Includes optional device tether for peace of mind during rugged use

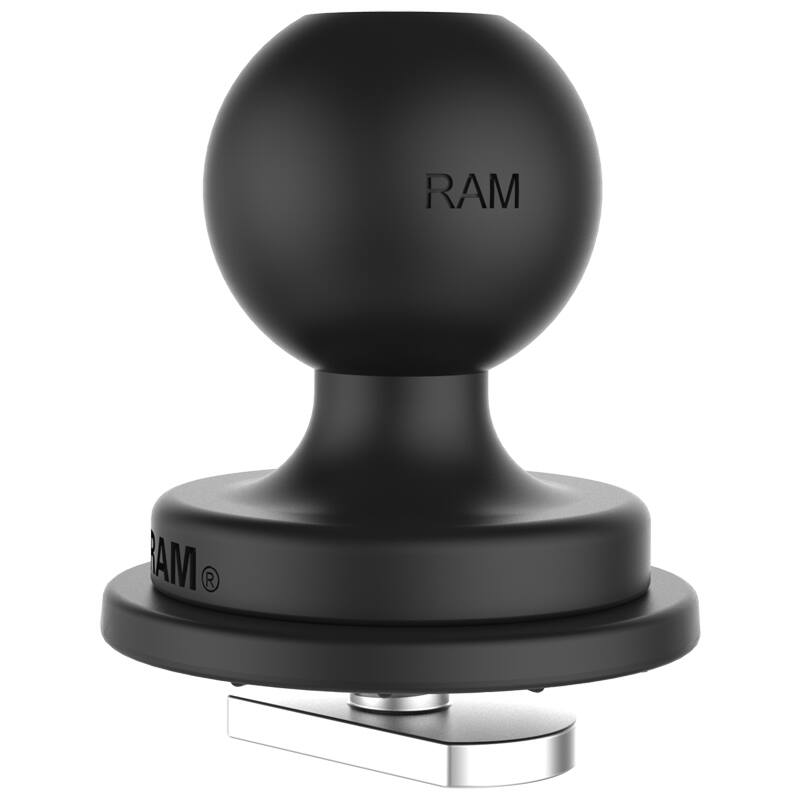

* Includes RAM Track Ball™ base to connect to virtually any track system
* Includes medium length B size RAM® Mounts double socket arm with ball and socket technology which allows for near-infinite adjustability
* Made of stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

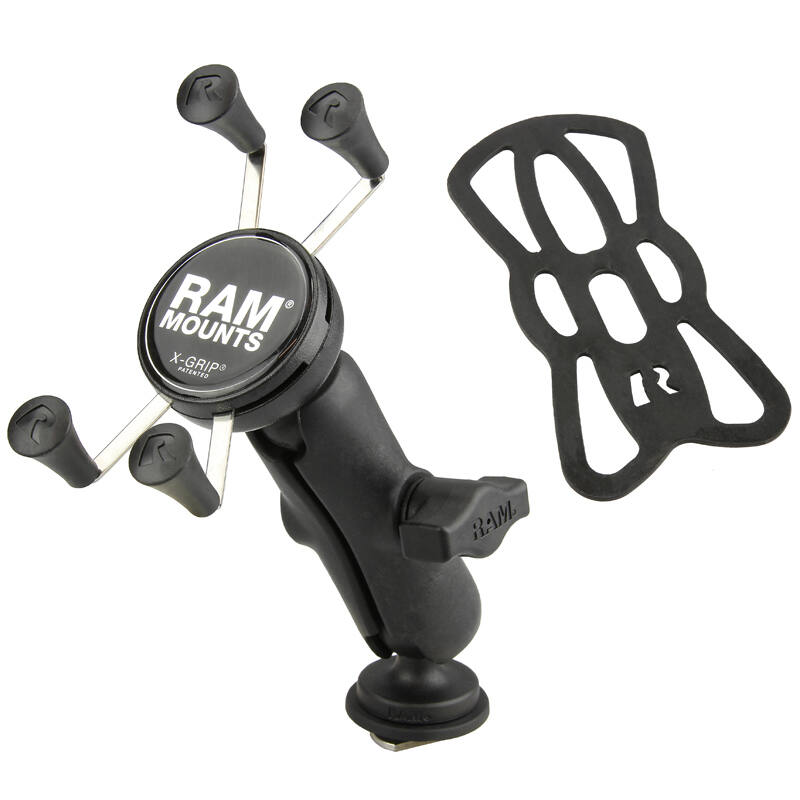

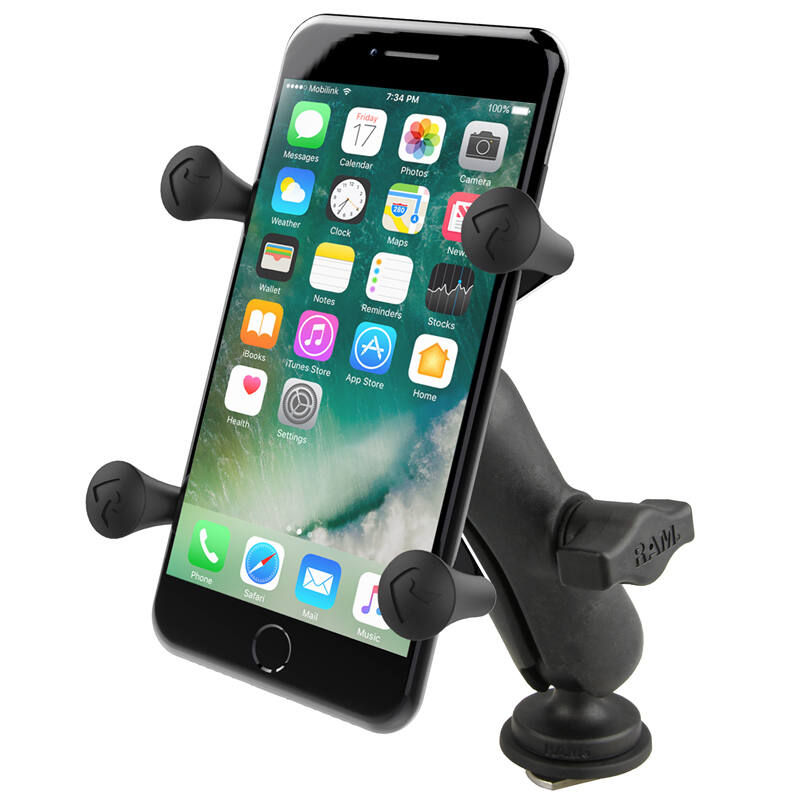

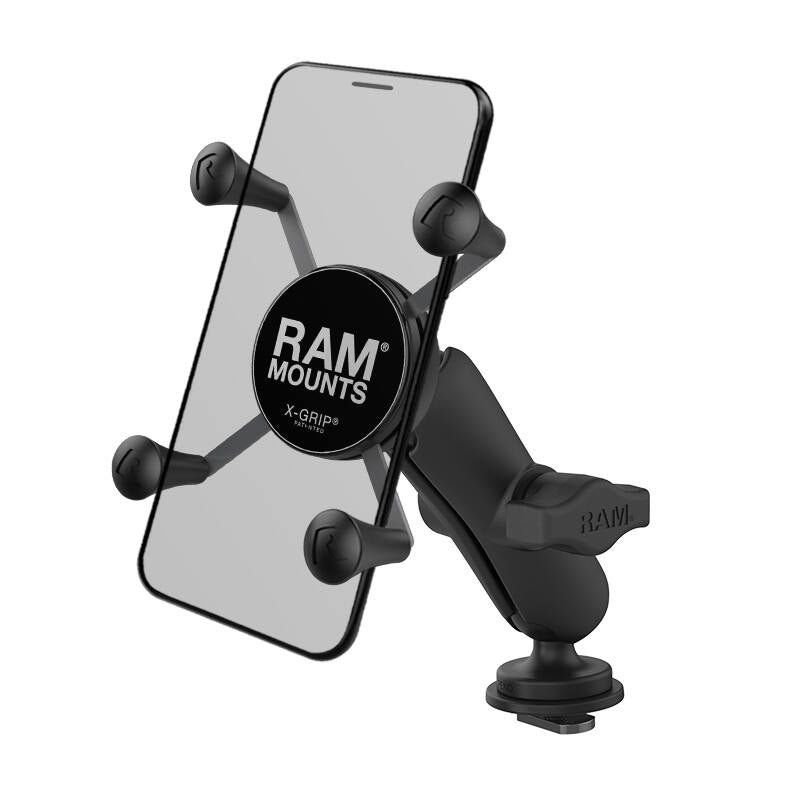

This mounting solution consists of a Track Ball™ base, composite double socket arm and universal spring-loaded RAM® X-Grip® cradle for cell phones.


This design features a 1" diameter rubber ball and socket system with adjustment points at both ends of the socket arm. The kit is the perfect complement to the modern and sleek interiors of today's vehicles, and is compatible with virtually any track system including the RAM Tough-Track™.

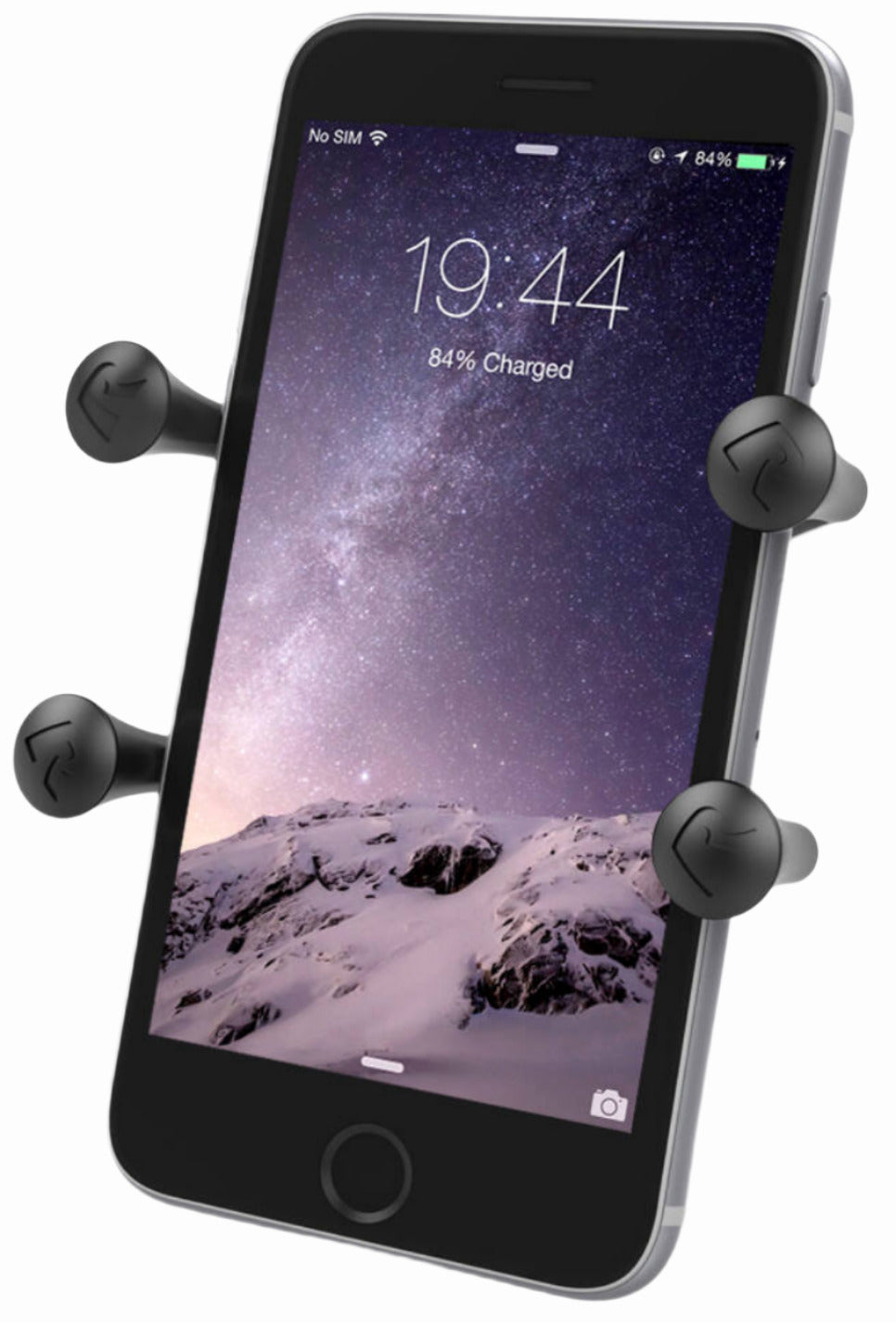

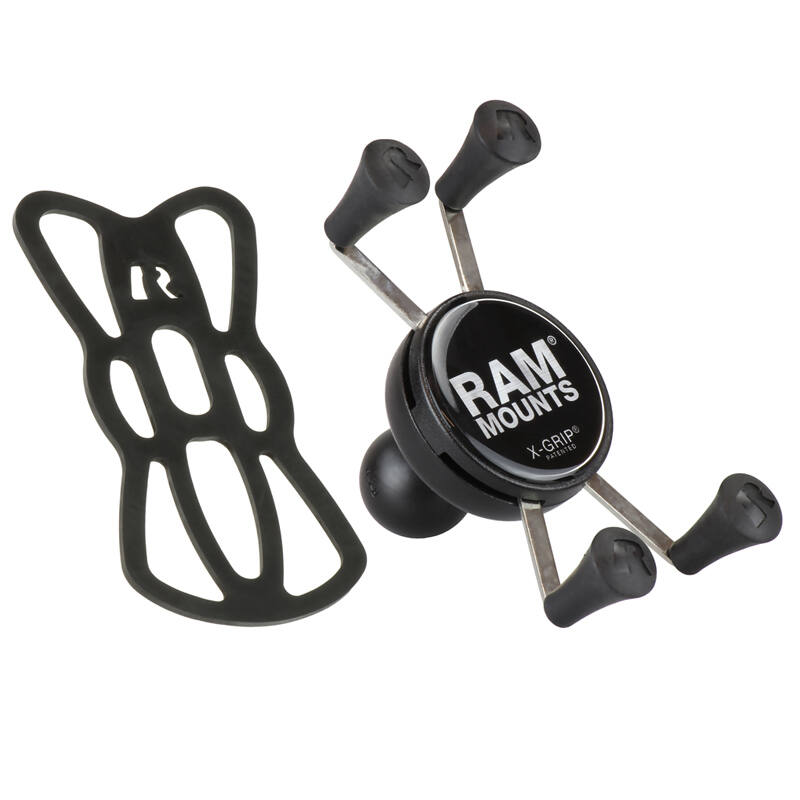

The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications.


The cradle is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size


Cradle Dimensions
Minimum Width = 47.6mm / 1.875” – (if it is minimum width then the minimum height = 108mm / 4.25")
Maximum Width = 82.6mm / 3.25" – (if it is maximum width then the minimum height = 57.2mm / 2.25")
Maximum Thickness = 22.2mm / 0.875"


Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU


Weight:
228 grams (0.5 lbs.)

Arm Dimensions
Overall:
94.7mm (3.73")
Socket-To-Socket:
76.2mm (3.0")


Components:
RAM-HOL-UN7BU X Grip
RAM-B-201U Double socket Arm
RAP-B-354-TRA1U Track Ball 1"

YouTube:
https://www.youtube.com/watch?v=gSplxuUrtmQ&t=1s
https://www.youtube.com/watch?v=WlyaBQ7GgMI
