RAM Mounts

RAM X-Grip Universal SmartPhone Cradle - U-Bolt Base (Double)

RAM X-Grip Universal SmartPhone Cradle - U-Bolt Base (Double)

SKU:RAM-HOL-UN7B-235U-v

Regular price $150.86 NZD
Regular price Sale price $150.86 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

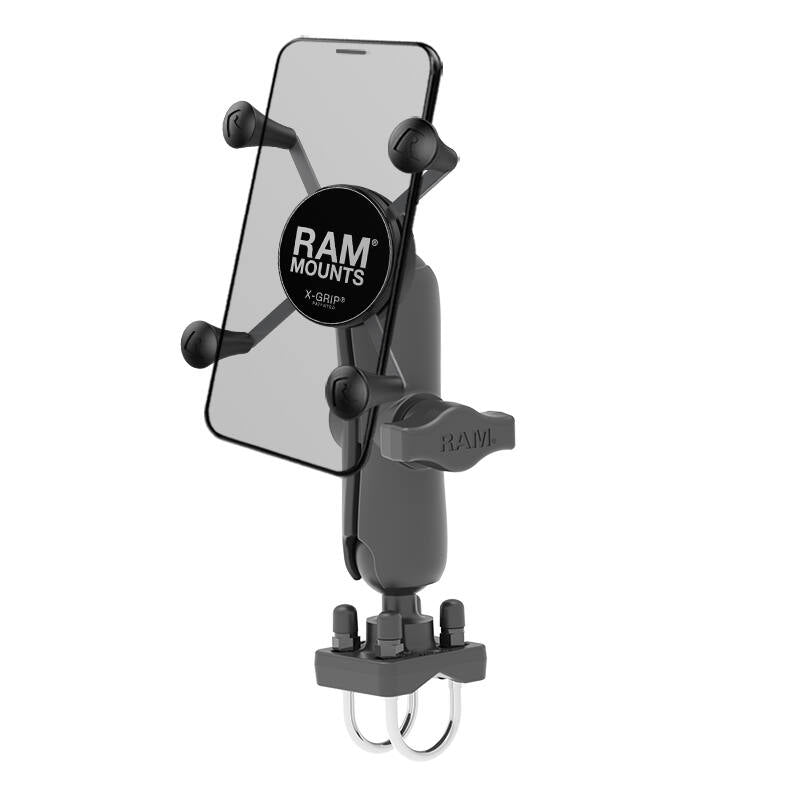

RAM-HOL-UN7B-235U RAM® X-Grip® Phone Mount with Double U-Bolt Base

Features

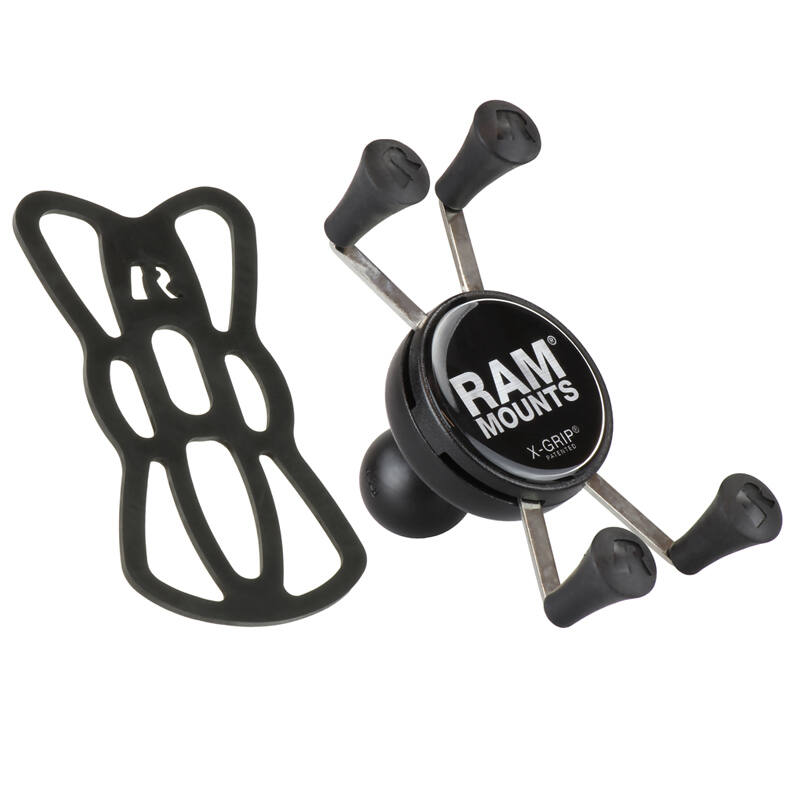

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
* B size RAM® Mounts double socket arm with ball and socket technology allows for near-infinite adjustability
* Double Stainless-Steel U-bolt mount will securely mount to rails / handlebars 25-32mm in diameter
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

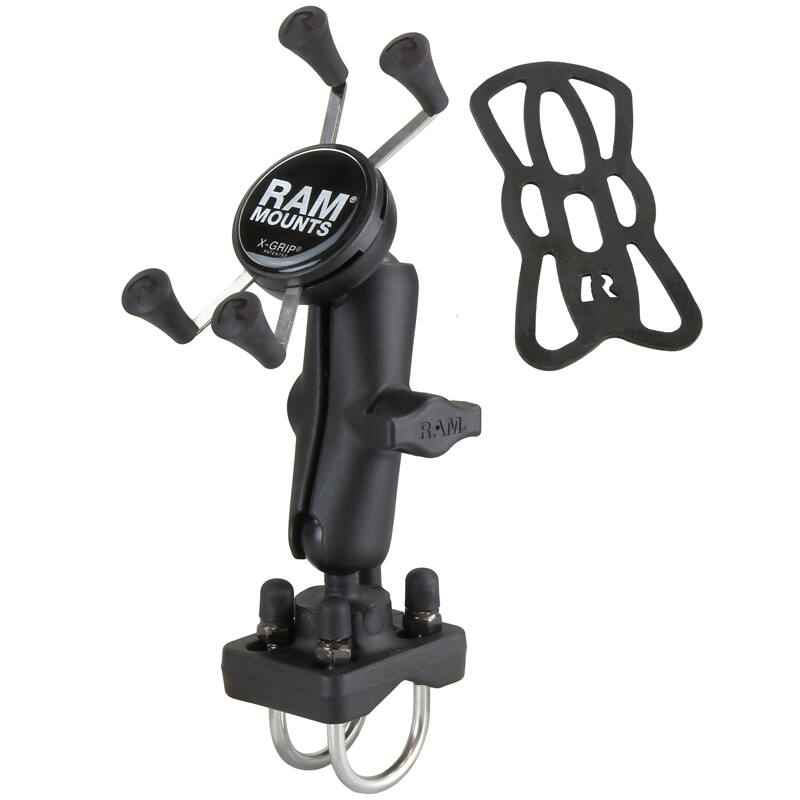

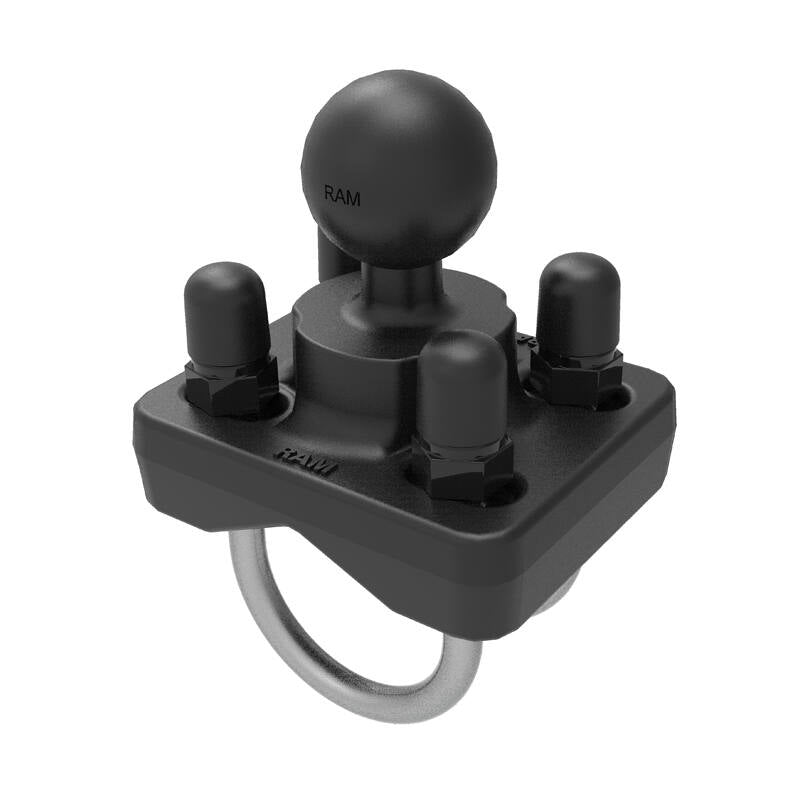

The base is a double stainless steel u-bolt base with 1" diameter ball which accommodates rails from 25.4mm to 31.75mm (.75" to 1.25") in diameter. Stainless steel prevents rust of the mount and black cover caps to be placed over the exposed ends of the u-bolt

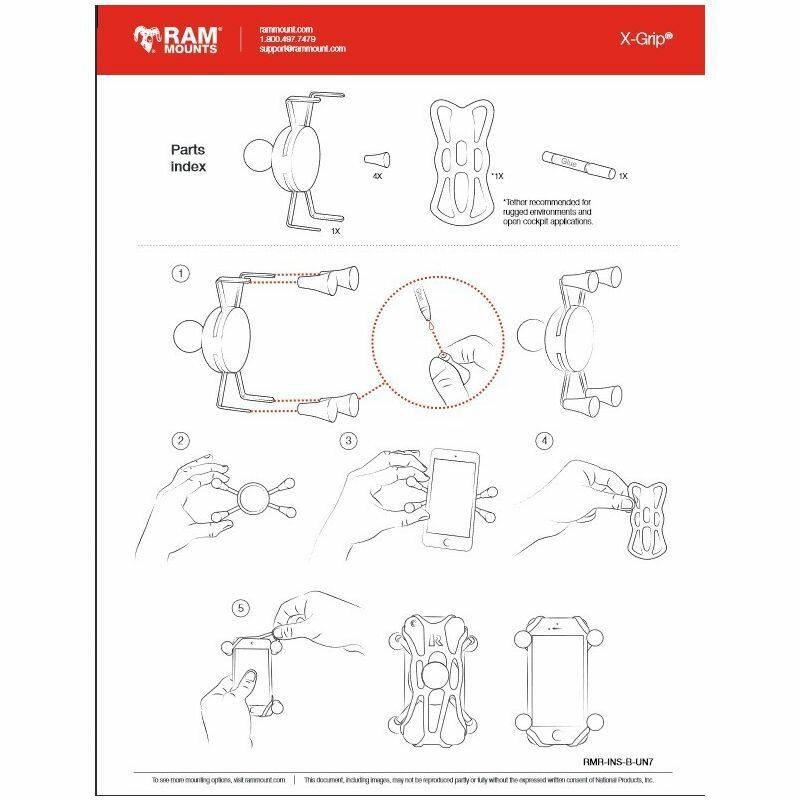

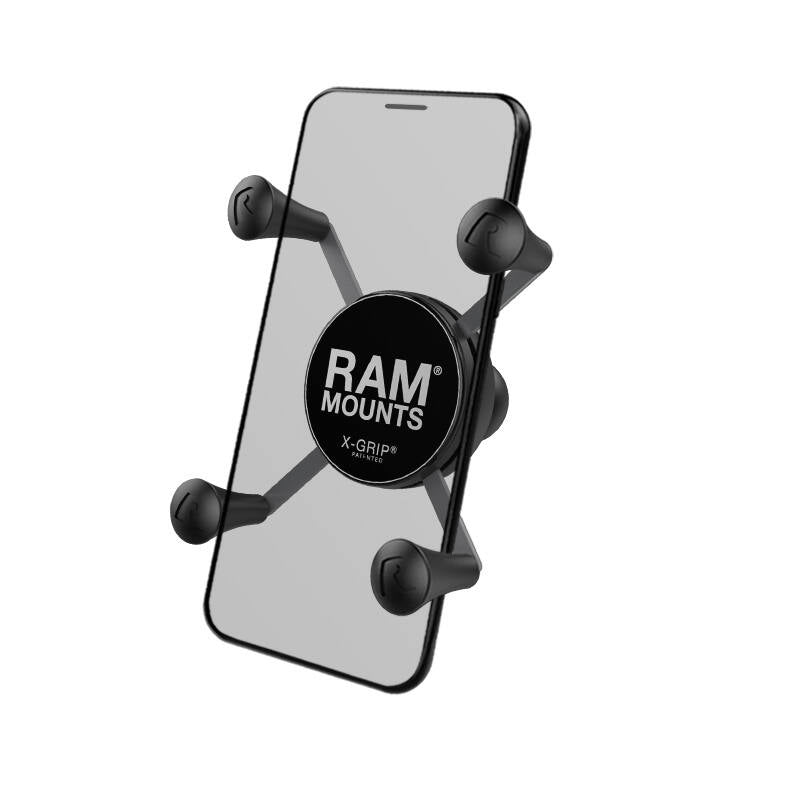

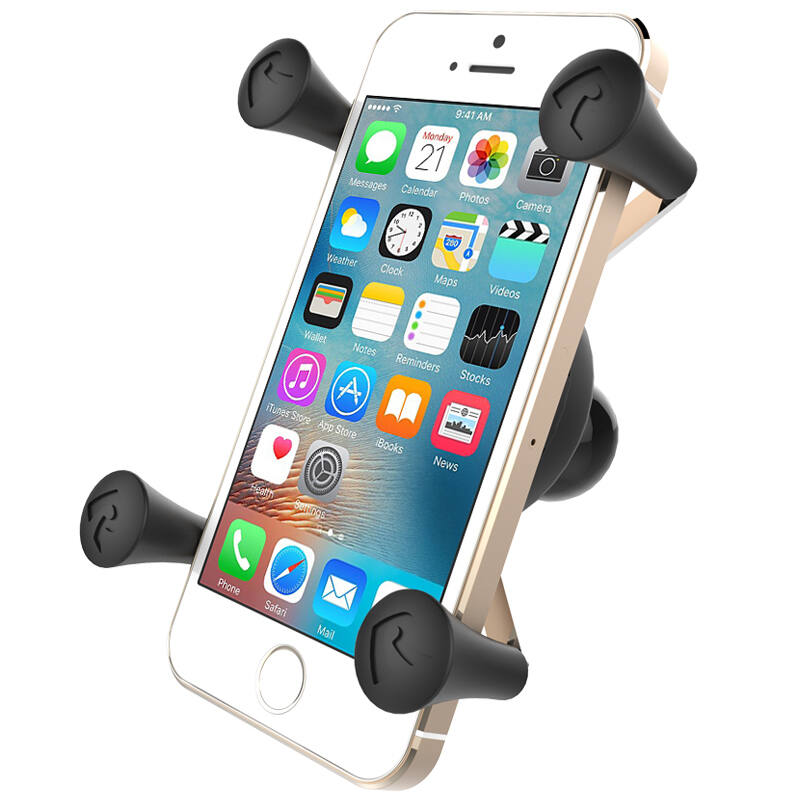

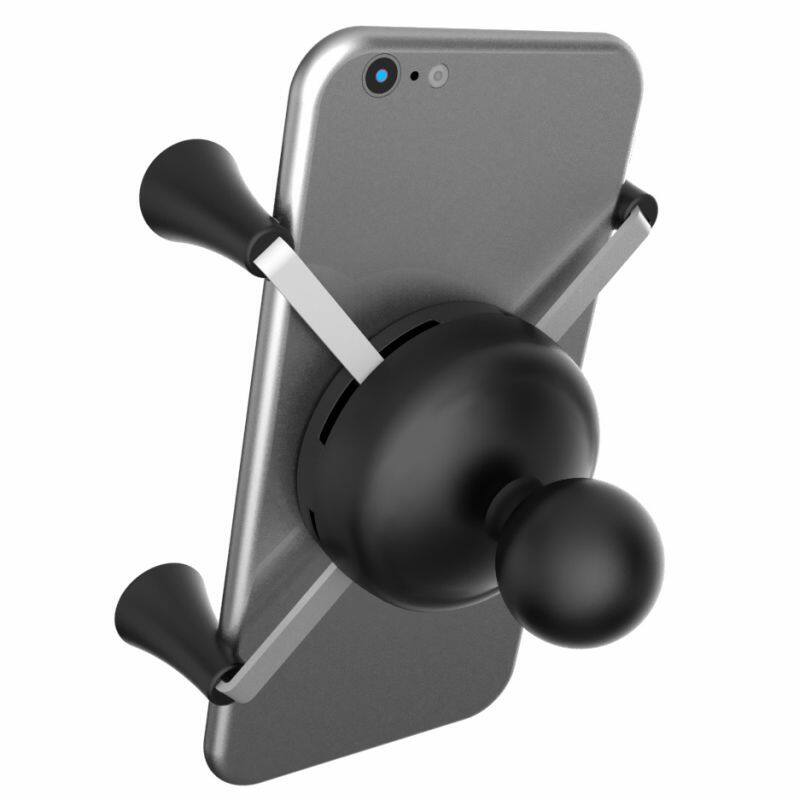

The X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications.

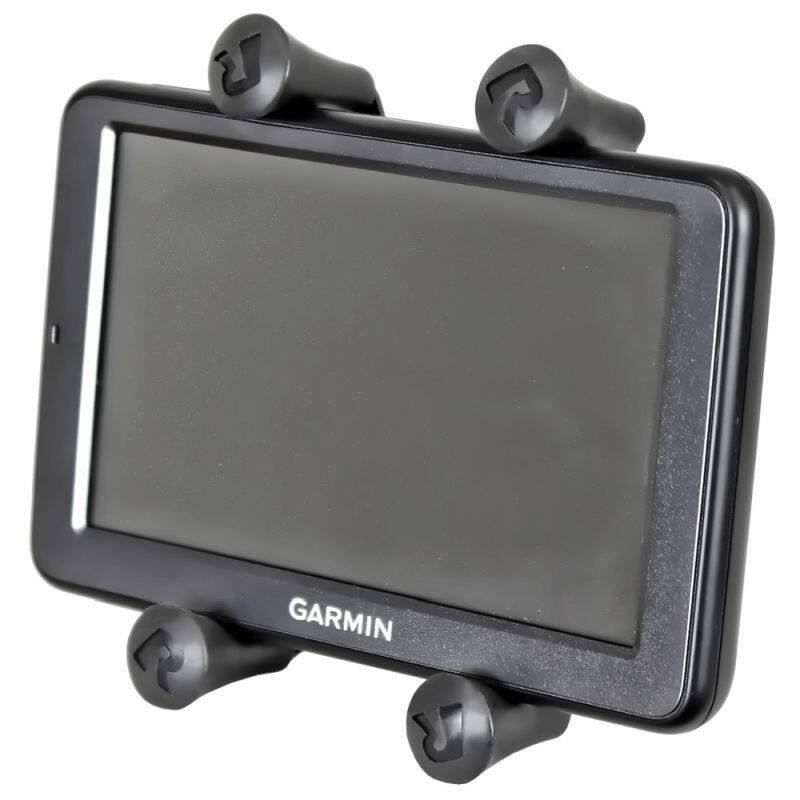

The cradle is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size


Cradle Dimensions
Min Width = 47.6mm (1.875”) – (if it is min width then the min height = 108mm / 4.25")
Max Width = 82.6mm (3.25") – (if it is max width then the min height = 57.2mm / 2.25")
Max Thickness = 22.2mm (0.875")

Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU



Rail Base Dimensions:
25.4mm to 31.75mm (.75" to 1.25")

Ball/Socket Size
B Size (1")

Arm Dimensions:
Overall:
94mm (3.69")
Socket-To-Socket:
76mm (3")

Weight
363 grams (0.8 lbs.)


Materials
Marine-grade aluminium
High strength composite
Stainless steel


Components:
RAM-B-235U DBL U-BOLT BASE
RAM-HOL-UN7BU X-GRIP UNIVERSAL HOLDER
RAM-B-201U RAM DOUBLE SOCKET ARM
