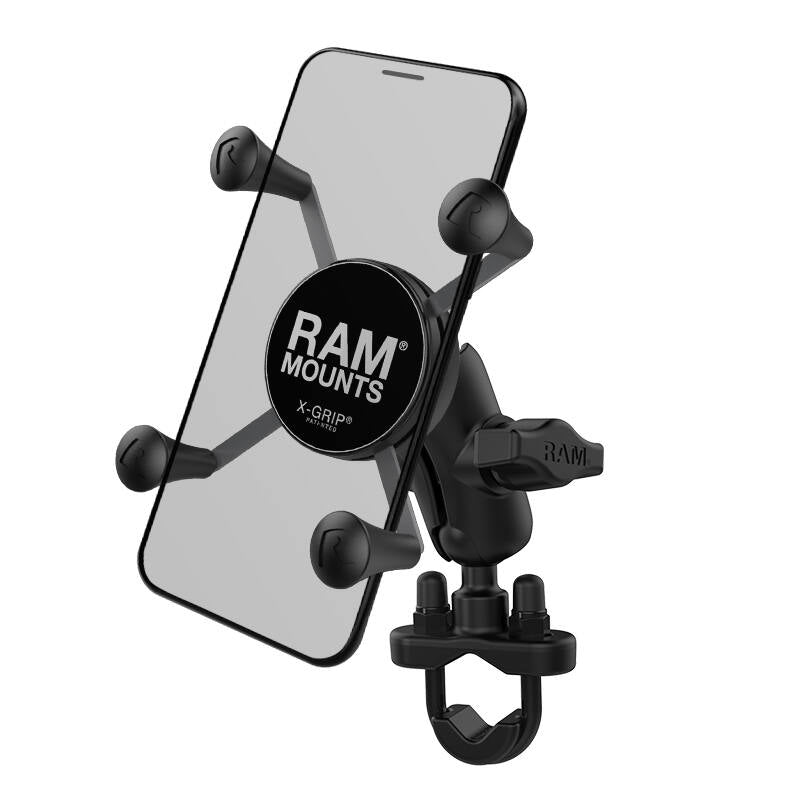

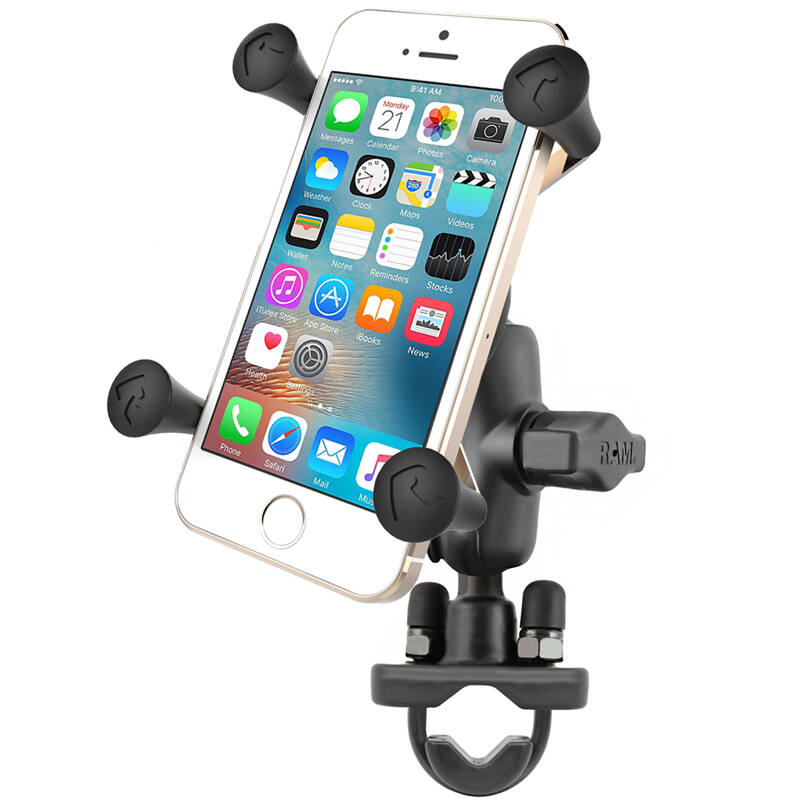

RAM-B-149Z-A-UN7U – RAM® X-Grip® Phone Mount with Handlebar U-Bolt Base (Short Arm)

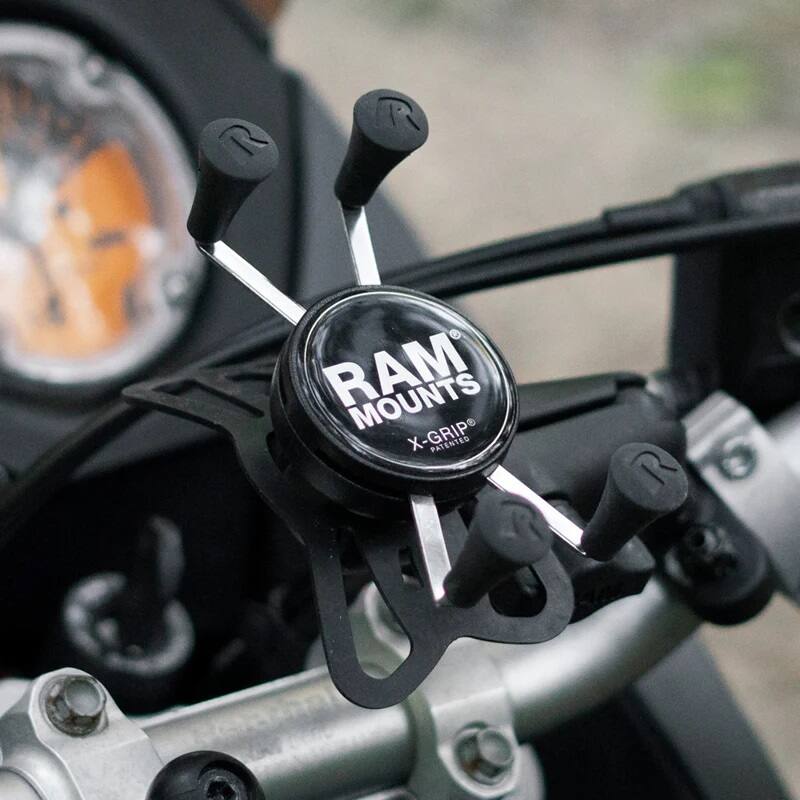

The RAM-B-149Z-A-UN7U pairs the RAM® X-Grip® universal phone cradle with a zinc-coated U-bolt rail base and a short double socket arm. The U-bolt clamps handlebars and rails from 12.7mm to 31.8mm (0.5" to 1.25") in diameter, making it a straightforward, secure mount for motorcycles, bikes, and other handlebar setups.
Key Features
Spring-loaded 'X' design with rubber caps grips the phone firmly without covering the screen, camera, or buttons
Zinc-coated U-bolt base clamps rails 12.7mm to 31.8mm (0.5" to 1.25"); hardware included for the full range
Short double socket arm keeps the mount low-profile; ball-and-socket design allows near-infinite positioning and damps shock and vibration
Includes an optional device tether for extra security during rugged use
Powder-coated marine-grade aluminium, stainless steel hardware, and high-strength composite; backed by a lifetime warranty

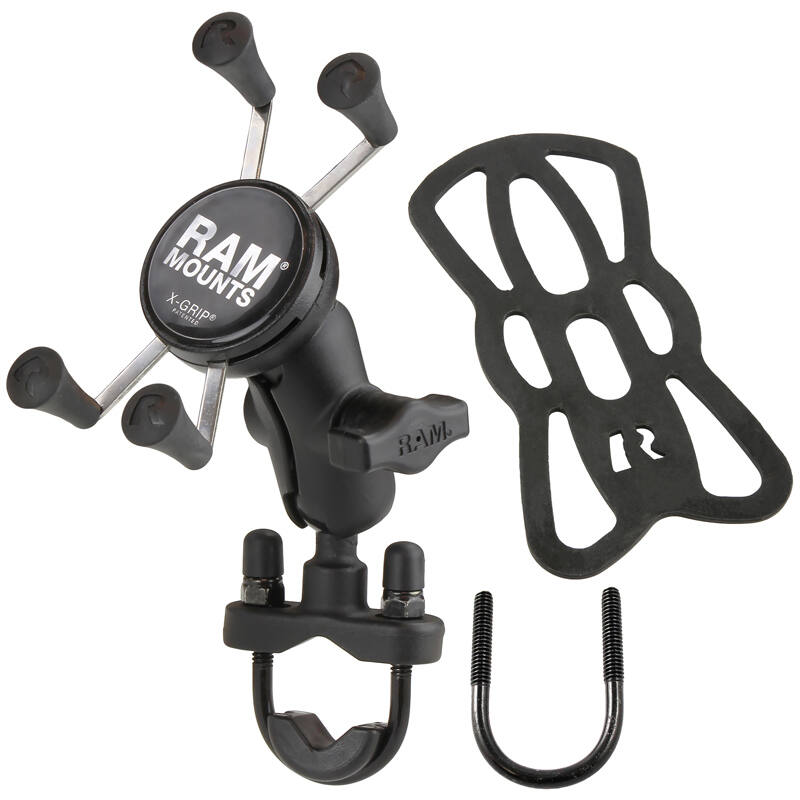

What's Included

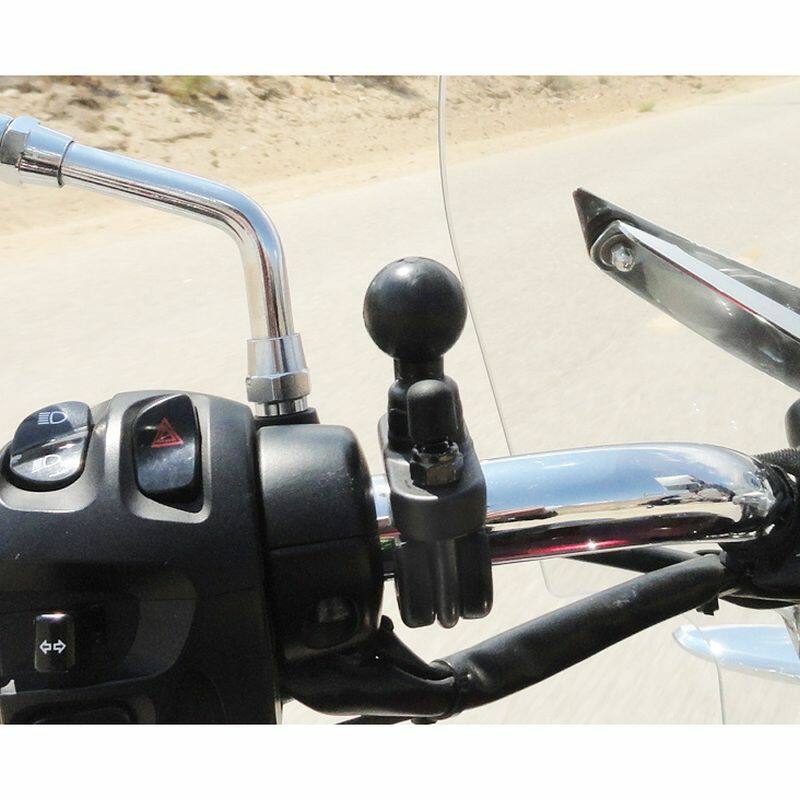

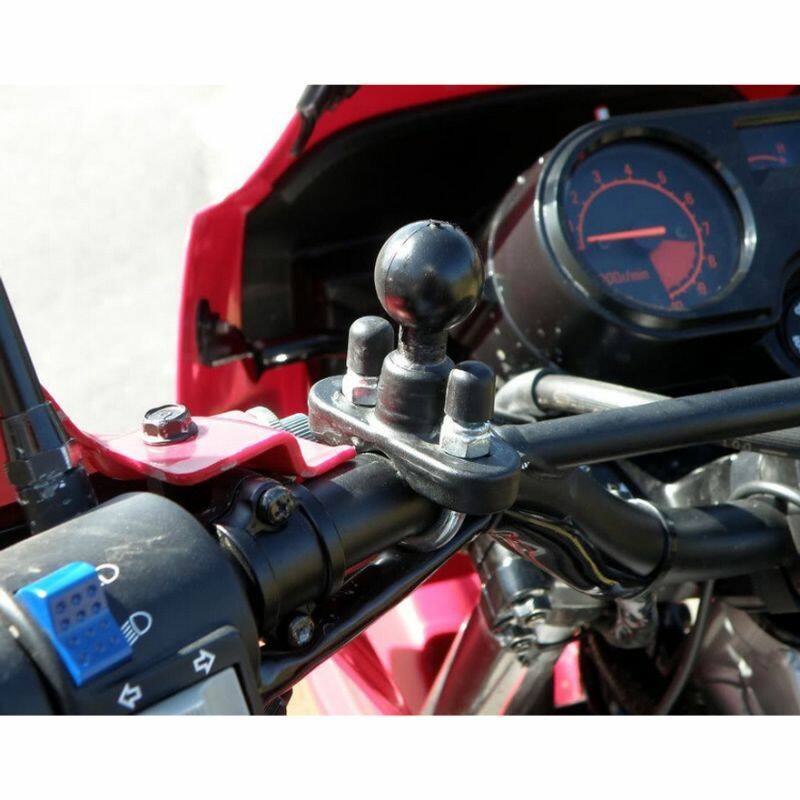

RAM-B-231ZU zinc-coated U-bolt rail base with 1" B-size ball
RAM-B-201U-A short double socket arm

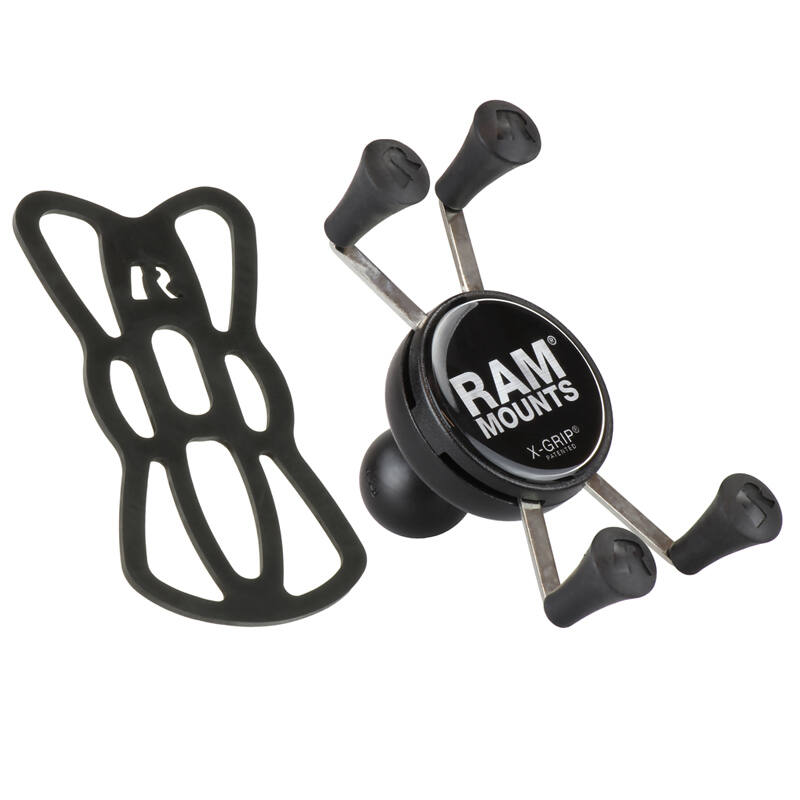

RAM-HOL-UN7BU X-Grip® universal phone cradle with device tether
Dimensions & Specifications
U-bolt rail diameter: 12.7mm to 31.8mm (0.5" to 1.25")
Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
Cradle minimum device width 47.6mm (1.875"), which needs a minimum height of 108mm (4.25")
Cradle maximum device width 82.6mm (3.25"), which needs a minimum height of 57.2mm (2.25")
The X-Grip cradle fits hand-held devices within the width and thickness ranges above. Always measure your device with any case, sleeve, or skin fitted before ordering. For the full list of compatible models across 14 major brands, see our RAM-HOL-UN7BU cradle listing.
