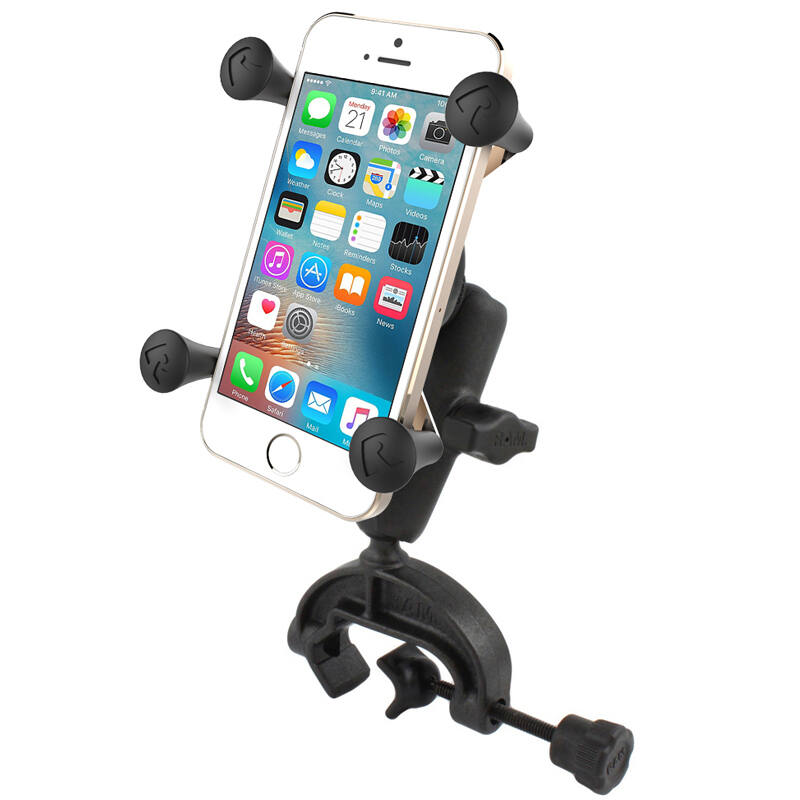

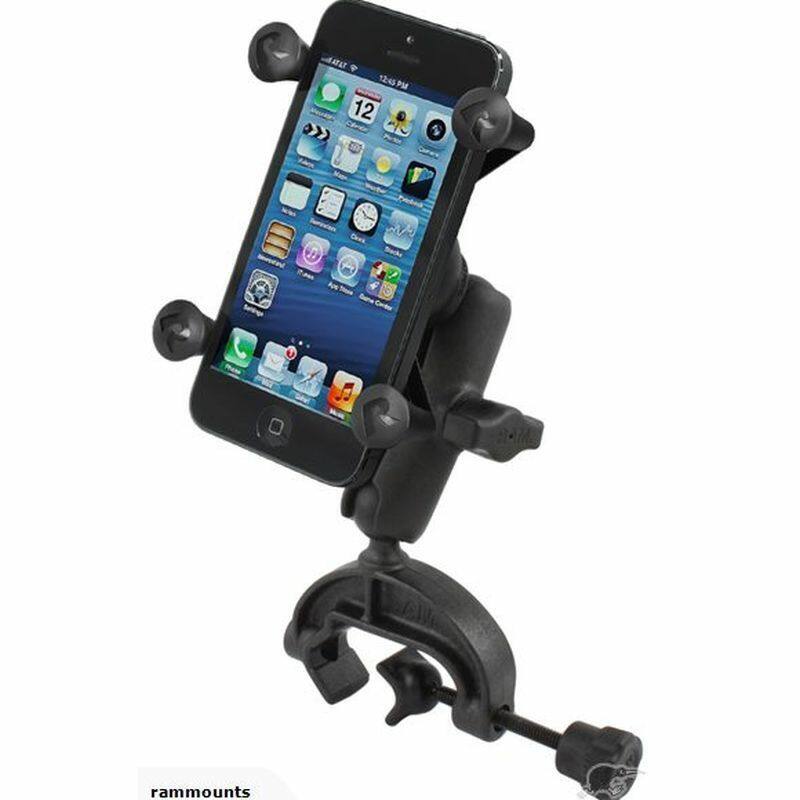

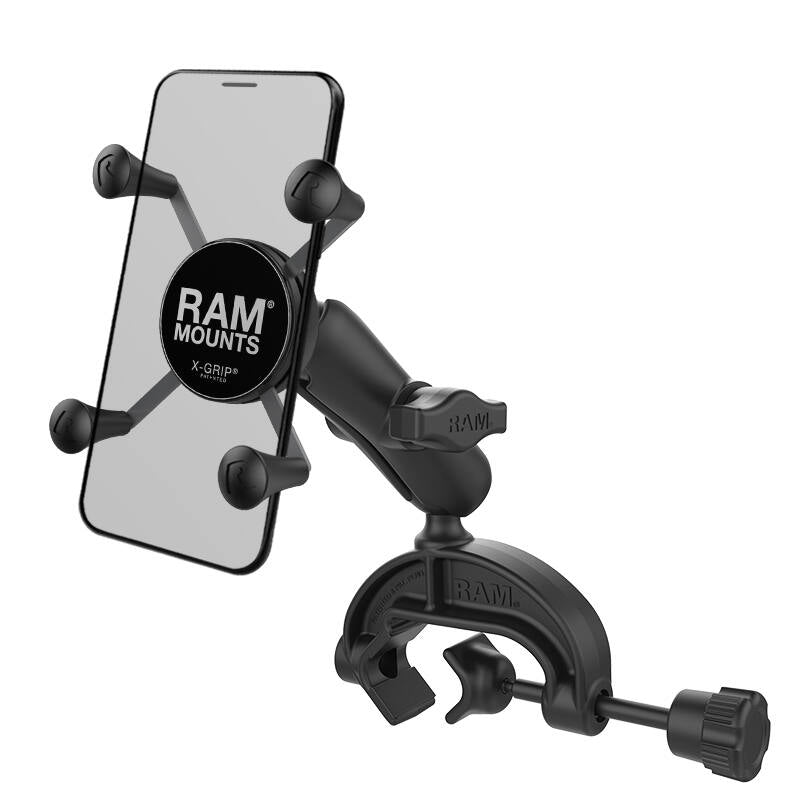

RAP-B-121-UN7U – RAM® X-Grip® Phone Mount with Composite Yoke Clamp Base

The RAP-B-121-UN7U pairs the RAM® X-Grip® universal phone cradle with a composite yoke clamp base, gripping yokes, glare shields, rails, and tubing from 15.9mm to 31.8mm (0.625" to 1.25") in diameter. It's a lightweight option for aircraft, wheelchairs, and similar clamp-on applications.

Key Features

• Spring-loaded X-Grip design with rubber caps holds the phone securely without covering the screen, camera, or buttons; includes an optional device tether for rugged use
• Modular composite yoke clamp grips yokes, glare shields, rails, or tubing from 15.9mm to 31.8mm (0.625" to 1.25") in diameter; rubber-coated tips hold firm without marking the surface
• B size RAM® double socket arm with ball-and-socket design for near-infinite adjustability
• Powder-coated marine-grade aluminium, stainless steel hardware, and high-strength composite construction
• Backed by a lifetime warranty

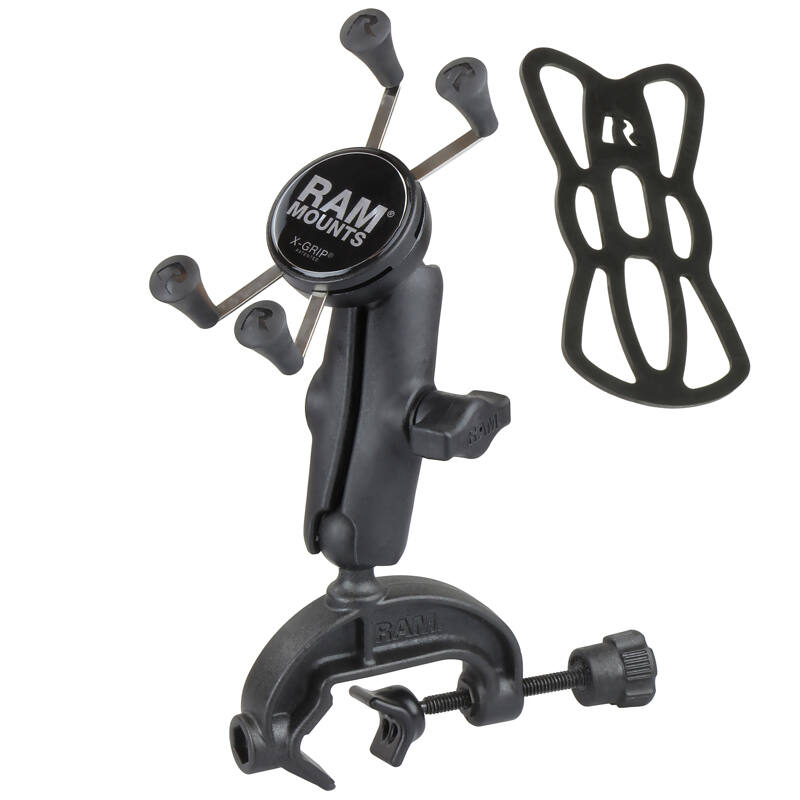

What's Included

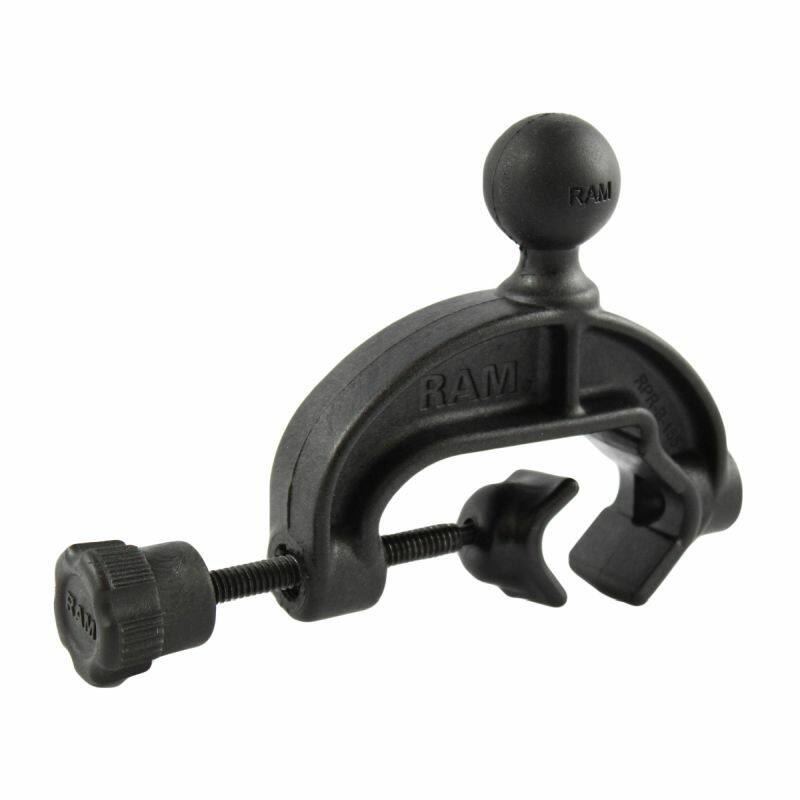

• RAP-B-121BU composite yoke clamp base
• RAP-B-201U composite double socket arm

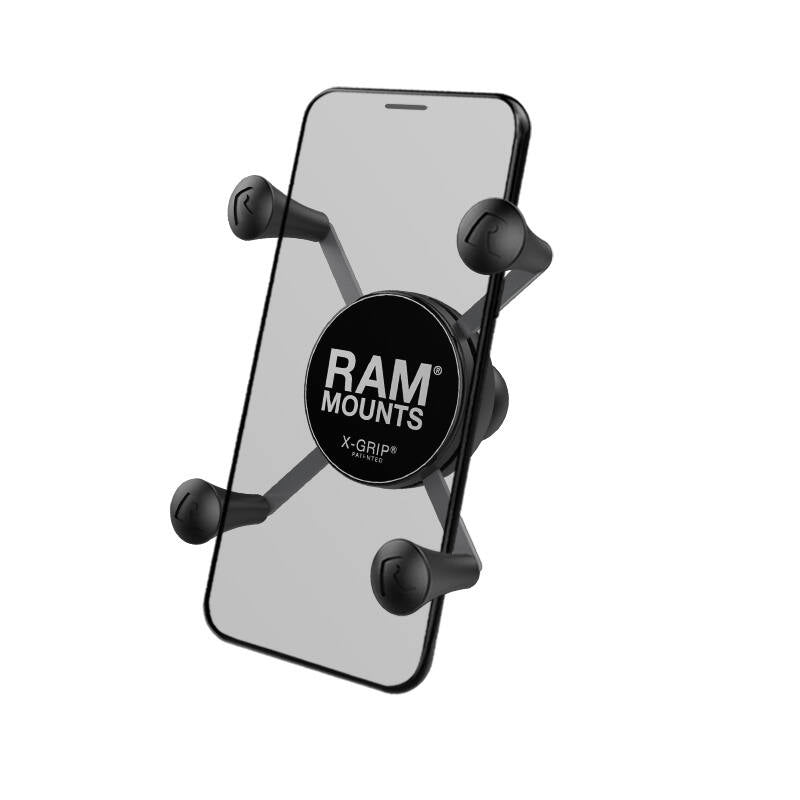

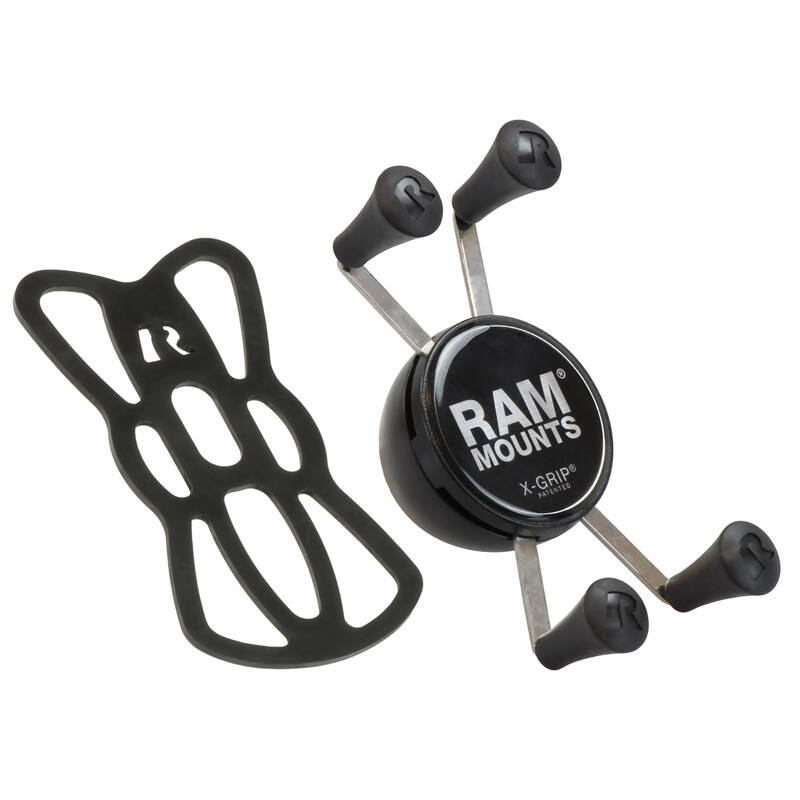

• RAM-HOL-UN7BU X-Grip® universal phone cradle

Dimensions & Specifications

• Clamp range: 15.9mm to 31.8mm (0.625" to 1.25") diameter
• Arm length, overall: 94mm (3.69")
• Arm length, socket-to-socket: 76mm (3")
• Cradle minimum device width: 47.6mm (1.875") — requires minimum device height 108mm (4.25")
• Cradle maximum device width: 82.6mm (3.25") — requires minimum device height 57.2mm (2.25")
• Cradle maximum device depth: 22.2mm (0.875")
• Weight: 304g (0.67 lb)

Compatible Devices

Fits hand-held devices within the cradle dimensions above, with or without a case. For the full list of 100+ compatible phone models across 14 brands, see our RAM-HOL-UN7BU listing.

Videos

• RAM X-Grip overview
• RAM X-Grip installation demo

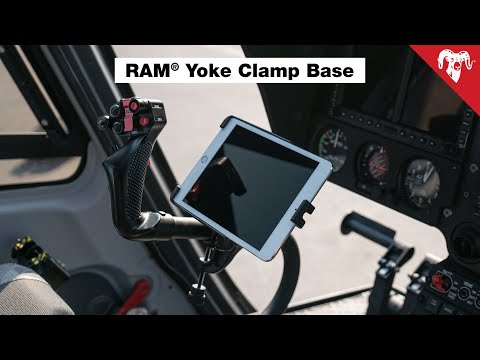

• Yoke clamp mount demo
