RAM Yoke Clamp Base with Diamond Plate - Long Arm

RAM Yoke Clamp Base with Diamond Plate - Long Arm

SKU:RAM-B-121-C-238U-v

Regular price $126.21 NZD
Regular price Sale price $126.21 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-121-C-238U RAM® Double Ball Yoke Clamp Mount with Diamond Plate - Long

Features

* The RAM Yoke Clamp will hold firm to most glare shields, yokes, or tubing, or even exercise equipment 16-32mm in diameter
* Includes Long RAM® B size double socket arm which provides for almost infinite adjustment and perfect viewing angles
* Diamond plate incorporates 2 hole AMPs pattern and will match to many lighter RAM cradles
* Manufactured from Powder Coated Marine Grade Aluminium for maximum longevity
* Backed by a lifetime warranty

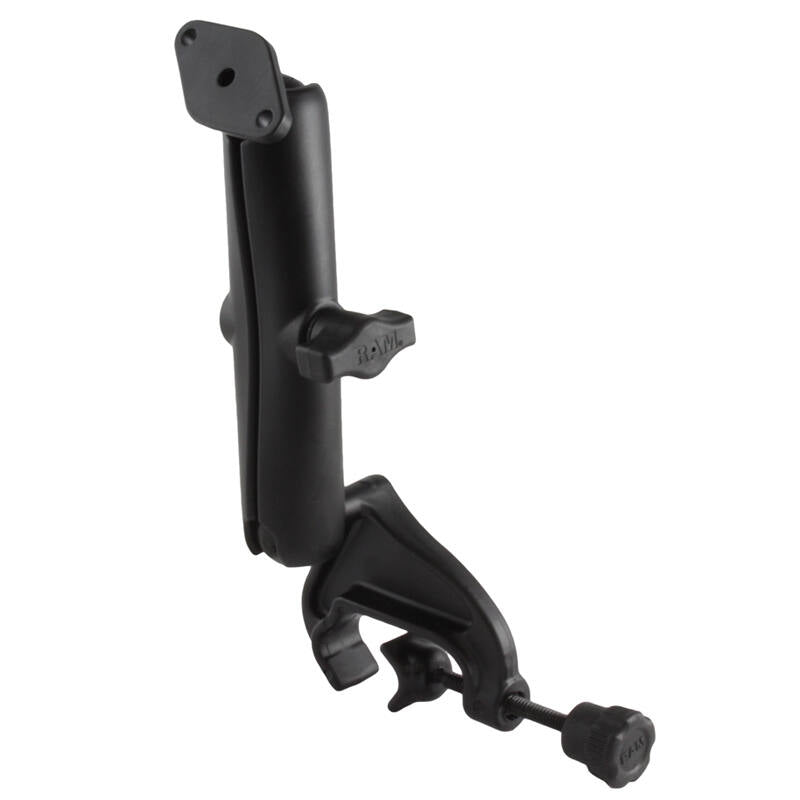

This RAM base kit consists of a yoke clamp base, LONG (152mm) length double socket arm and diamond base. It will easily mount to the yokes of light aircraft but also to any round pipe or rail. As it can be quickly removed or installed without tools it is also suitable for mounting to many mobility devices.

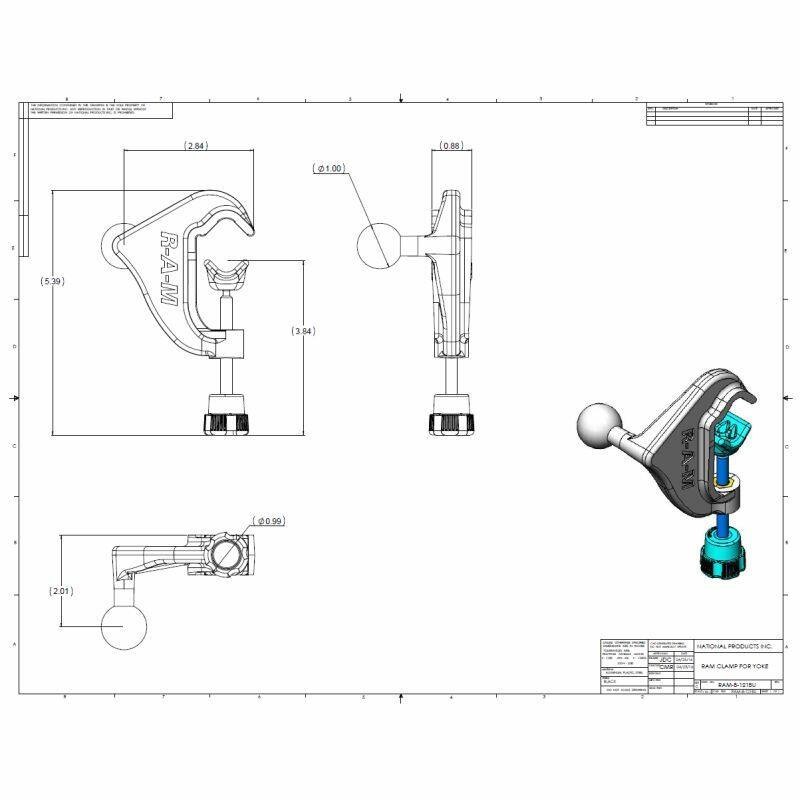

The yoke clamp base will fit rails in diameter from 13mm / 0.625" to a maximum of 31mm / 1.25". The 1" (B Series) rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.


The Diamond Plate consists of a 1" diameter rubber ball connected to a 61.7mm x 33.3mm diamond base. The base has two holes 48.5mm from centre to centre, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.


Clamp Base Dimensions:
Accommodates rails from 16 to 31mm in diameter

Arm Dimensions
Overall Length:
152 mm (6")
Socket-To-Socket Length:
134 mm (5.25")


Hole Pattern
2-Hole AMPs:
1.912” (48.5mm)


Material:
Powder Coated Marine Grade Aluminium


Ball Size:
1" Rubber "B" Ball Size

Component Parts:
RAM-B-121BAU Yoke Clamp
RAM-B-201U-C DBL SOCKET ARM B BALL C LENGTH
RAM-B-238U Diamond base with 1" ball
