RAM-B-121-A-202U RAM® Double Ball Yoke Clamp Mount with Round Plate - Short
Features
* The RAM Yoke Clamp will hold firm to most glare shields, yokes, or tubing, or even exercise equipment 16-32mm in diameter
* Includes short RAM® B size double socket arm which provides for almost infinite adjustment and perfect viewing angles
* Round plate incorporates AMPs hole pattern and will match to most RAM cradles
* Manufactured from Powder Coated Marine Grade Aluminium for maximum longevity
* Backed by a lifetime warranty
This mounting system - designed primarily for aircraft use consists of a yoke clamp base, SHORT double socket arm and round 63mm base that contains the universal AMPs hole pattern.
The yoke clamp base will fit rails in diameter from 13mm to a maximum of 31mm. The 1" (B Series) rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
Specifications/Features
Clamp Base Accommodates rails:
16 to 31mm in diameter (.625" to 1.25")
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Hole Patterns (Round Base Plate)
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber "B" Ball Size
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Component Parts:

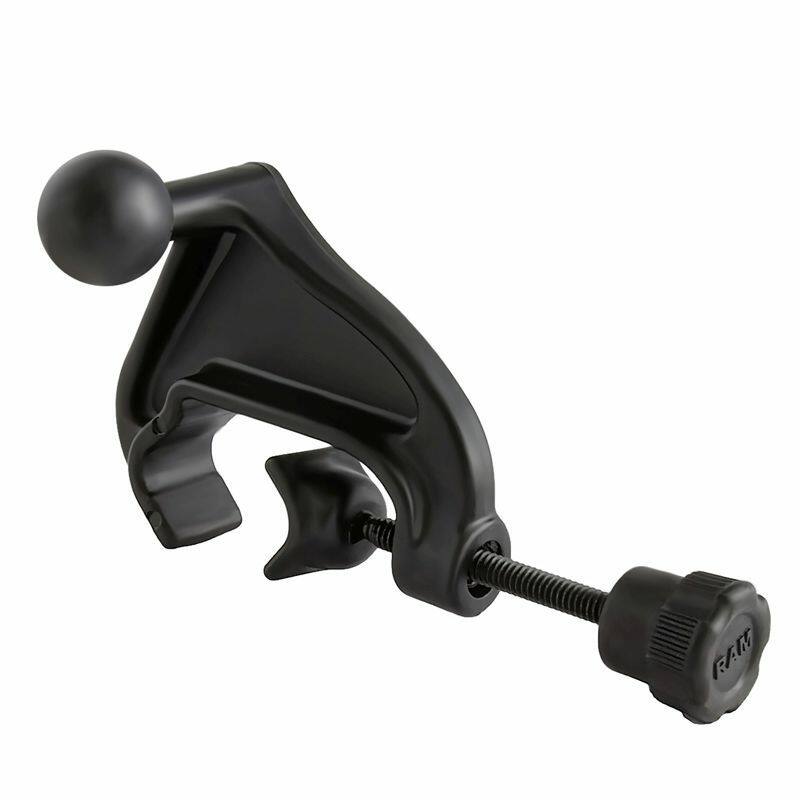

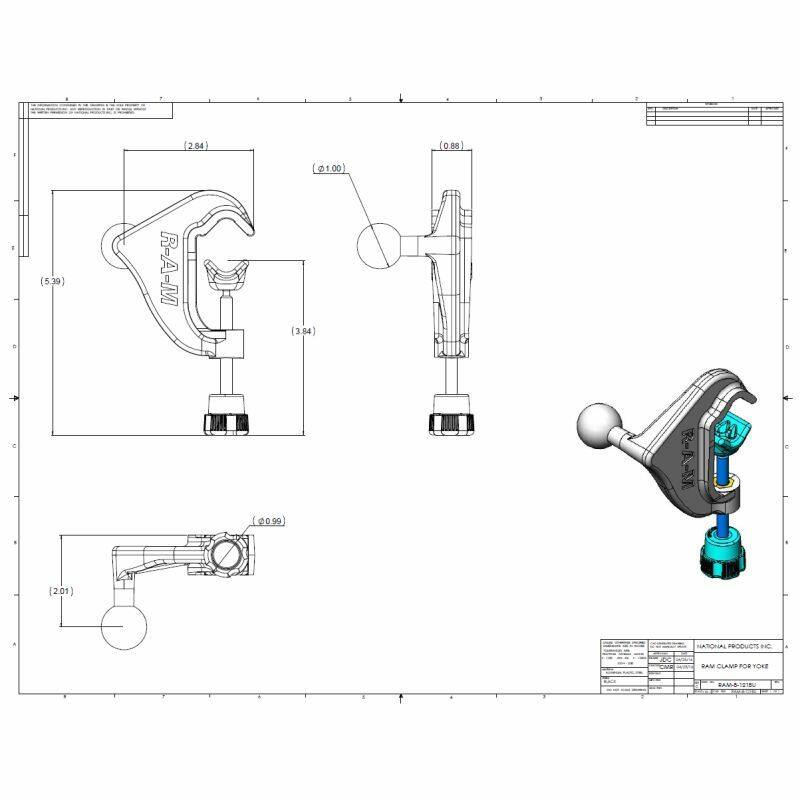

RAM-B-121U - Yoke Clamp
RAM-B-201U-A - Short Double socket arm
RAM-B-202U - Round Base - 63 cm (2.5") diameter
