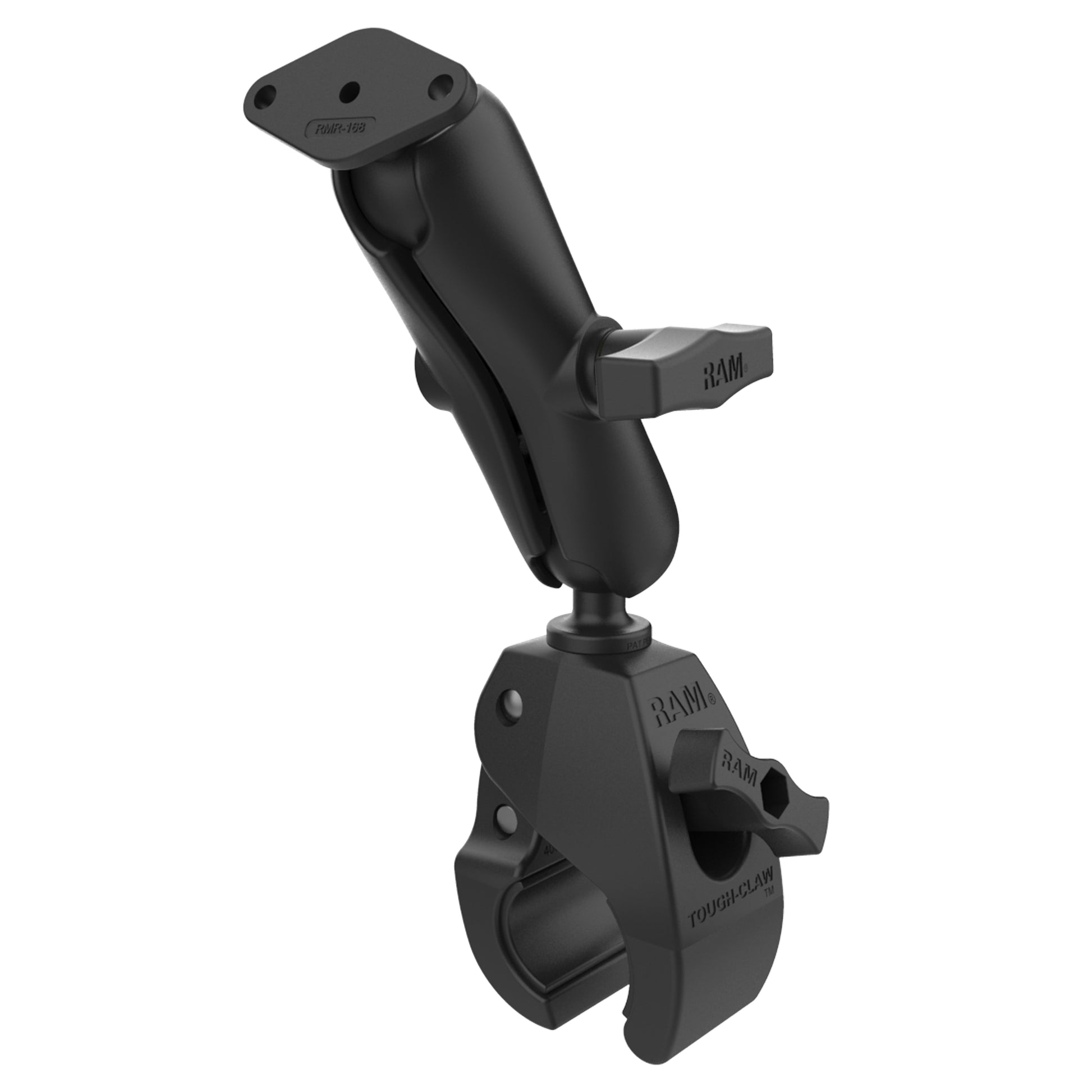

RAP-401-238U RAM® Tough-Claw™ Large Clamp Mount with Diamond Plate (C-Size)
The RAP-401-238U is the large RAM® Tough-Claw™ with a 1.5" (C-size) ball, a medium C-size arm and a diamond plate carrying the 2-hole AMPS pattern. It clamps tool-free onto larger rails from 1" to 2.2", so you can bolt an AMPS holder straight on or add any RAM® cradle. A solid, travel-friendly base for aircraft yokes, motorcycle and bike handlebars, kayak rails and roll bars.
Key Features
- Large Tough-Claw™ clamps tubes and bars from 25.4mm to 56mm (1" to 2.2") outer diameter; rubber pads grip and protect.
- Diamond plate with the 2-hole AMPS pattern fits RAM® holders, docks and third-party cradles.
- Medium C-size arm with twin 1.5" ball joints for near-infinite angle adjustment.
- High-strength composite with stainless steel hardware. Lifetime warranty.
What's in the Kit

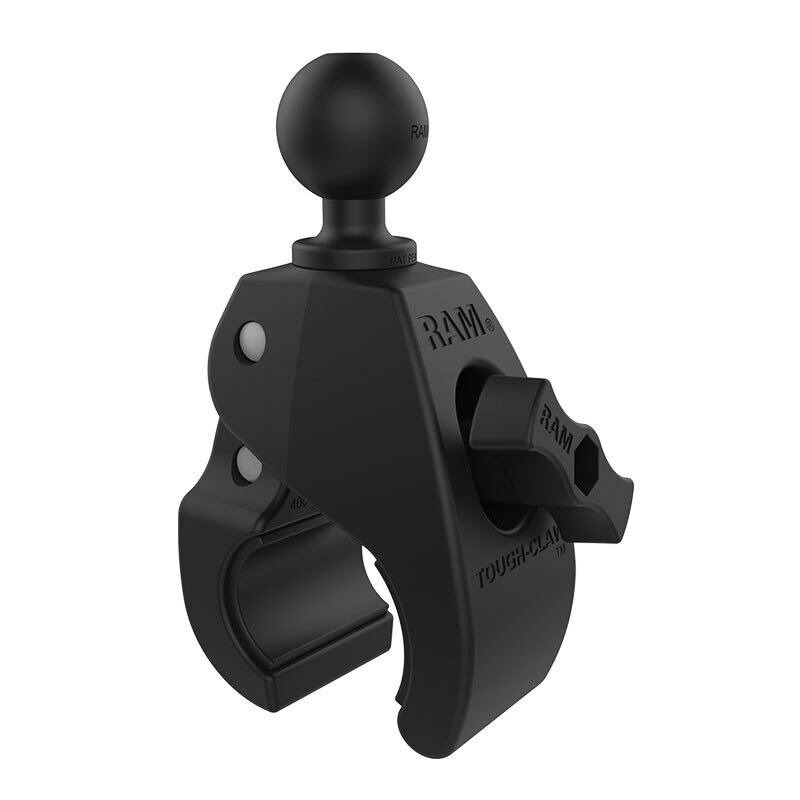

- Large RAM® Tough-Claw™ with 1.5" (C-size) ball
- Medium double socket arm (C-size)

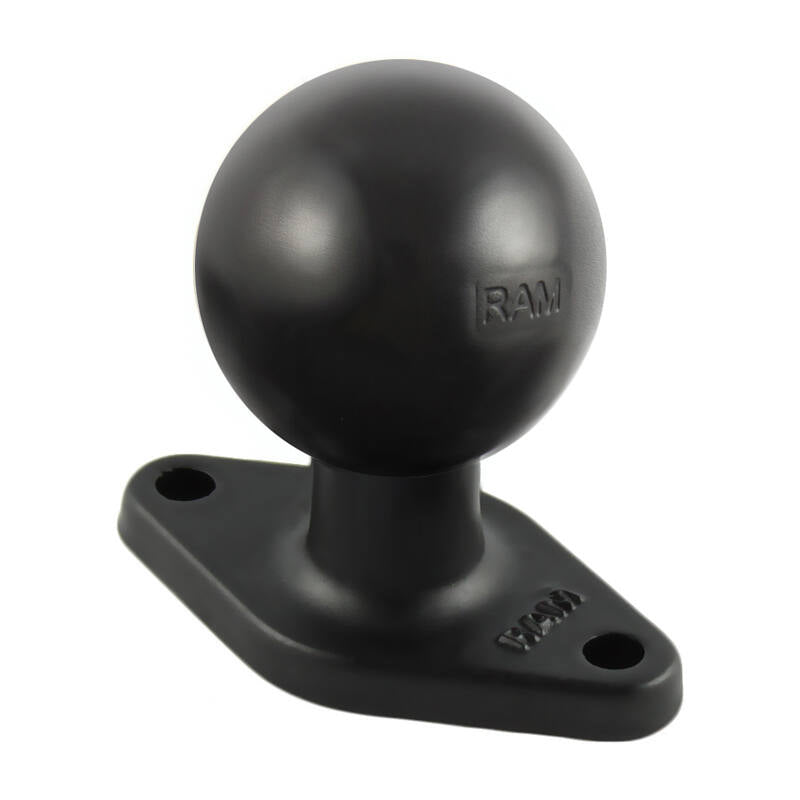

- Diamond plate base with 2-hole AMPS pattern
Works With
Any RAM® cradle on the C-size ball, or any 2-hole AMPS holder mounted directly to the diamond plate.
Dimensions & Specifications
- Clamping range, rails/tubes: 25.4mm to 56mm (1" to 2.2")
- Clamping range, flat surfaces: 0mm to 56mm (0" to 2.2")
- Arm length: overall 143mm (5.625"), socket-to-socket 114mm (4.5")
- Hole pattern: 2-hole AMPS 1.912" (48.6mm) centre-to-centre
- Ball size: C Size (1.5")
- Weight capacity: standard use 1.81kg (4 lb), heavy-duty 1.36kg (3 lb)
- Materials: marine-grade aluminium, high-strength composite
- Weight: 708g (1.56 lb)
FAQs
What will it clamp to?
Round, square or odd-shaped rails from 1" to 2.2" across, tool-free.
What mounts to the diamond plate?
Any 2-hole AMPS holder bolts straight on, or use a RAM® cradle on the C-size ball.
How fast does it ship?
If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
