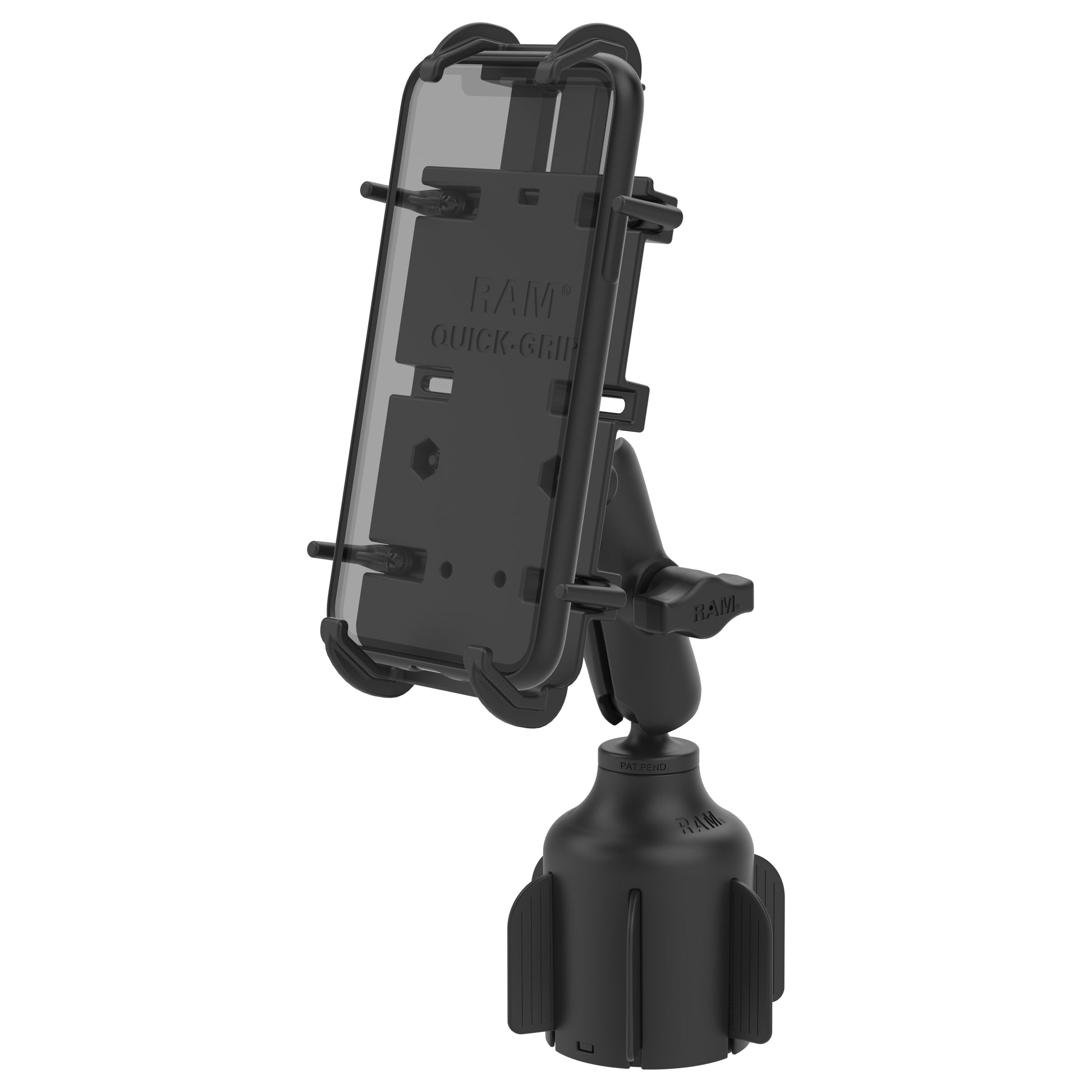

RAP-B-299-4-PD4U – RAM® Quick-Grip™ XL Phablet Mount with Stubby™ Cup Holder Base

The RAP-B-299-4-PD4U is a portable, low-profile mounting kit for phablets and other large devices, built around RAM® Mounts' XL Quick-Grip™ cradle. It pairs the cradle with the RAM® Stubby™ cup holder base, which uses trimmable support fins to grip cup holders from 65.2mm to 88.9mm (2.57" – 3.5") inside diameter.

Key Features

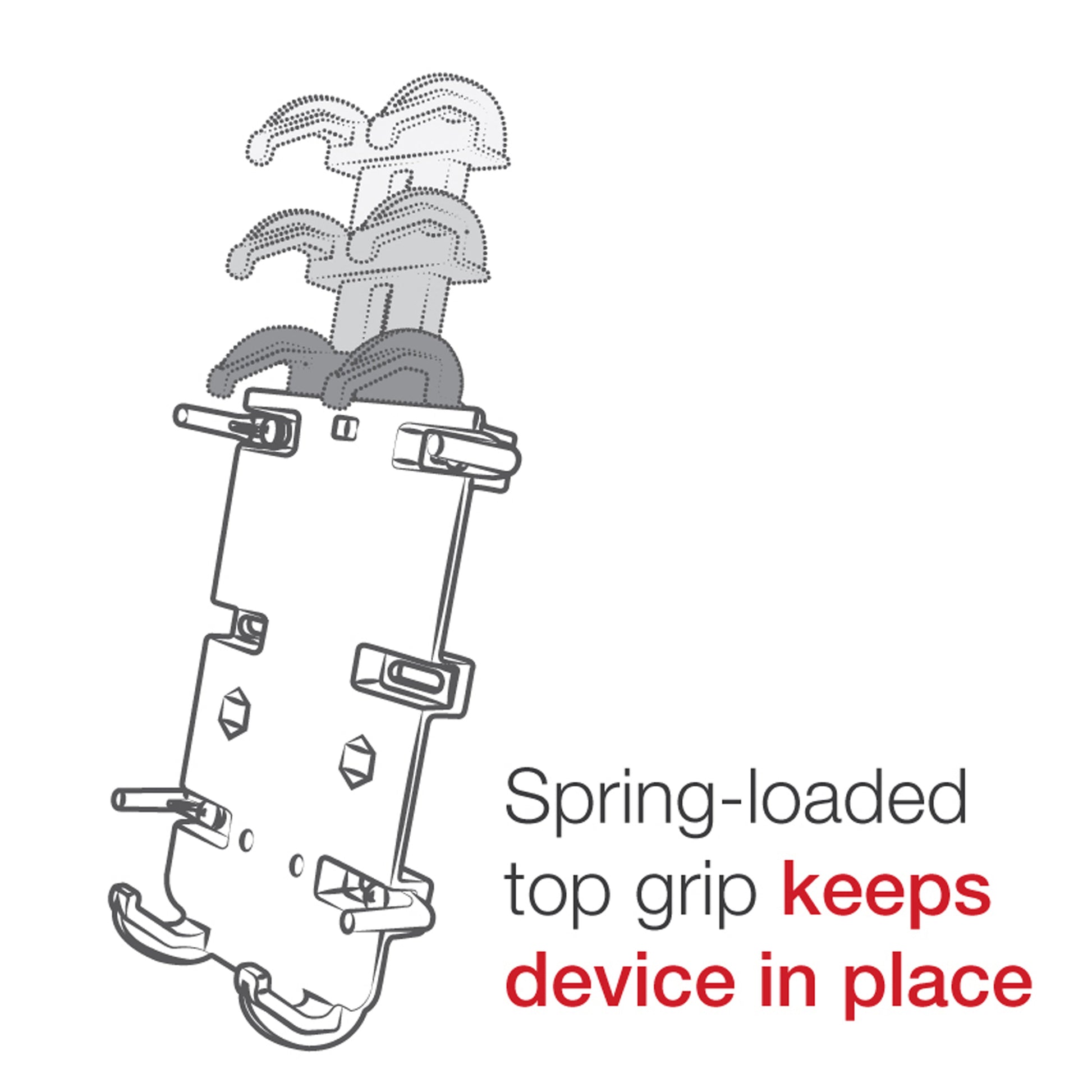

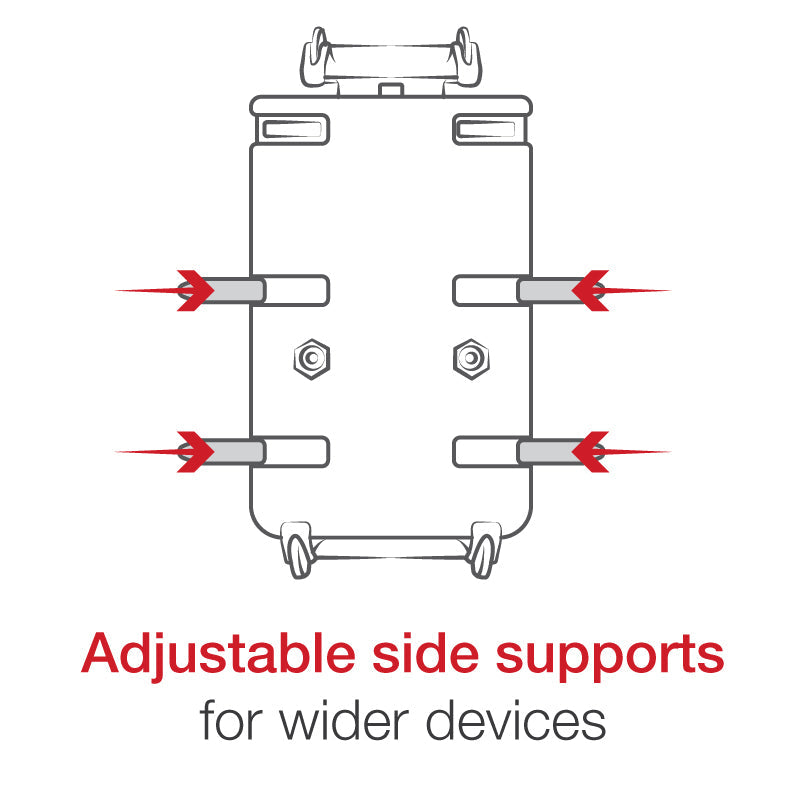

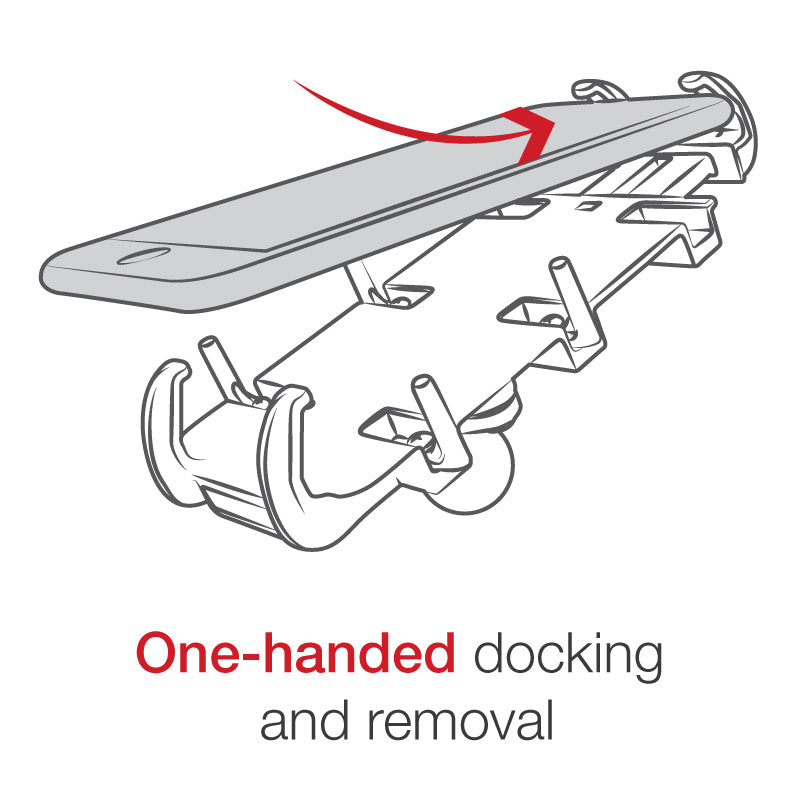

Spring-loaded Quick-Grip™ cradle holds devices 66.7mm to 92.1mm wide, with one-handed insertion and release
Stubby™ cup holder base uses flexible, trimmable support fins to fit a wide range of cup holder sizes
Portable, no-drill installation; moves easily between vehicles
Ball-and-socket arm gives near-infinite adjustment
Built from high-strength composite
Backed by a lifetime warranty

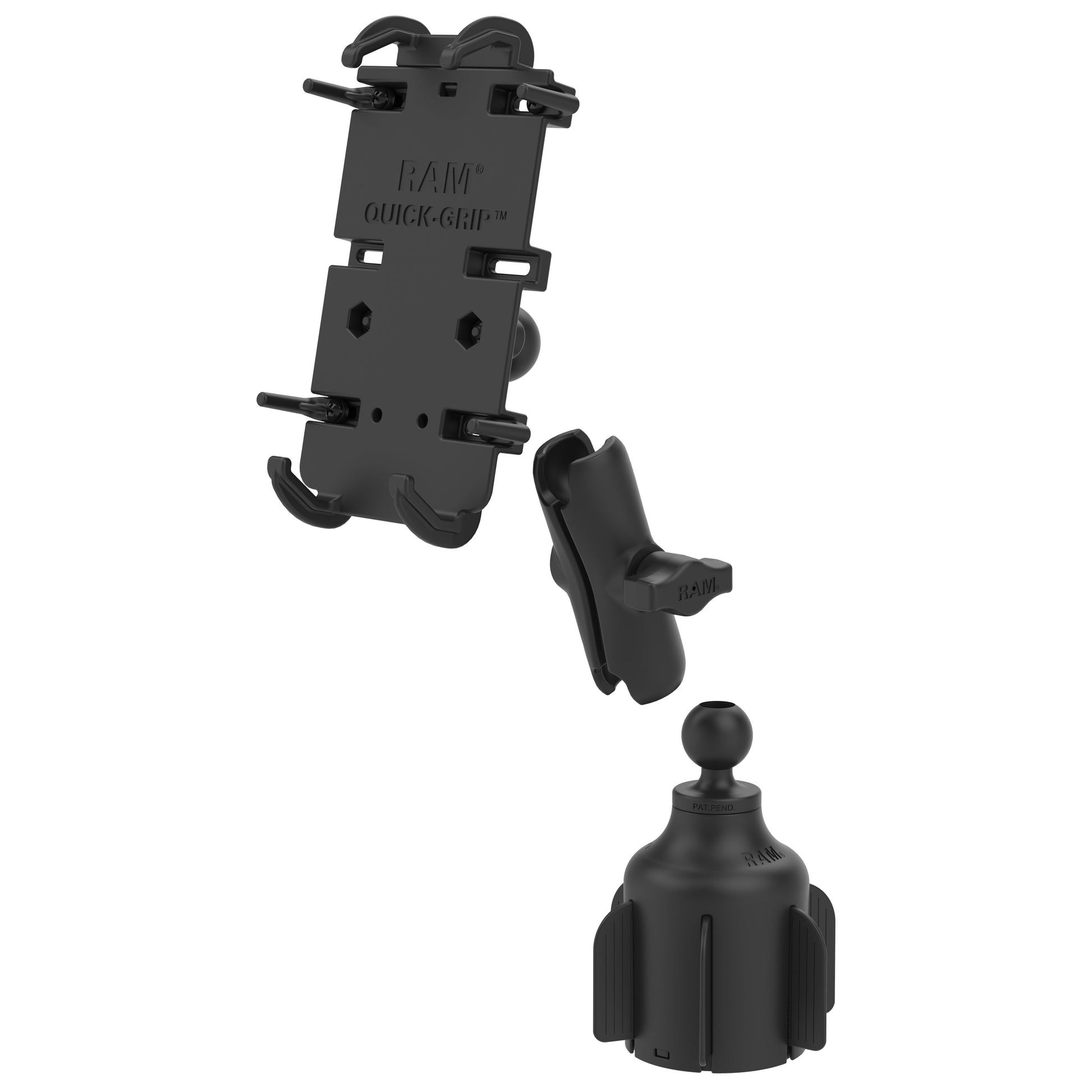

What's Included

RAM-HOL-PD4U: Quick-Grip™ XL phablet cradle
RAP-B-201U: composite double socket arm
RAP-B-238U: composite diamond base
RAP-B-299-4U: Stubby™ cup holder base

Mounting Base

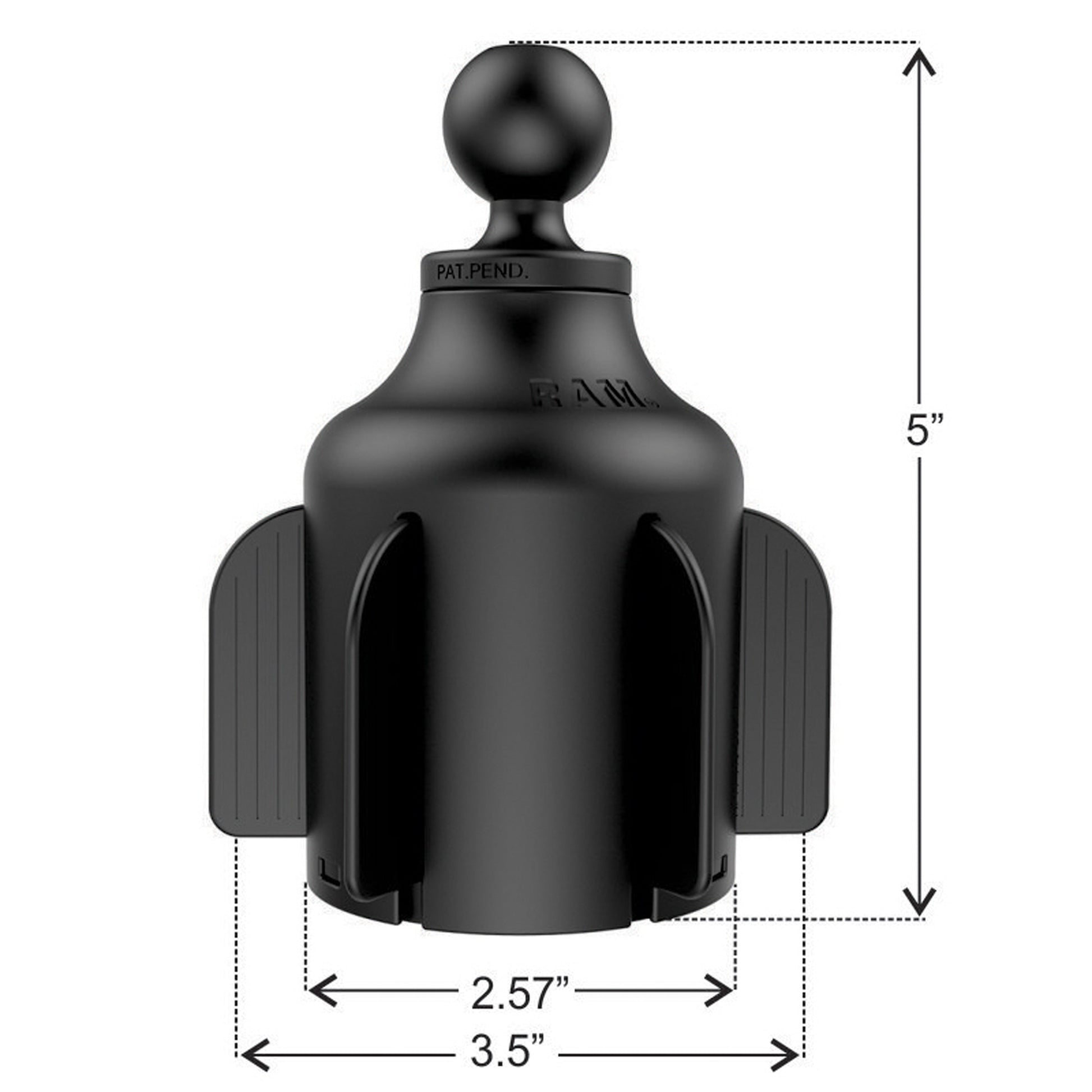

The RAP-B-299-4U Stubby™ base sits in your vehicle's cup holder and fits openings from 65.2mm to 88.9mm (2.57" – 3.5") inside diameter. Trim the support fins to match your cup holder for a snug fit.

Dimensions & Specifications

Cradle width range: 66.7mm to 92.1mm (2.625" – 3.625")
Cradle height range: 146.1mm to 184.1mm (5.75" – 7.25")
Cradle max depth: 18.3mm (0.72")
Arm overall length: 94mm (3.69")
Arm socket-to-socket length: 76mm (3")
Recommended max load: 907g (2 lb) for standard use, 454g (1 lb) for heavy-duty conditions with more vibration
Weight: 780.2 grams (1.72 lbs)
Materials: high-strength composite

Compatible Devices

This kit uses the same RAM-HOL-PD4U cradle across the Quick-Grip™ XL range, so the compatible device list is identical. See the RAM-HOL-PD4U listing for the full brand-by-brand list. As always, check your device's dimensions with any case or sleeve fitted before ordering.
