RAM Rectangular Base - C Series - 51 x 43mm - 4 hole AMPS hole pattern

RAM-347U RAM® Ball Adapter with AMPS Plate - C Size

Features

• Rectangular plate features the AMPS hole pattern for connection to a wide variety of devices
• Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

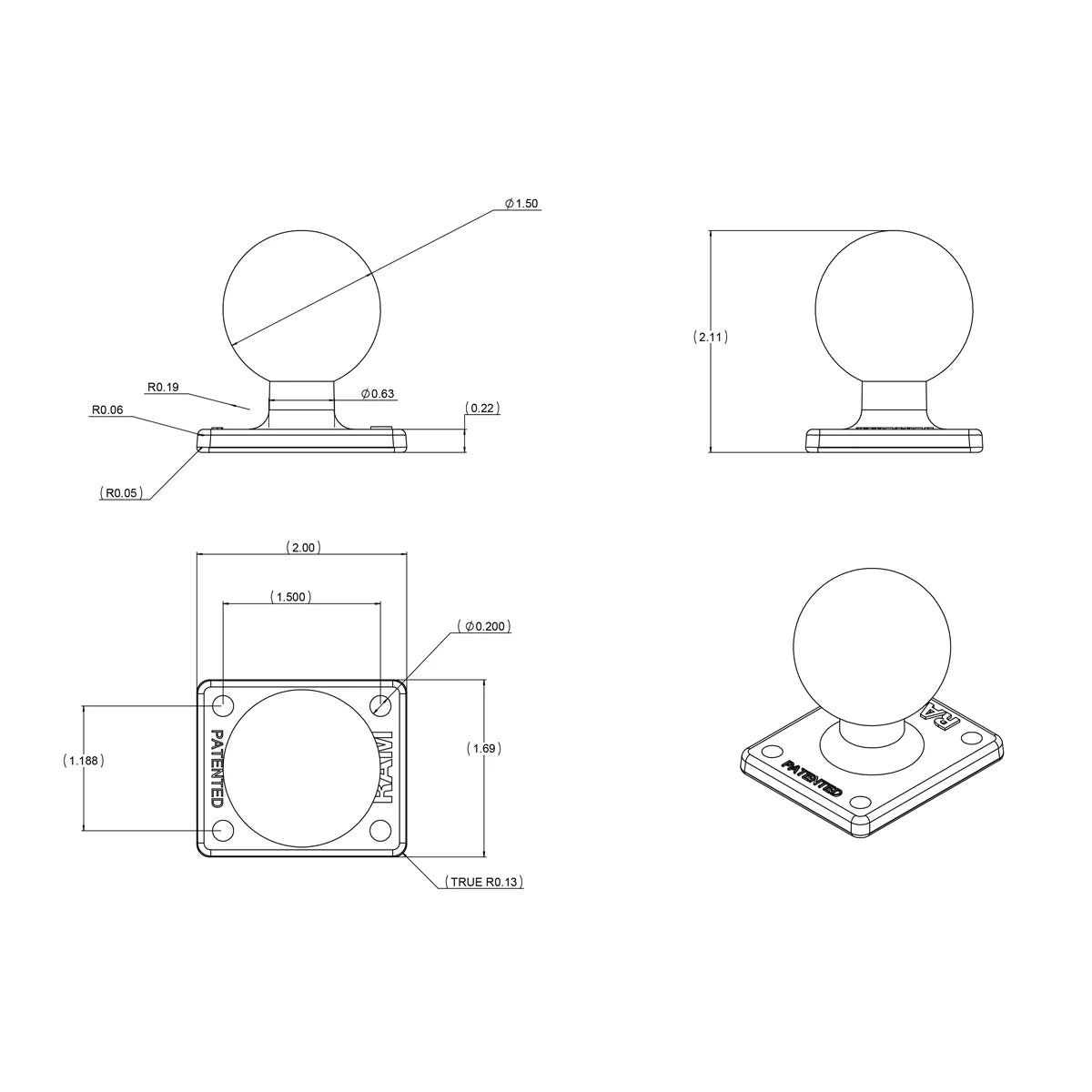

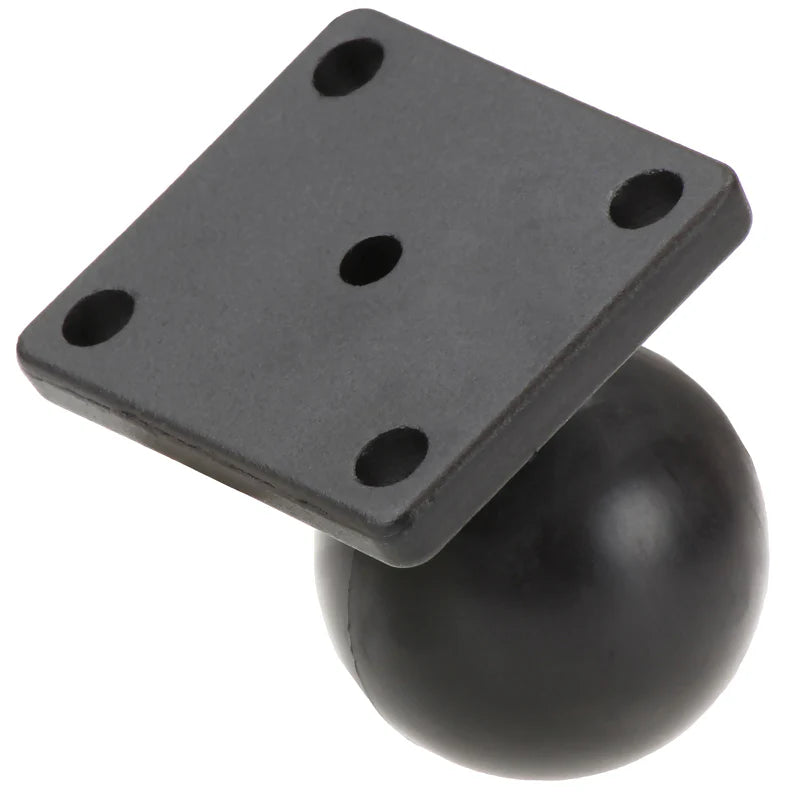

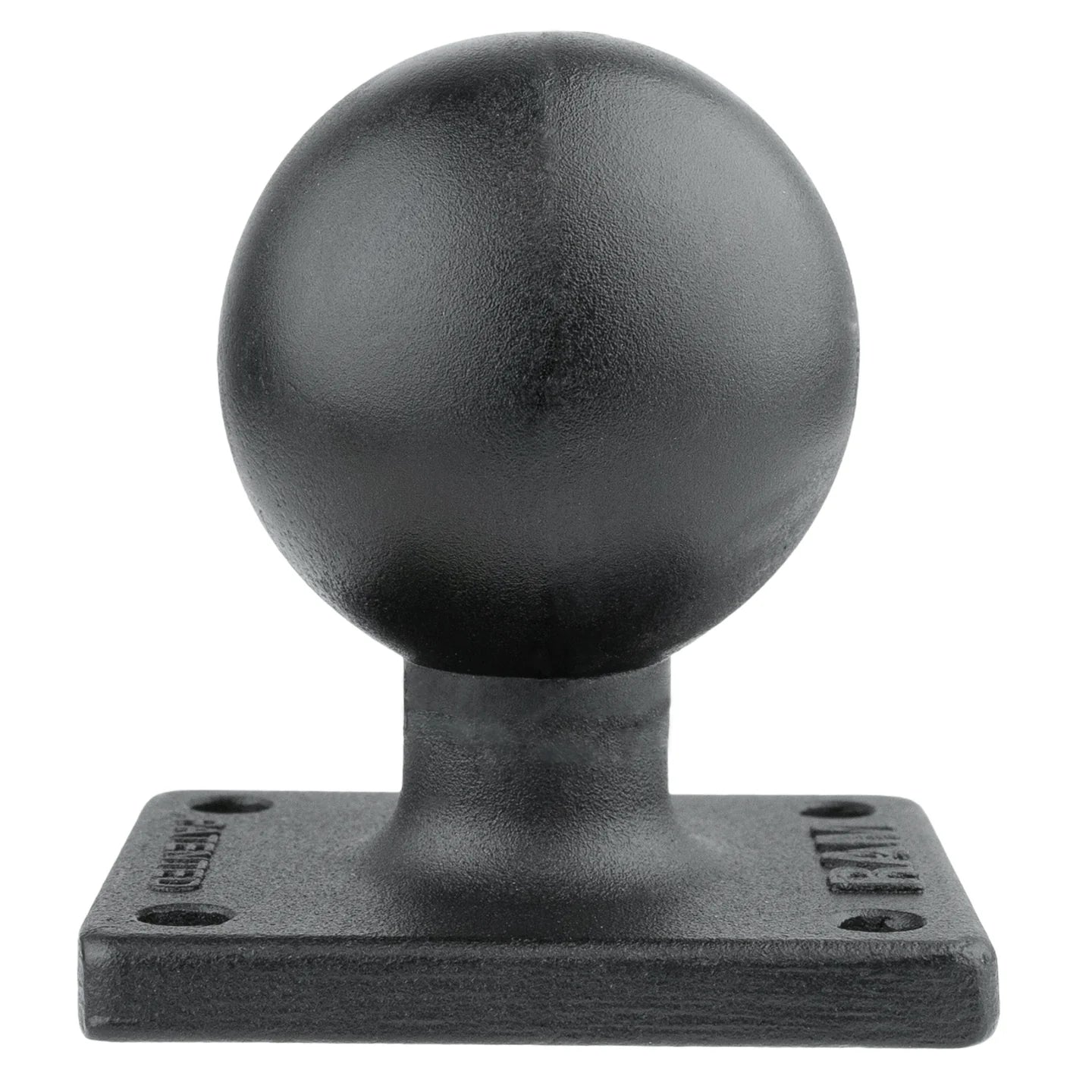

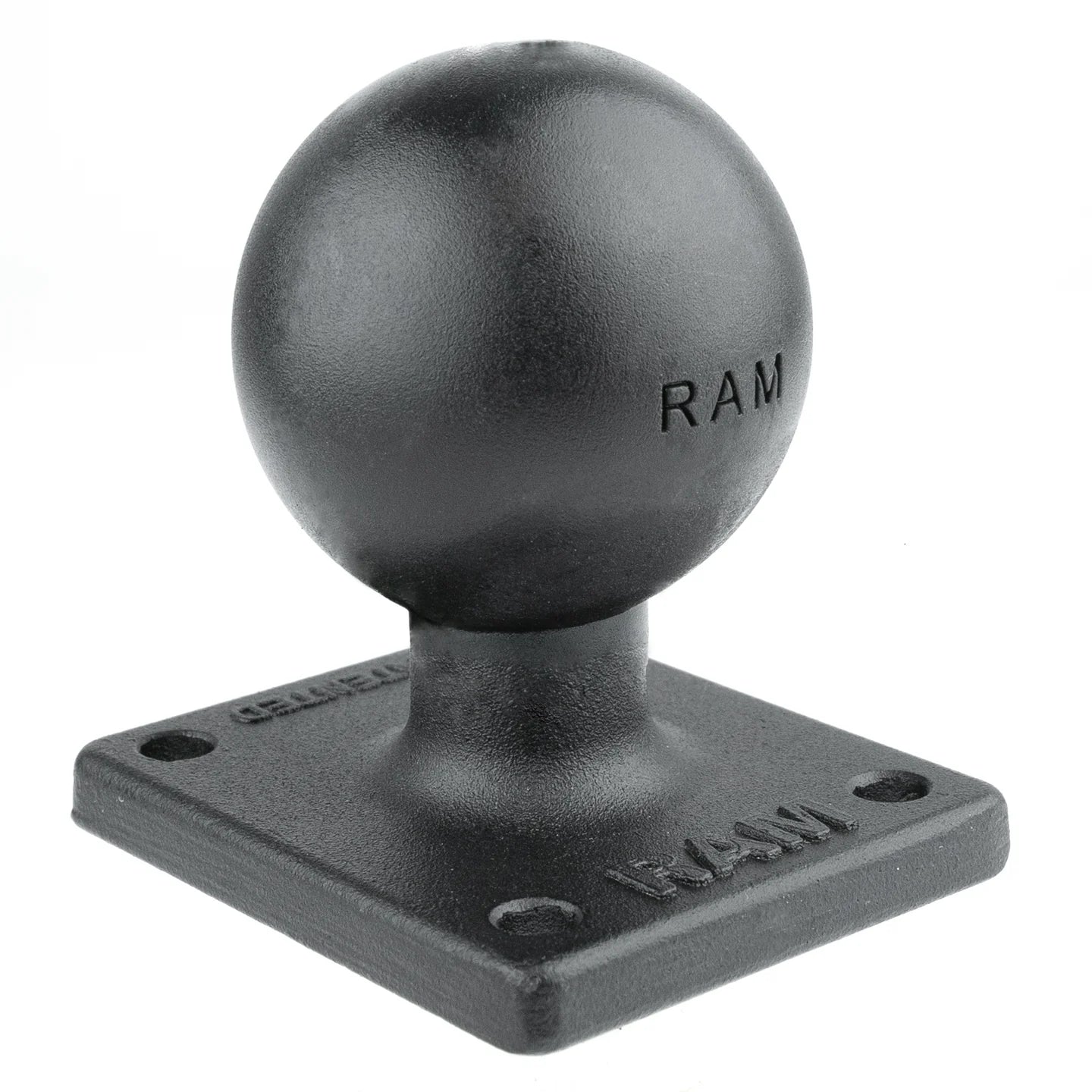

The RAM-347U consists of a 1.5" diameter rubber ball connected at right angles to a 50.8mm x 42.9mm rectangle base. The base has four pre-drilled holes at each corner, making the universal AMPS hole pattern.

Hole Pattern:

4-Hole AMPS: 29.99 x  37.99mm (1.181" x 1.496")

plate size:

42.9mm x 50.8mm (1.69" x 2")

Ball Size:

C Size (1.5")

Weight Capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials:

Marine-grade aluminium

Weight:

95.3 grams (0.21 lb)
