RAM Skin Key Lock Powered Cradle Tab Active4 Pro Tab Active Pro

RAM-HOL-SAM57PKLU RAM Skin Key Lock Powered Cradle Tab Active4 Pro Tab Active Pro

Features

• Key locking powered dock supports the Samsung Galaxy Tab Active4 Pro, and Tab Active Pro with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector (Non-Power Delivery charger required)
• RAM® Mounts Compatible™ with AMPS hole pattern components
• Made of high-strength composite materials for durability and reliability in the most demanding environments
• Backed by a 3-year warranty

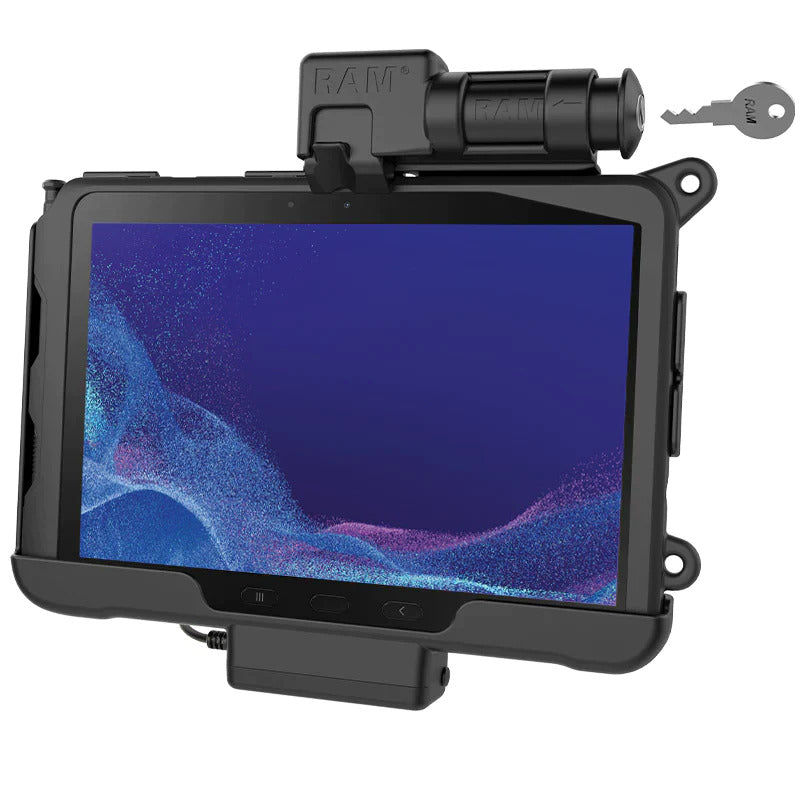

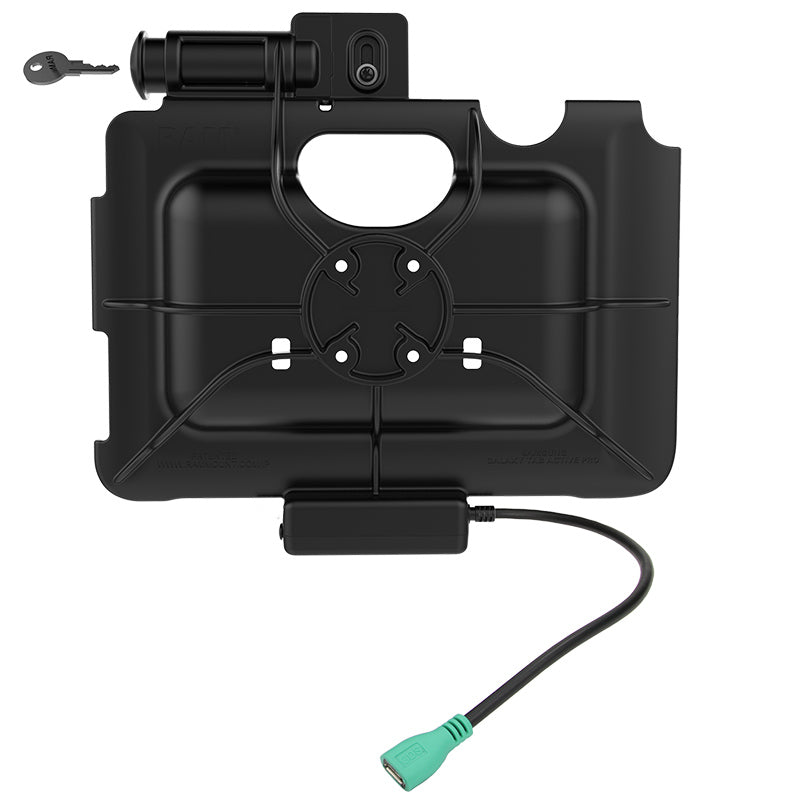

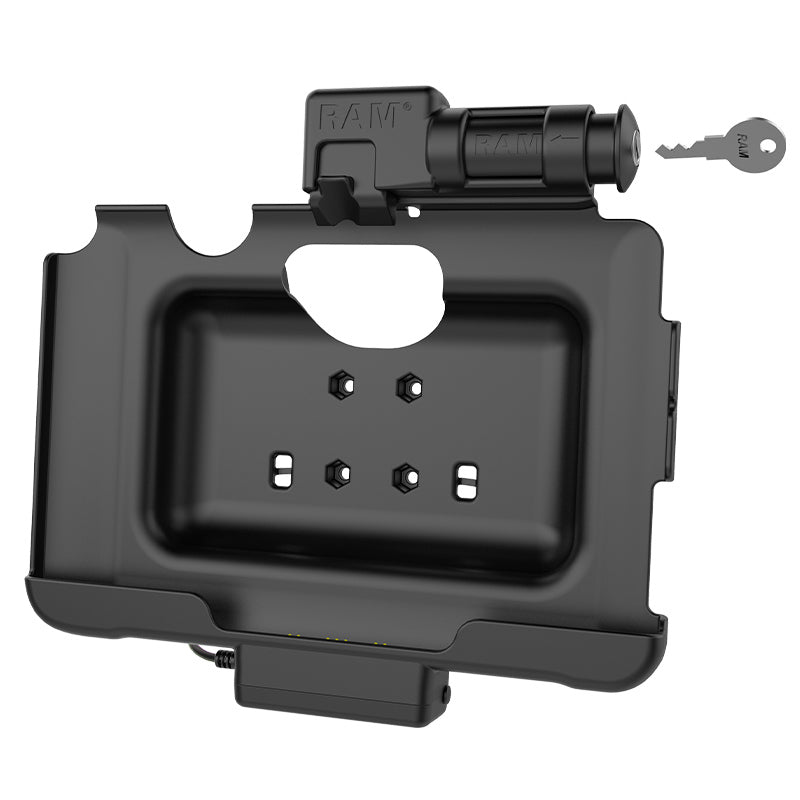

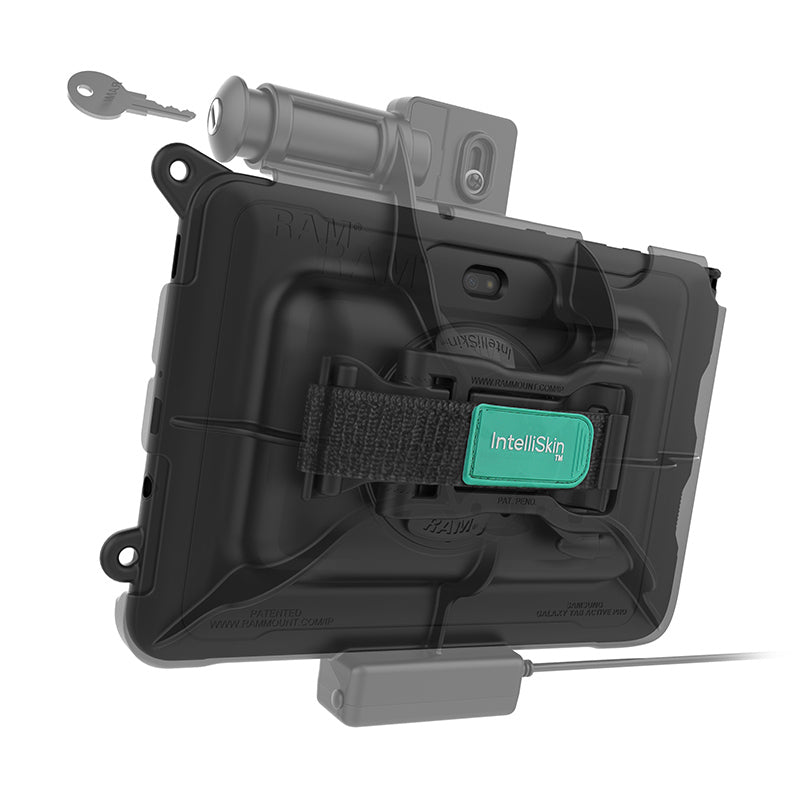

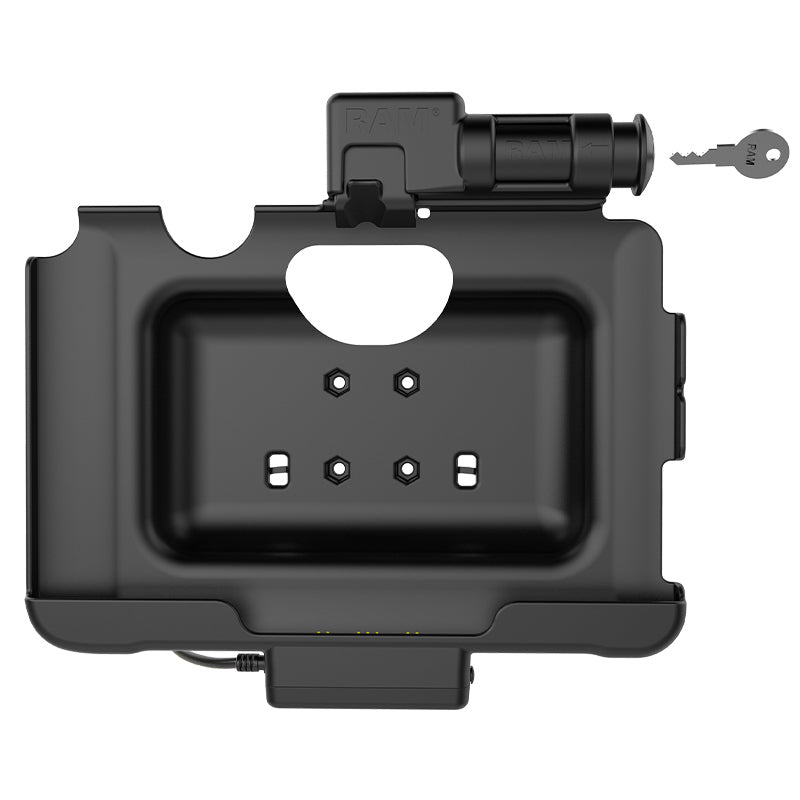

This powered cradle for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a keyed lock that’s compatible with the RAM Skin or factory device skin, as well as GDS Hand-Stand and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM components containing the universal AMPS hole pattern.

Also included is the mUSB female pigtail, GDS USB 2.0 cable, cable clamp, and zip ties. Look to the RAM-GDS-CHARGE-V7B1U hardwire charger or the RAM-GDS-CHARGE-USB2QCCIG cigarette vehicle charger for supplying power. This holder requires either the RAM SKIN for the Tab Active Pro, or the original supplied OEM case that came with your Tab Active Pro.

This SKU using microUSB has an updated version RAM-HOL-SAM57CPKLU which now utilises USB-C for power

Compatibility

Samsung Galaxy Tab Active4 Pro

Tab Active Pro

Hardware Included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties

Hole Pattern:

4-Hole AMPS: 1.181" x 1.496"

Materials:

High strength composite

Input Voltage:

5.3-5.4 VDC

Output Voltage:

5VDC

Power Output:

500mA

Input Connector:

mUSB Female

Input Cable Length:

215mm

Warranty:

3 year warranty

Weight:

548 grams (1.21 lb)

Additional Information:

Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro.

To support "No Battery Mode", see RAM® Tough-Case™
