RAM Powered Cradle with USB-C Charging for Samsung Tab Active5,3,2

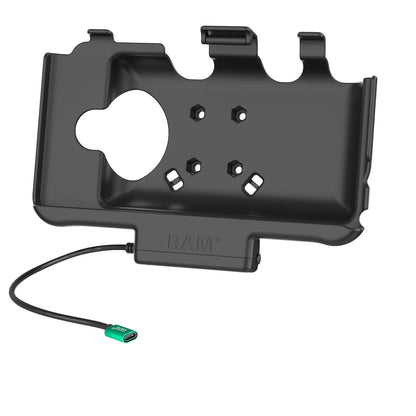

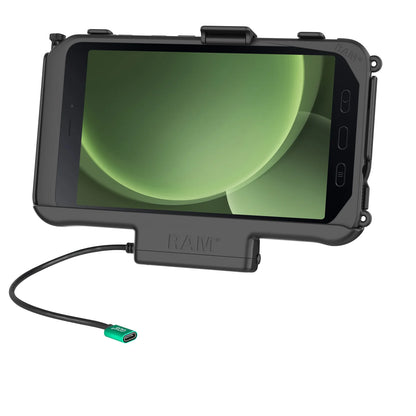

RAM-HOL-SAM60CPU RAM® USB-C Powered Dock for Samsung Tab Active5 & 3

Features

• RAM® EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable (Non-Power Delivery charger required)
• Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
• Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
• Backed by a 3-year warranty

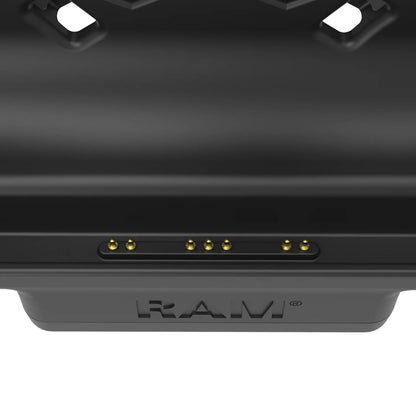

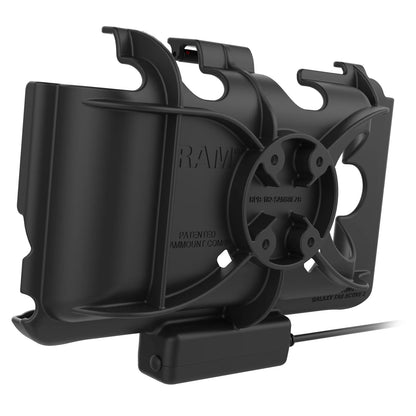

The RAM® USB-C Powered Dock for Samsung Tab Active5, Tab Active3 & 2 (RAM-HOL-SAM60CPU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and charging capabilities are provided to the device through GDS® pogo pins. This modular dock is compatible with the RAM® Skin™, factory device skin, and GDS® Hand-Stand™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.


Look to the RAM-GDS-CHARGE-V7B1U hardwire charger or the RAM-GDS-CHARGE-USB2QCCIG cigarette vehicle charger for supplying power.


Compatible Devices

Samsung

Tab Active5
Tab Active3
Tab Active2

Input Voltage:

5.3-5.4VDC

Output Voltage:

5VDC

Power Output:

500mA

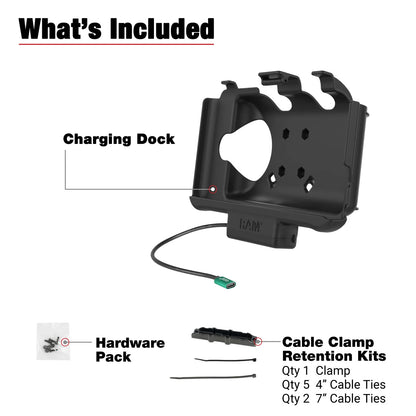

Hardware Included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(5) Small Cable Ties

Product Dimensions
W: 234.7mm (9.24")
H: 161mm (6.34")
D: 65.3mm (2.57")

Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)

Materials
High strength composite

Weight
322 grams (0.71lbs)

Input Connector

USB Type-C Female

Input Cable Length

215mm

Warranty

3 Year Warranty

Additional Information:

Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options

Q& A

Q: Does this require a skin or can it be used with just the tablet and no skin/case?

A: The RAM-HOL-SAM60CPU requires you use either a Samsung OEM skin or the compatible RAM® Skin™ for your tablet. It will not fit properly without a skin.

Q: Does this in fact come with the ball shown in the picture? I only ask because it is greyed out, like the tablet.

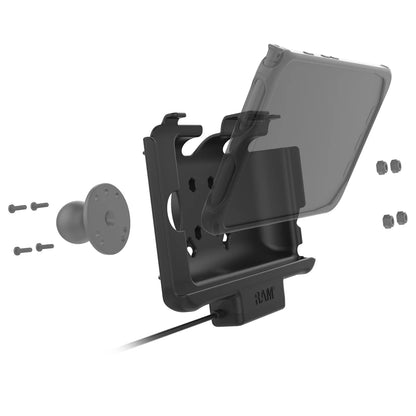

A: The RAM-202U (round base) is in fact not included with the RAM-HOL-SAM60CPU and would need to be purchased separately.

Q: What case do I need that will work for the charger?

RAM® Skin™ for Samsung Tab Active5 – RAM Mounts

Q: Hi, I need to mount a new Active Tab 5 in my motorcycle for navigation purposes. Is this dock water and dust-proof? Best regards!

A: I'm sorry but this dock is not waterproof and dustproof. It's mostly used in indoor applications.
