Doubletake Ball Kit 10mm

Doubletake Ball Kit – 10mm

The Doubletake Ball Kit is the base hardware for the newer-style Doubletake arms, with 4 bolts included to fit any bike without unsightly adapters.

Key Features

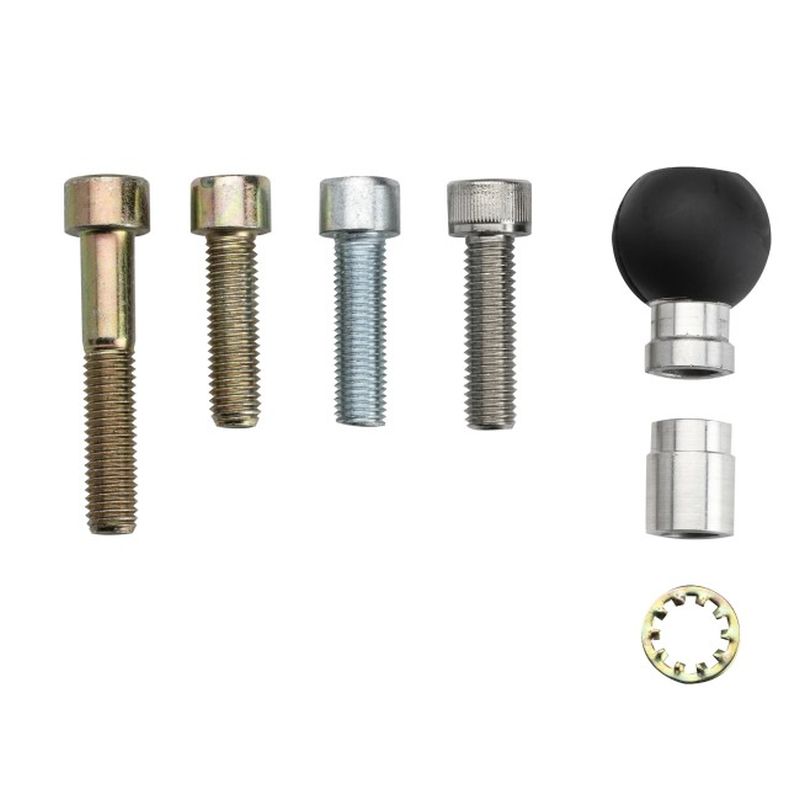

• Includes a 1.125" (28.575mm) ball stud, 10mm x 1.25 bolts (long and short), a reverse-thread bolt (10mm x 1.25), a 10mm x 1.5 short bolt, and a lock washer
• Universal fit: 4 included bolts fit any bike, no adapters needed

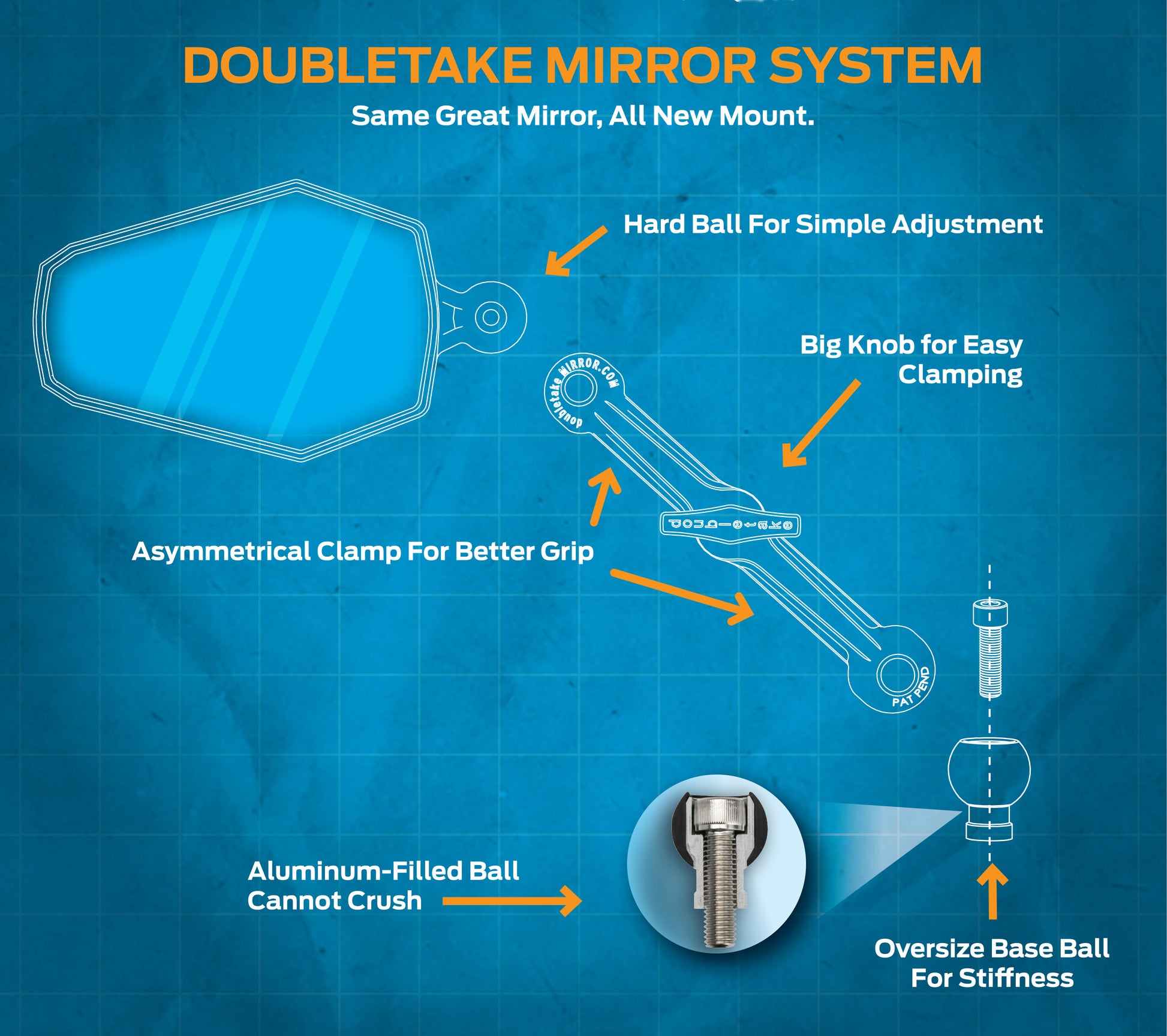

• Larger 1.125" ball diameter adds rigidity, so you don't have to overtighten the arm to stop it moving while riding
• Aluminium-filled base ball, coated in high-quality nitrile rubber, won't degrade under extended compression
• Includes a lock washer to stop the ball spinning relative to the bike

Dimensions & Specifications

• Diameter: 1.125" (28.575mm)
• Height: 1.37" (35mm)
• Extension: 0.78" (20mm)
• Weight (ball only): 20g
• Weight (full kit): 110g
• Materials: Billet aluminium, nitrile, hardened steel

Works With

This is the base you need for any of the current Doubletake arms: Arm 2.0, Arm 3.5, Arm 4.7 and Arm 6.0.

Fitting a pre-2005 BMW? Use the 8mm Ball Kit (DTM-U) instead. Pairing Doubletake mirrors with RAM arms rather than Doubletake arms? You want the Ball Stud Base (DTM-B).

Need to raise or level the base? See the Base Extension (DTM-E) and the Reverse Thread Adaptor (DTM-Y).
