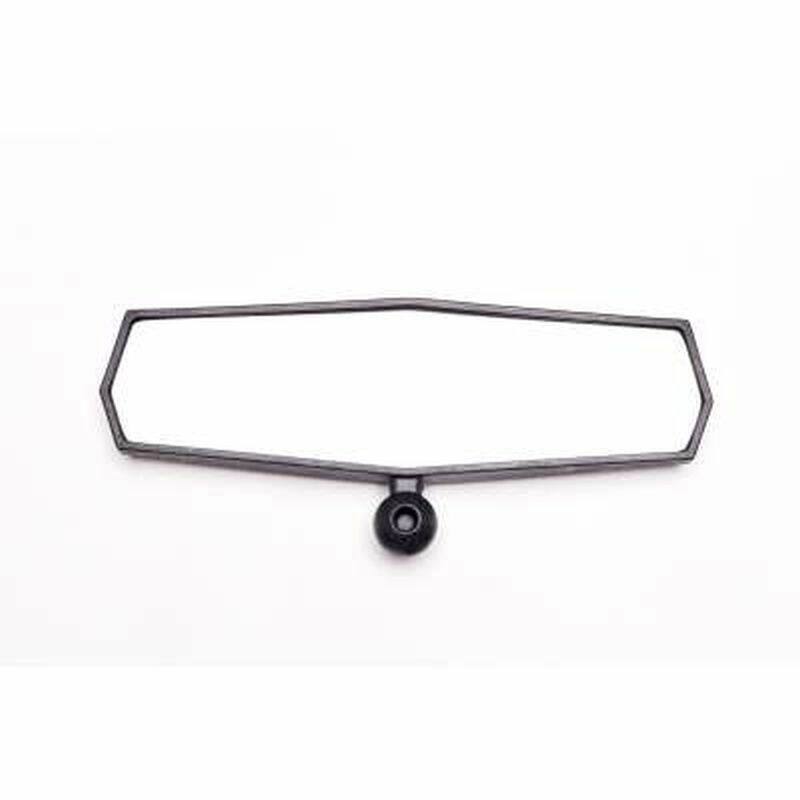

DTM-RV-108 Doubletake Rearview Mirror with RAM Strap/Rollbar Base and Short Arm

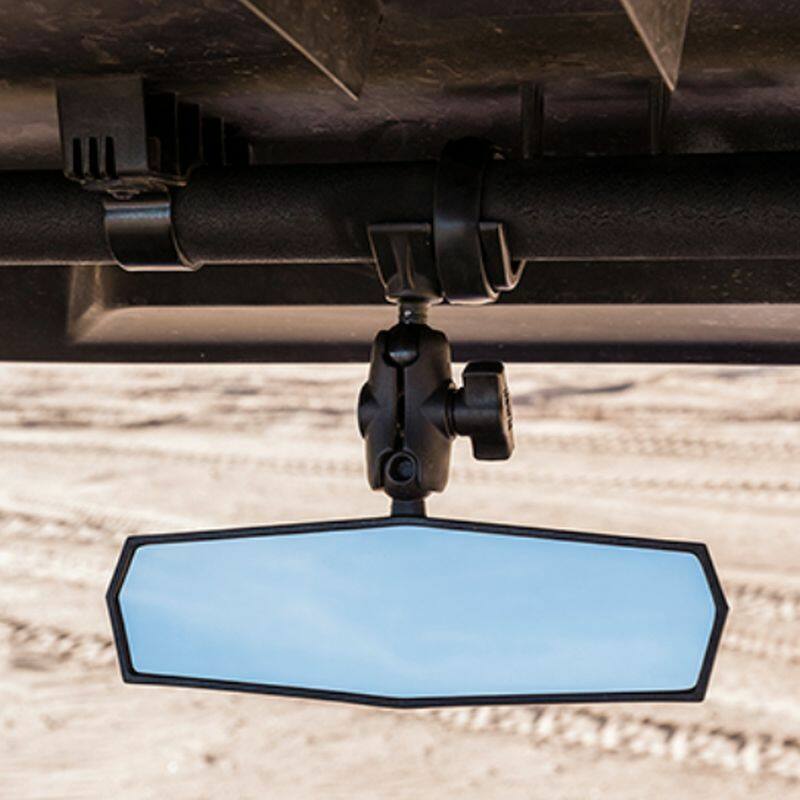

This is the complete kit version of the Doubletake Rearview Mirror — a universal, adjustable UTV rearview mirror paired with a RAM strap/rollbar base and short arm, ready to mount straight onto a rail or rollcage.
Key Features
Adjustable, with perfect optics and a universal fit
Zytel mirror with a glass reflector
1" diameter ball mount
Base fits bars/rollcages from 25mm to 53mm diameter
Made in the USA

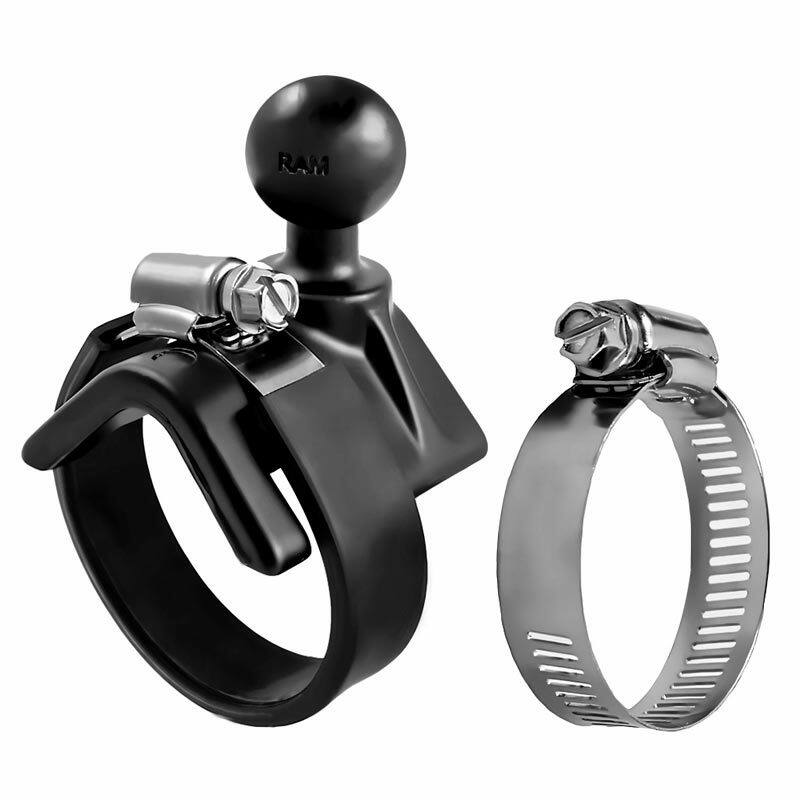

The base is a RAM-B-108BU RAM® Strap Hose Clamp Ball Base: a 1" rubber ball connected at a right angle to a V-shaped base, accommodating rails from 1.0" to 2.1" in diameter. To install, place the saddle-shaped plate on the rail, wrap the metal clamp strap around the rail and plate, then tighten the screw knob with a screwdriver until the strap holds firmly.

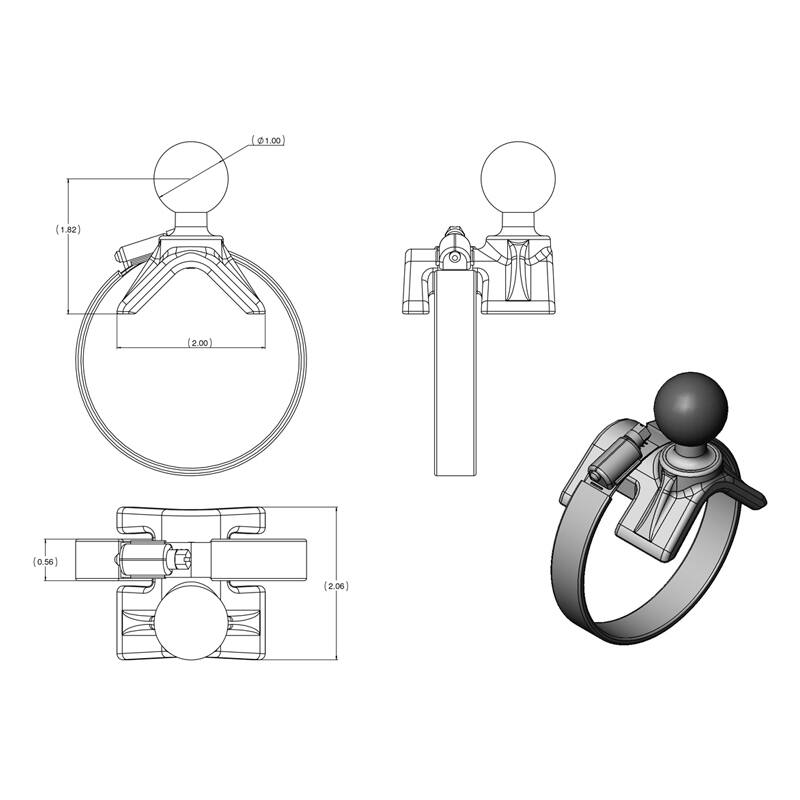

Dimensions & Specifications
Clamp range: 25.4mm to 53.3mm (1" to 2.1")
Arm length: 60.5mm (2.38") overall, 51mm (2") socket-to-socket
Base and arm material: Powder-coated marine-grade aluminium
Ball size: 1" rubber ball, B Size
Hardware Included
1x #20 worm drive strap clamp
1x #28 worm drive strap clamp
1x 6" rubber strip
What's Included
DTM-RV Doubletake Rearview Mirror
RAM-B-108BU RAM 1" ball base with strap
RAP-B-201U-A RAM short double socket arm for 1" ball
