RAM-GDS-CHARGE-V10-1U - GDS Hardwire Charger - 10-32V In, 12V Out - Large DC 5.5mm Barrel

RAM-GDS-CHARGE-V10-1U GDS® 10-32VDC Hardwire Charger, 12VDC Output, Large DC 5.5mm

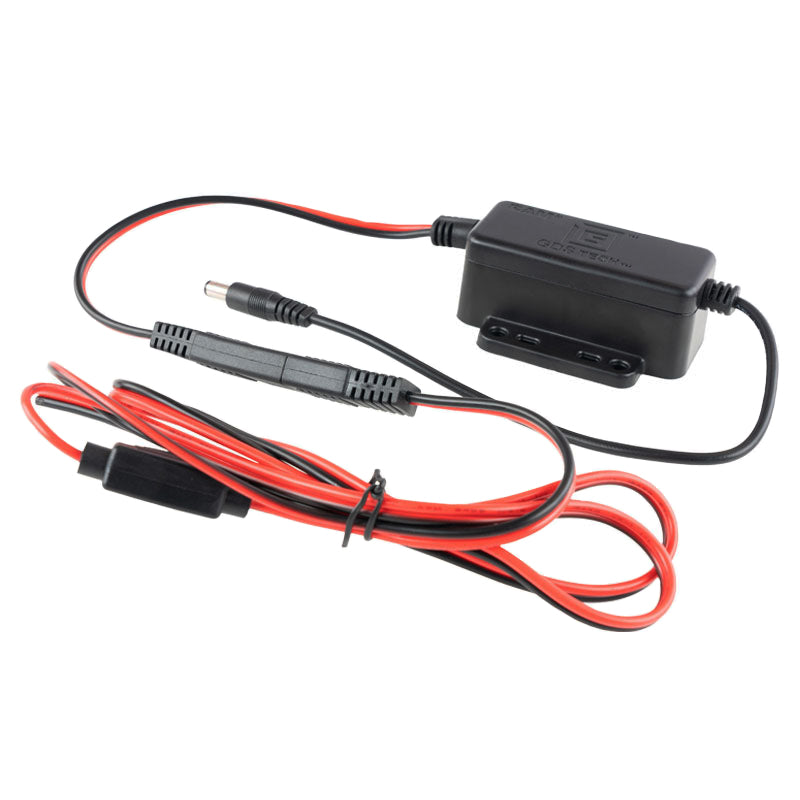

RAM-GDS-CHARGE-V10-1U is a GDS® modular hardwire charger that takes 10-32V DC from a vehicle's electrical system and delivers a regulated 12V DC at up to 3.5A through a large 5.5mm barrel plug, for RAM® and GDS® DC powered docks that take the larger connector rather than the standard one.

Key Features

• Large barrel connector: this is the distinguishing feature of the -1U part number, not a difference in voltage.
• Built for fuel-powered vehicles: the 10-32V input range covers standard 12V and 24V systems in cars, trucks, vans, tractors and propane forklifts.
• Properly protected: IP66 sealed, with a 3A inline ATC fuse, 18AWG copper wire, and over-voltage, short circuit and reverse polarity protection.
• Rated for vehicle use: SAE J-1113-5 load dump and moisture resistant, with E-Mark and RCM certification.
• Backed by RAM's three-year warranty.

Works With

RAM® and GDS® docks that specify a 12V DC input on the large 5.5mm barrel.

Check the barrel before ordering. The standard-barrel equivalent, RAM-GDS-CHARGE-V10U, has exactly the same 10-32V input and 12V output. The two are told apart only by the physical size of the plug, so choosing on voltage alone will get you the wrong one. If you are not certain which your dock takes, send us the dock model and we will confirm it.

The rest of the range sits in Chargers and Docks and GDS Tech.

Dimensions & Specifications

• Input voltage: 10-32V DC
• Output voltage: 12V DC
• Output current: 3.5A max
• Barrel connector: large male DC 5.5mm
• Input cable length: 1.2m, including 2-pole flat marine connector
• Output cable length: 0.2m
• Wiring: 18AWG copper
• Operating temperature: -10°C to +70°C
• Storage temperature: -40°C to +70°C
• Ingress protection: IP66
• Protection: over voltage, short circuit, reverse polarity, SAE J-1113-5 load dump, moisture resistant; 3A inline ATC fuse
• Certifications: FCC, CE, UKCA, IC, E-Mark and RCM; RoHS and WEEE compliant
• Warranty: 3 years

Documents

GDS Hardwire Charger Compatibility Guide (PDF): compares input voltage, output voltage and connector type across the GDS hardwire charger range, so you can confirm this one suits your dock and your vehicle.

FAQs

What does the -1U in the part number mean? It denotes the large DC 5.5mm barrel. Everything electrical is the same as the standard V10U.

Will it charge a tablet directly? No. It outputs 12V on a barrel plug for a powered dock, not USB. If your device charges over USB, you want one of the USB-C or USB-A chargers instead.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
