RAM-GDS-CHARGE-V10U - GDS Hardwire Charger - 10-32V In, 12V Out - DC 5.5mm Barrel

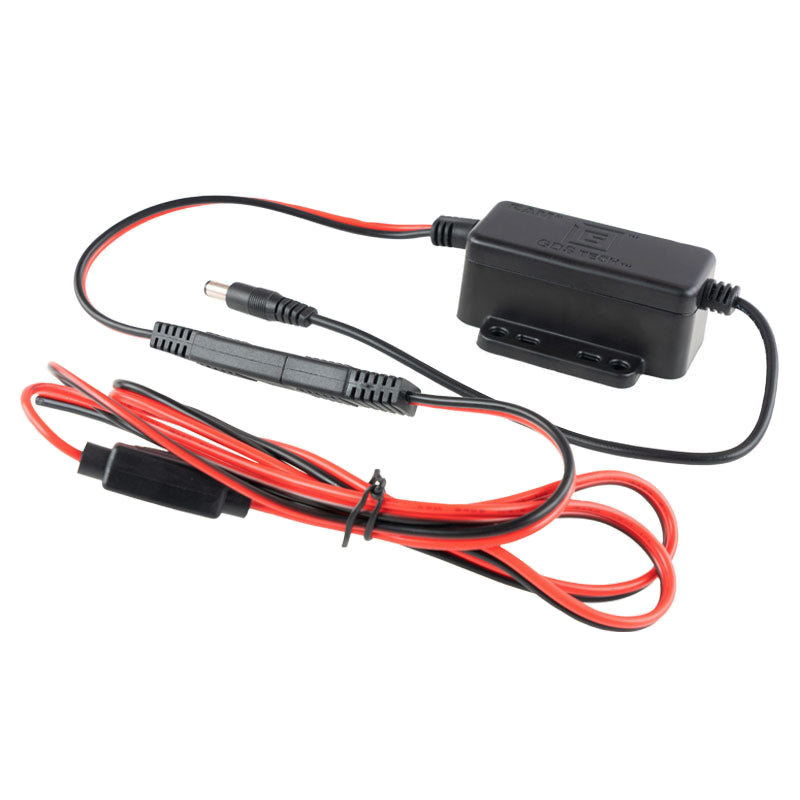

RAM-GDS-CHARGE-V10U GDS® 10-32VDC Hardwire Charger, 12VDC Output, Male DC 5.5mm

RAM-GDS-CHARGE-V10U is a GDS® modular hardwire charger that takes 10-32V DC from a vehicle's electrical system and delivers a regulated 12V DC at up to 3.5A through a standard 5.5mm barrel plug, ready for any RAM® or GDS® DC powered dock that calls for a 12V input.

Key Features

• Built for fuel-powered vehicles: the 10-32V input range covers standard 12V and 24V systems in cars, trucks, vans, tractors and propane forklifts.
• The most common output in the range: 12V suits the majority of RAM® and GDS® DC docks.
• Properly protected: IP66 sealed, with a 3A inline ATC fuse, 18AWG copper wire, and over-voltage, short circuit and reverse polarity protection.
• Rated for vehicle use: SAE J-1113-5 load dump and moisture resistant, with E-Mark and RCM certification.
• Backed by RAM's three-year warranty.

Works With

Any RAM® or GDS® dock that specifies a 12V DC input on a standard 5.5mm barrel.

Watch the barrel size on this one. RAM makes a large-barrel version at the same 10-32V input and 12V output, RAM-GDS-CHARGE-V10-1U. The voltages read identically, so ordering on voltage alone will get you the wrong plug. Confirm which barrel your dock takes first.

For electric forklifts and other 20-60V machines, the same 12V output is available as RAM-GDS-CHARGE-V9U. The rest of the range sits in Chargers and Docks and GDS Tech.

Dimensions & Specifications

• Input voltage: 10-32V DC
• Output voltage: 12V DC
• Output current: 3.5A max
• Barrel connector: male, 5.5mm outer diameter × 2.5mm inner
• Input cable length: 1.2m, including 2-pole flat marine connector
• Output cable length: 0.2m
• Wiring: 18AWG copper
• Operating temperature: -10°C to +70°C
• Storage temperature: -40°C to +70°C
• Weight: 141g (0.31lb)
• Ingress protection: IP66
• Protection: over voltage, short circuit, reverse polarity, SAE J-1113-5 load dump, moisture resistant; 3A inline ATC fuse
• Certifications: FCC, CE, UKCA, IC, E-Mark and RCM; RoHS and WEEE compliant
• Warranty: 3 years

Documents

GDS Hardwire Charger Compatibility Guide (PDF): compares input voltage, output voltage and connector type across the GDS hardwire charger range, so you can confirm this one suits your dock and your vehicle.

FAQs

What is the difference between this and the V10-1U? Input and output voltages are identical; the barrel plug is physically larger on the V10-1U. Match the plug to your dock, not the voltage.

Will it charge a tablet directly? No. It outputs 12V on a barrel plug for a powered dock, not USB. If your device charges over USB, you want one of the USB-C or USB-A chargers instead.
