GDS Modular 30-64V Hardwire Charger with Male USB Type-C

RAM-GDS-CHARGE-V8CU GDS® 30-64V Hardwire Charger, Male USB Type-C

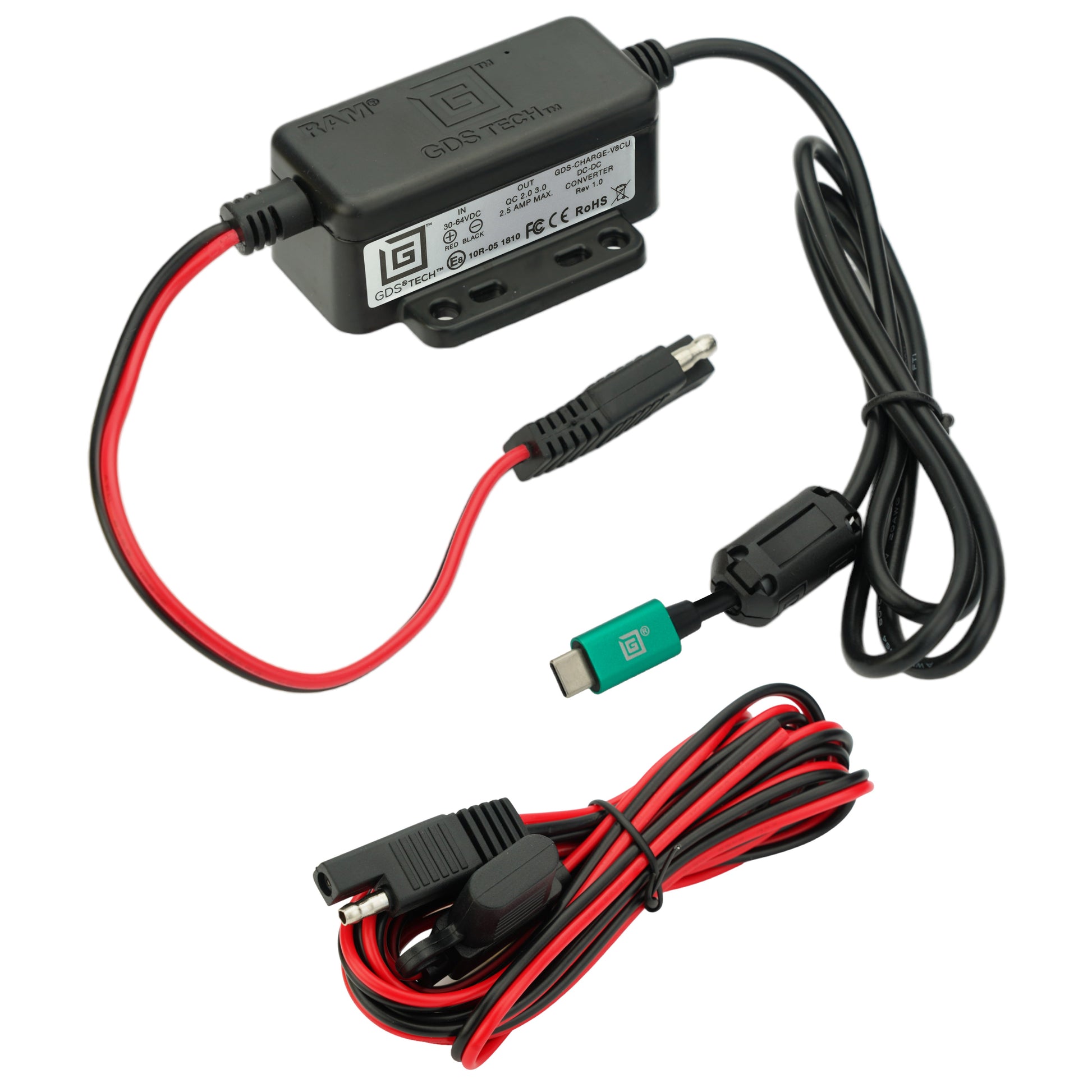

RAM-GDS-CHARGE-V8CU is a GDS® modular hardwire charger that steps 30-64V DC vehicle power down to 5.42-9V DC and finishes in a USB Type-C male plug, so you can run a GDS® dock or any USB Type-C device straight off a forklift, electric pallet truck or similar high-voltage system.

Key Features

• Wide input range: 30-64V DC suits 36V and 48V industrial and electric vehicle systems.
• Modular design: the power connector unplugs, so changing the device end does not mean rewiring the vehicle.
• Bare wire input: hardwires directly to the supply, with 2.5m of cable to reach the battery or fuse panel.
• Protected: over-voltage, short circuit and reverse polarity protection, SAE J-1113-5 load dump rating and moisture resistance.
• Backed by RAM's three-year warranty.

Works With

Any GDS® dock or USB Type-C device drawing 2.5A or less at 5.42-9V. This charger does not support USB Power Delivery, so devices that rely on PD negotiation will charge at standard USB rates only. If your machine runs 8-40V, the RAM-GDS-CHARGE-V5U is the Micro-B USB equivalent. The rest of the range sits in Chargers and Docks and GDS Tech.

Dimensions & Specifications

• Input voltage: 30-64V DC
• Output voltage: 5.42-9V DC
• Output current: 2.5A max
• Input connector: bare wire
• Input cable length: 2.5m
• Output connector: USB Type-C male
• Output cable length: 1m
• Operating temperature: -10°C to +70°C
• Storage temperature: -40°C to +70°C
• Weight: 209g (0.46lb)
• Protection: over voltage, short circuit, reverse polarity, SAE J-1113-5 load dump, moisture resistant
• Certifications: CE, RCM, FCC, UL 62368-1; RoHS and WEEE compliant
• Warranty: 3 years

Documents

GDS Hardwire Charger Compatibility Guide (PDF): compares input voltage, output voltage and connector type across the GDS hardwire charger range, so you can confirm this one suits your dock and your vehicle.

FAQs

Does it support USB Power Delivery? No. It delivers up to 9V over USB Type-C without PD negotiation. If you need PD, get in touch and we can bring in the Power Delivery version (RAM-GDS-CHARGE-V3CH-2U).

What sort of vehicle is a 30-64V input for? Electric forklifts, pallet trucks, sweepers, golf carts and similar 36V and 48V systems. For a standard 12V or 24V vehicle, use the 8-40V version instead.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
