RAM-B-463-GU - Gim-Ball Fishfinder Gimbal Base Adapter - B Series (1" Ball)

RAM-B-463-GU RAM® Gim-Ball™ Fishfinder Gimbal Base Adapter

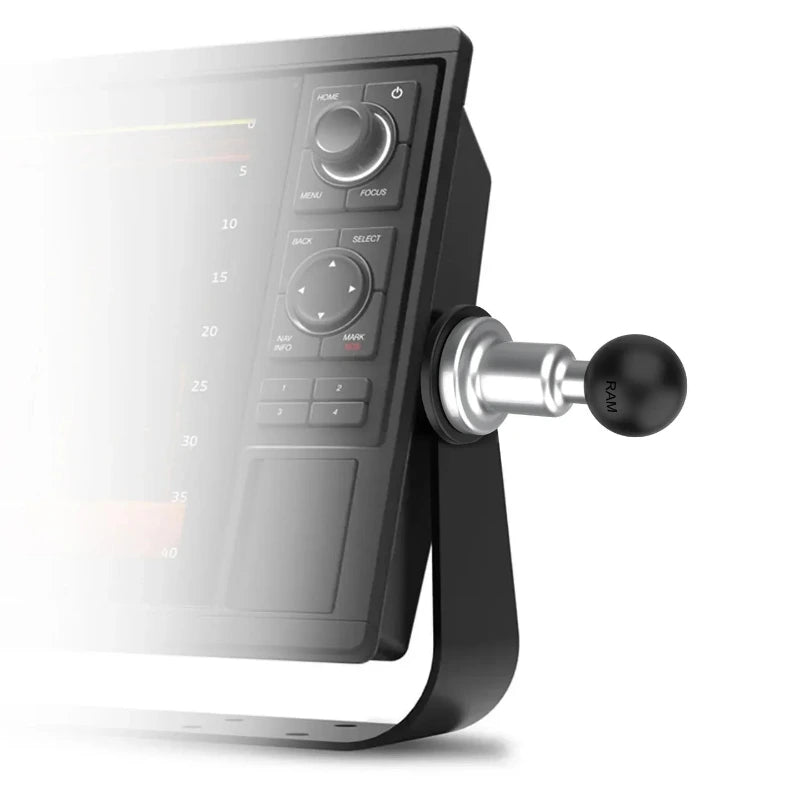

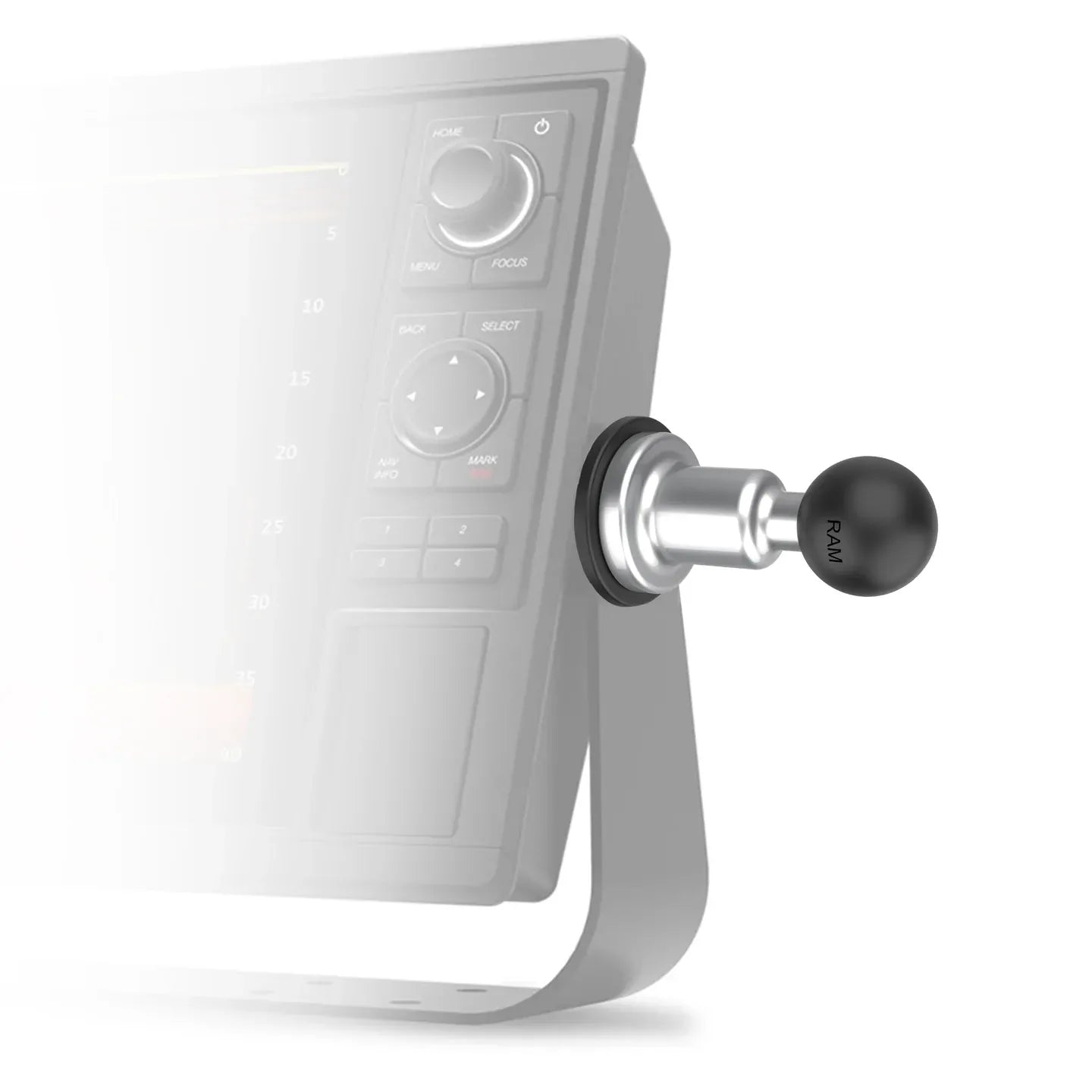

The RAM-B-463-GU turns the gimbal bracket already holding your fishfinder into a second mounting point. One of the gimbal knobs comes out, the Gim-Ball goes in, and you have a 25.4mm (1") B-size ball sitting alongside the unit for a phone, action camera, handheld GPS or VHF. Nothing gets drilled, and six threaded stud adapters are included so it fits the gimbal brackets used by the major GPS, chartplotter, fishfinder and VHF brands.

Key Features

• Adds a mounting point without drilling, using the gimbal bracket that came with your electronics
• Six stud adapters included, covering imperial and metric gimbal threads from #10-24 through to M8
• Marine-grade aluminium, for salt water and vibration
• 1" B-size ball works with any RAM® B-size arm and holder
• Nylon and friction washers included, so the adapter clamps up without chewing into the bracket
• Backed by RAM's lifetime warranty

Works With

Gimbal-bracket mounted marine electronics from the major brands, and any RAM® B-size component on the ball end, such as the RAM-B-201U medium double socket arm. Pair it with a holder to suit what you are mounting, for example the RAP-B-202U-GOP1 action camera adapter. Check which stud your gimbal bracket uses against the list below before ordering.

Dimensions & Specifications

• Ball size: 25.4mm (1") B-size rubber ball with pin-lock
• Overall height: 60mm (2.36")
• Base plate diameter: 31.8mm (1.25")
• Threaded socket in base: 1/4"-20
• Weight capacity: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
• Material: marine-grade aluminium
• Weight: 101g (0.22 lb)

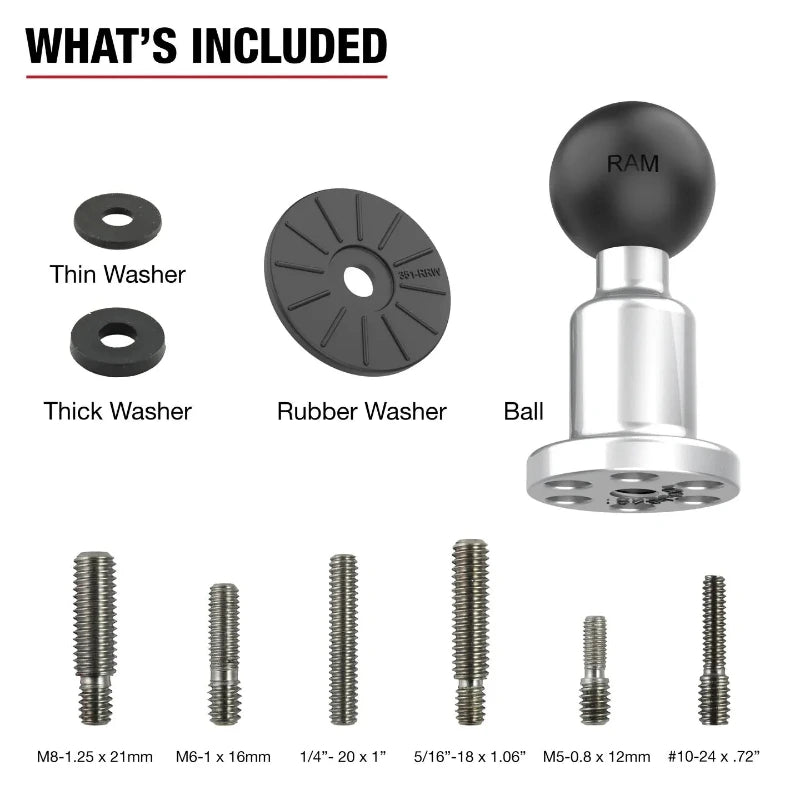

What's Included

• 1 x RAM-B-463U pin-lock ball adapter with 1/4"-20 female thread (B size)
• 1 x #10-24 x 18.3mm (0.72") threaded stud adapter
• 1 x 5/16"-18 x 26.9mm (1.06") threaded stud adapter
• 1 x 1/4"-20 x 34mm (1.34") threaded stud adapter
• 1 x M5-0.8 x 12mm threaded stud adapter
• 1 x M6-1 x 16mm threaded stud adapter
• 1 x M8-1.25 x 21mm threaded stud adapter
• 4 x 18.3mm (0.72") nylon washers and 1 x 19.6mm (0.77") nylon washer
• 1 x rubber friction washer

FAQs

Will it fit my fishfinder?
It fits the gimbal bracket rather than the unit itself, so what matters is the thread on your gimbal knob. Six stud adapters are supplied, covering #10-24, 5/16"-18, 1/4"-20, M5, M6 and M8. Between them they cover the brackets supplied with most GPS, chartplotter, fishfinder and VHF units.

Does my fishfinder still tilt?
Yes. The Gim-Ball replaces one gimbal knob and clamps in its place, so the bracket keeps working as it did.

What can I hang off it?
Anything within the B-size ball's 907g (2 lb) standard-use limit: a phone, an action camera, a handheld GPS or a VHF. Add a B-size arm and the matching holder.
