RAM Camera Base (1/4"-20 Male Thread) - C Series (1.5" Ball)

RAM-202AU RAM® Camera Base (1/4"-20 Male Thread), C Series

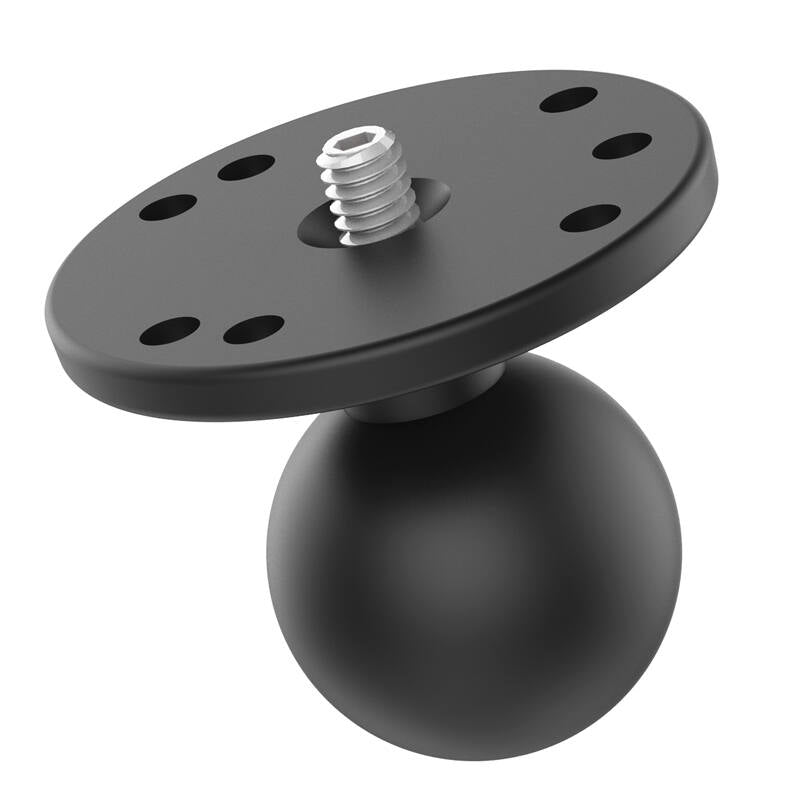

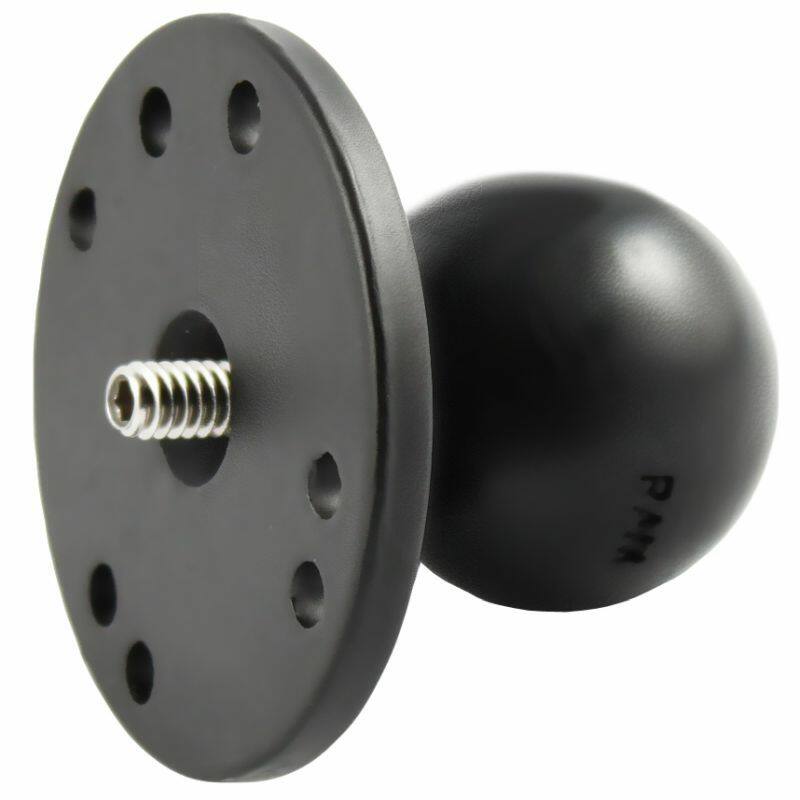

The RAM-202AU pairs a 63.5mm (2.5") round base with a 1/4"-20 male threaded stud and a C Size 1.5" rubber ball, letting you mount any camera or camcorder with a standard 1/4"-20 socket onto any RAM C-series arm. The larger C ball carries more weight than the B-series version, suiting heavier cameras and high-vibration use.

Key Features

• 63.5mm (2.5") diameter round plate with 1/4"-20 camera thread for extra support and stability
• Includes C Size 1.5" RAM ball that connects to any RAM C-series arm
• Powder-coated, marine-grade aluminium construction for demanding environments
• Backed by RAM's lifetime warranty

Works With

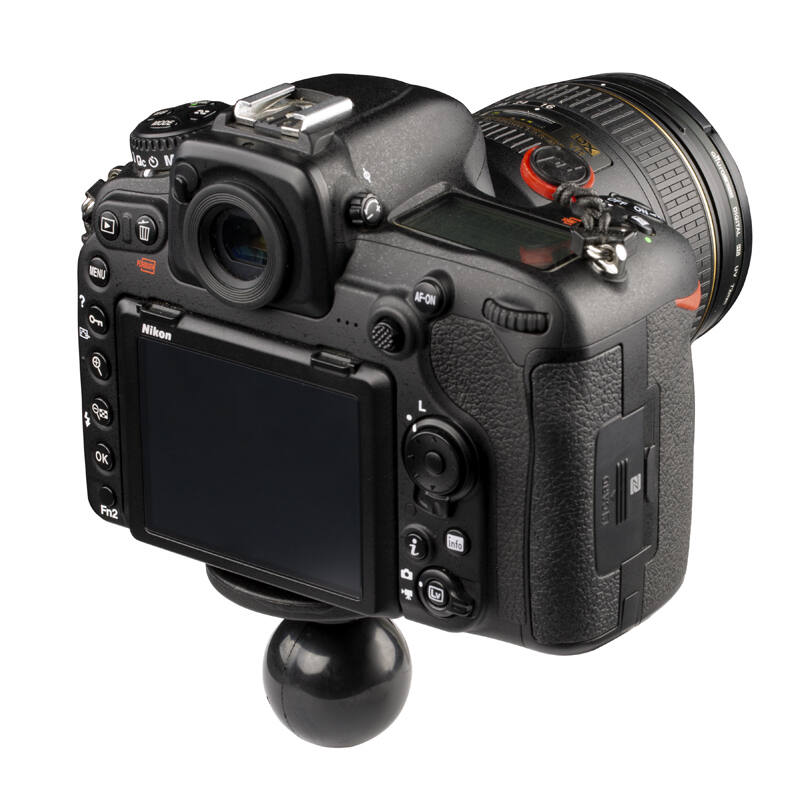

Compatible with any camera or camcorder that has a standard 1/4"-20 female threaded socket, paired with any RAM C-series (1.5" ball) arm and socket base.

Dimensions & Specifications

• Thread: 1/4"-20; threaded post 19mm (3/4") long
• Hole pattern: 4-hole AMPS, 1.181" x 1.496", or 3-hole 120-degree, 1.812"
• Ball size: 1.5" rubber ball, "C" Size
• Round plate diameter: 63.5mm (2.5")
• Weight: 98g (0.22 lbs)
• Weight capacity: standard use 1.81kg (4 lbs), heavy-duty use 1.36kg (3 lbs)
• Material: powder-coated marine-grade aluminium

What's Included

• 1 x RAM-202AU aluminium camera base with 1/4"-20 stud and C Size 1.5" ball

FAQs

How long is the threaded post?
The 1/4"-20 threaded stud is 19mm (3/4") long.

Will it fit my camera?
If your camera or camcorder has the standard 1/4"-20 tripod thread on its base, yes. That covers the vast majority of cameras and camcorders.

B series or C series, which do I need?
Match the ball size to your RAM arm. This RAM-202AU is the C-series (1.5" ball) version for heavier loads; if your arm uses the smaller 1" B ball, you want the RAM-B-202AU instead.
