RAM-B-231Z-2-366U RAM® ATV/UTV Rail Mount with 1/4"-20 Camera Adaptor - Medium Arm
Features
* The camera adaptor has the universal 1/4"-20 thread and the round plate provides extra support for your camera
* Zinc-coated metal U-bolt base with 1" rubber ball is designed for bars from 12.7mm to 32mm diameter
* U-Bolt to sit at right angles to mounting rail and includes black cover caps for exposed ends of the U-bolt
* Strap base works on bars / rails / posts 40-80mm in Diameter
* B size RAM® arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

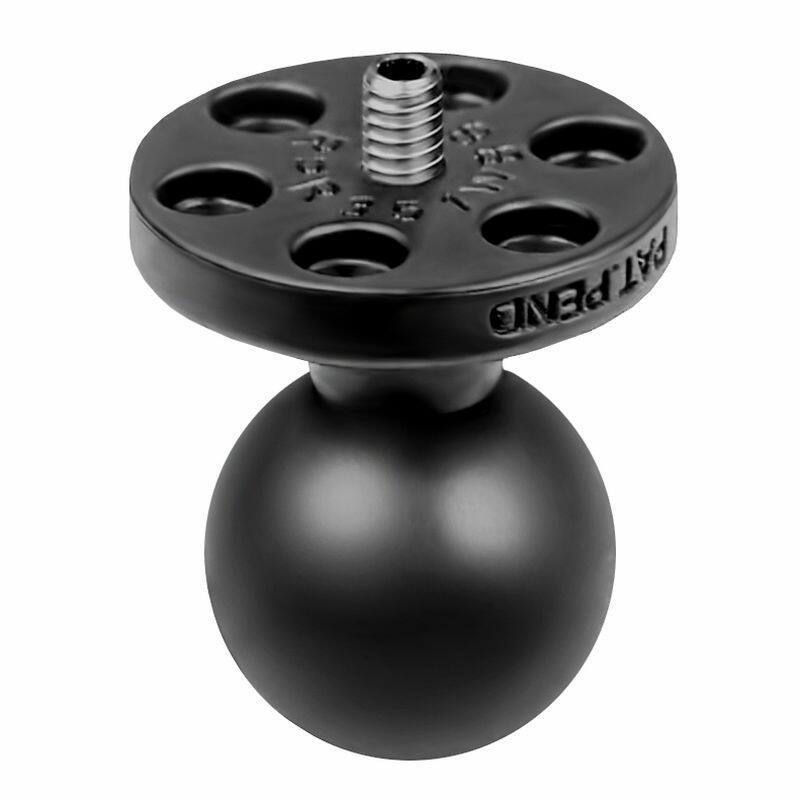

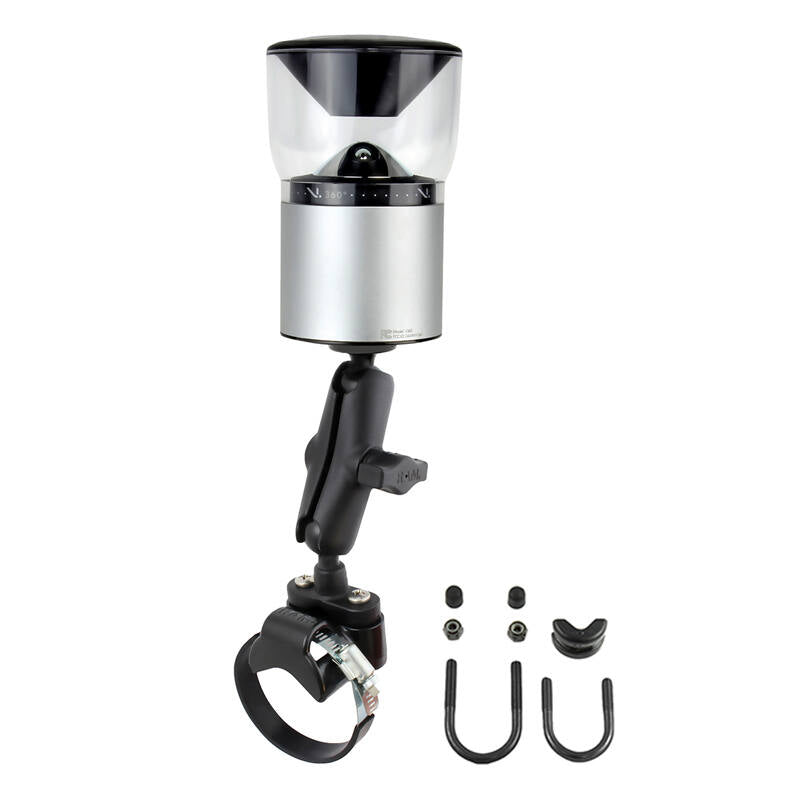

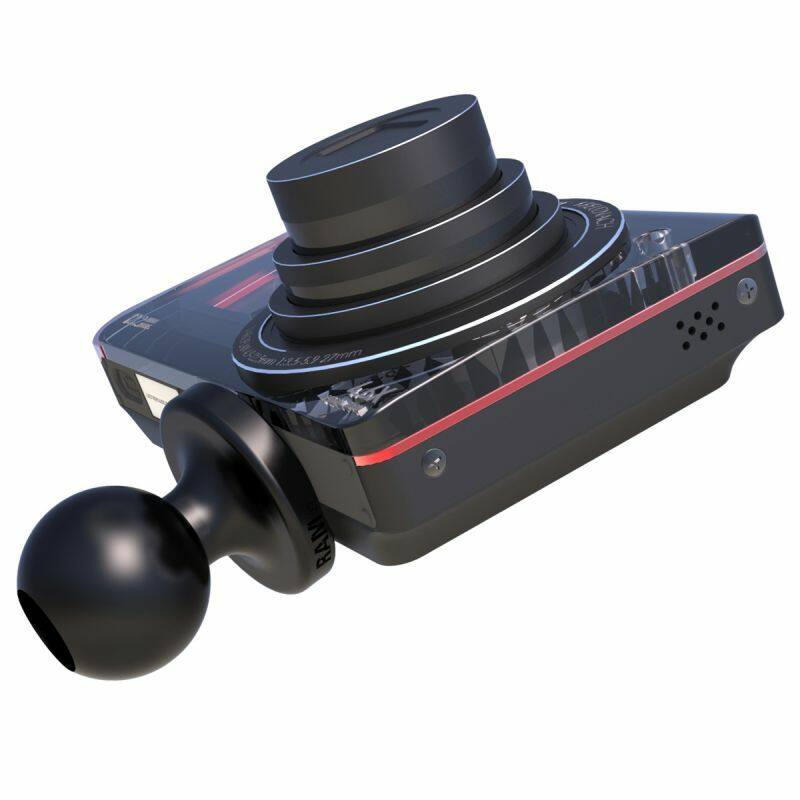

This camera mount for handlebars, posts or rails consists of a steel strap base, u-bolt bases, double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles
The Rail Base with Zinc Coated U-Bolt will fit bars 12.7 to 32.75mm diameter while the ATV/UTV Strap & 1" Ball fits rails 40-80mm (1.57-3.15")Diameter
Designed for a clean installation the strap base accommodates most common tubing sizes on UTV’s and ATV's, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won’t have to worry about exposed sharp edges or unwanted loosening.
Included in the kit is a zinc coated metal U-bolt, this allowing you to modify the mount to accommodate mounting location. The base also includes black cover caps to be placed over the exposed ends of the U-bolt.

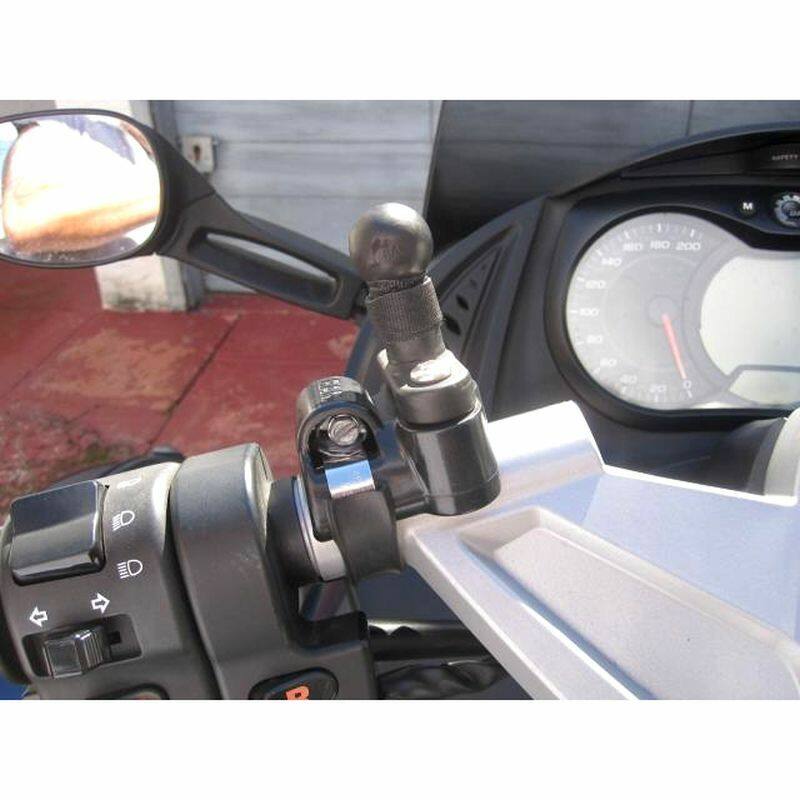

This mount can also be attached to smaller diameter handlebars on ATV's using the included hardware.
Compatible Devices
Cameras that contain 1/4"-20 Female Threaded Hole

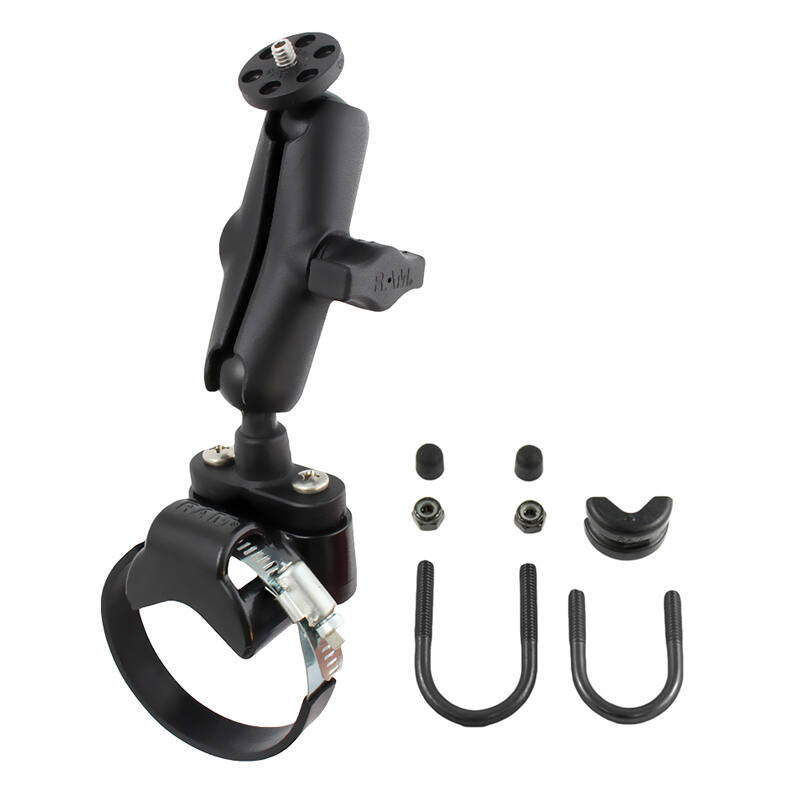

Hardware Included
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
Strap Dimensions:
40 to 80mm (1.57 to 3.15")
U-Bolt Holding Dimensions:
12.7 to 32.75mm (0.50 to 1.25")
Weight
363 grams (0.8 lbs)
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Materials
Marine-grade aluminium
Components

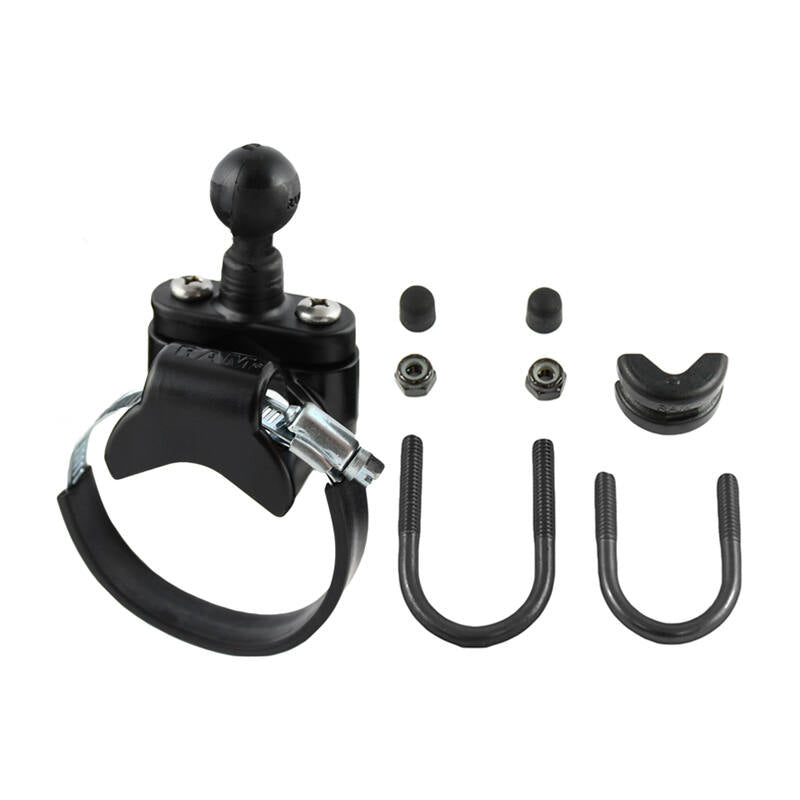

RAM-B-231Z-2U RAM BASE W/ U-BOLT & UTV STRAP BASE
RAM-B-366-201U RAM SMALL RND BASE 1/4-20 W/ ARM
