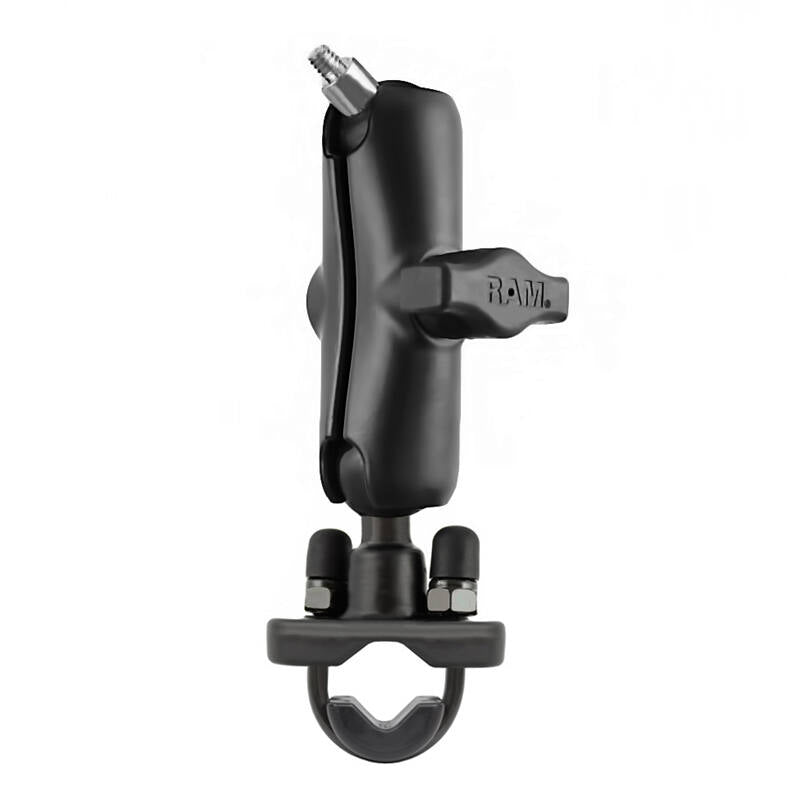

RAM-B-149Z-237U – RAM® U-Bolt Rail Mount with 1/4"-20 Camera Stud and Medium Arm

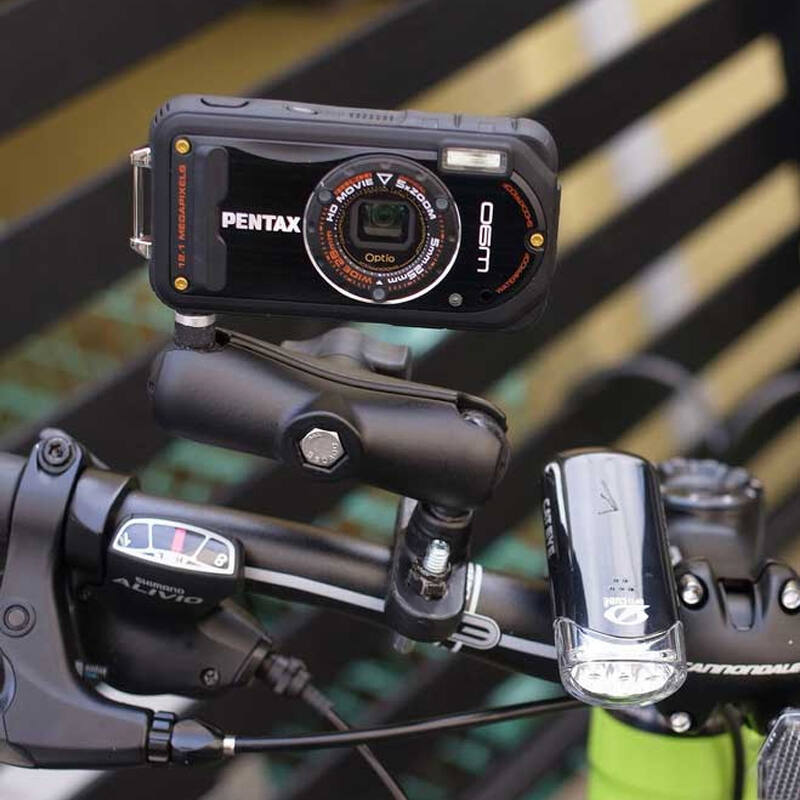

The RAM-B-149Z-237U puts any standard camera on your handlebar or rail. It's a zinc-coated U-bolt base with a medium B-size double socket arm, ending in a 1/4"-20 male stud that threads straight into the tripod socket on the bottom of most cameras and camcorders. It clamps round rails from 12.7mm to 31.8mm (0.5" to 1.25").
Key Features
1/4"-20 male stud fits any camera with a standard tripod thread
Zinc-coated steel U-bolt fits rails 12.7mm to 31.8mm (0.5" to 1.25")
Medium B-size double socket arm for full angle adjustment
Includes both U-bolt sizes, rubber end caps and a composite adapter for thinner bars

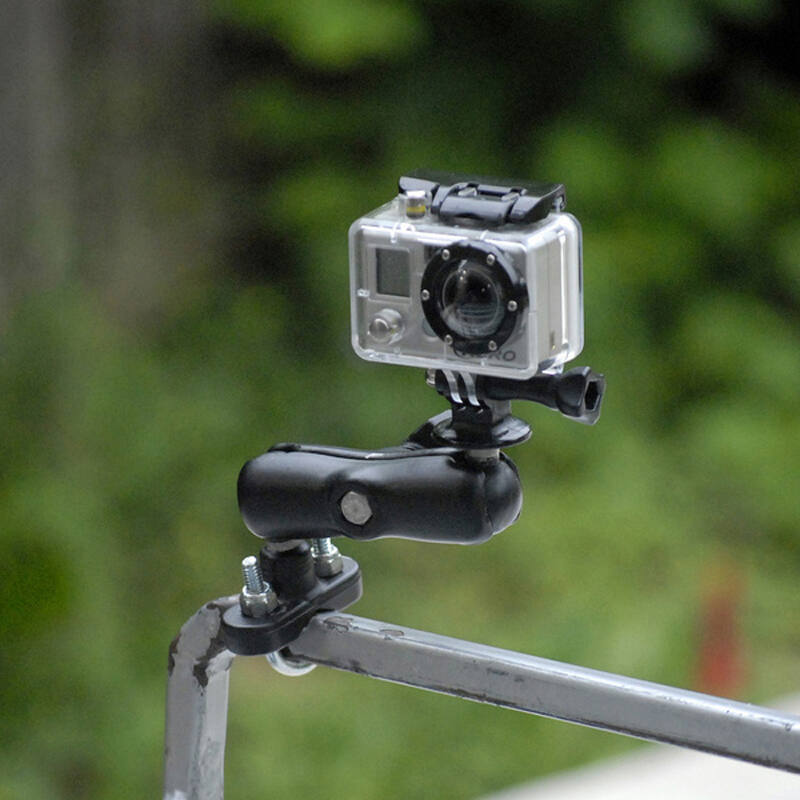

Any camera, action cam or camcorder with a 1/4"-20 female tripod thread. Need a shorter reach? See the short-arm RAM-B-149Z-A-237U.
Dimensions & Specifications
Camera thread: 1/4"-20 male stud
U-bolt clamping range: 12.7mm to 31.8mm (0.5" to 1.25")
Arm overall length: 94mm (3.69")
Arm socket-to-socket: 76mm (3")
Ball size: 1" rubber ball, RAM B-size
Material: powder-coated marine-grade aluminium with zinc-coated steel U-bolt
Weight: 272g (0.6 lb)
Load rating: up to 907g (2 lb) standard use; 454g (1 lb) for heavy-duty or high-vibration use
What's Included

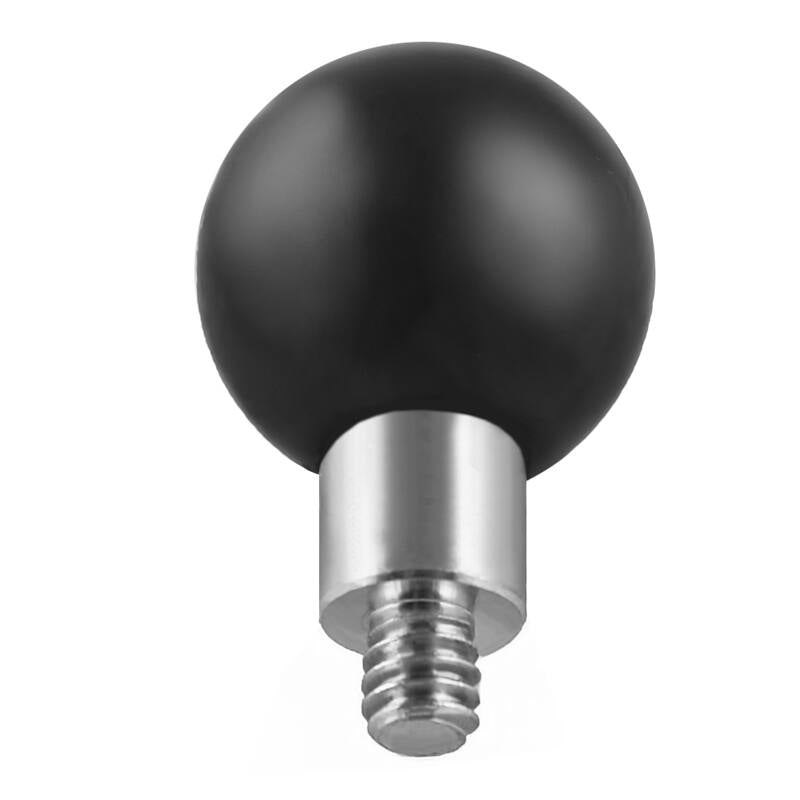

RAM-B-237U 1" ball with 1/4"-20 camera stud
RAM-B-231ZU zinc-coated U-bolt rail base with 1" ball
RAM-B-201U medium double socket arm
One 1/4"-20 U-bolt for 0.5"-1" rails and one for 1"-1.25" rails, two nylock nuts, two rubber caps, U-bolt spacer
FAQs
Will it fit my camera? If your camera, action cam or camcorder has the standard 1/4"-20 threaded socket on its base (the same thread tripods use), it screws straight on.
