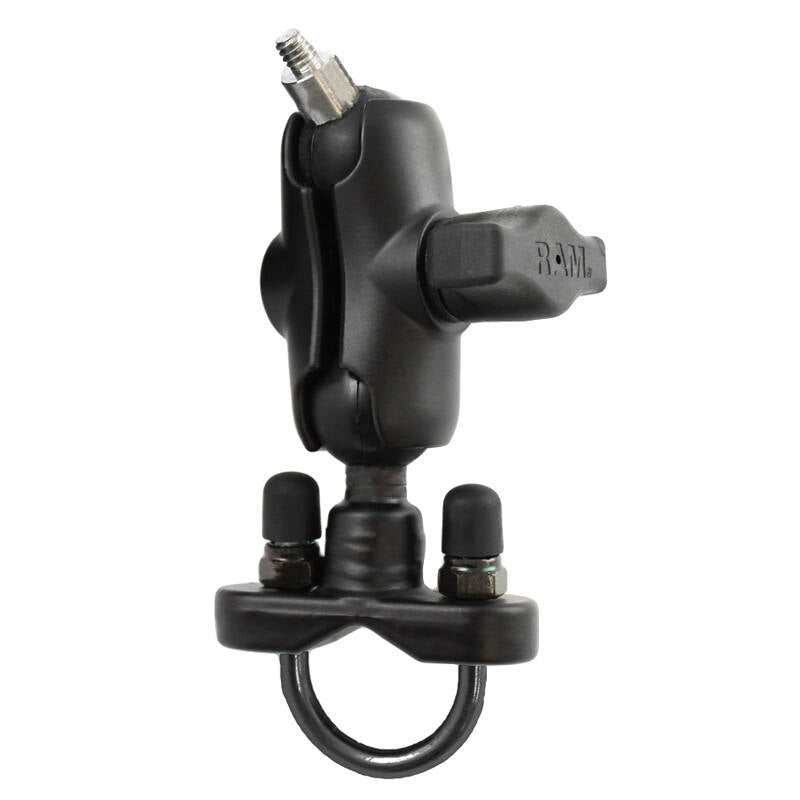

RAM-B-149Z-A-237U RAM® Handlebar U-Bolt Double Ball Short Mount with 1/4"-20 Threaded Stud
Features
* Threaded stud on ball works with cameras that contain 1/4"-20 Female Threaded Hole
* Zinc-coated metal U-bolt base with 1" rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt
* Short RAM double socket arm uses ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This consists camera mounting for handlebars consists of a zinc coated U-bolt base, SHORT double socket arm and 1" diameter rubber ball, connected to a 1/4"-20 camera thread. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows for infinite articulation and optimum viewing angles.

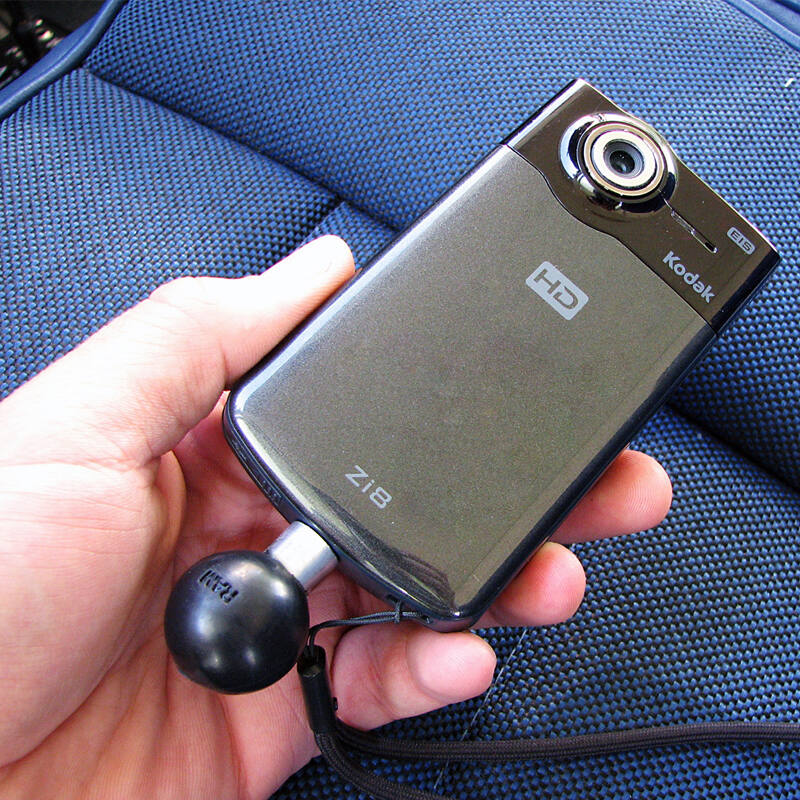

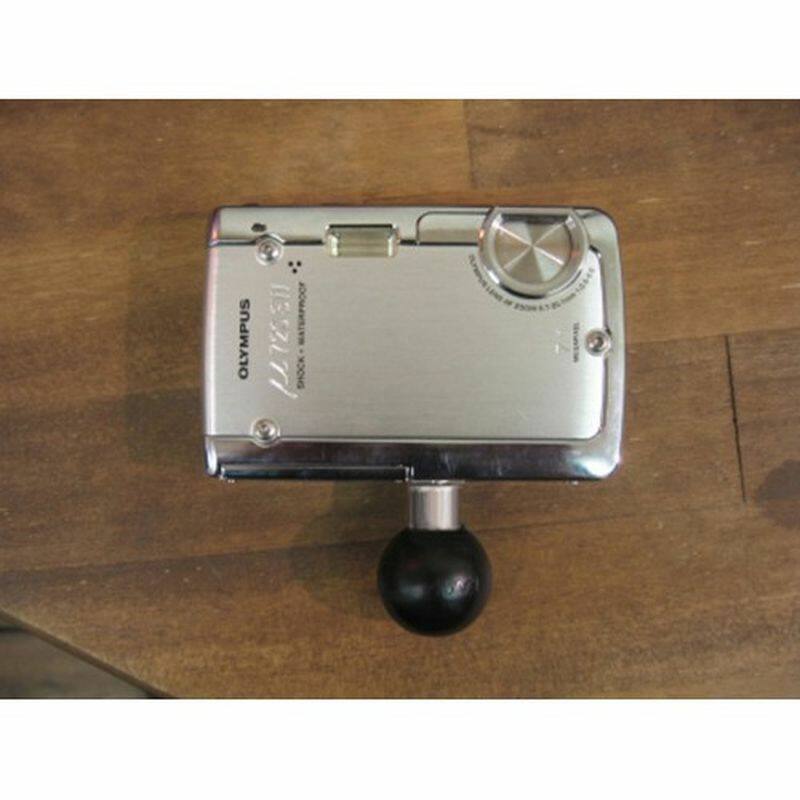

The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.

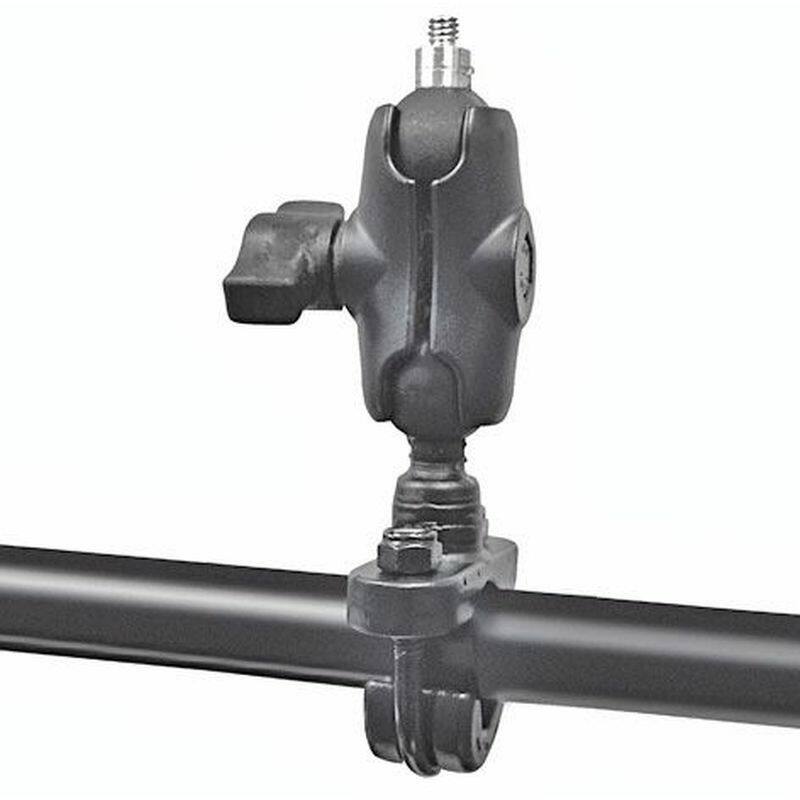

U-Bolt base will accommodate rails from 12.7 mm to 31.75 mm (0.50" to 1.25") in diameter. Also included are black cover caps to be placed over the exposed ends of the U-bolt and a composite adapter for narrower bars (to a minimum of 12.7mm)
Compatible Devices
Cameras that contain 1/4"-20 Female Threaded Hole
Materials:
Powder Coated Marine Grade Aluminium
Zinc coated steel U-bolt
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Hardware Included
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
U-Bolt Dimensions:
Rails 12.7mm to 32mm (0.5" to 1.25") diameter.
Ball Size:
1" Rubber Ball "B" Size
Weight:
277 grams (0.61 lbs.)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:

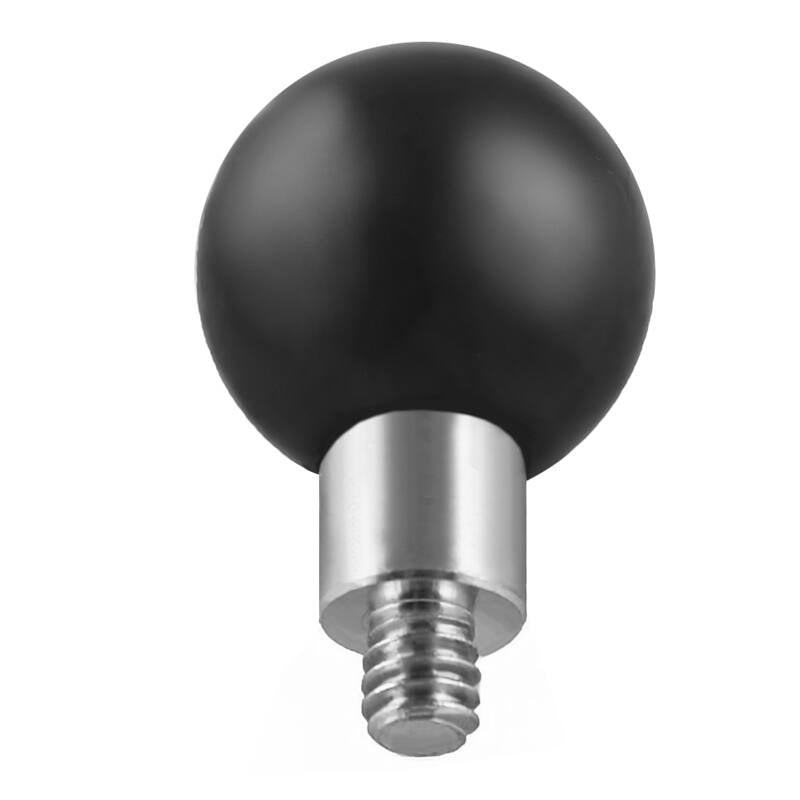

RAM-B-237U BALL WITH STANDARD 1/4 CAMERA MOUNT THREAD
RAM-B-231ZU RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS
RAM-B-201U-A SHORT DOUBLE SOCKET ARM FOR 1" BALL

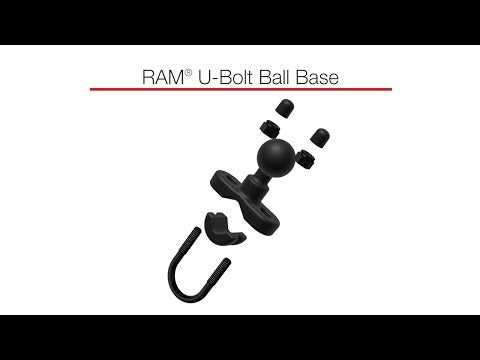

YouTube:
