RAM Mounts

RAM Clamp Base - Square 100mm Post Base clamp with 1.5 inch (C Series) Ball

RAM Clamp Base - Square 100mm Post Base clamp with 1.5 inch (C Series) Ball

SKU:RAM-247U-4

Regular price $104.89 NZD
Regular price Sale price $104.89 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

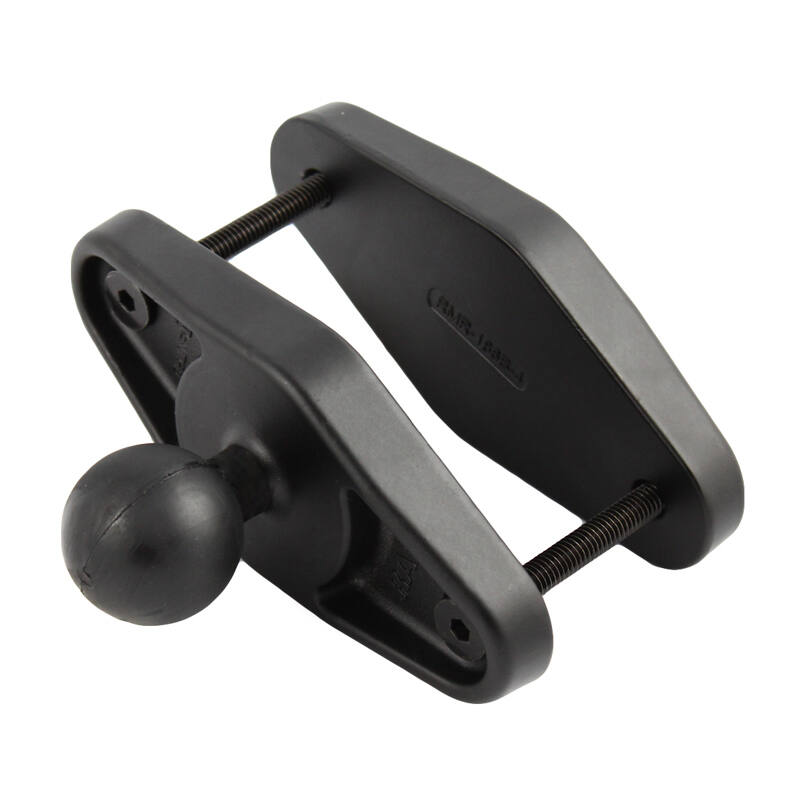

RAM-247U-4 RAM® Square Post Clamp Base for Posts up to 101mm / 4" Wide - C Size


Features

* Clamping base ideal for square posts up to 101mm wide; adjustable and easily removable
* Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty



The RAM-247U-4 is a clamp base with 1.5" rubber ball that will connect to rails and posts with up to 4" (100mm) maximum width

Specs & Features

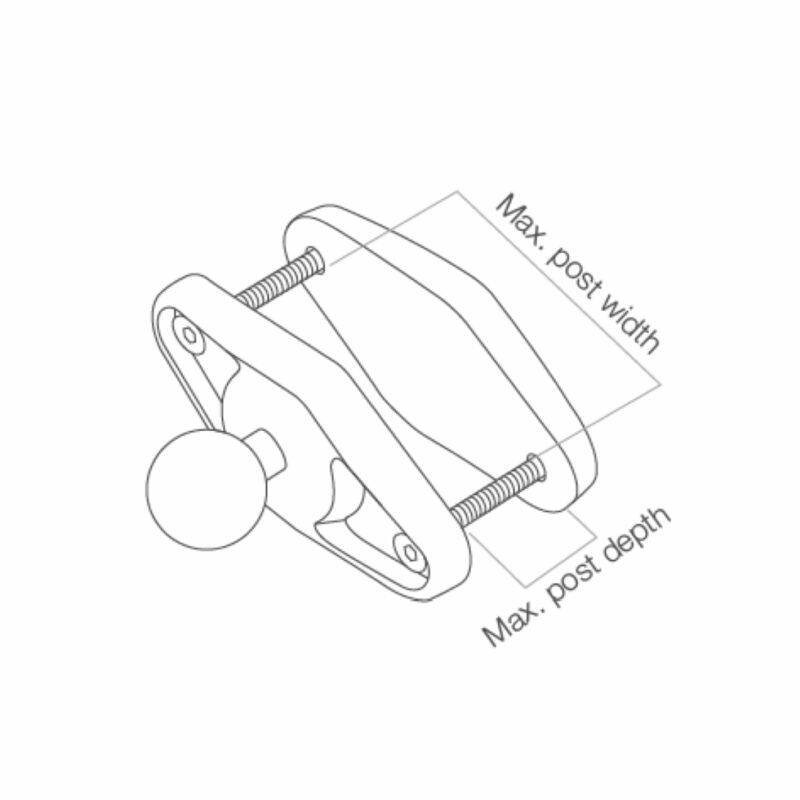

Maximum Width
101.6 mm (4")

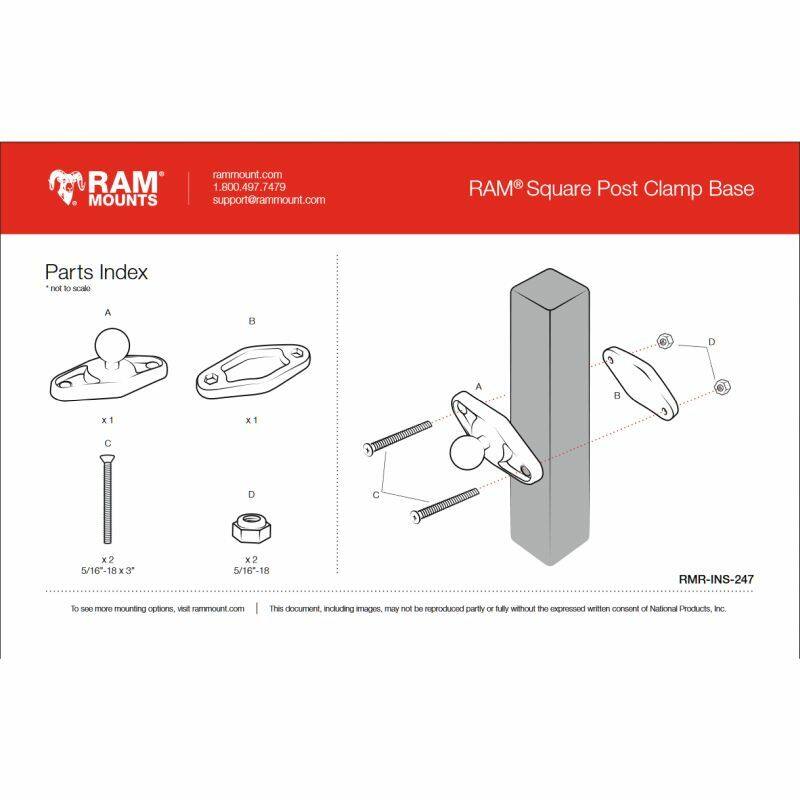

Hardware Included

(2) 5/16"-18 x 3" Machine Screws
(2) 5/16"-18 Nylock Nuts


Weight:
531 grams (1.17 lbs.)

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Material:
Powder Coated Marine Grade Aluminium

Ball Size:
1.5" "C" size Rubber Ball Size



YouTube:
https://www.youtube.com/watch?v=kjDomm7DCRk
