RAM Clamp Base - Square 44-101mm Post Clamp with C Series Ball

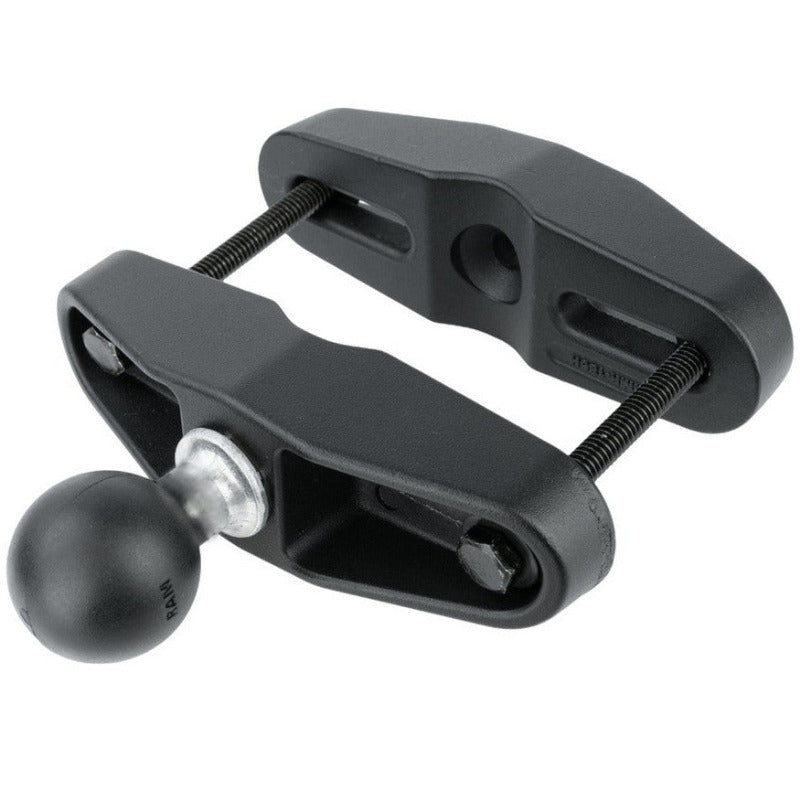

RAM-247U Universal Square Post Clamp Base (44.4mm–101.6mm, C Size Ball)

The RAM-247U is a RAM Mounts square post clamp base with slotted mounting holes, fitting posts from 44.4mm to 101.6mm (1.75"–4") wide. Fitted with a C size 1.5" rubber ball, it's the most universal clamp base in the range and the one to choose when you don't know the exact post width, or need to move it between machines.

Key Features

• Slotted mounting holes clamp square posts from 44.4mm to 101.6mm (1.75"–4") wide; adjustable and easily removable
• Includes a C size 1.5" RAM rubber ball that connects to any C size RAM double socket arm
• RAM rubber ball-and-socket design gives near-infinite angle adjustment
• Ideal for forklifts and other equipment where post width can vary
• Powder-coated marine-grade aluminium, built for vibration and weather
• Backed by RAM's lifetime warranty

Works With

Any C size (1.5" ball) RAM component: connect a C size double socket arm, then add a C size ball adapter or device holder to suit your gear. Suits medium to large tablets and other heavier devices. For phones and handheld PCs, the B size RAM-B-247U uses the same slotted clamp.

Want it ready to go? The RAM-101U-247 kit pairs this base with a medium C size arm and a round AMPS plate.

Dimensions & Specifications

• Clamp range: 44.4mm to 101.6mm (1.75"–4") wide
• Ball size: 1.5" (C size)
• Weight capacity, standard use: 1.81kg (4 lbs)
• Weight capacity, heavy-duty use: 1.36kg (3 lbs)
• Weight: 658g (1.45 lb)
• Material: powder-coated marine-grade aluminium
• Hardware included: (2) 5/16"-18 x 3.5" hex bolts, (2) 5/16"-18 nuts, (2) flat washers, (2) lock washers, (2) rubber caps

FAQs

What size post does it fit? Square posts from 44.4mm to 101.6mm (1.75"–4") wide, thanks to the slotted mounting holes.

How is this different from the RAM-247U-4? The RAM-247U-4 has fixed holes for posts up to 102mm. The RAM-247U's slotted holes let one base fit a wide range of post sizes, which is handy across a mixed fleet.

What does it connect to? Any C size RAM arm and holder via the included 1.5" ball.
