RAM Clamp Base - Square 44-101mm Post Clamp with Arm & Round Base

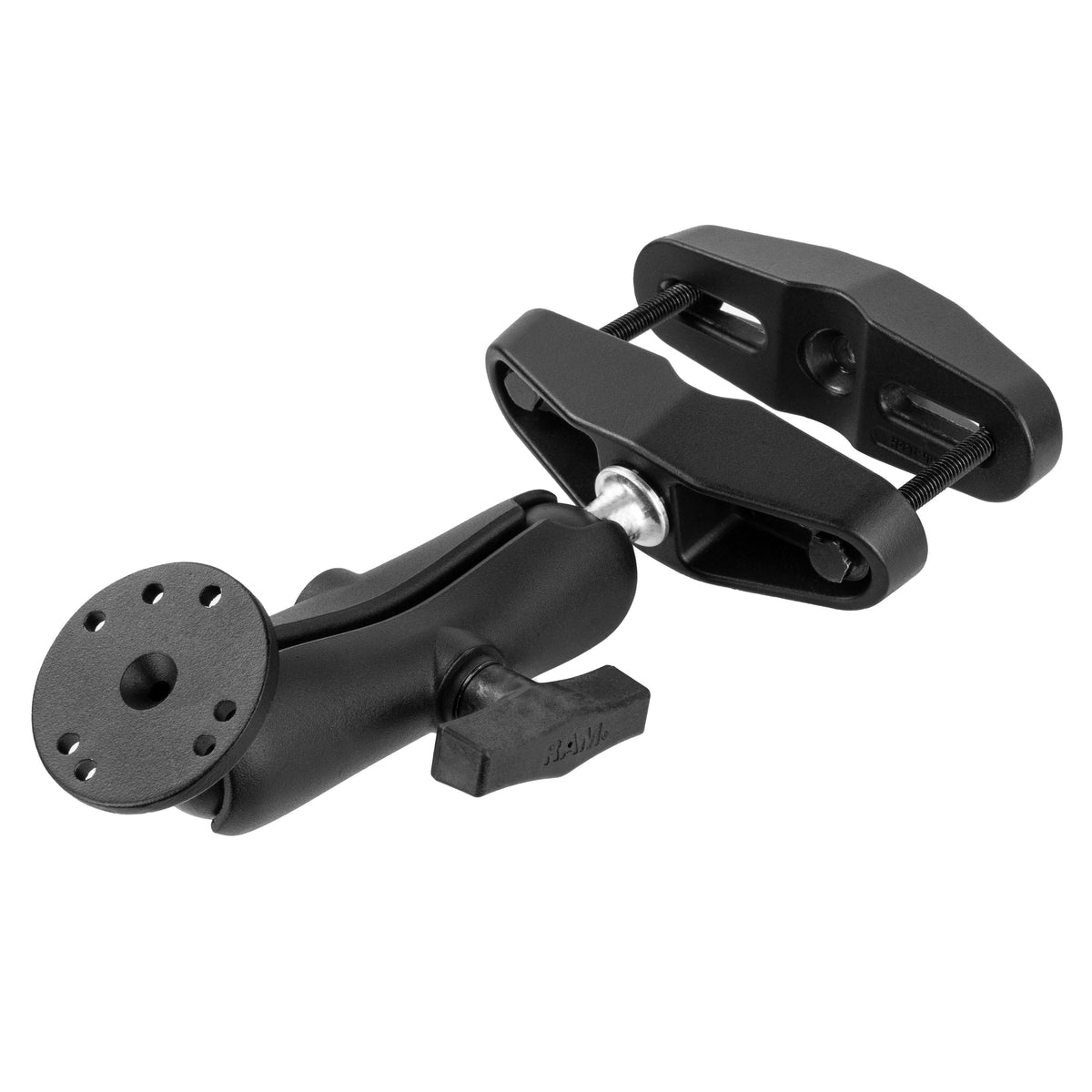

RAM-101U-247 Universal Square Post Clamp Mount with Round AMPS Plate (44.4mm–101.6mm, C Size)

The RAM-101U-247 clamps a square post from 44.4mm to 101.6mm (1.75"–4") wide and pairs it with a medium C-size double socket arm and a 2.5" round AMPS plate. The slotted clamp makes it the most adaptable post mount in the range, so one kit suits forklifts and equipment with different post sizes. It connects to any RAM device holder with the universal AMPS hole pattern.

Key Features

• Slotted square post clamp fits posts from 44.4mm to 101.6mm (1.75"–4") wide, tightened with the included bolts
• Medium C size double socket arm; ball-and-socket joints dampen shock and vibration
• 2.5" round base with the universal AMPS hole pattern connects to any compatible RAM device holder
• Powder-coated marine-grade aluminium, built for demanding environments
• Backed by RAM's lifetime warranty

Works With

Any RAM device holder or cradle with the universal AMPS hole pattern, such as RAM Tab-Tite and Tab-Lock tablet holders and X-Grip cradles with an AMPS plate. Suits medium to large tablets and handheld computers on forklifts, reach trucks and warehouse equipment.

Dimensions & Specifications

• Clamp range: 44.4mm to 101.6mm (1.75"–4") wide
• Arm overall length: 144.5mm (5.69")
• Arm socket-to-socket length: 118.4mm (4.66")
• Round plate hole pattern: 4-hole AMPS 30mm x 38mm (1.181" x 1.496"); 3-hole 120° AMPS 46.0mm (1.812")
• Ball size: 1.5" (C size)
• Weight capacity, standard use: 1.81kg (4 lbs)
• Weight capacity, heavy-duty use: 1.36kg (3 lbs)
• Weight: 1.06kg (2.33 lb)
• Material: powder-coated marine-grade aluminium
• Hardware included: (2) 5/16"-18 x 3.5" hex bolts, (2) 5/16"-18 nuts, (2) flat washers, (2) lock washers, (2) rubber caps

What's Included

This is a complete mount kit made up of three RAM components, all of which we also sell individually:

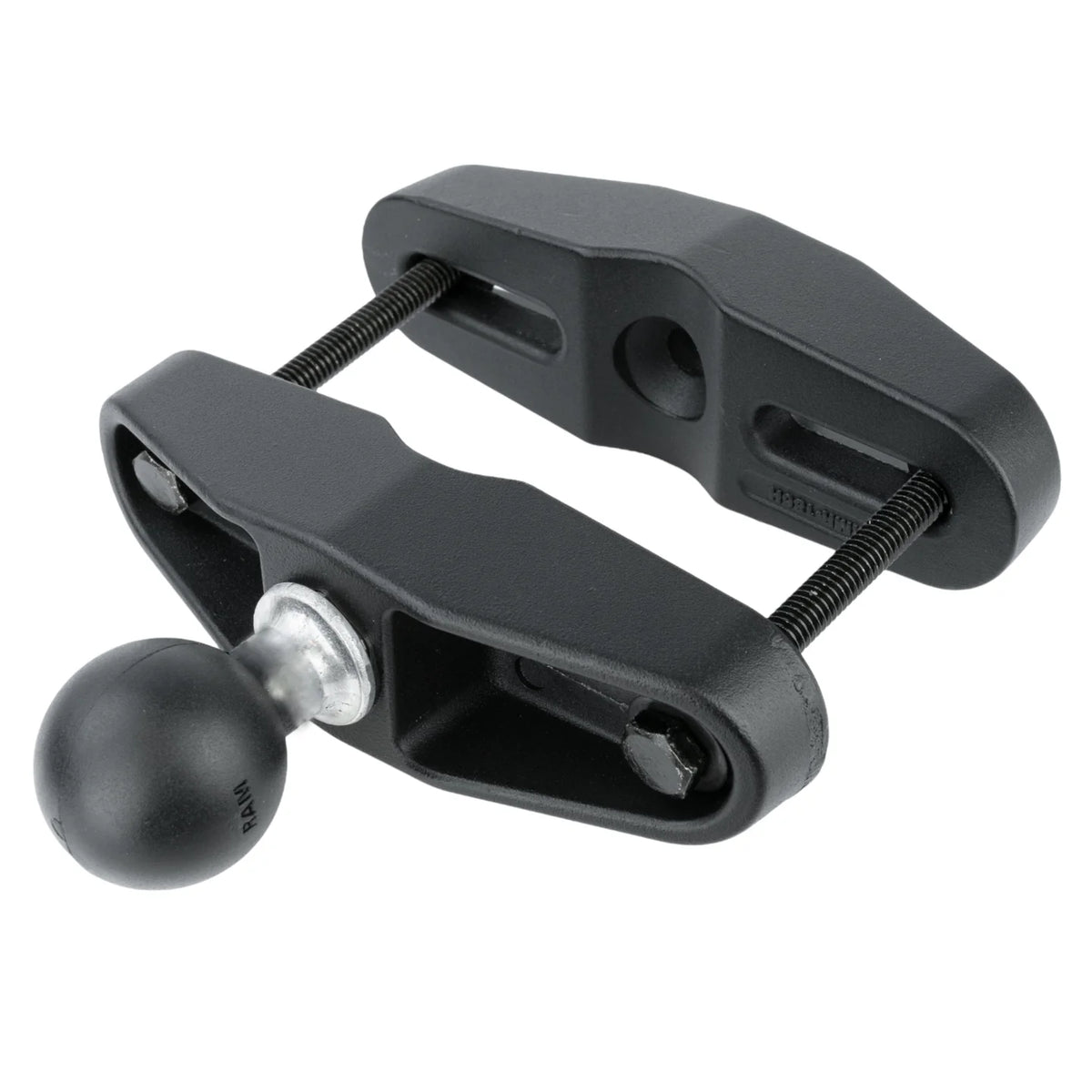

• RAM-247U - universal square post clamp base with 1.5" ball, C size
• RAM-201U - medium double socket arm, C size (1.5" ball)
• RAM-202U - 63.5mm round AMPS base with 1.5" ball, C size

Buying the kit works out cheaper than the three parts bought separately.

FAQs

What size post does it fit? Square posts from 44.4mm to 101.6mm (1.75"–4") wide.

How is this different from the RAM-101U-247-4? The RAM-101U-247-4 uses a fixed-hole clamp for posts up to 102mm. This kit's slotted clamp adjusts across 44.4mm to 101.6mm, so it suits a mixed fleet.

What does the round plate connect to? Any RAM device holder with the universal AMPS hole pattern.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
