RAM-202U RAM® Round Plate with Ball - C Size
Features
* 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
* Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

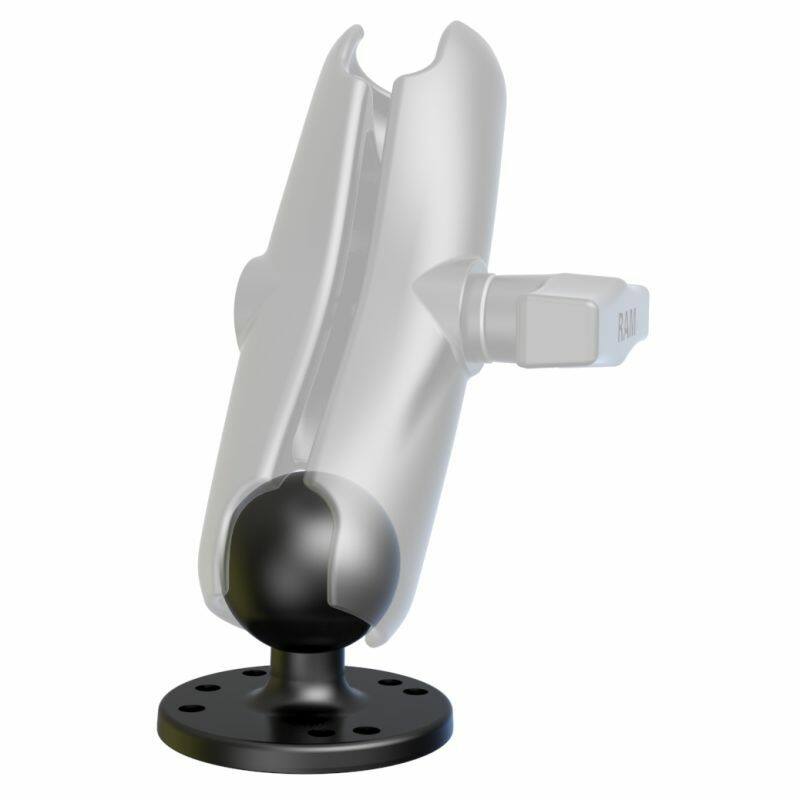

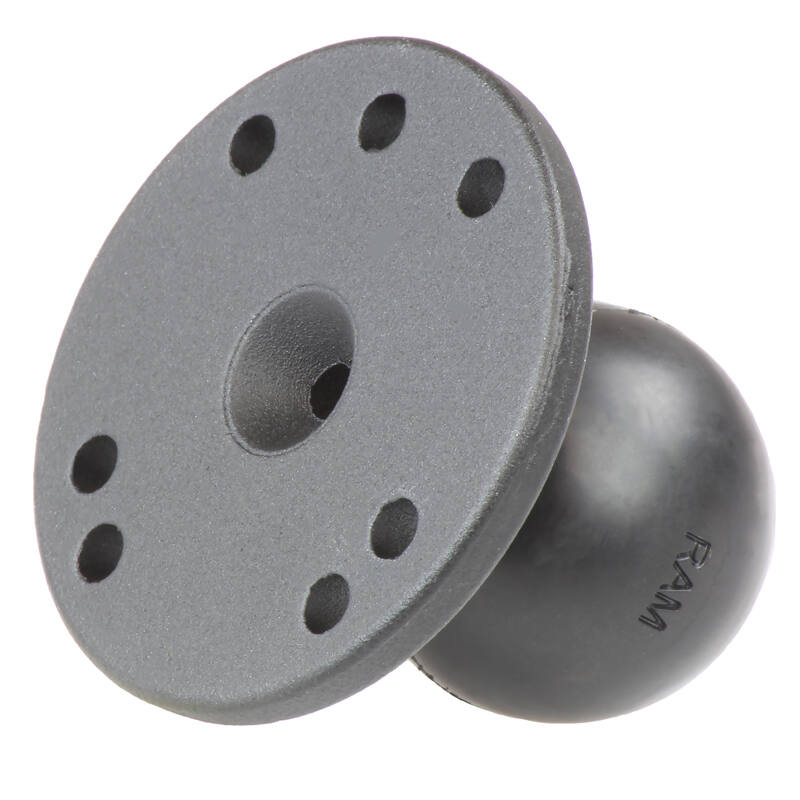

The RAM-202U is a 1.5" diameter rubber ball connected to a flat 63mm / 2.5" diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern.

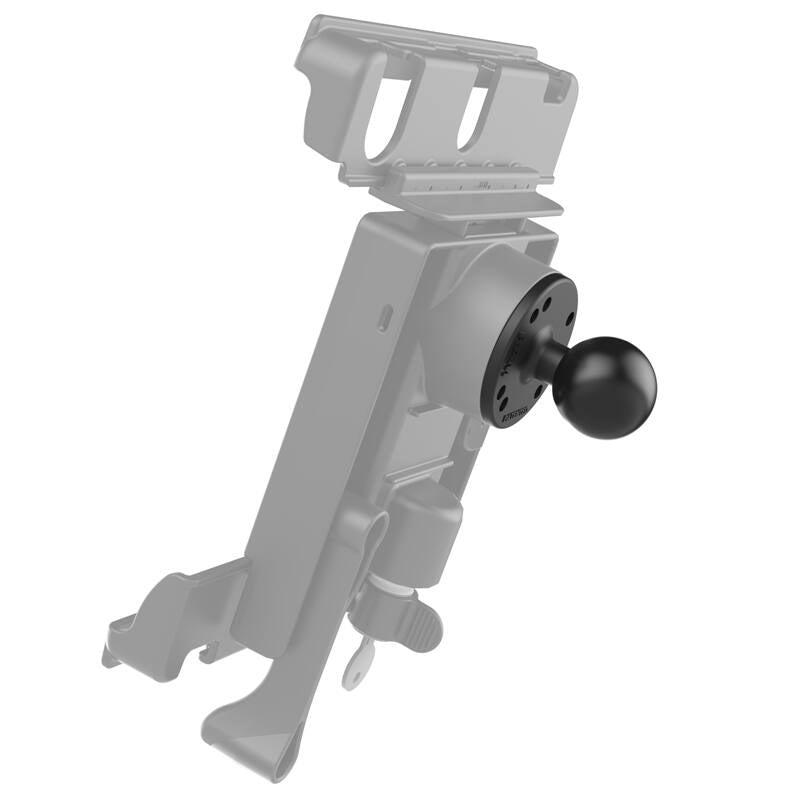

This 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern. The included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm. RAM ball and socket technology allows for near-infinite adjust-ability
Specs & Features
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1.5" Rubber Ball Size
Weight:
100 grams (0.22 lbs)
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
YouTube:
https://www.youtube.com/watch?v=o4Kr0dQza6w
QUESTIONS & ANSWERS
Q: What size screws are needed for the holes on this ball plate?
A: The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
Q: What is the height of the RAM-202U?
A: The overall height of the RAM-202U is 2.25".
