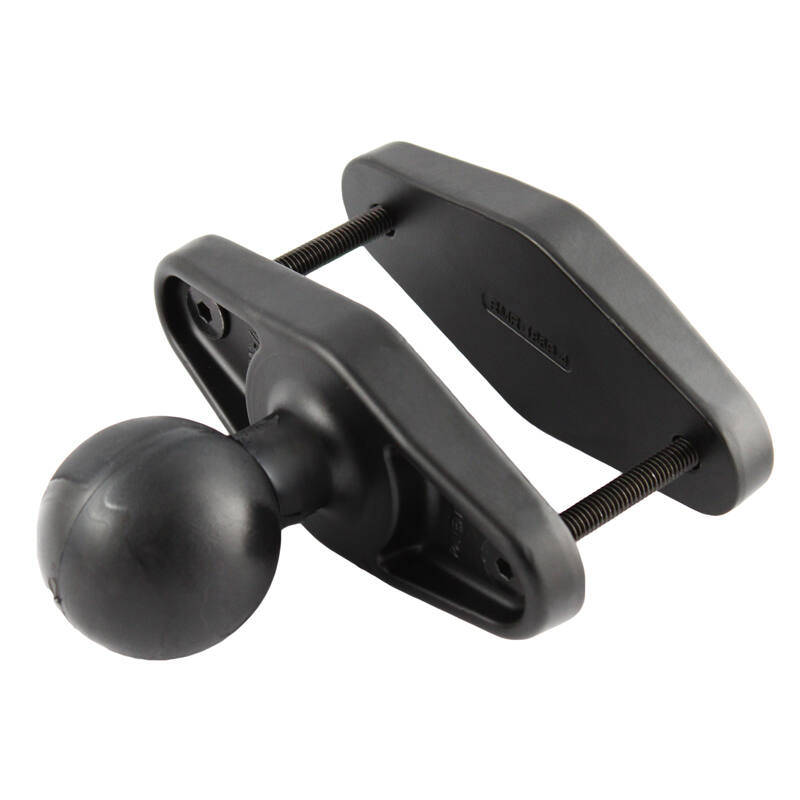

RAM-D-247U-4 Square Post Clamp Base (102mm, D Size Ball)
The RAM-D-247U-4 is a RAM Mounts square post clamp base for posts and rails up to 102mm (4") wide, fitted with a D size 2.25" rubber ball. The widest-clamping base in the D size range, it suits heavier devices and larger displays and pairs with any D size double socket arm.
Key Features
Clamps onto square posts and rails up to 102mm (4") wide; adjustable and easily removed or repositioned
Includes a D size 2.25" RAM rubber ball that connects to any D size RAM double socket arm
Powder-coated marine-grade aluminium, built for vibration and weather
Backed by RAM's lifetime warranty
Works With
Any D size (2.25" ball) RAM component: connect a D size double socket arm, then add a D size ball adapter or device holder to suit your gear. The base is removable and can be repositioned along the post at any time.
For heavier loads or high-vibration applications, the RAM-D-247U-4-IN1 uses the same 102mm clamp footprint with a steel-reinforced ball and includes the mounting hardware.

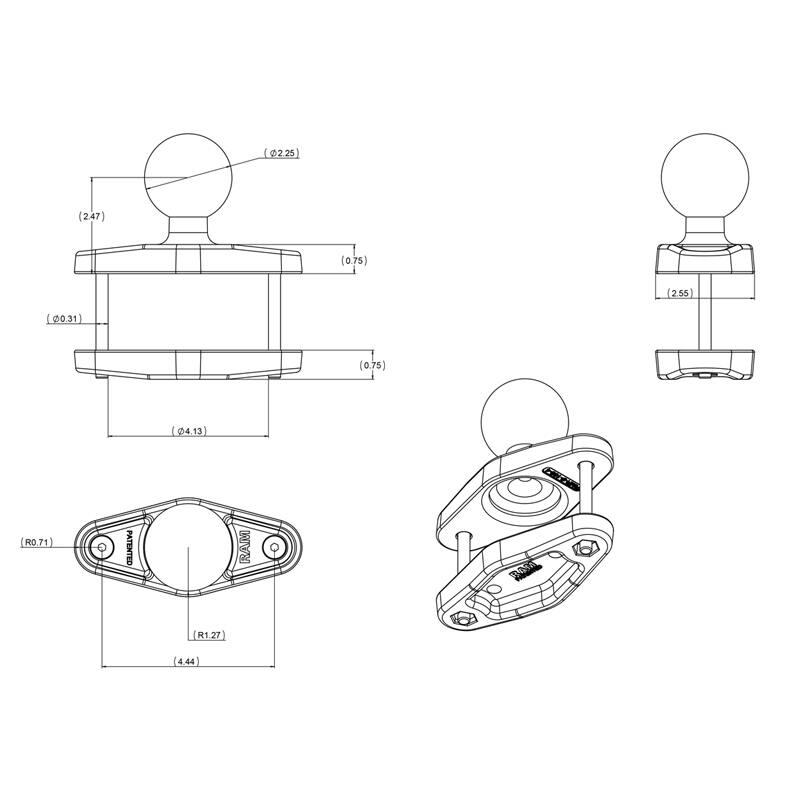

Dimensions & Specifications
Maximum post width: 102mm (4")
Ball size: 2.25" (D size)
Weight capacity, standard use: 2.72kg (6 lbs)
Weight capacity, heavy-duty use: 2.26kg (5 lbs)
Product weight: 653g (1.44 lb)
Material: powder-coated marine-grade aluminium
FAQs
What size post does it fit? Square posts and rails up to 102mm (4") wide.
What does it connect to? Any D size RAM arm and holder via the included 2.25" ball.
What is the difference between this and the RAM-D-247U-4-IN1? The IN1 is the steel-reinforced version, for heavier devices and high-vibration mounting such as forklifts. This standard version clamps the same 102mm post for less.
