RAM Clamp Base - Square 102mm Post Clamp with D Series Ball - reinforced

RAM-D-247U-4-IN1 Steel-Reinforced Square Post Clamp Base (102mm, D Size Ball)

The RAM-D-247U-4-IN1 is a steel-reinforced RAM Mounts square post clamp base for posts and rails up to 102mm (4") wide, fitted with a reinforced D size 2.25" rubber ball. It is built for forklift and other heavy-duty mounting, where the reinforced ball adds security for heavier devices.

Key Features

• Clamps onto square posts and rails up to 102mm (4") wide; adjustable and easily removed or repositioned
• Reinforced D size 2.25" RAM rubber ball connects to any D size RAM double socket arm
• RAM rubber ball-and-socket design gives near-infinite angle adjustment
• Powder-coated marine-grade aluminium, built for vibration and weather
• Backed by RAM's lifetime warranty

Works With

Any D size (2.25" ball) RAM component: connect a D size double socket arm, add a D size ball adapter and a device holder of your choice for an ultra-rugged forklift or industrial mount. The base mounts to posts up to 102mm (4") wide, and can take narrower posts by rotating it so the mounting bolts sit flush against the post. The base is removable and can be repositioned along the post at any time.

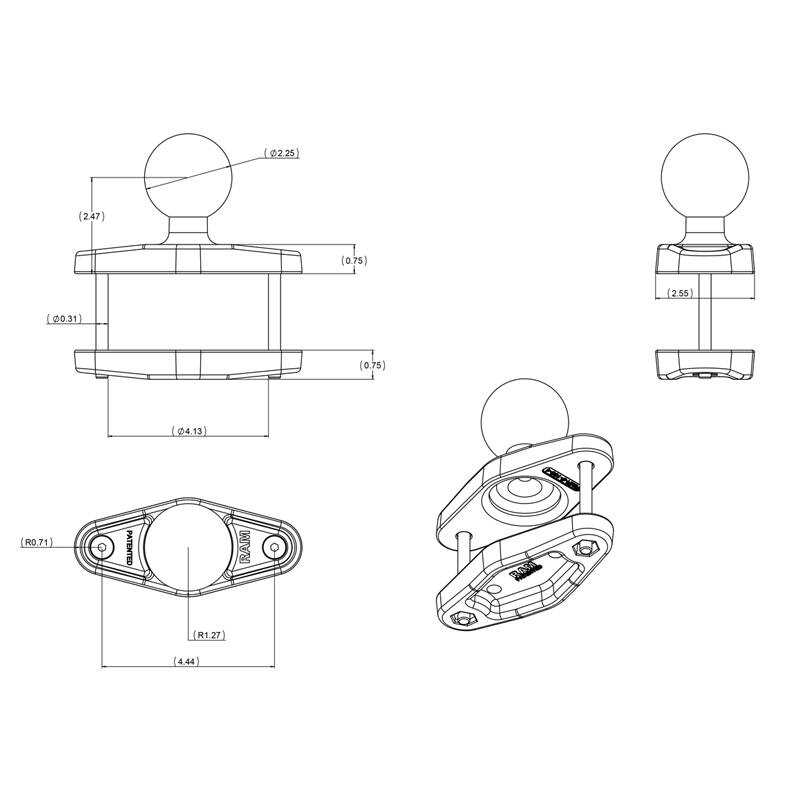

Dimensions & Specifications

• Maximum post width: 102mm (4")
• Ball size: 2.25" (D size), reinforced
• Weight capacity, standard use: 2.72kg (6 lbs)
• Weight capacity, heavy-duty use: 2.26kg (5 lbs)
• Product weight: 698g (1.54 lb)
• Material: powder-coated marine-grade aluminium

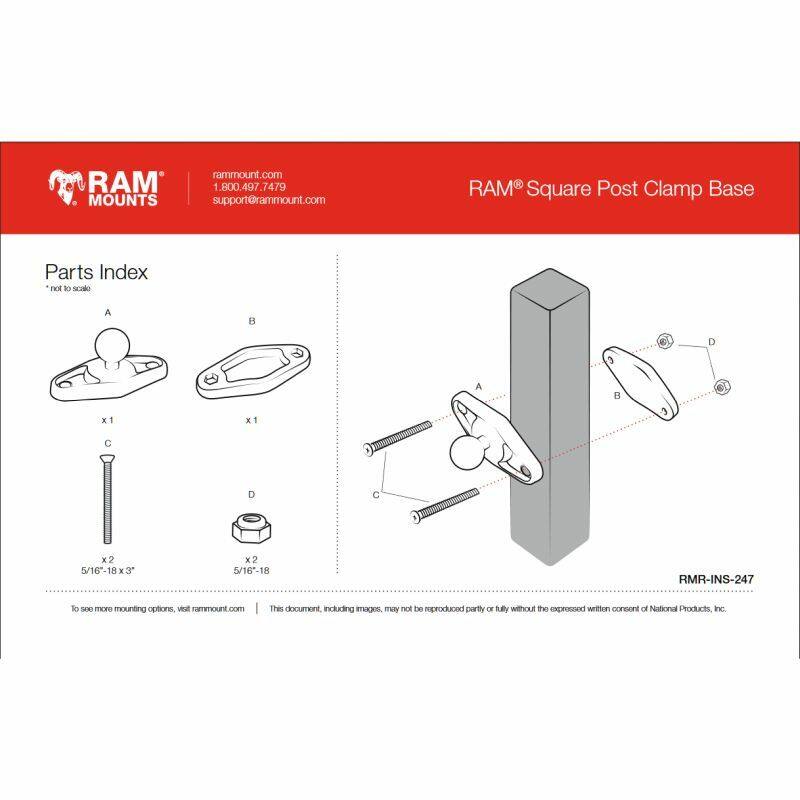

• Hardware included: (2) 5/16"-18 x 3" machine screws, (2) 5/16"-18 Nylock nuts

FAQs

What size post does it fit? Square posts and rails up to 102mm (4") wide; narrower posts are fine by rotating the base so the bolts sit flush.

What is the reinforced ball for? Added security when mounting heavier devices on forklifts and industrial equipment.

Is the mounting hardware included? Yes, two 5/16"-18 x 3" machine screws and two Nylock nuts.

How is it dispatched? In stock items ship from our Auckland warehouse, normally within one business day of your order.
