RAP-326FU - EZY-Mount Quick Release Female Adapter - Composite

RAP-326FU RAM® EZY-Mount™ Quick Release Female Adapter

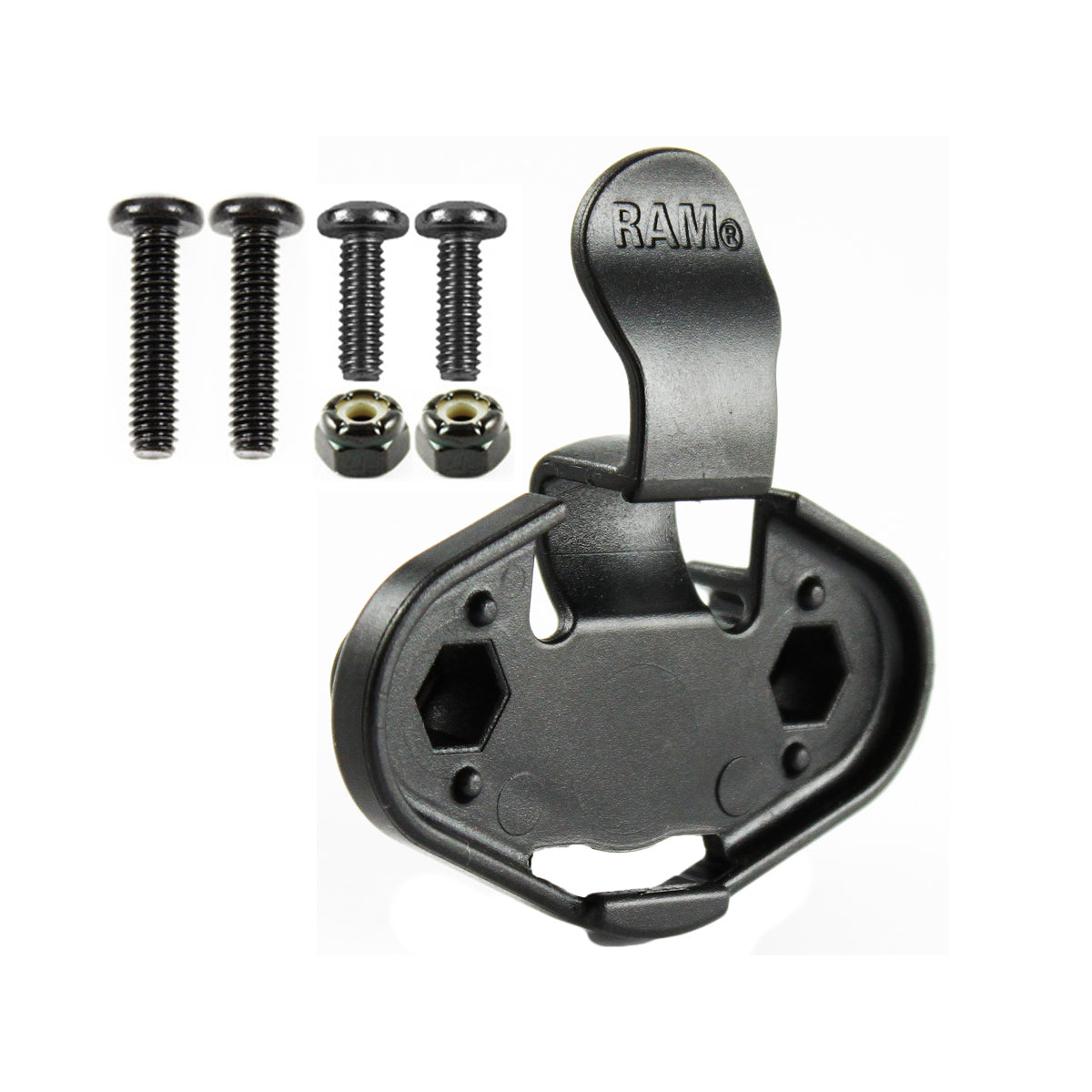

The RAP-326FU is the female half of the RAM® EZY-Mount™ quick release system. Screw it to any RAM® cradle or device with the 2-hole AMPS pattern, pair it with a male EZY-Mount™ adapter on the mount side, and your cradle clicks on and off in seconds.

Key Features

• Quick release: line up the male and female halves and snap them together; push back the release tab to lift the cradle off
• AMPS fit: 2-hole AMPS pattern, 48.6mm (1.912") centre to centre, found on most RAM® cradles
• Swap devices easily: fit an adapter to each cradle and move between devices on the one mount
• Lightweight: high-strength composite, 45g (0.1 lb)
• Hardware included for fixing to your cradle

Works With

On the mount side, the RAP-326FU clicks into any male EZY-Mount™ adapter. The RAP-326MU male adapter and the RAP-326RMU recessed male adapter screw to a mount with the 2-hole AMPS pattern. The RAP-B-326MU carries a 1" B Size ball, so together with this adapter it takes the place of a fixed ball base like the RAP-B-238U and gives you a quick-release cradle on any B Size arm. Want both halves in one pack? The RAP-326U kit includes this adapter and the RAP-326MU.

The system works either way round. To put the female clip on the arm side instead, use the RAP-B-326FU female adapter with built-in 1" ball, and a male adapter on your cradle.

Dimensions & Specifications

• Hole pattern: 2-hole AMPS, 48.6mm (1.912") centre to centre
• Connection: EZY-Mount™ female quick release clip
• Material: high-strength composite
• Weight: 45g (0.1 lb)
• Hardware included: (2) #8-32 x 1/2" machine screws, (2) #8-32 x 5/8" machine screws, (2) #8-32 x 3/4" machine screws, (2) #8-32 Nyloc nuts
• Packaging: poly bag

FAQs

Does the RAP-326FU have a ball?

No. It's a flat female adapter that fixes to your cradle. On the mount side you need a male EZY-Mount™ adapter, such as the RAP-B-326MU with its 1" ball.
