RAP-B-404-326U - EZY-Mount Quick Release Mount - Tough-Claw Medium - Medium Arm

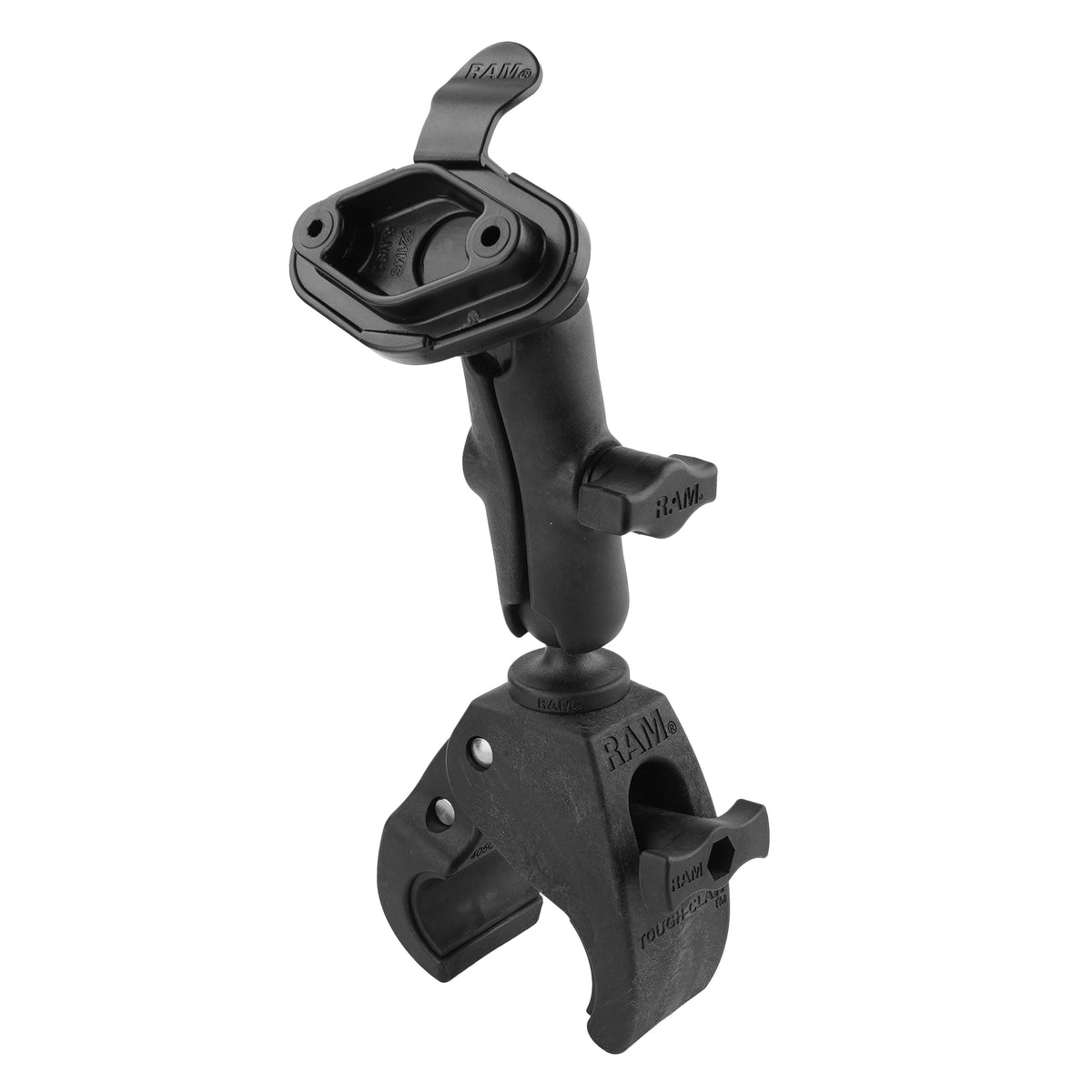

RAP-B-404-326U RAM® Tough-Claw™ Medium Clamp Mount with Quick Release

The RAP-B-404-326U clamps to round, square and odd-shaped rails and bars from 25.4mm to 40.6mm (1" to 1.6") and adds RAM's EZY-Mount™ quick release, so the cradle comes off without touching the clamp or arm. It combines the RAP-B-404U Tough-Claw™ medium clamp base, a medium B Size double socket arm and the RAP-326U EZY-Mount™ adapter kit.

Key Features

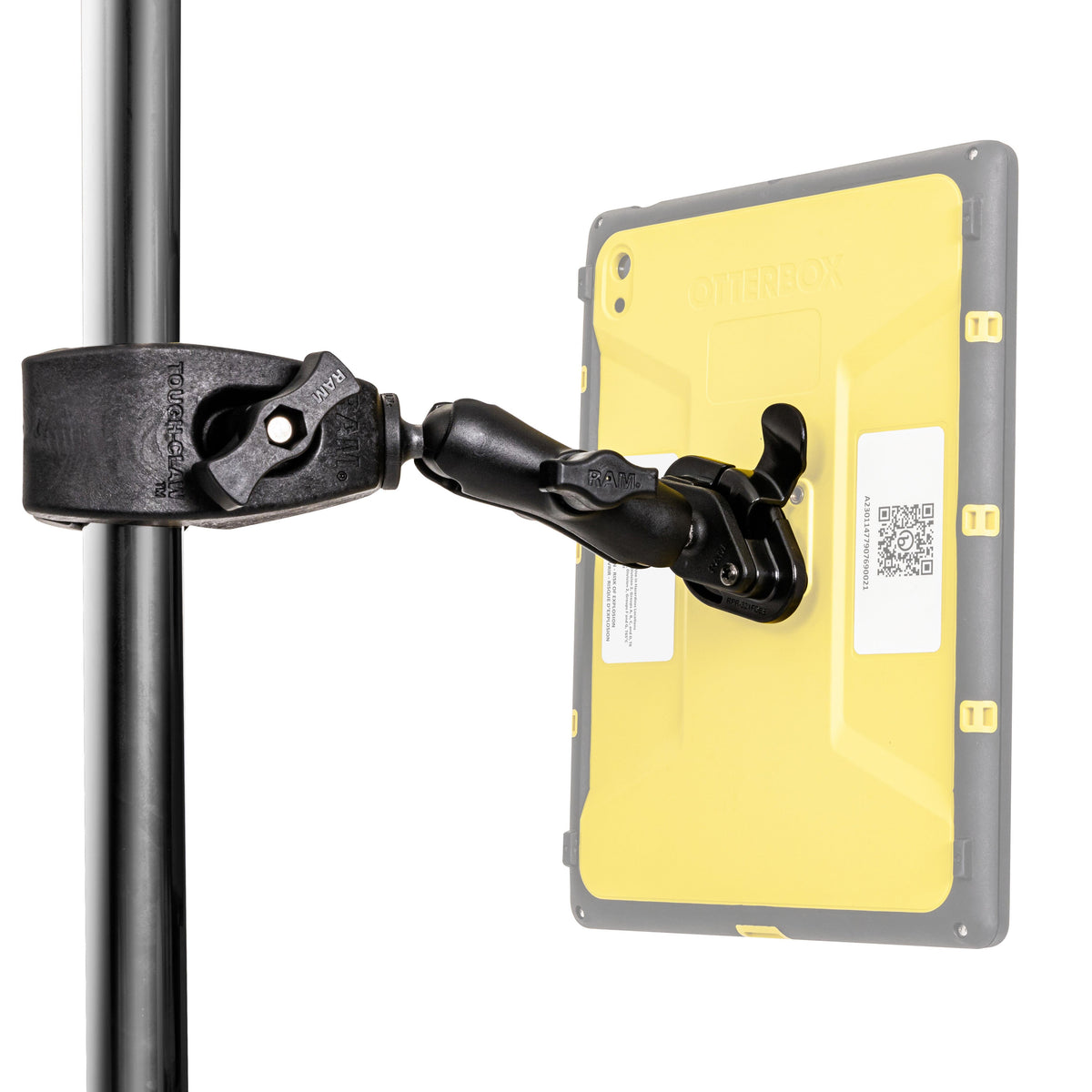

• Tough-Claw™ medium: tool-free clamp for rails and bars 25.4mm to 40.6mm (1" to 1.6"); rubber pads grip and protect the surface
• Medium arm: B Size double socket arm, 76mm (3") socket to socket
• Quick release: push the release tab to lift the cradle off without adjusting the mount

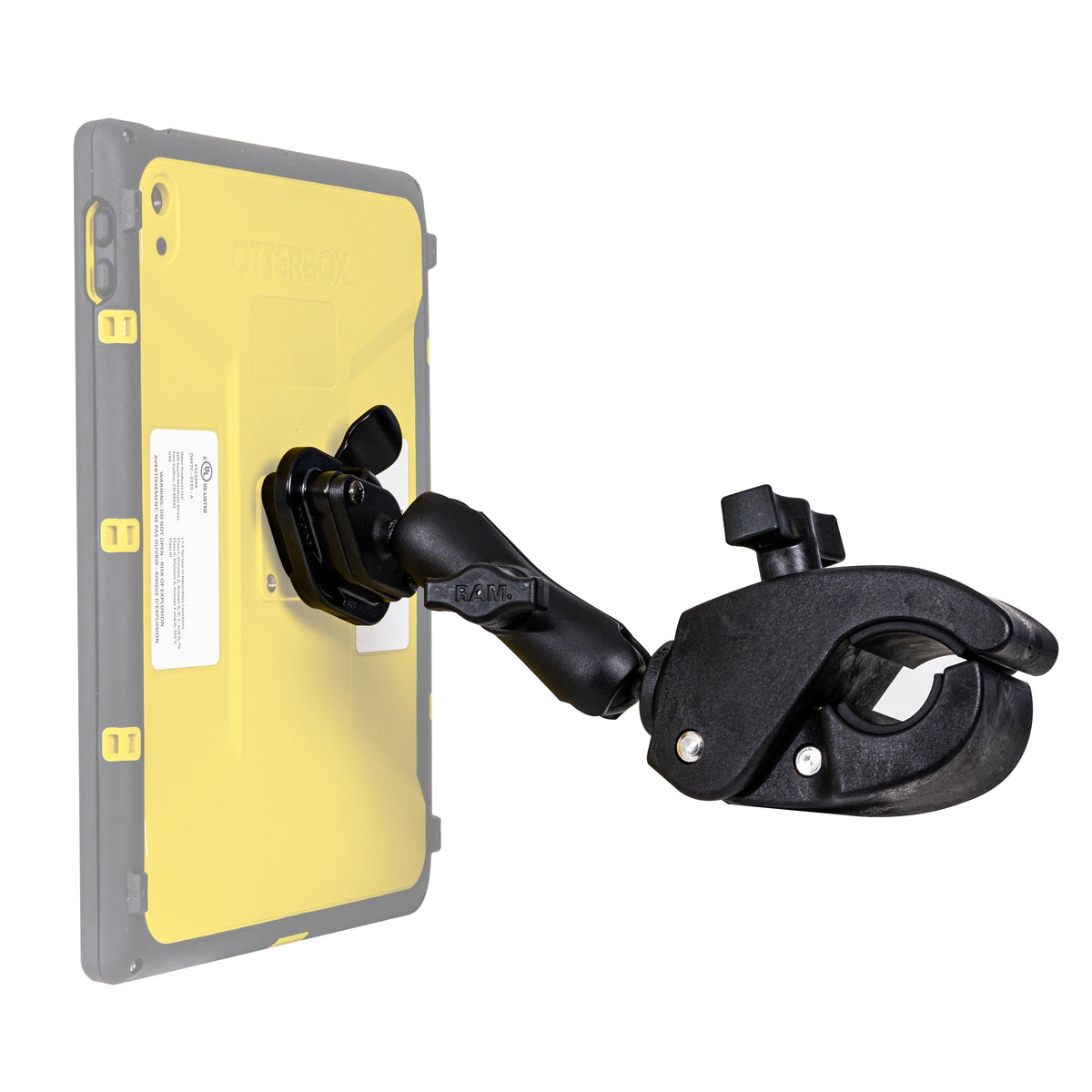

• Fits standard cradles: RAM developed this kit with OtterBox for Hardline Series cases, but the adapters suit any cradle with the 2-hole AMPS pattern

What's Included

• RAP-B-404U Tough-Claw™ medium clamp base with 1" ball
• Medium B Size double socket arm
• RAP-326U EZY-Mount™ quick release adapter kit

Works With

Any RAM® cradle with the 2-hole AMPS pattern. Running more than one device? Add a RAP-326FU female adapter to each extra cradle.

Dimensions & Specifications

• Clamp range: 25.4mm to 40.6mm (1" to 1.6") diameter
• Arm: 76mm (3") socket to socket
• Hole pattern: 2-hole AMPS, 48.6mm (1.912") centre to centre
• Ball size: B Size, 25.4mm (1")
• Weight capacity: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
• Material: high-strength composite
• Weight: 463g (1.02 lb)
• Hardware: assembly hardware included
